Factory Directly Exporting Tractor Driven Round Straw Baler Grass Baling Machines Hay Baling Press Mini Hay Baler
Factory directly exporting tractor driven round straw baler grass baling machines hay baling press mini hay balerThe hay baler machine applicationThe hay baler machine/straw bundling machine is widely used in agriculture and animal husbandry. It can collect and bundle dry and green grass, straw, whe......
Send Inquiry
Product Description
Factory directly exporting tractor driven round straw baler grass baling machines hay baling press mini hay baler
The hay baler machine application
The hay baler machine/straw bundling machine is widely used in agriculture and animal husbandry. It can collect and bundle dry and green grass, straw, wheat stalk, corn stalk, wheat/ rice straw, grass, corn straw, pasture straw bale, etc. After baled by the machine, the bundle is very convenient for transportation, reserve and deep processing, and it matches with envelop machine to achieve the enveloping of ensile. So, the hay straw baler machine is very welcomed by domestic and overseas farmers.

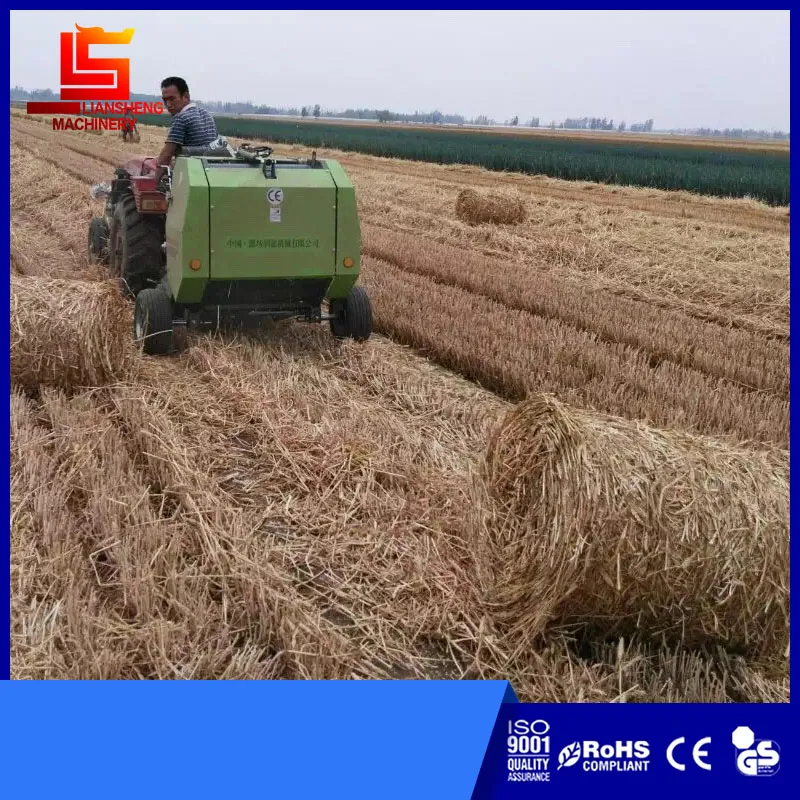

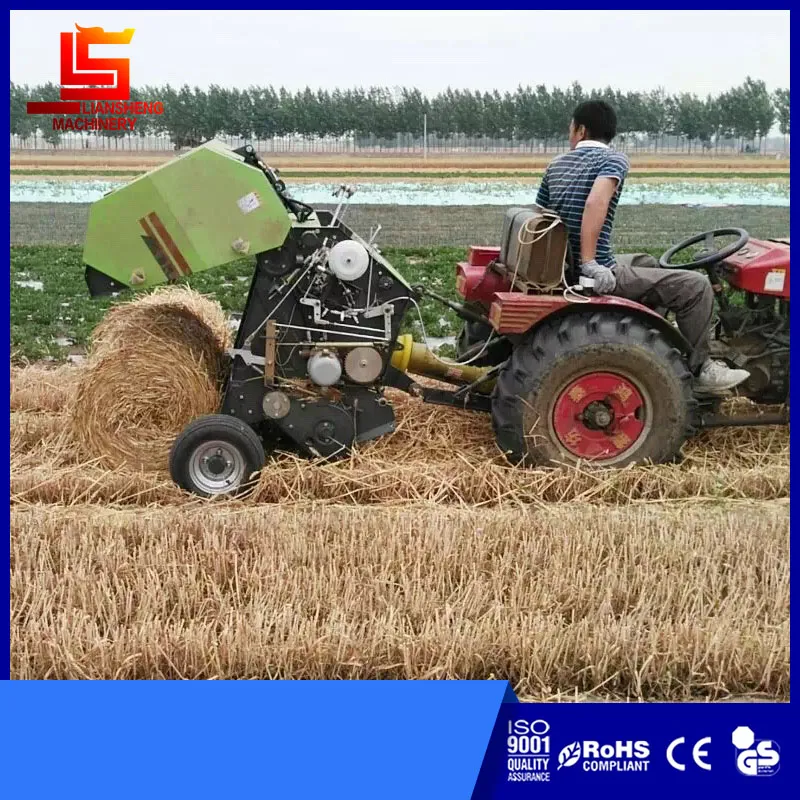

Working principle of hay baler machine:
This hay baler machine is suitable for the tractor with more than 18-45 horse power. This machine is composed of the picking system, rolling pressing system, threading system and bale locating system which bales the soft culm and grasses (rice straw,wheat straw, grass etc) fully automatically. The finished density of the bale is 90 kg/m³.
Technical parameters of hay baler machine:
Main parts of the hay baler machine:
The hay baler machine consists of main machine, pick-up part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, three point linkage etc. It can move and work with a 15-90 HP tractor by PTO shaft. Automatic operate: led rope, pick up wheat straw hood, bundle , cut twine automatically, can cut through the tank round the size of the adjustment, to come loose, not messy.
RFQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below:
The hay baler machine application
The hay baler machine/straw bundling machine is widely used in agriculture and animal husbandry. It can collect and bundle dry and green grass, straw, wheat stalk, corn stalk, wheat/ rice straw, grass, corn straw, pasture straw bale, etc. After baled by the machine, the bundle is very convenient for transportation, reserve and deep processing, and it matches with envelop machine to achieve the enveloping of ensile. So, the hay straw baler machine is very welcomed by domestic and overseas farmers.
Working principle of hay baler machine:
This hay baler machine is suitable for the tractor with more than 18-45 horse power. This machine is composed of the picking system, rolling pressing system, threading system and bale locating system which bales the soft culm and grasses (rice straw,wheat straw, grass etc) fully automatically. The finished density of the bale is 90 kg/m³.
Technical parameters of hay baler machine:

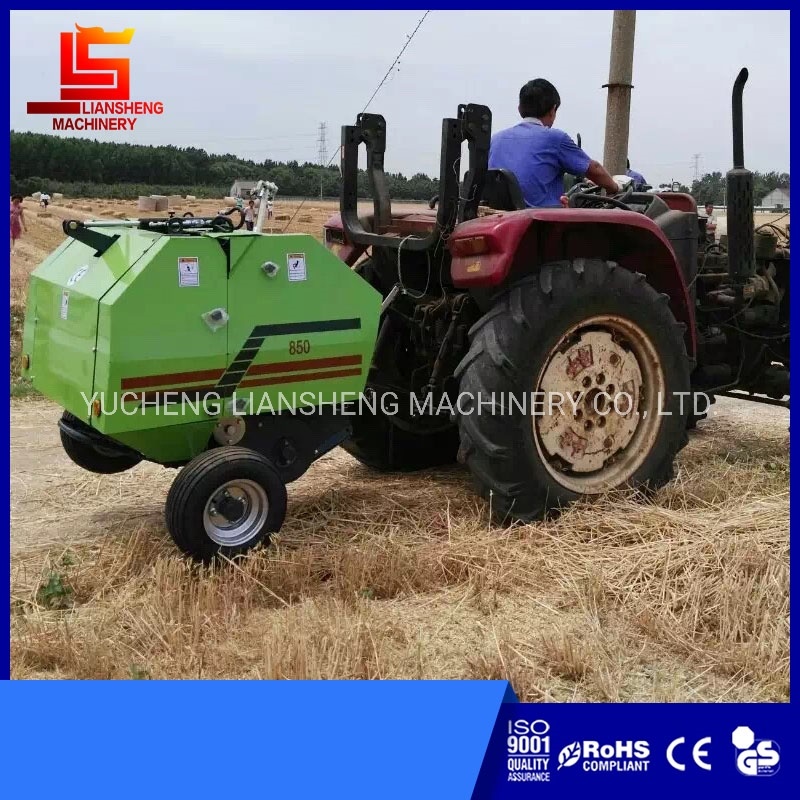

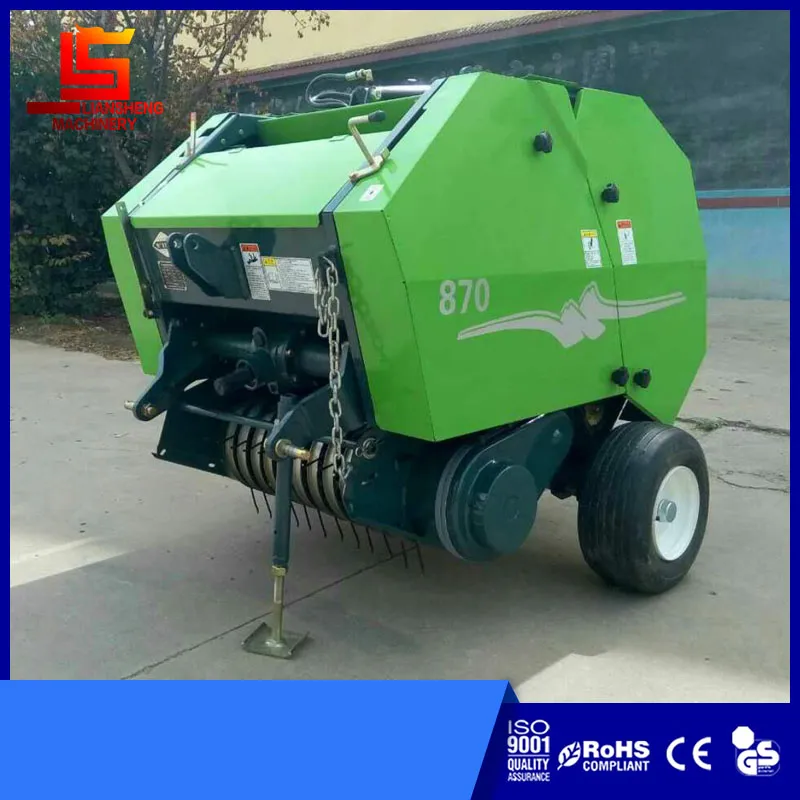

| Model | 850 | 870/870F | 1070/1070F |
| Pick up width | 700mm | 800mm | 950mm |
| Dimension size | 115*130*120cm | 131*146*138cm | 131*167*156cm |
| Bale size | 50x70cm | 60x70cm | 62x95cm |
| Drum rotation speed | 200 r/s | 200 r/s | 200 r/s |
| Working speed | 2-5 km/h | 2-5 km/h | 3-8 km/h |
| Working efficiency | 1500-3000 kg/h | 1500-3000 kg/h | 1950-3900 kg/h |
| Density | ≥115kg/m3 | ≥115kg/m3 | ≥115kg/m3 |
| PTO speed | 540 r/s | 540 r/s | 540 r/s |
| Matched power | 25-50HP | 25-50HP | 25-50HP |
| Weight | 400kg | 450kg | 500kg |
| Bale weight | 15kg | 15-30kg | 30kg |

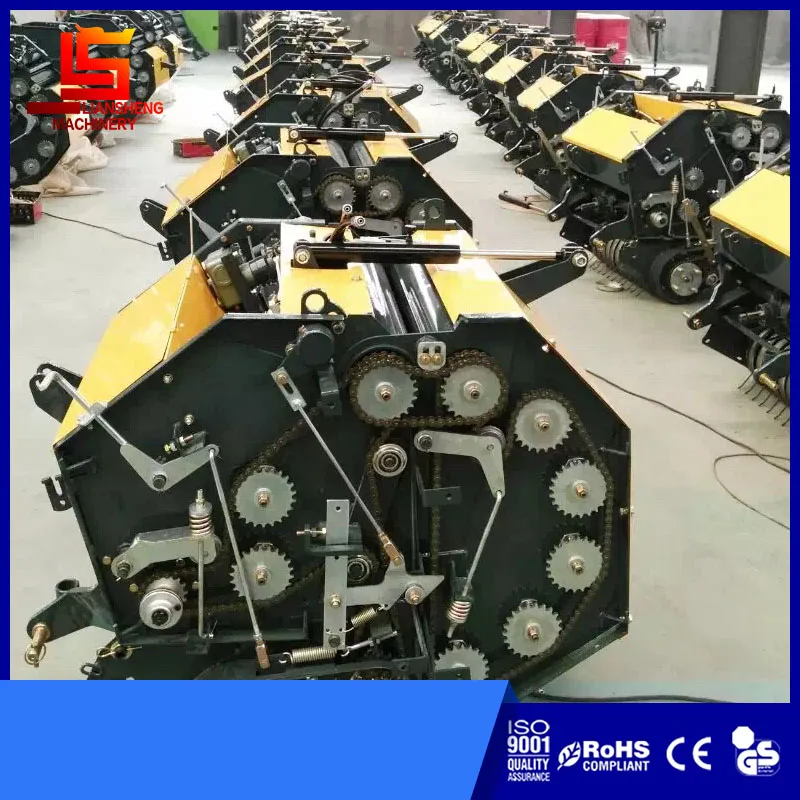

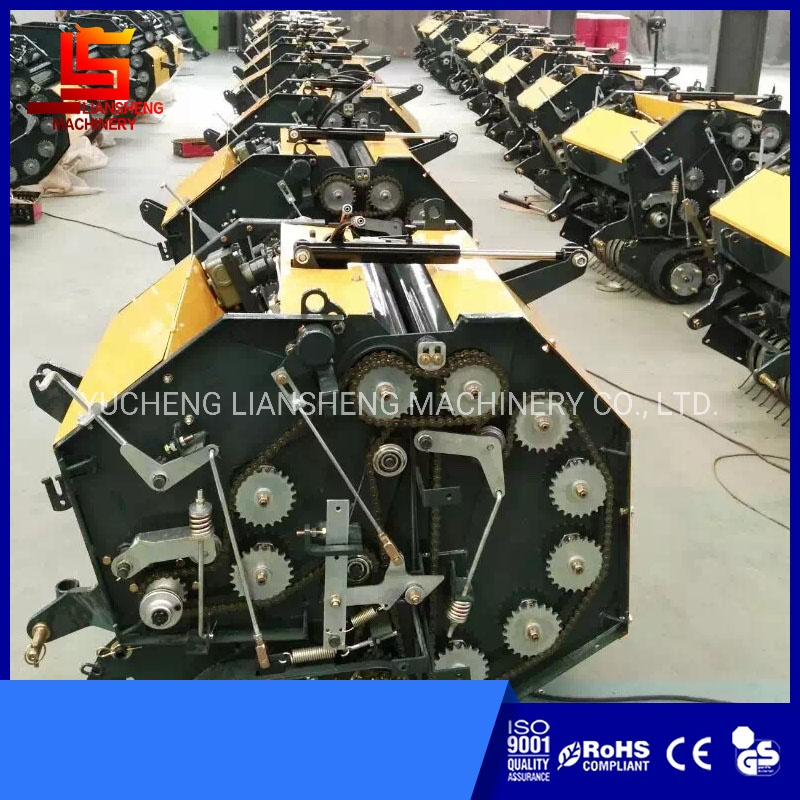

The hay baler machine consists of main machine, pick-up part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, three point linkage etc. It can move and work with a 15-90 HP tractor by PTO shaft. Automatic operate: led rope, pick up wheat straw hood, bundle , cut twine automatically, can cut through the tank round the size of the adjustment, to come loose, not messy.
RFQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below:
