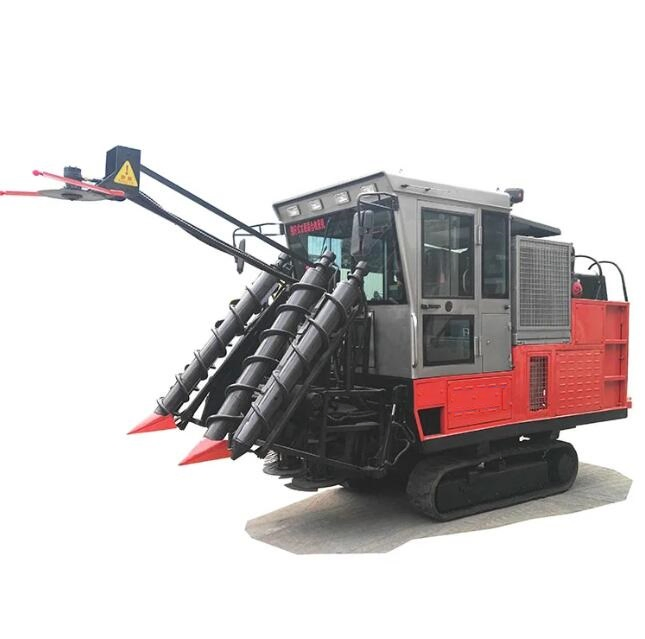

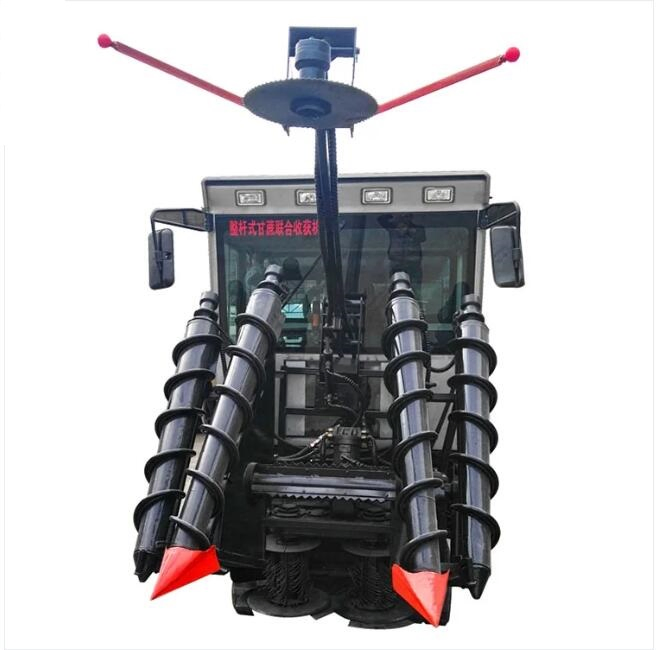

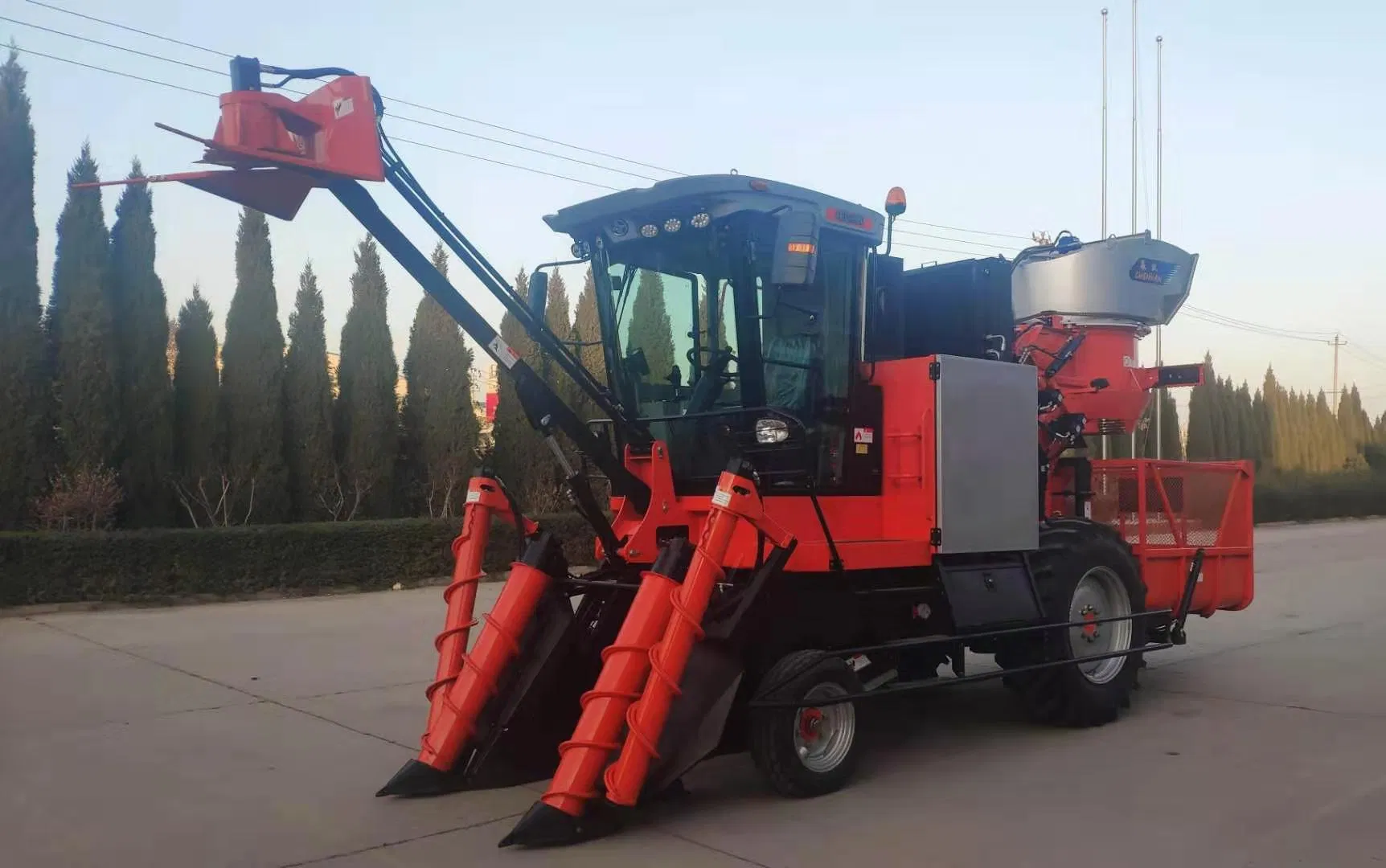

John Deere Sugarcane Harvester, Second Hand Harvester of John Deere , John Deere Used Machine, John Deere

Product Description

Model	SH310
Power	180Hp @2200
Fuel Consumption Than	2.2-3.0L/T
Homework Spaced	≥1100mm
Minimum Bending Radius	5500mm
Max. Gradability	25%
Pure Work Efficiency	≥20t/h
Impurity Rate	≤8%
Total Loss	≤7%
Harvest Speed	≤9km/h
Engine Brand	Bosch, Germany
Travel Driving Type	Hydraulic drive
Drive Qty	2
Min. Ground Clearance	320mm
Adjustable Range Of Cutting Device	400mm
Structural Model	double disc cutting
Max. Diameter Of Rotation	555 mm
Rotated Speed	840 r/min
Blade Qty	4
Average Ground Pressure	6.2Kpa
Machine Weight	about 8100 kgs
Collection Weight	About 1300 kgs
Discharge Way Of Sugarcane	Jicun type high discharge
Overall Dimension	About 8550x2450x3800mm (L x W x H)
Not all technical parameters listed, contact us for more information We reserves the right to revise the above parameters at the final engineering stage with the prior notice to customer

Technical Features:

1. 180 HP Bosch engine High pressure common rail system, powerful & fuel-efficient

2. Adopt high discharge proprietary technology, with special transportation vehicles, more convenient unloading, more harvest efficient

3. Adopt whole girder patented technology, lower machine center gravity, walk steadily, driving comfortable, faster turnarounds, which could adapt to a certain slope plots of medium of sugarcane harvest

4. Transmission channel using independent floating drum of tubular, differential transmission patent technology, conveying a more open sugarcane cleaner

5. Whole machine adopts electric-hydraulic control system and the mode of a multiple job choice, one key operation, the harvest operation more convenient & comfortable

6. Carry big dipper, GPS tracking & positioning system, CAN bus technology,

7. Mobile network system, effective monitoring real-time sensor data, which can realize remote monitoring diagnosis

8. Hydraulic system heat dissipation independently with control rotate speed of fan and energy saving and lower noise
9. All electric parts are using Europe or America brands. The connectors enjoys reliable quality with waterproof, dust proof and anti-loose
10. The sensor control technology which is capable of monitoring machine working state.
11. The machine walking adopting one-button operation, the diversion controlled by imported steering wheel with comfortable operation.
