Product Description

Four - wheel Tractor With Three - point Suspension Share Plow Bottom Plow Trailed Share Plow Trailed Moldboard Plough Trailed Share Plough

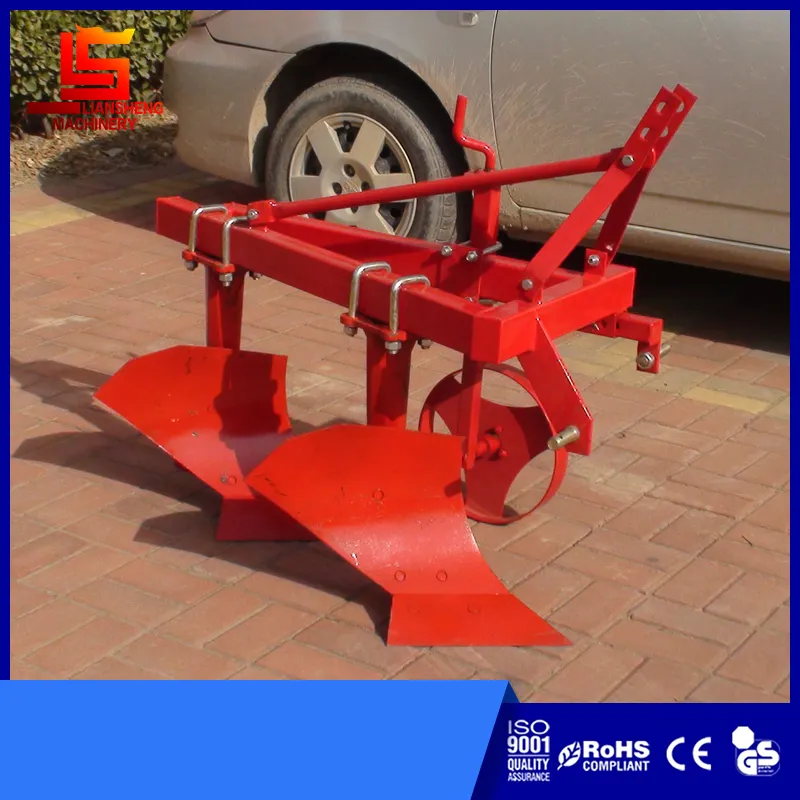

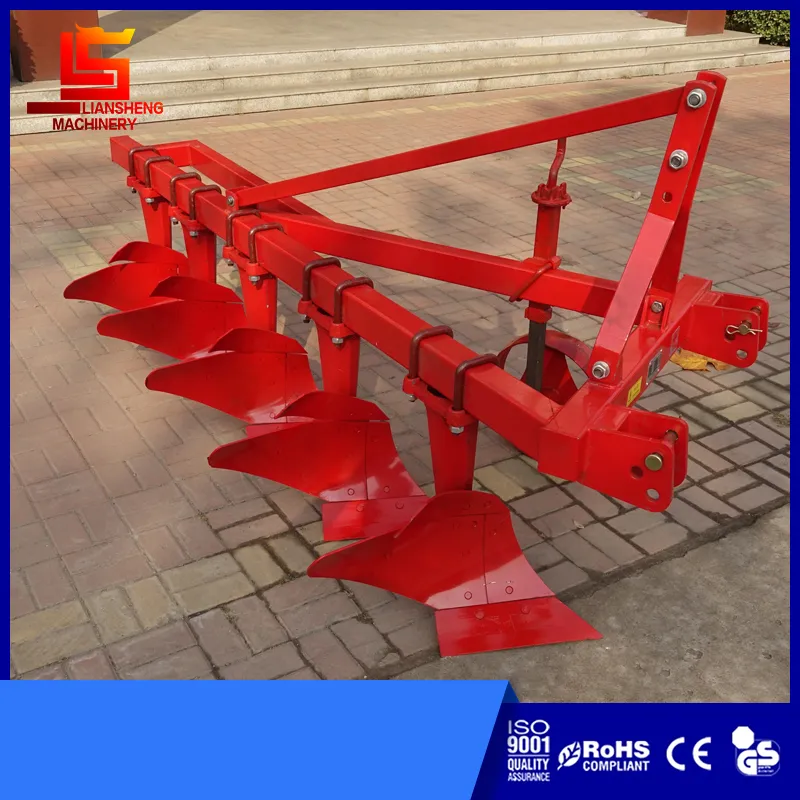

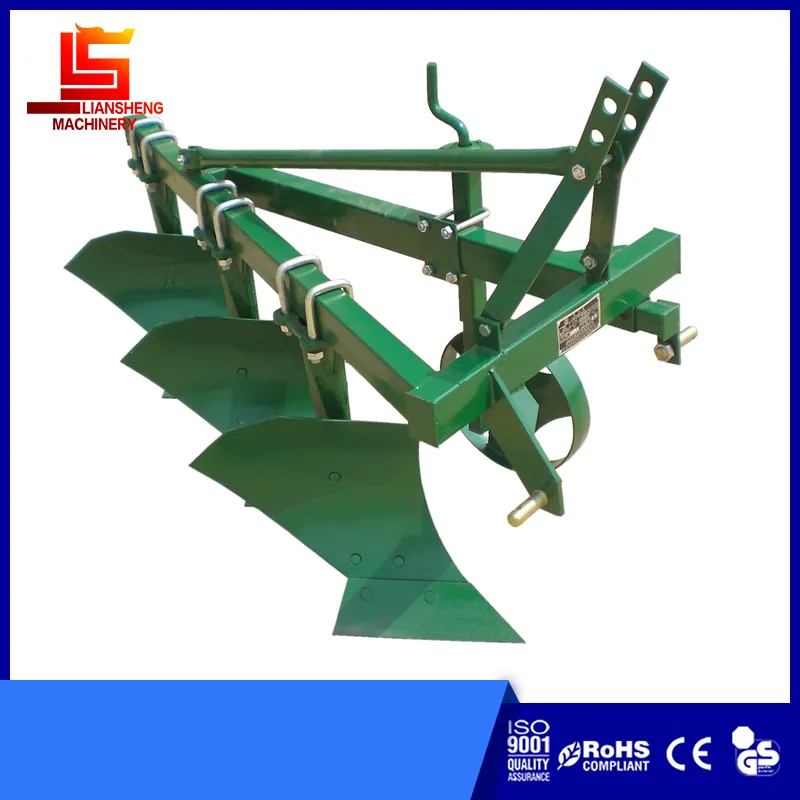

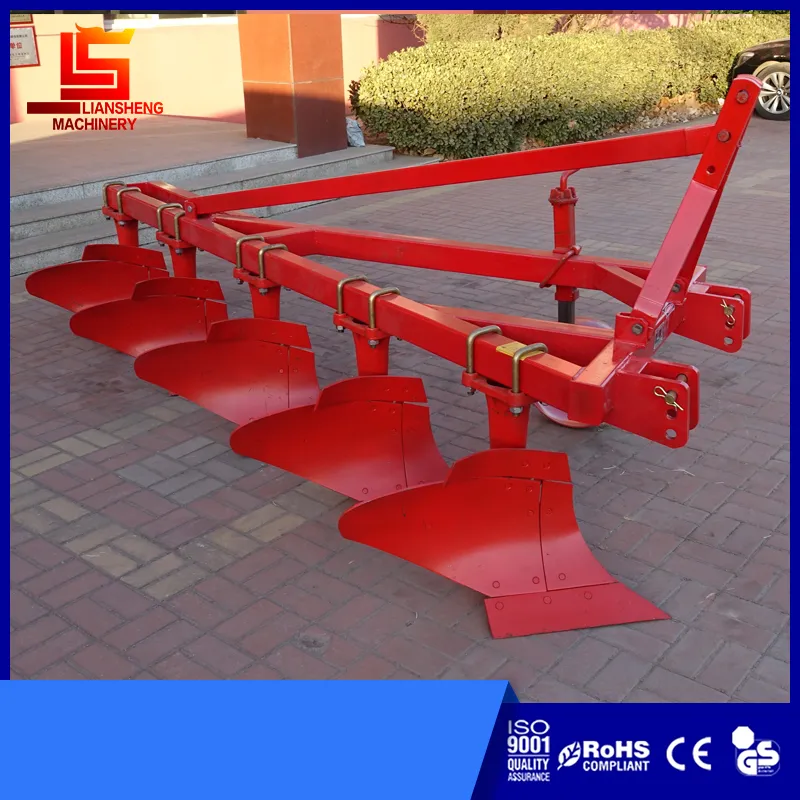

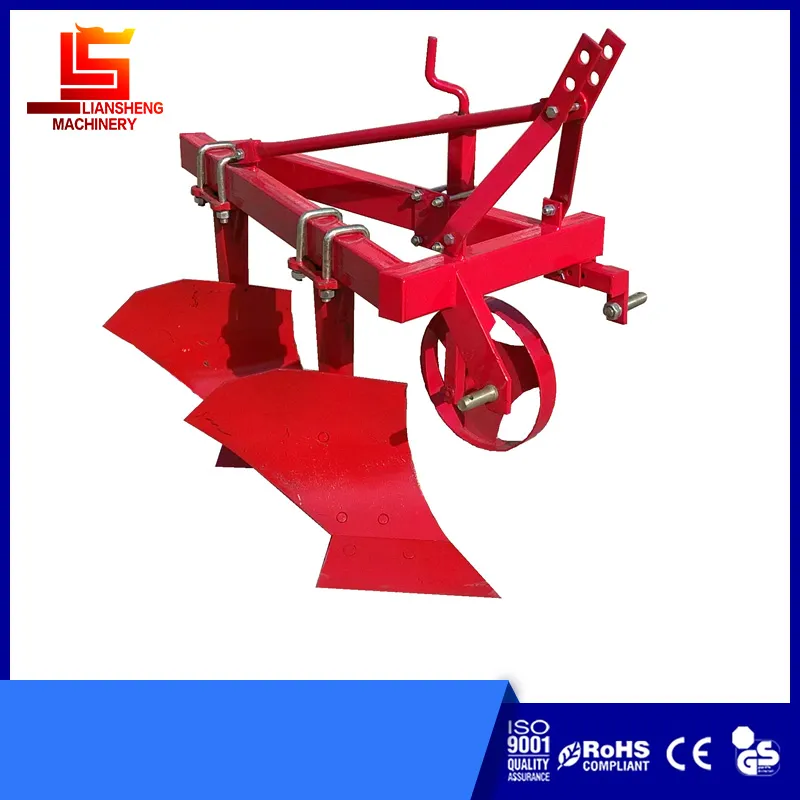

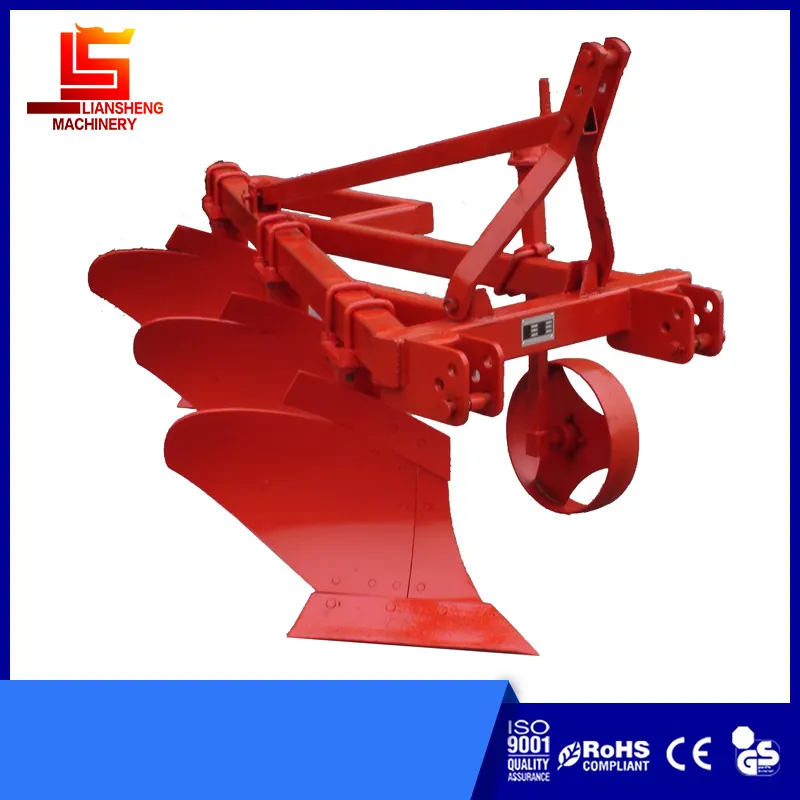

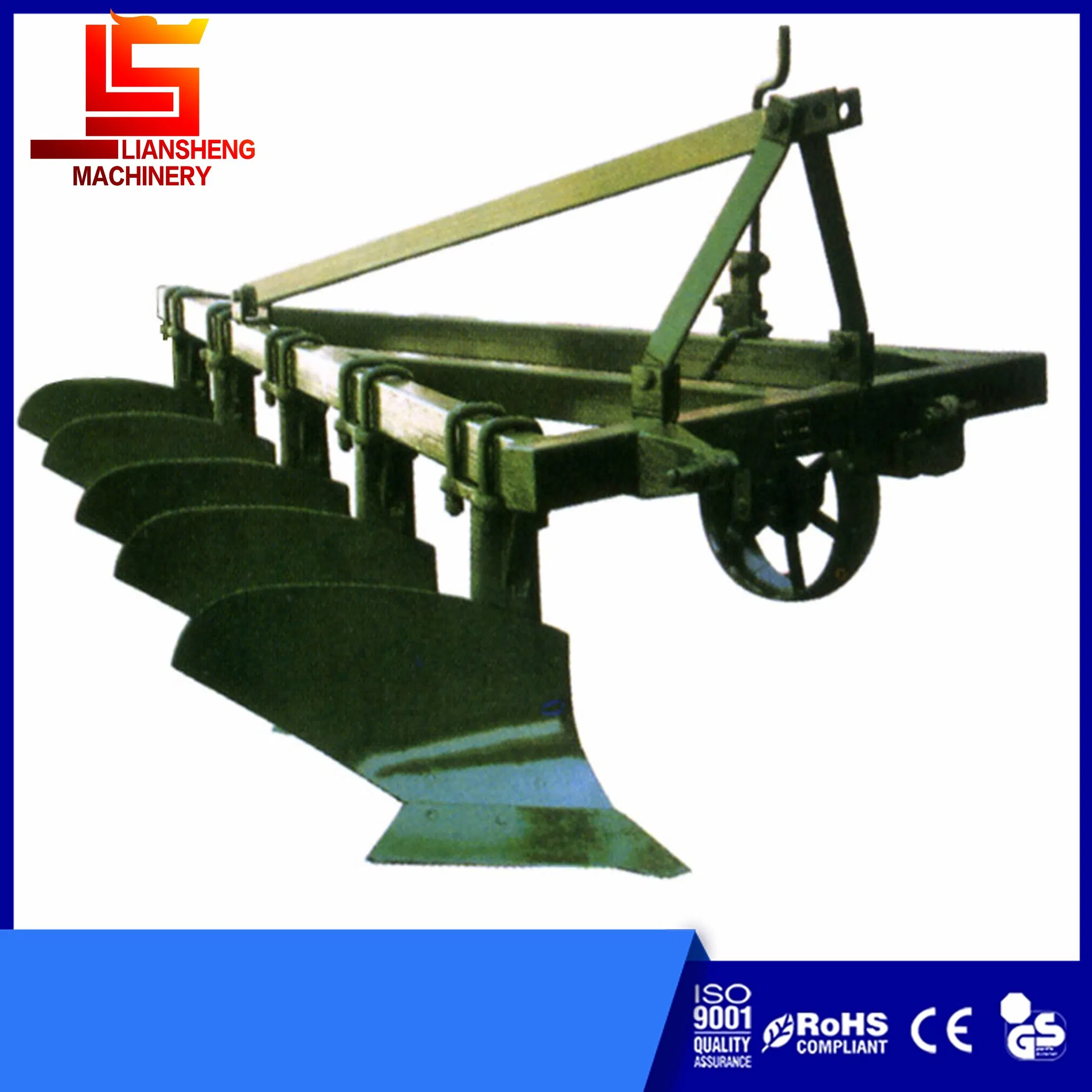

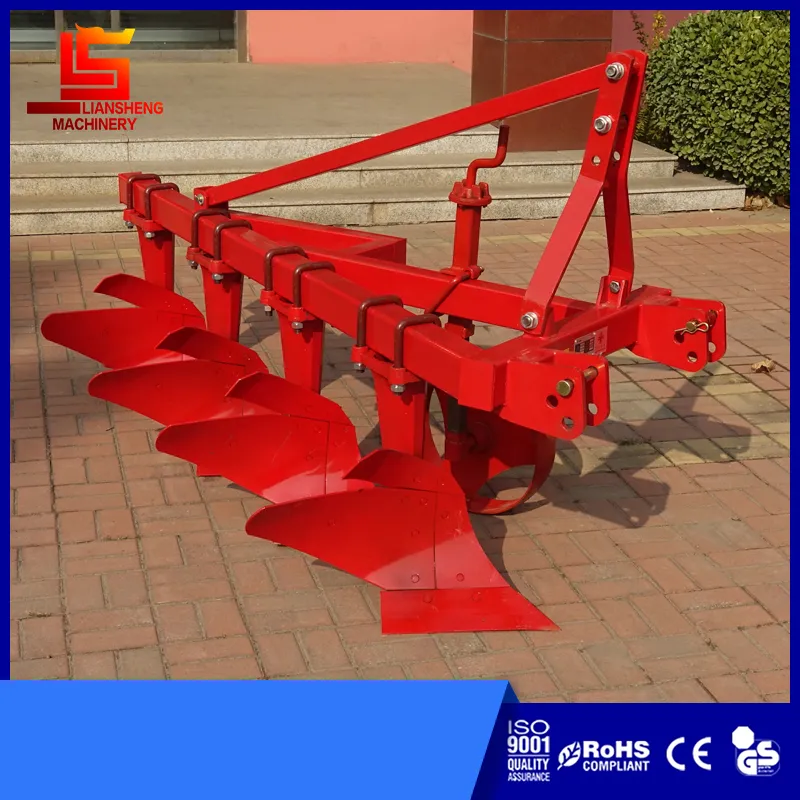

The 1L series share plough is suitable for loam, or sandy loam soils in the cultivated area. It is compact in construction, and versatile in application. After plowing, the land surface is smooth and the furrow is narrow with a good pulverization and mulching.
Feature
1. Ploughing Suitable for sandy loam, loam, clay soil and paddy field
2. The upper layer of soil and organic compounds on the surface are reversed deeply under the earth.
3. Plowing green manures, trashes and organic matter is effectively mixed with the soil and decays rapidly into humus.
4. The soils are well crushed and after working, the land surface is plane.

Model	unit	1L-220	1L-320	1L-420	1L-520	1L-225	1L-325	1L-425	1L-525
Working width	m	0.4	0.6	0.8	1	0.5	0.75	1.0	1.25
Working depth	mm	200~250				200~250
No. of bottoms	set	2	3	4	5	2	3	4	5
Matched power	HP	12~18	25~30	30~45	45~60	20~25	30~35	40~50	55~65
Overall weight	kg/set	80	115	145	180	125	228	330	435
Linkage		standard three point mounted
