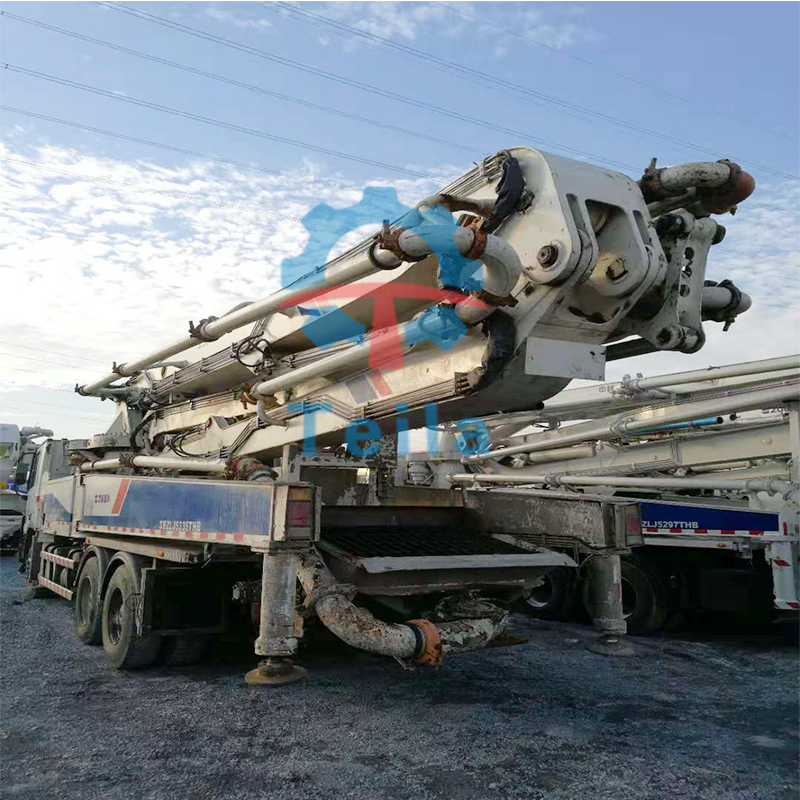

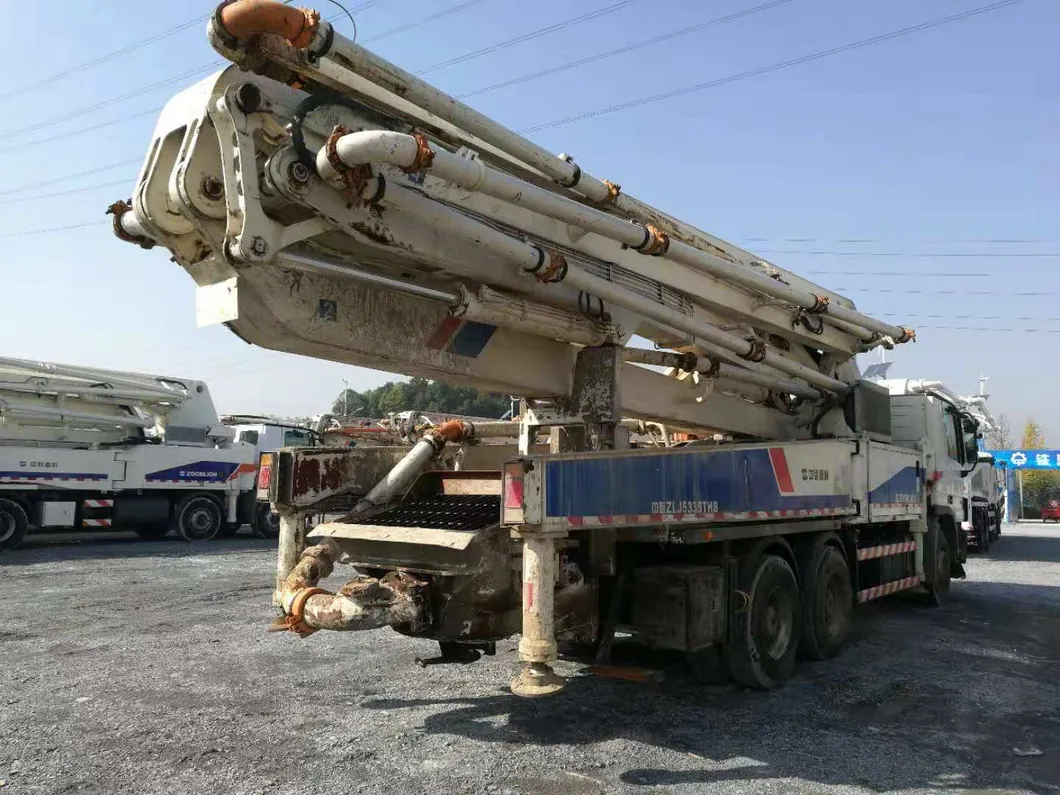

2011 Zoomlion 47m Old and Used Concrete Boom Pump

Product Description

ZLJ5335THB47X-5RZ
Compact in design, 52m pump mounted on a 4-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 6 arms,which gives a wide work range.
• One side lateral support enables to work in narrow sites.

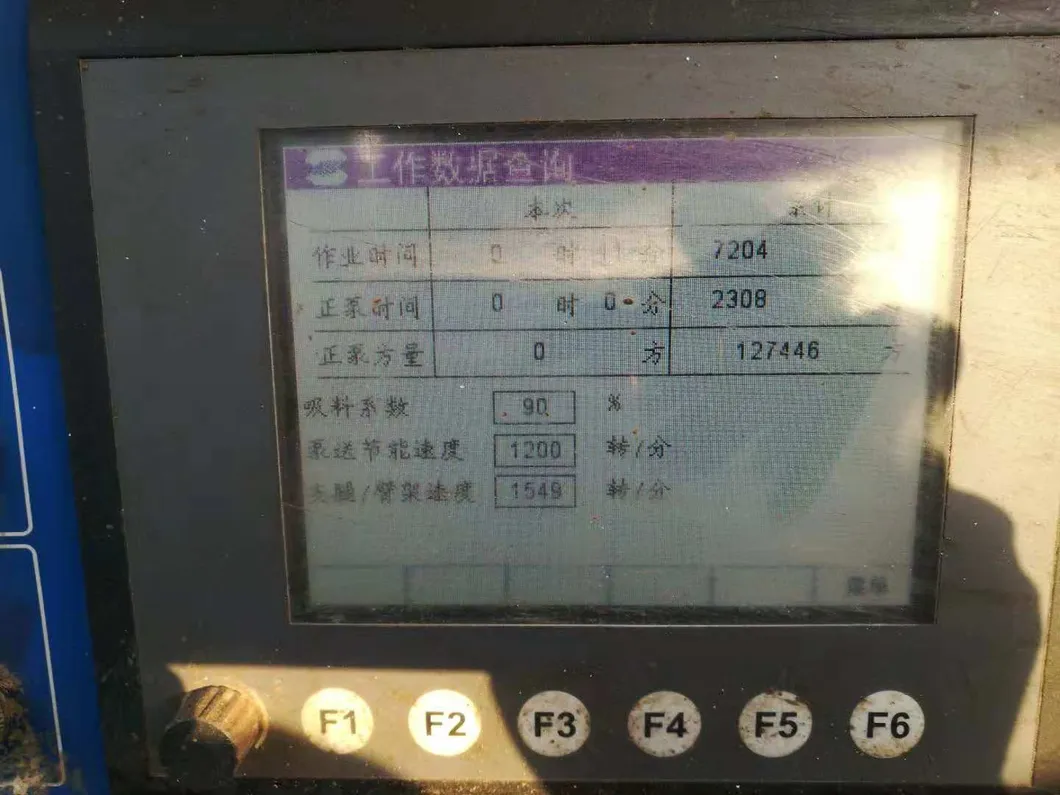

• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.

Brand		Zoomlion

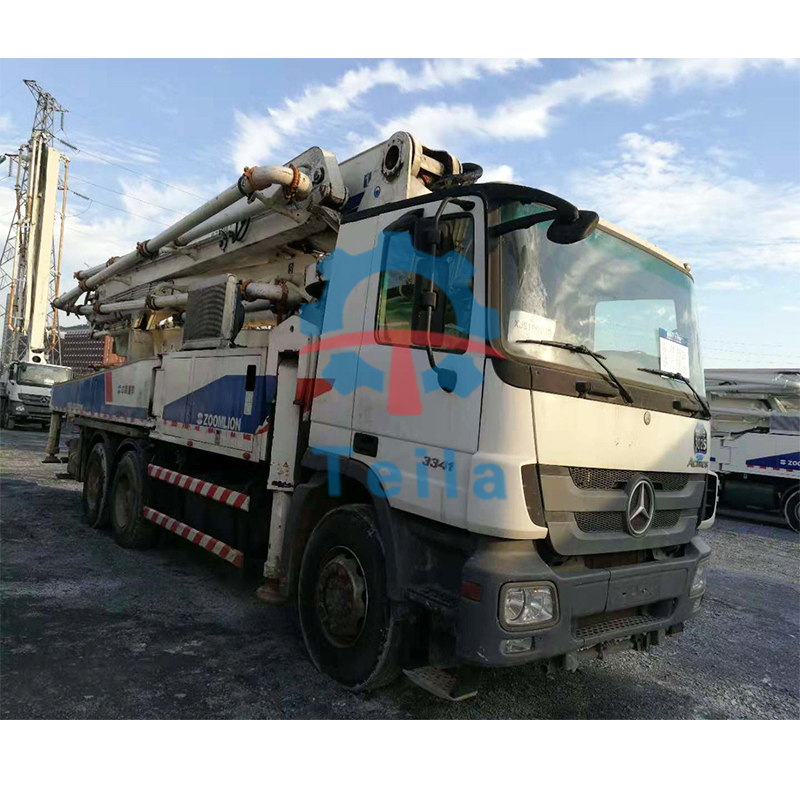

Chassis Brand		Mercedes-Benz Actros 3341
Model		ZLJ5335THB 47X-5RZ
Released date		2011
Fob price		USD106000
Chassis	Cabin	Mercedes-Benz Actros 3341
	Drive mode	6*4
	Engine model	OM501LA.III/17
	Emission standard	Euro3/11.946L
	Max output power(Kw/rpm)	300/1800
	Max torque(N·m)	2000/1800
	Rear axle: ratio/loading capacity	25.8 tons
	Braking system	Full air,dual circuit
	Wheelbase(mm)	4500+1350
	Tire	295/80R22.5
	GVW (Kg)	33500
	Overall dimension(mm)	1200025004000
Boom&Pump system	Vertical reach	47m/5 section
	Pipe size	125mm
	End Hose(L*D)	3000*125mm
	Output (Low/High-pressure)	120/70m³/h
	Pressure (Low/High-pressure)	7/11Mpa
