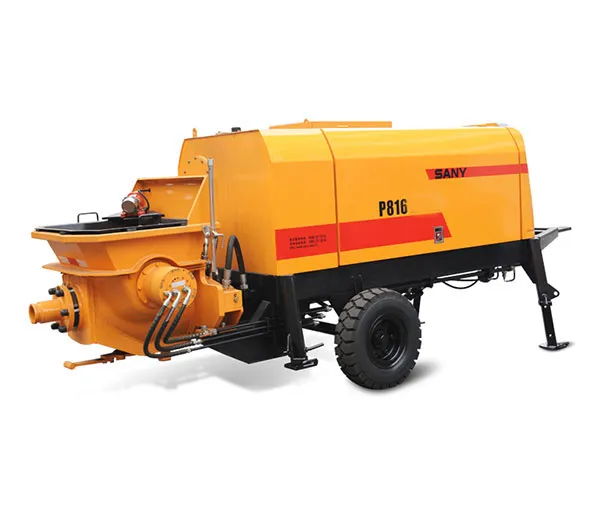

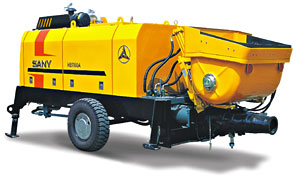

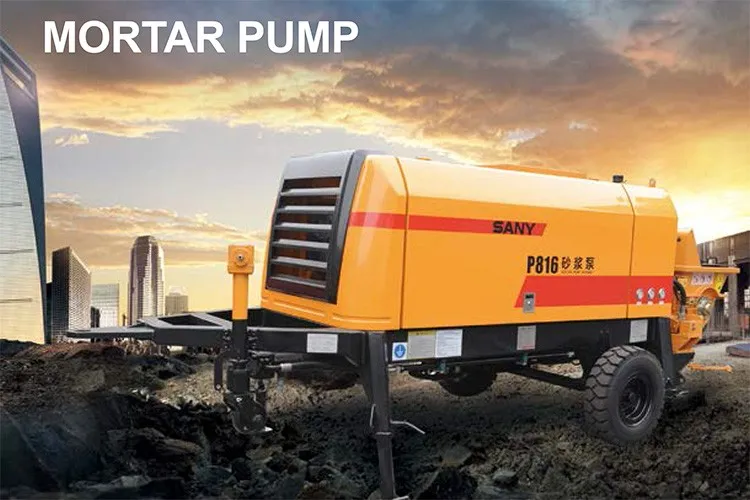

8m3/H 37kw Electric Mortar Pump P816
8m3/h 37kW Electric Mortar Pump P816 S-any P816 electric mortar pump with the high-pressure and large displacement system outputs 8 cubic meter per hour with an outlet pressure of 8 MPa. The 8 cubic meter electric mortar pump is capable of pumping to a height of up to 100m.High Efficiency Pumping Sy......
Send Inquiry
Product Description
S-any P816 electric mortar pump with the high-pressure and large displacement system outputs 8 cubic meter per hour with an outlet pressure of 8 MPa. The 8 cubic meter electric mortar pump is capable of pumping to a height of up to 100m.
High Efficiency Pumping System
Hydraulic double-cylinder piston pumping system delivers smoother flow and spraying.
Automatic lubrication system extends the service life of the pistons.
Improved material path reduces pumping resistance and pipe blockages.
Superior pump control valve design, equipped with high-pressure relief valves, ensure safe and easy cleaning.
Advanced Hydraulic System
Innovative hydraulic system design matches any job application in the field.
The high-pressure, large displacement system outputs 8 m³/h with an outlet pressure of 8 MPa. Capable of pumping to a height of up to 100m.
Electronically controlled reversing function provides quick, smooth direction change and optimizes pumping continuity.
Constructed with globally recognized, quality components.
Precise Control System
The SAN-Y developed SYMC control system offers real time control and monitoring on a high-definition display.
Automatic pre-start checks provide worry free operation.
Ergonomic design provides precise control and reduces operator fatigue.
| MODEL | P816 |
| Total mass (kg) | 3700 |
| L*W*H | 5426×1804×1883 |
| Power system | |
| Rated power (kW) | 37 |
| Rated speed (r/min) | 1480 |
| Engine model | (Y225S-4-H)37-70.4 B35 |
| Maximum throughput (high pressure) (m ^ 3 /h) | 8 |
| Conveying pressure (high pressure) (Mpa) | 8 |
| Conveying cylinder size × stroke (m) | 0.12×1.4 |
| Hopper volume × feeding height (m) | 0.4×1.23 |
| Inner diameter of concrete conveying pipe (mm) | 50 |
| Maximum allowable aggregate diameter (mm) | 8 |
| Hydraulic oil tank volume (L) | 195 |
| Hopper capacity (m ^ 3) | 0.4 |
