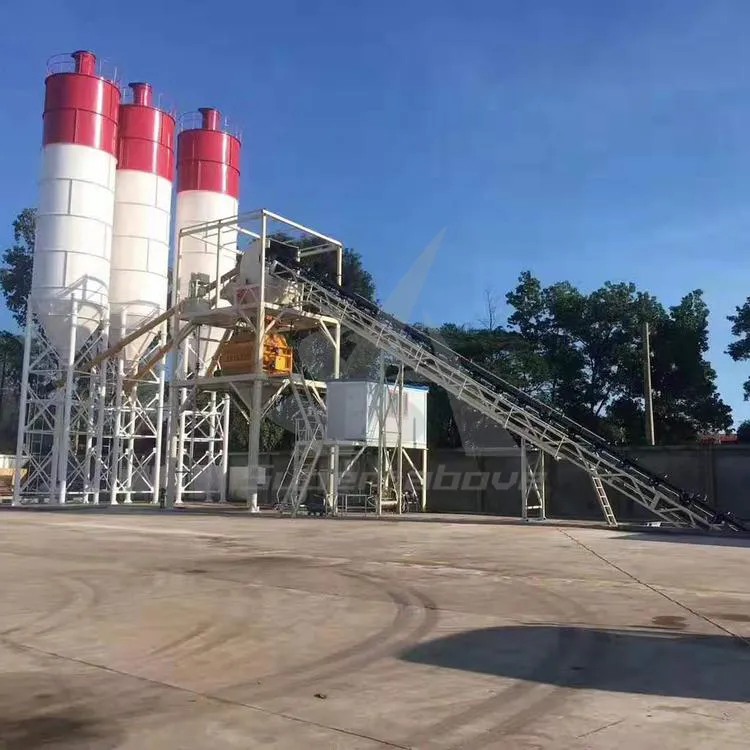

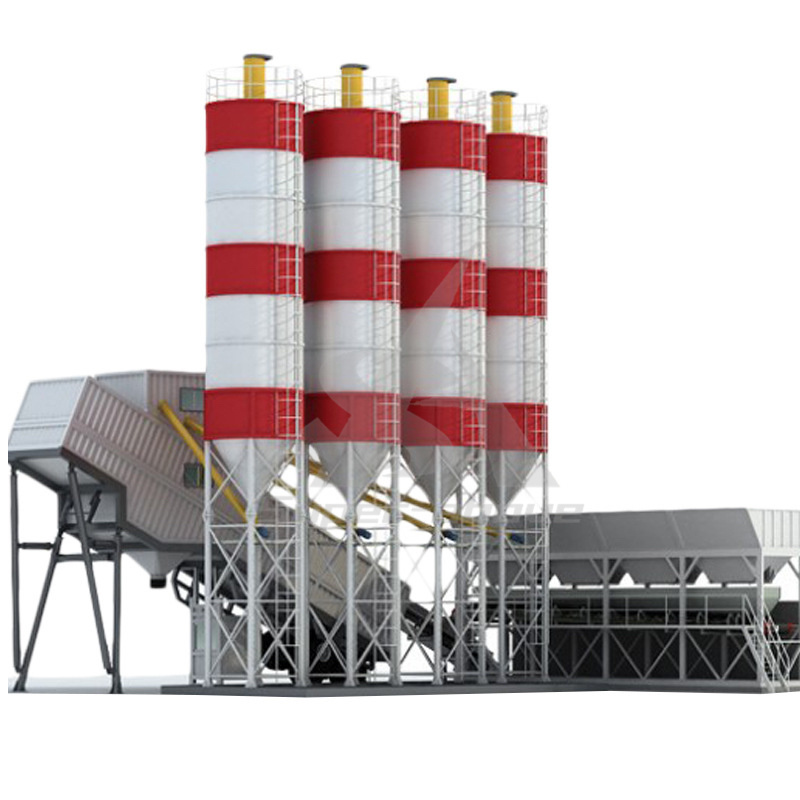

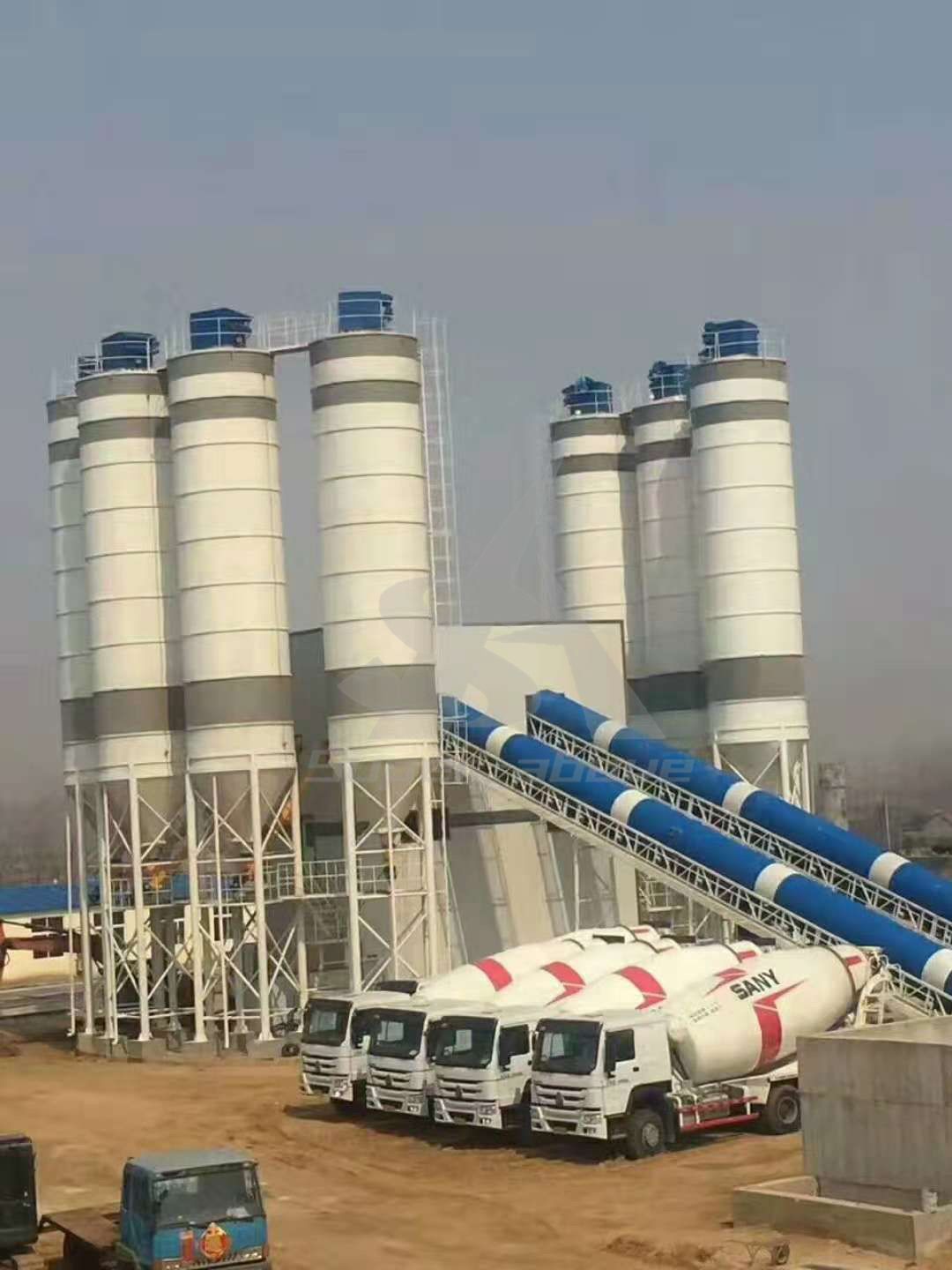

90m3/H Fixed Concrete Batching Plant with Best Price
90 ready mixed stationary concrete batching plantstationary concrete batching plant is one of the best-selling products of CamelWay. stationaryconcrete batching plant mainlyincludes mixer JS1000 ,batching machine,conveying system,weighing system etc.High wear-resistant alloy twin shaft mixer is dura......
Send Inquiry
Product Description
90 ready mixed stationary concrete batching plant
stationary concrete batching plant is one of the best-selling products of CamelWay. stationaryconcrete batching plant mainly

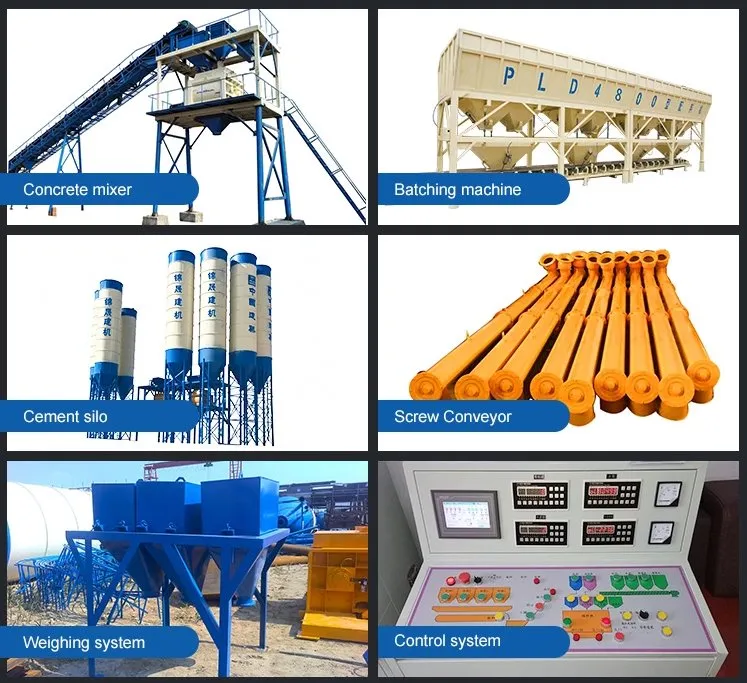

includes mixer JS1000 ,batching machine,conveying system,
weighing system etc.High wear-resistant alloy twin shaft mixer is durable.Belt filling is high effciency .With theoretical
productivity 60m3/h, stationary concrete batching plant is applied to roads, airports,ports project and concrete production.
Features:
1,JS1500 with two kinds reducers: cycloidal reducer and planetary reducer;
2,High efficiency with 90m3/h productivity;
3,Stable pneumatic system;
4,Easy-operating with imported SCHNEIDER and SIEMENS components in PLC+PC model;
5,Well-designed electrical system;
6,High-resistant manganese steel alloys;
7,Adjustable hydraulic discharging door;
Technical parameters

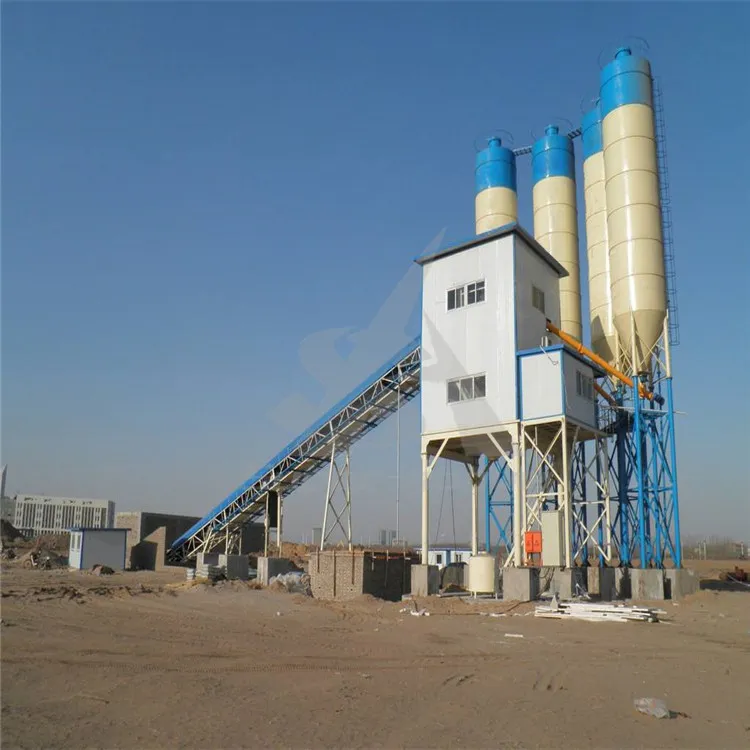

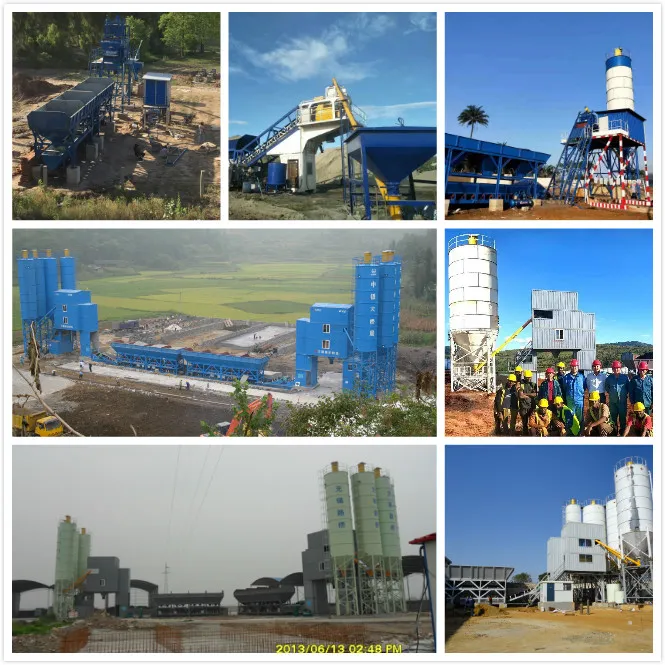

Our Cases
stationary concrete batching plant is one of the best-selling products of CamelWay. stationaryconcrete batching plant mainly
includes mixer JS1000 ,batching machine,conveying system,
weighing system etc.High wear-resistant alloy twin shaft mixer is durable.Belt filling is high effciency .With theoretical
productivity 60m3/h, stationary concrete batching plant is applied to roads, airports,ports project and concrete production.
Features:
1,JS1500 with two kinds reducers: cycloidal reducer and planetary reducer;
2,High efficiency with 90m3/h productivity;
3,Stable pneumatic system;
4,Easy-operating with imported SCHNEIDER and SIEMENS components in PLC+PC model;
5,Well-designed electrical system;
6,High-resistant manganese steel alloys;
7,Adjustable hydraulic discharging door;
Technical parameters
| Product Name | HZS90 Continouos Concrete Batching Plant |
| Application | Building,Road,Railway,Bridge etc.Construction Project |
| Productivity (m3 /h ) | 90 |
| Mix Recycle Time(s) | 60 |
| Mixer Model | JS1500 Concrete Mixer Machine |
| Batching Machine Model | PLD2400 Batching Machine |
| Discharging Way | Auto Hydraulic |
| Aggregate Feeding Method | Belt Conveyor |
| Control System | Centralized Computer Control |
| Cement Silo | 100T/200T/As Requirement |
| Product Keywords | 90 cubic meters hzs concrete mixing plant |
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS90 | HZS120 | HZS180 | |
| Capacity (m3/h) | 25 | 35 | 50 | 60 | 90 | 120 | 180 | |
| Mixer | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS2000 | JS3000 | |
| Aggregate batcher | PLD1200 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD3200 | PLD4800 | |
| Discharge height (m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 4 | 4 | |
| Cycle time (s) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Weighing accuracy | Aggregate | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Cement | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |
| Water | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |
| Additive | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |

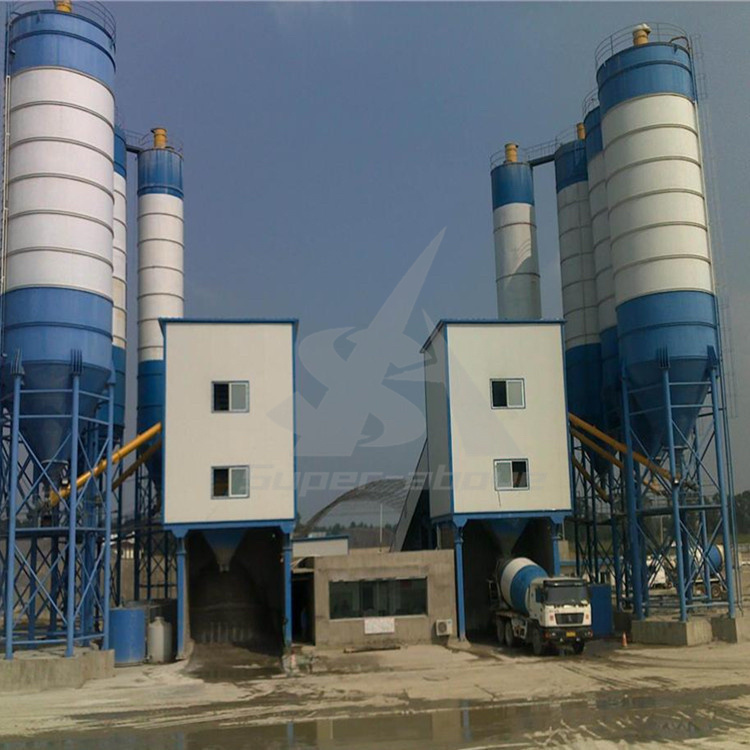

Our Cases
