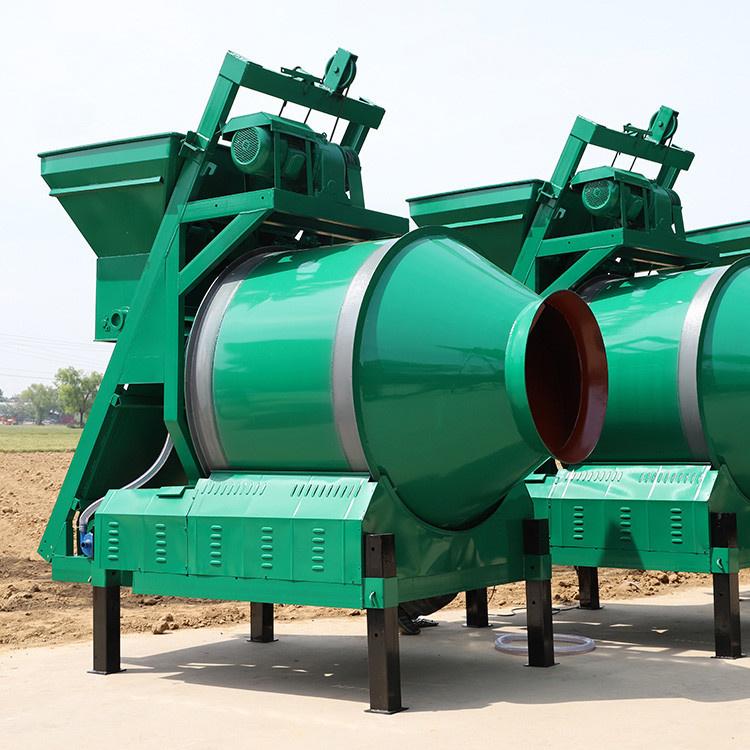

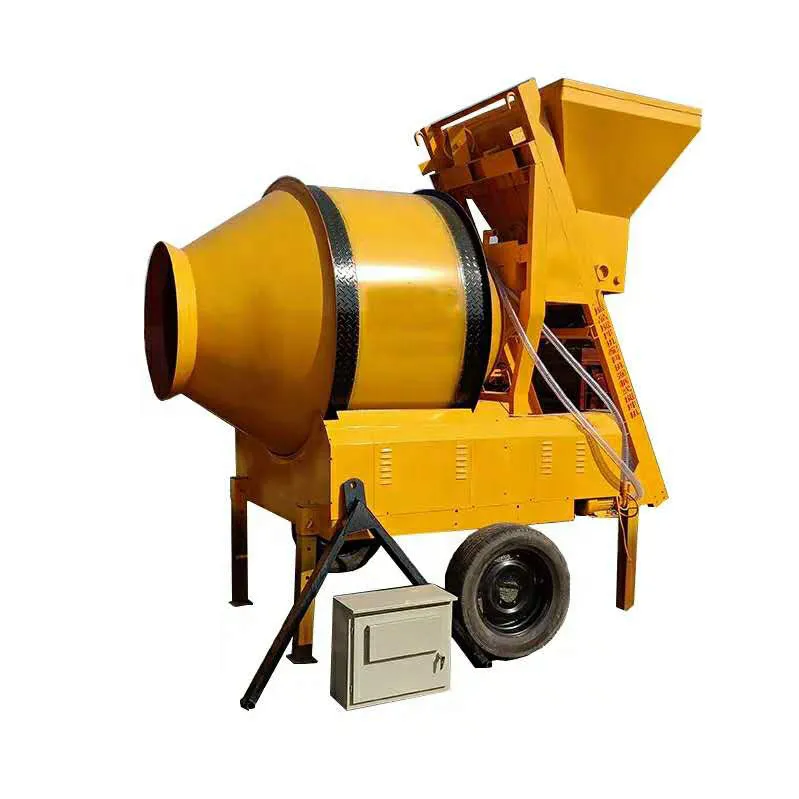

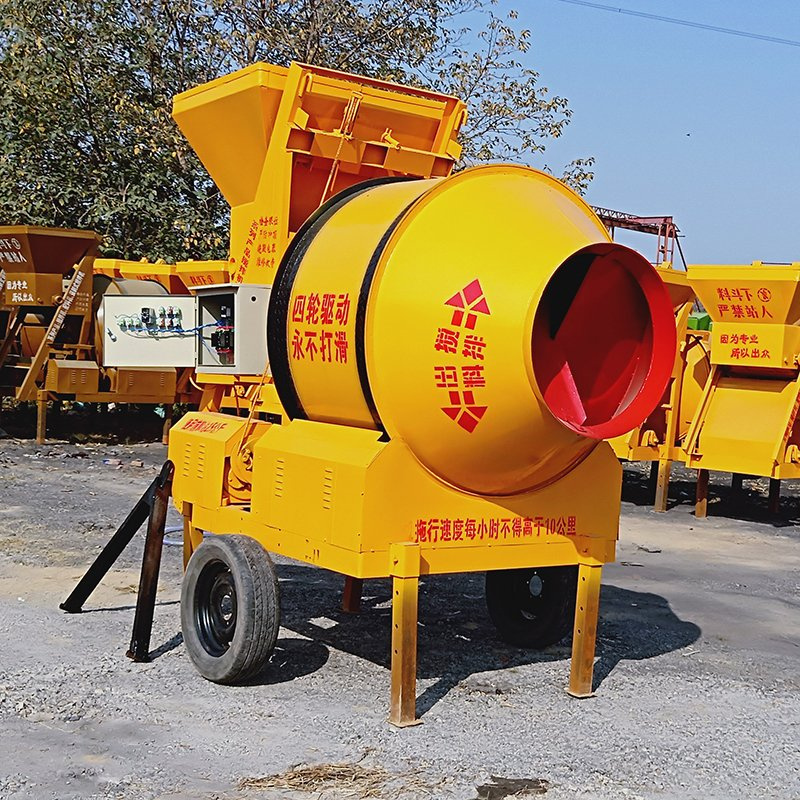

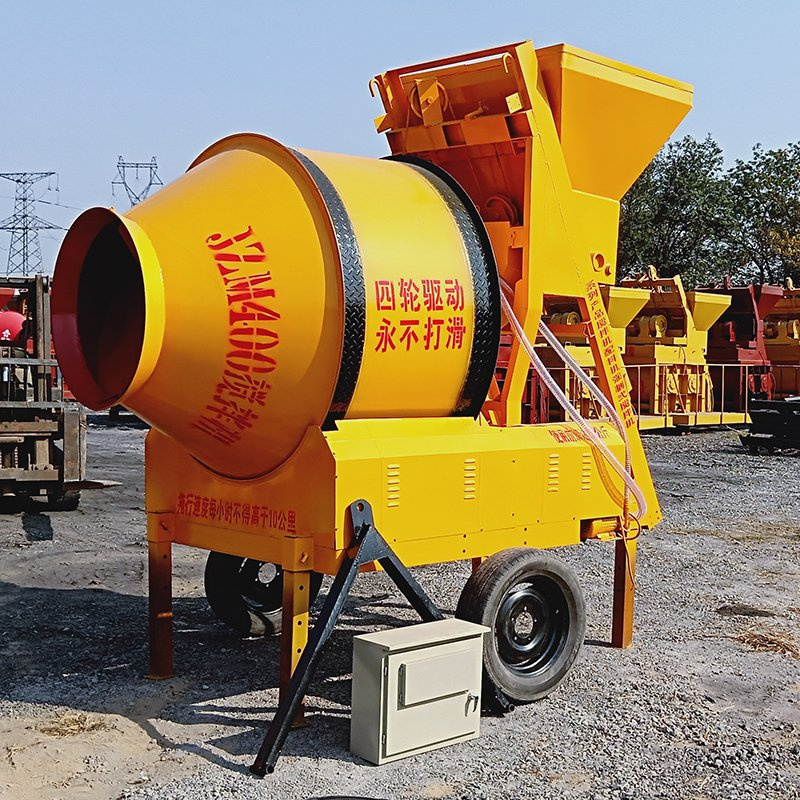

Cheap Price Cement Mixer Concrete Automatic Loading Mixer Cement Diesel Motor Drum Mixer

Product Description

Brief Introduction

1 . It is a middle capacity self-dumping mixer;
2. Power source: diesel engine. So it can also be used in areas without electricity supply.
3.The concrete mixer is of bigger capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete. The aggregate size is required to be smaller than 60 mm.
4.The drum revolves for mixing and reverses for discharging. The rated output capacity of this mixer
is 0.50 cubic meter.
5.The mixer is widely used in building site, road and bridge project, and many other construction sites

Model	JZM350	JZM450	JZM500
Discharging capacity	350L	450L	500L
Charging capacity	560L	720L	800L
Capacity	14m3/h	16-18m3/h	18-20m3/h
Drum rotating-speed	13r/min	14r/min	15.7r/min
Max. aggregate size	60mm	60-80mm	60-80mm
Water feeding precision	≤2%	≤2%	≤2%
Gear pump pressure	20MPa	20MPa	20MPa
Tire specification	6.50-16	6.50-16	6.50-16
Max. dragging speed	20km/h	20km/h	20km/h
*Dimension (LWH, mm)*	*290022702900mm*	300022702900mm	4520x2300x2900mm
20'GP	3PICS	2PICS	2PICS
40'HC	6PICS	5PICS	5PICS
Total weight	1600kg	1800kg	2200kg
