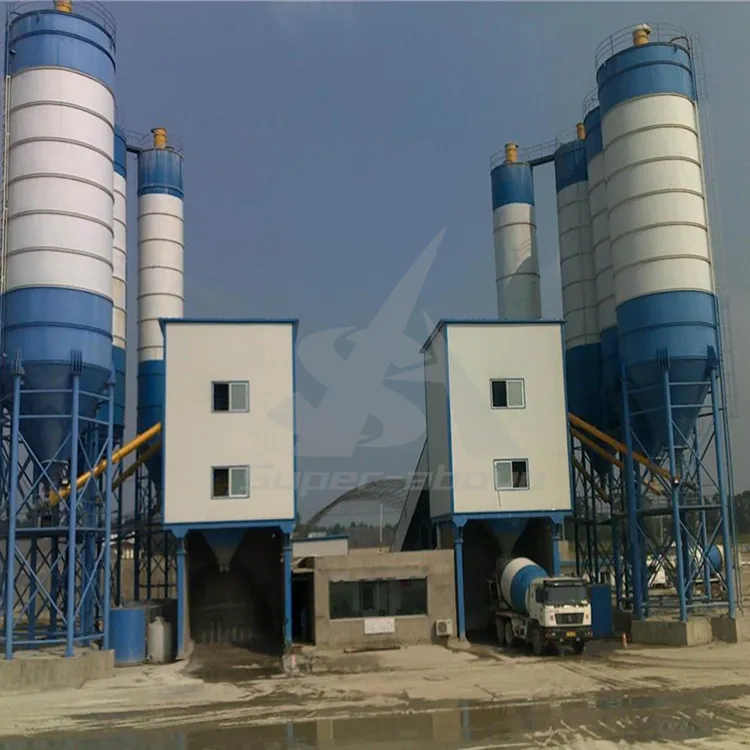

China Low Cost 180m3/H Concrete Batching Plant
Product DetailHZS180 Ready Mix Precast Concrete Equipment 180m3/hHZS Series Concrete Mixing Plant: Stable JS series mixerAggregate hopper:Seperate weinghing system,quite preciseAggregate conveyor:Flat belt conveyorControl system: Double controling computer, branded hardware,stable and easy to op......
Send Inquiry
Product Description

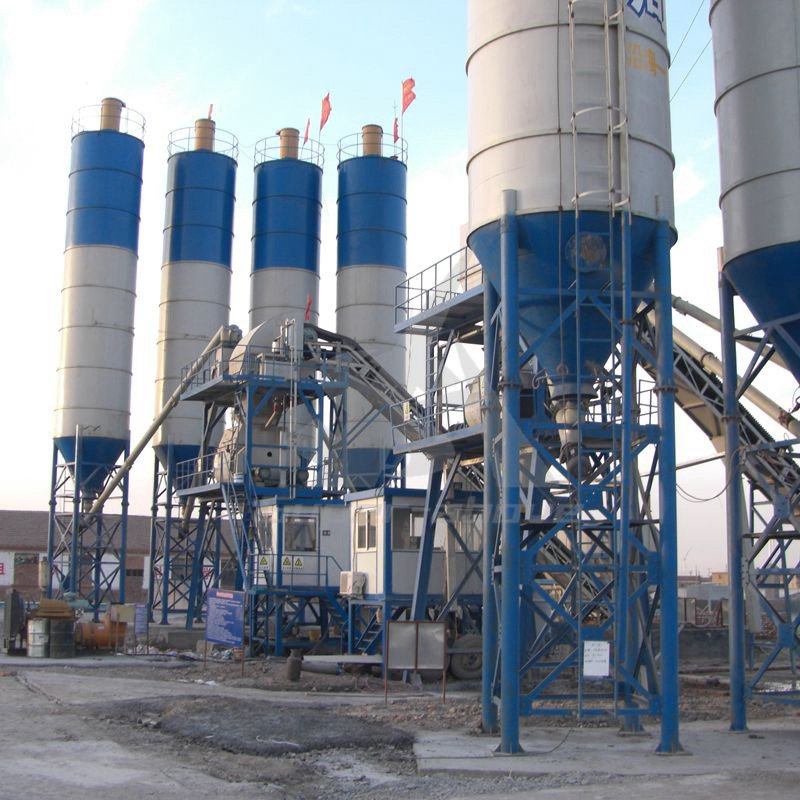

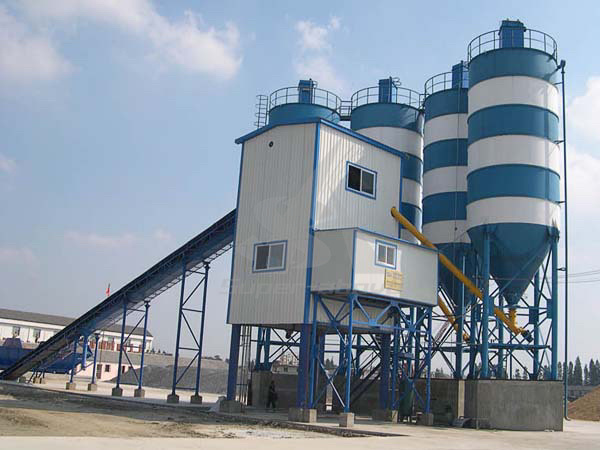

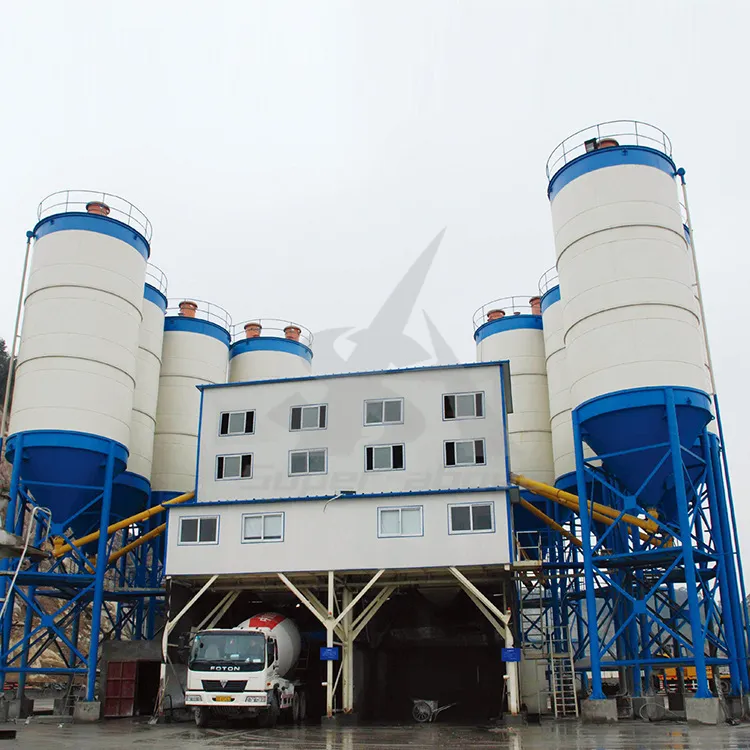

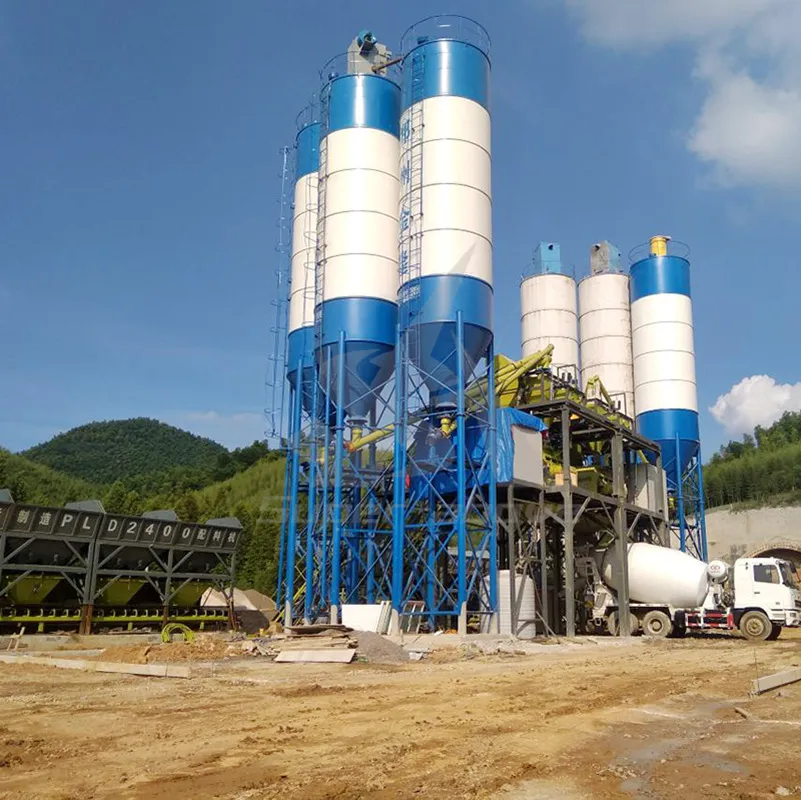

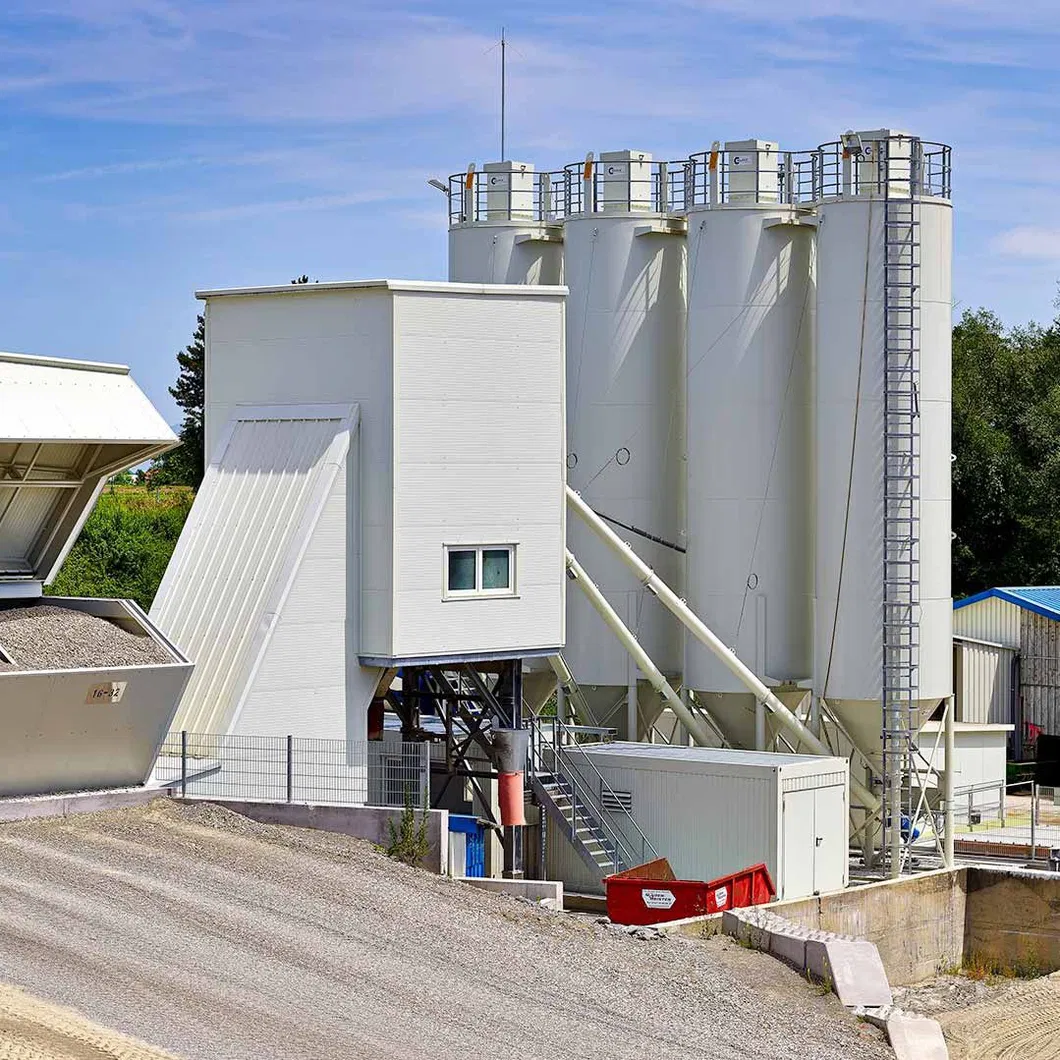

HZS180 Ready Mix Precast Concrete Equipment 180m3/h
HZS Series Concrete Mixing Plant: Stable JS series mixer
Aggregate hopper:Seperate weinghing system,quite precise
Aggregate conveyor:Flat belt conveyor
Control system: Double controling computer, branded hardware,stable and easy to operate .
HZS180,apply JS 3000 mixer,it can well fulfill the need of road ,bridge ,dam and marine construction.With the combination of our rich experience and European teconology.Xin Da machinery has gotten a good reputation at home and abroard.The controlling system applies Siemens(PLC) and other branded hardware ,which help the operation be quite efficient and stable.
Meanwhile ,the weighing system is pricise,it helps the production of cement go on well.
HZS180 Ready Mix Precast Concrete Equipment 180m3/h Main Parameter
Models | HZS180 | |
Production(m3/h) | 180 | |
Mixer | Models | JS3000 |
Mixing power(kw) | 2*55 | |
Output capability(m3) | 3 | |
Aggregate size(mm) | ≤150 | |
Hopper | Hopper capacity(m3) | 20 |
Hopper quantity | 4 | |
Conveyor capability(t/h) | 600 | |
Scope and precision of weighing | Aggregate(kg) | 7000±2% |
Cement(kg) | 1800±1% | |
Water(kg) | 800±1% | |
Admixture(kg) | 30±1% | |
Total power(kw) | 172 | |
Height of discharge(m) | ≥3.9 | |

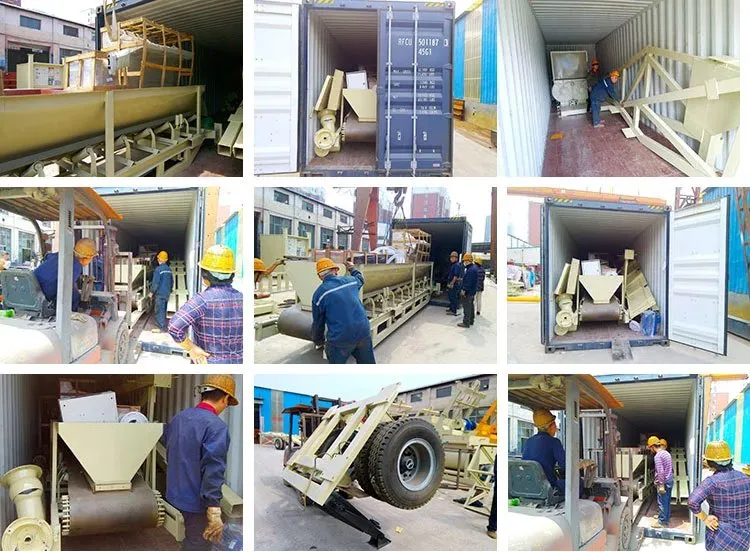

Packing & Delivery

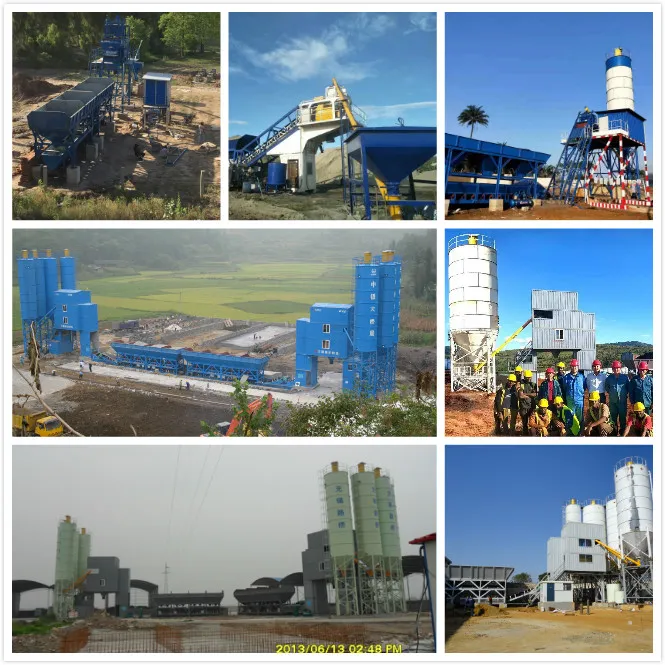

Our Cases
