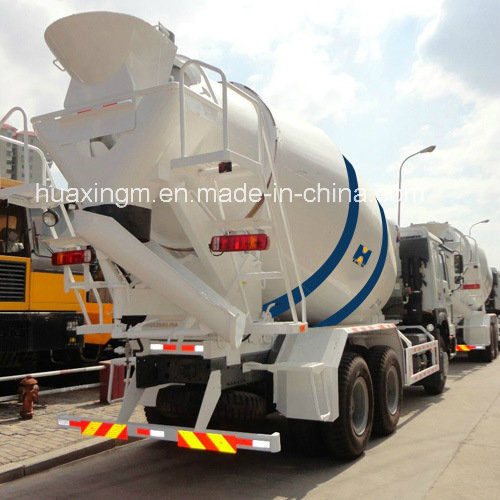

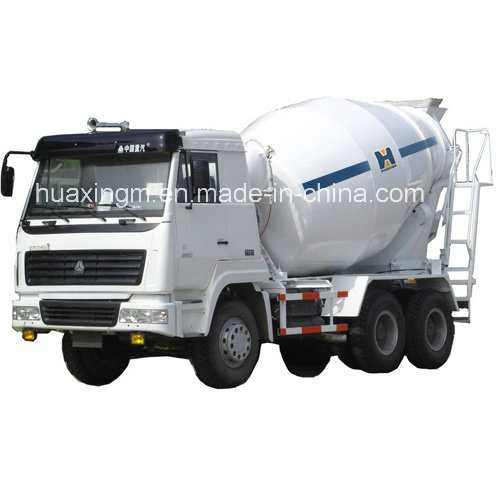

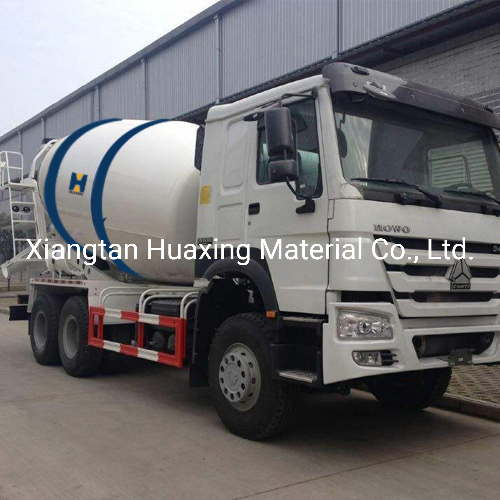

Hot Sale 10 Cbm Concrete Mixer Truck Concrete Machinery
>>> Description1. The leading product technology, complete function, excellent performance, reliable quality, easy to operate. 2. Optimization of body structure, special mold production, beautiful appearance, concrete mixing,discharge uniformity, low rate of residual. ......
Send Inquiry
Product Description
2. Optimization of body structure, special mold production, beautiful appearance, concrete mixing,discharge uniformity, low rate of residual.
3. Imported hydraulic pump, hydraulic motor and speed reducer.
4. Uses the high strength steel plate, long service life.
5. Optimization of the whole structure, low center of gravity, high running efficiency.
6. Product range is wide, the tank capacity of 6 to 18 cubic meters.
7. Choose a variety of auxiliary device.
8. Match all concrete mixer truck chassis.
9. Based on strong technical support and top level technology make the trucks with high quality and more reliable
10. Competitive price, cost-effective
11. Quick and efficient spare parts supply bring you more convenient
12. Fast delivery time, we can arrange production according to your needs exactly and quickly
13. Professional import and export dealing procedure, make customs clearance more high efficiency
>>> Specification
| Model | ZZ1317N3261W | |
| Cab | Lengthen cab | |
| Engine(Hp) | 371 | |
| Power(Kw) | 273 | |
| Engine | Model | WD615.47(Euro II) |
| Horsepower | 371 | |
| Max. output | 273/2200 | |
| Max.torque | 1460/1300-1600 | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
| Bore x Stroke | 126×130mm | |
| Valve | 2 | |
| Displacement | 9.726L | |
| SINOTRUCK (CNHTC), Thermostat with 80ºC opening begin, Rigid fan | ||
| Cab | SINOTRUK HW76 Lengthen cab,single bunk,adjustable steering wheel, EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner. | |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | |
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes | |
| Steering | German ZF8118 Steering Gear Box ,hydraulic steering with power assistance, | |
| Rear Axles | HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle,ratio:4.8 ;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition,heavy impact and overloading,which is the best choice for heavy construction vehicle customers. | |
| Brake System | Service brake:dual circuit compressed air brake. Parking brake (emergency brake):spring energy,compressed air operating on rear wheels | |
| Tyres | Rims:8.5-20,10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. | |
| Electrics | Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W 2x12V,165Ah.Batteries:2x12 V,165 Ah Horn,headlamps,fog lights,brake lights,indicators and reverse light. | |
| Oil Tank | Square type-300L Aluminum alloy fuel tank | |
| Volume (m3) | 10m³ | |
| Stuffing Volume (%) | 59.63 | |
| Feeding Speed (m3/min) | ≥3 | |
| Discharging Speed (m3/min) | ≤3 | |
| Discharge Residue(%) | ≤0.2 | |
| Slump Scope(mm) | 50~220 | |
| Drum Speed (min) | 0~16 | |
| Obliquity(°) | 10 | |
| Water supply System | 1000L/Pneumatic | |
| Drum Material | Steel plate, thickness: 3mm, 4mm, 5mm | |
| Dimensions | Overall length x Overall width x Overall height 11060x2550x4080 Wheel base 1800+3200+1350 | |
| Weight | Kerb weight 14600 Gross vehicle weight 35000 Front axle loading capacity 2x9000 Rear axles loading capacity 2x16000 | |
| Performance | Max.driving speed (km/h) 90 Fuel consumption (1/100 km) 38 | |
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |
| Pump(SAUER T90P75) + Motor (SAUER M75) + Reducer (BONFIJLIOLI 577) | ||
>>> Related products
>>> Company Profile
Xiangtan Huaxing Material Co., Ltd, started business since 1991, and was formally established as a registered company in 2002, with 5.3million RMB registered capital.
Before 2015, Huaxing focused on the domestic market, and is a qualified supplier of Jianglu group and XEMC in the military and mechanical products.
In 2015, Huaxing set up the international marketing department, specializing in exporting concrete construction machinery, mining Roadheaders, and the related spare parts and accessories. With manufacturing bases in Shenyang, Suizhou and Changsha cities.
Huaxing owns branches "Cahi "in Kiev Ukraine, and "Speedlane Trade Limited" overseas company. Mainly export to Pakistan, Ukraine, Russia, and other EU countries and Southeast Asian countries under our own brands "Speedlane" and '' HUAXING''.
Huaxing has got the CE certificate, and Ukraine's Coal Mining Safety certificate and permission. Cooperated with Ukraine largest energy company, DTEK group, the world top 500, and established a long term and friendly partnership.
Huaxing's enterprise value: Striving, Loyalty, Honesty and Altruism;
Huaxing's work concept: Tomorrow never comes; Never slug; Deliver positive energy!
Huaxing's mission:
One Stop Shop in engineering construction machinery;
China Machinery, Global Services!

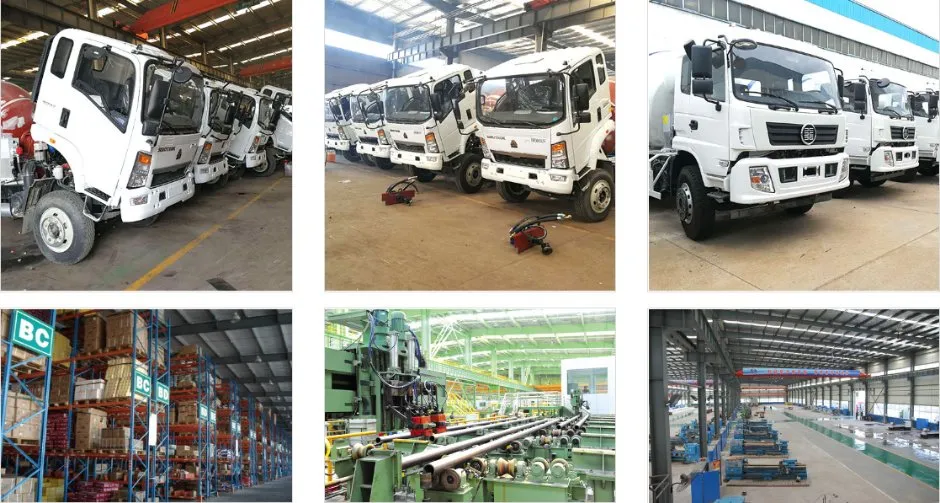

>>> Our Factory
