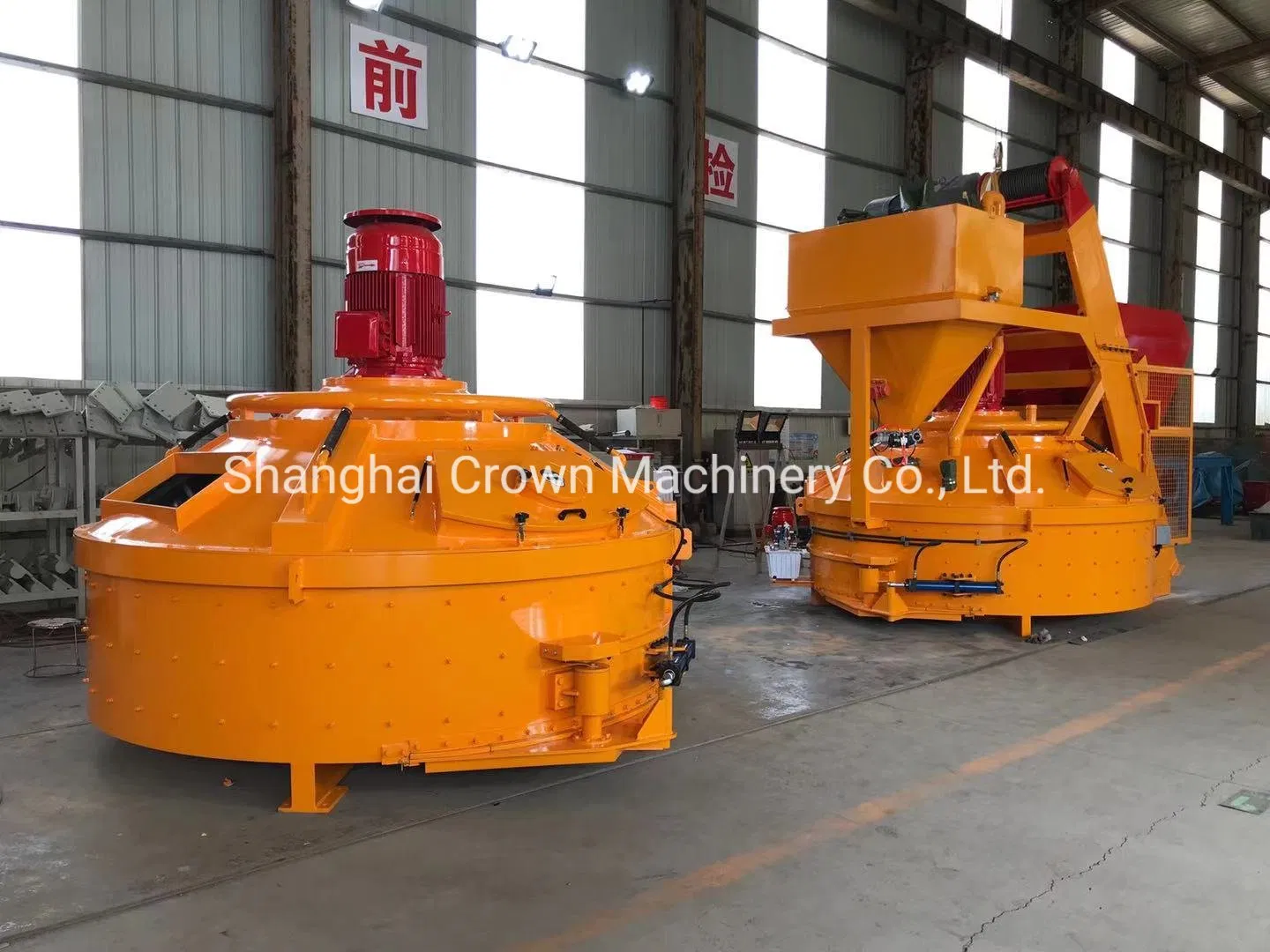

Mpc500planetary Concrete Pan Mixer for Block Making
MPC500Planetary Concrete Pan Mixer For block making Basic informationapplicationConstruction worksproductivity2m3/hconditionnewmotor45kwCharging capacity1500LSpide speed44rmp/minSpeed of mix44r/minReclaiming capacity1000LWork cycle60sWater supplypumpOutline size2300x2556x2265mmDischarging wayautomat......
Send Inquiry
Product Description
MPC500Planetary Concrete Pan Mixer For block making
Basic information
Introduction
counter-current planetary mixer can mix all kinds of high-quality and high-performance concrete, and which can reach homogenous mixing at shortest
time. It can also be widely used for glass, ceramics, refractories, fertilizer and concrete, etc.
Features
All models are hydraulically powered, but for small ones is also available a choice between pneumatic or manual operation.
The discharge door has specially designed seals to avoid material leakage and can be replaced.

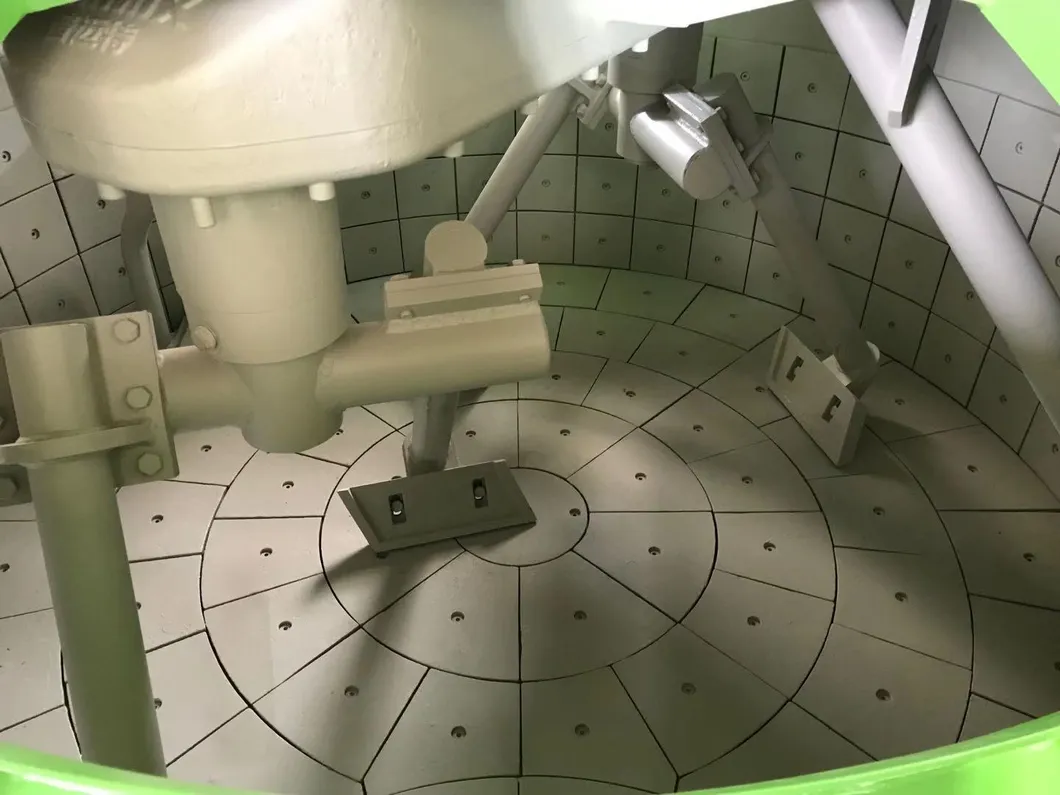

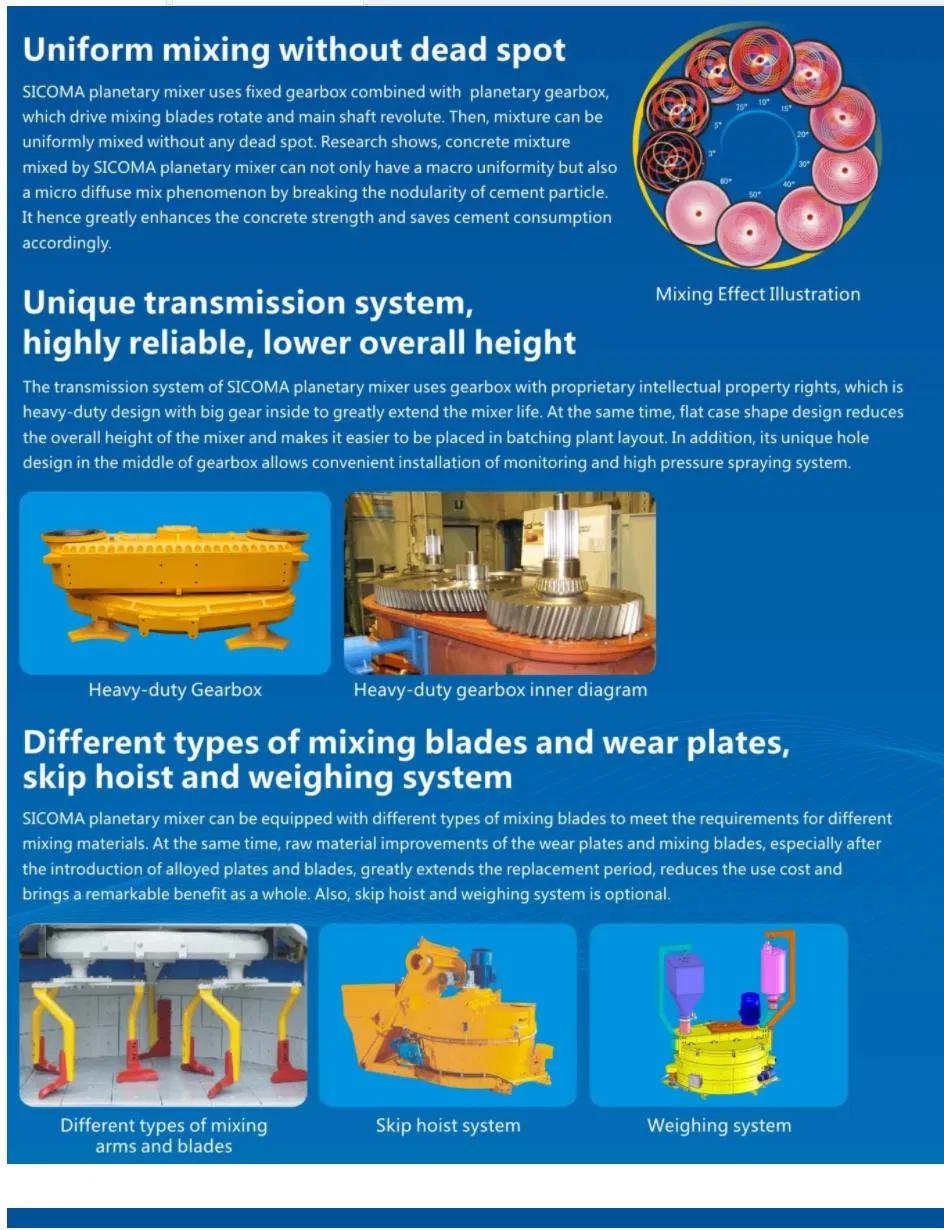

Counter-current Gearing System:
The rotate direction of mixing stars is reversed with revolution direction, and each mixing star's direction is also different. The circulation movement and convective
movement make the material severely mixing and achieve the uniform distribution.
Convection Mixing Device:
1. High mixing efficiency, low energy consumption.
2. Compared with traditional planetary mixer, the mixing time of MPC could bereduce 15~20%.
3. The no-load current and load current with same material can be 15~20% lower
Smaller specification of mixer technical data
Big specification of mixer technical data
Advantages
Our Factory
Basic information
| application | Construction works | productivity | 2m3/h |
| condition | new | motor | 45kw |
| Charging capacity | 1500L | Spide speed | 44rmp/min |
| Speed of mix | 44r/min | Reclaiming capacity | 1000L |
| Work cycle | 60s | Water supply | pump |
| Outline size | 2300x2556x2265mm | Discharging way | automatic |
| warranty | 1year | origin | China |
counter-current planetary mixer can mix all kinds of high-quality and high-performance concrete, and which can reach homogenous mixing at shortest
time. It can also be widely used for glass, ceramics, refractories, fertilizer and concrete, etc.
Features

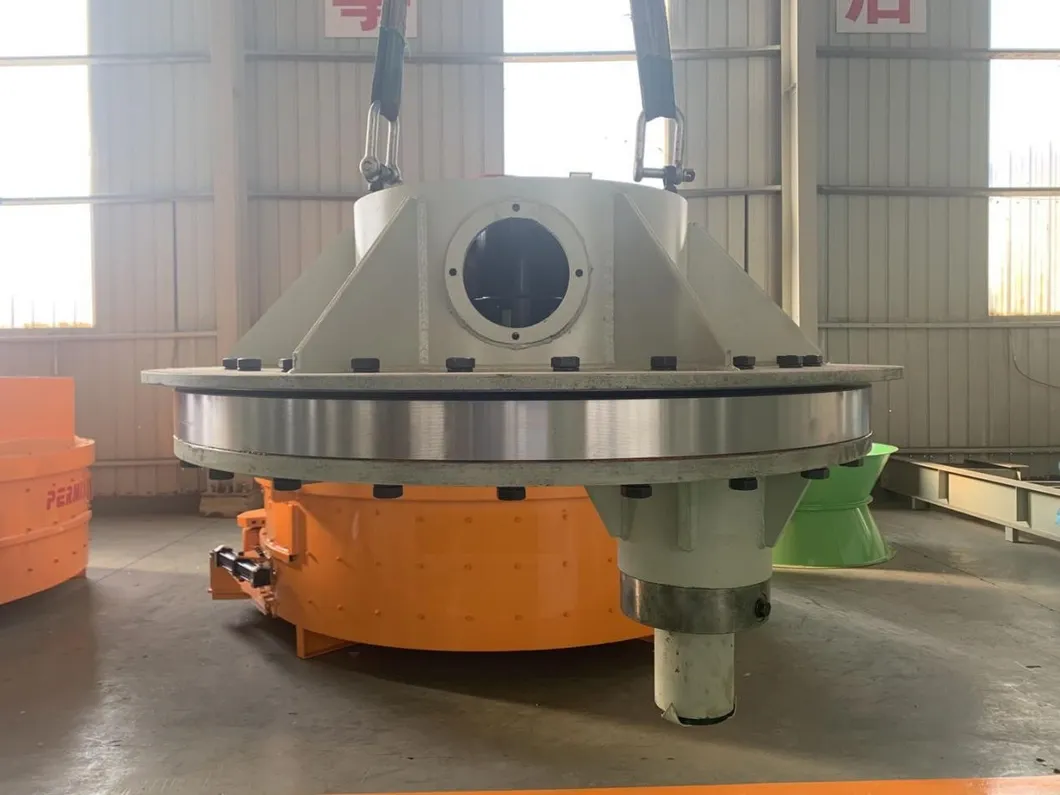

Our self-designed gearbox
The reliability of our gearbox is very high, due to fitted with hardened and ground alloy gears as well as top-brand cylindrical roller bearing. The gearbox has low noise emissions resulting in a good indoor working environment.
The reliability of our gearbox is very high, due to fitted with hardened and ground alloy gears as well as top-brand cylindrical roller bearing. The gearbox has low noise emissions resulting in a good indoor working environment.
1.Planetary mixing mode is fit for high purity concrete mixing,which ensures a more uniform mixing and is the best choice for block and precast industry;
2.Dual hydraulic/manual mode to operate discharge door, multi opening positions possible;
3.Cost-efficient, durable,easy maintenance;
4.Lower height comparing to same capacity twin shaft mixer,easier placement in a batching plant layout
5.Aggregate skip hoist optional;
6.Wear parts available for long term supply;
7.Capacity ranged from 0.5m³~2.0m³
2.Dual hydraulic/manual mode to operate discharge door, multi opening positions possible;
3.Cost-efficient, durable,easy maintenance;
4.Lower height comparing to same capacity twin shaft mixer,easier placement in a batching plant layout
5.Aggregate skip hoist optional;
6.Wear parts available for long term supply;
7.Capacity ranged from 0.5m³~2.0m³

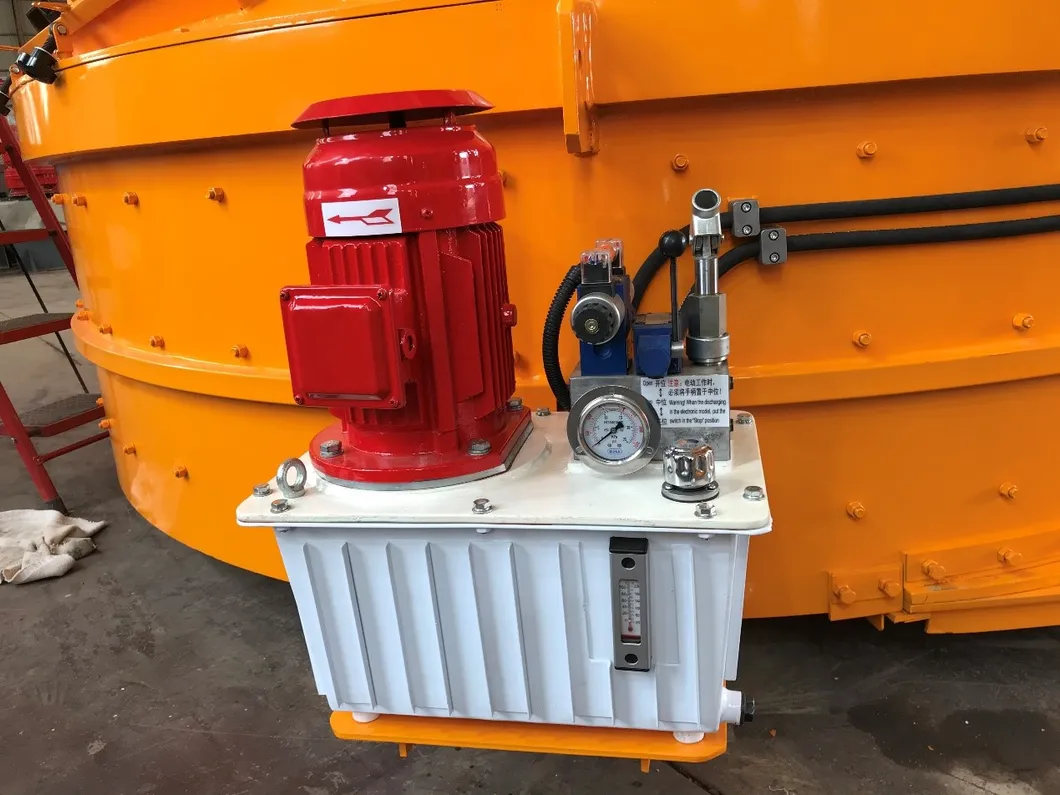

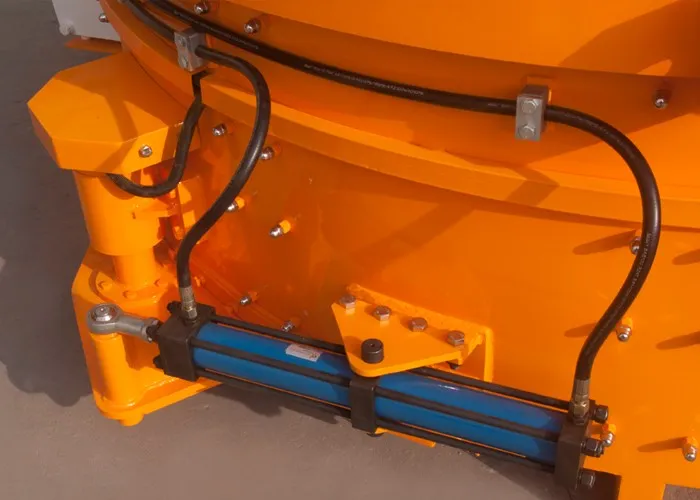

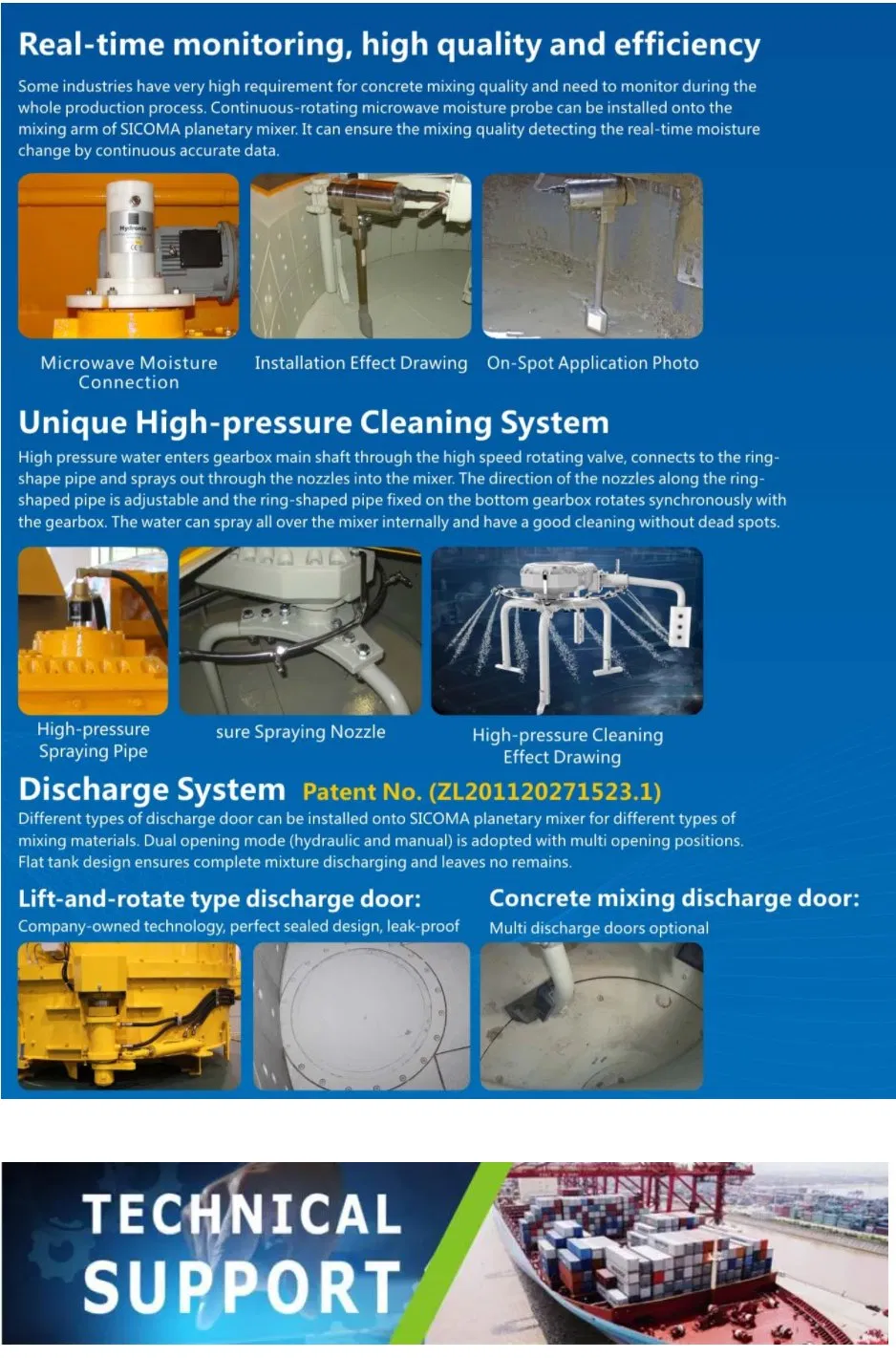

Separate hydraulic power packs operate the discharge gate(s). A hydraulic hand pump is available for opening of the discharge gate in case of power failure. Discharge gate openings are large for short discharge times, but can also be opened to various degrees using proximity switches.
The QTY of discharge doors with special sealing structure can be 4 at most.
The QTY of discharge doors with special sealing structure can be 4 at most.
All models are hydraulically powered, but for small ones is also available a choice between pneumatic or manual operation.
The discharge door has specially designed seals to avoid material leakage and can be replaced.
Counter-current Gearing System:
The rotate direction of mixing stars is reversed with revolution direction, and each mixing star's direction is also different. The circulation movement and convective
movement make the material severely mixing and achieve the uniform distribution.
Convection Mixing Device:
1. High mixing efficiency, low energy consumption.
2. Compared with traditional planetary mixer, the mixing time of MPC could bereduce 15~20%.
3. The no-load current and load current with same material can be 15~20% lower
Smaller specification of mixer technical data
| Item | MPC50 | MPC 100 | MPC 150 | MPC 250 | MPC 330 |
| Feeding Volume (L) | 75 | 150 | 225 | 375 | 500 |
| Feeding Capacity (Kg) | 120 | 240 | 360 | 600 | 790 |
| Output Volume (L) | 50 | 100 | 150 | 250 | 330 |
| Mixing Power (Kw) | 3 | 5.5 | 7.5 | 11 | 15 |
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | 1 | 1 | 1 | |
| Discharging Power (KW) | Pneumatic Discharging | 2.2 | 2.23 | ||
| Weight (Kg) | 750 | 1000 | 1300 | 1500 | 2000 |
Big specification of mixer technical data
| Model | MPC500 | MPC750 | MPC1000 | MPC1250 | MPC1500 | MPC2000 |
| Capacity(L) | 500 | 750 | 1000 | 1500 | 1500 | 2000 |
| Motor power(kw) | 22 | 37 | 45 | 2x37 | 2x37 | 2x45/2x55 |
| Planetary speed(rpn/min) | 21 | 20 | 21 | 15 | 15 | 14 |
| Spider speed(rpm/min) | 44 | 41 | 44 | 43+43 | 30+30 | 31+31 |
| Number of outer long mixing arm(pc) | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of outer short mixing arm(pc) | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of mixing arm(pc) | 3 | 3 | 3 | 6 | 6 | 6 |
| Number of peripheral blades(pc) | 4 | 4 | 4 | 4 | 4 | 8 |
| Number of bottom scrapers(pc) | 3 | 3 | 3 | 3+3 | 3+3 | 3+3 |
| Weight(T) | 2 | 2.7 | 3.7 | 4.7 | 6.3 | 8.5 |
Separate hydraulic power packs operate the discharge gate(s). A hydraulic hand pump is available for opening of the discharge gate in case of power failure. Discharge gate openings are large for short discharge times, but can also be opened to various degrees using proximity switches.
All models are hydraulically powered, but for small ones is also available a choice between pneumatic or manual operation.
The discharge door has specially designed seals to avoid material leakage and can be replaced.
The QTY of discharge doors with special sealing structure can be 4 at most.
All models are hydraulically powered, but for small ones is also available a choice between pneumatic or manual operation.
The discharge door has specially designed seals to avoid material leakage and can be replaced.
The QTY of discharge doors with special sealing structure can be 4 at most.

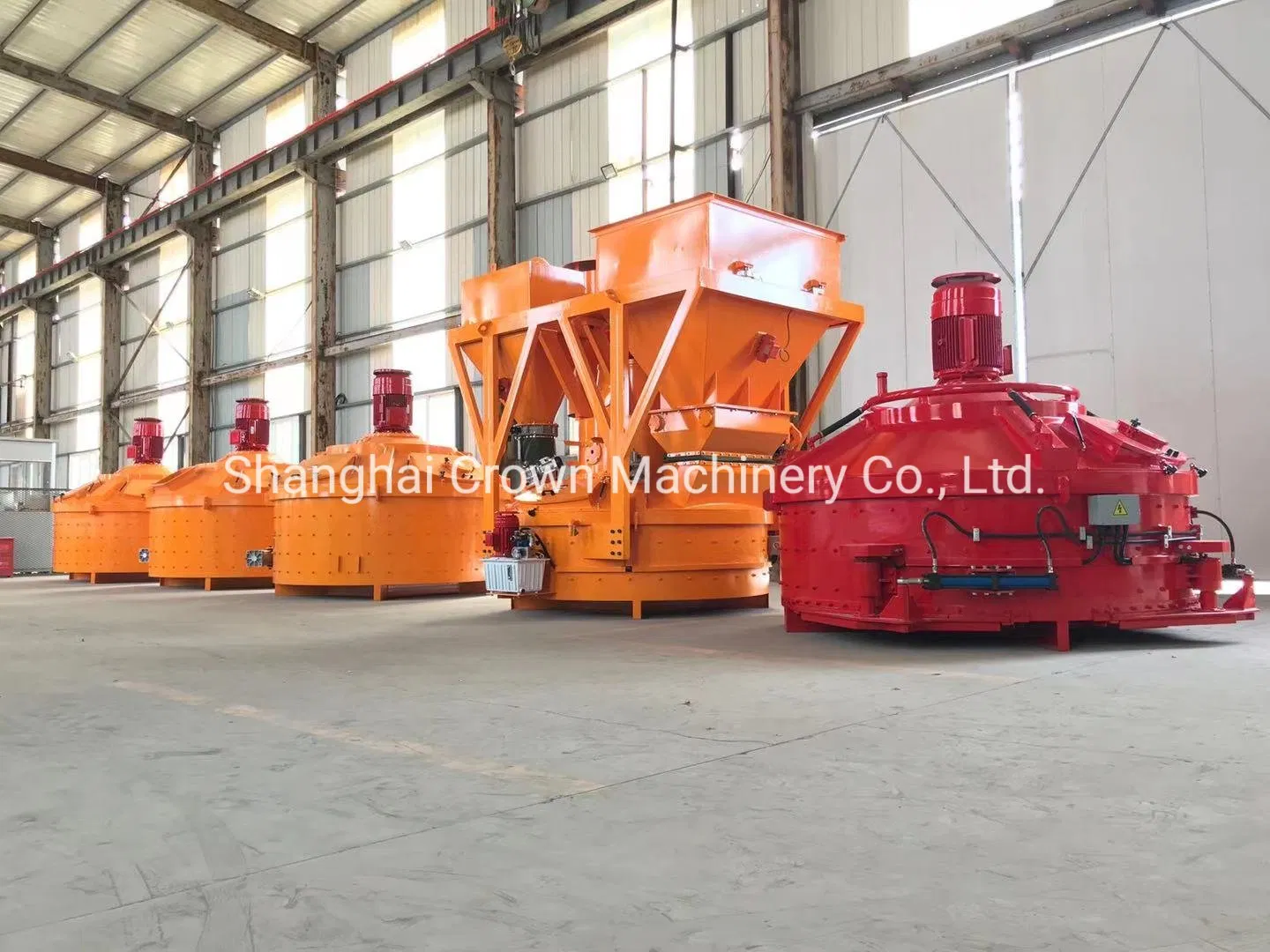

Our Factory
