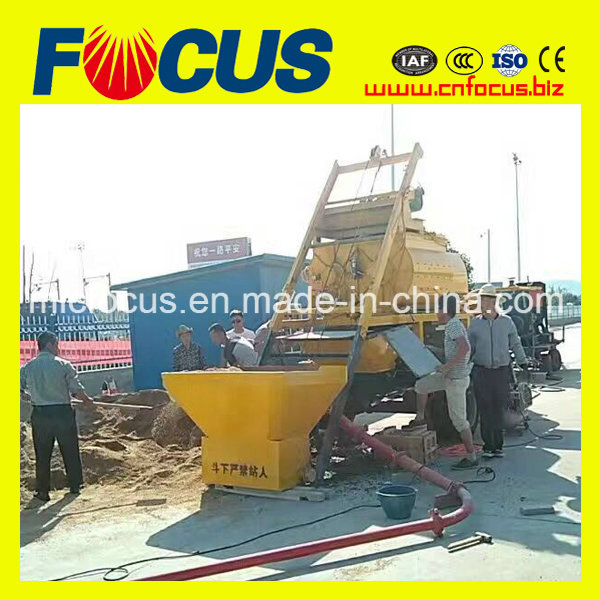

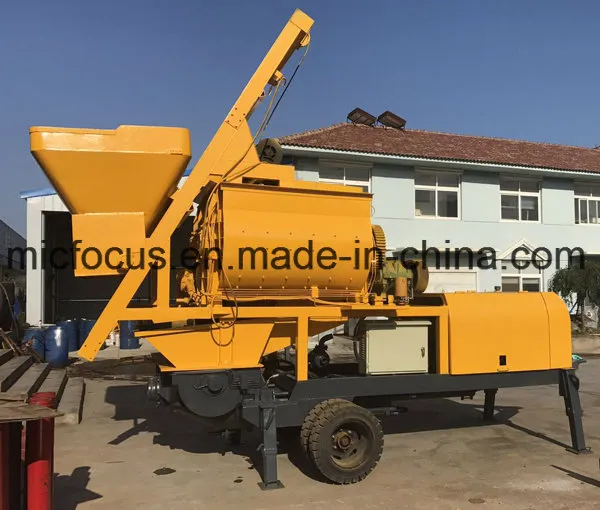

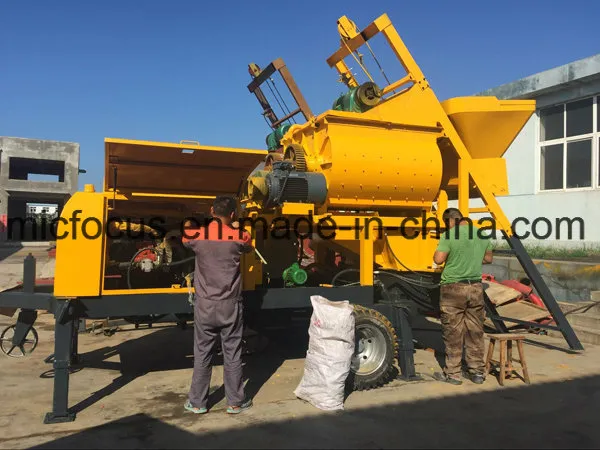

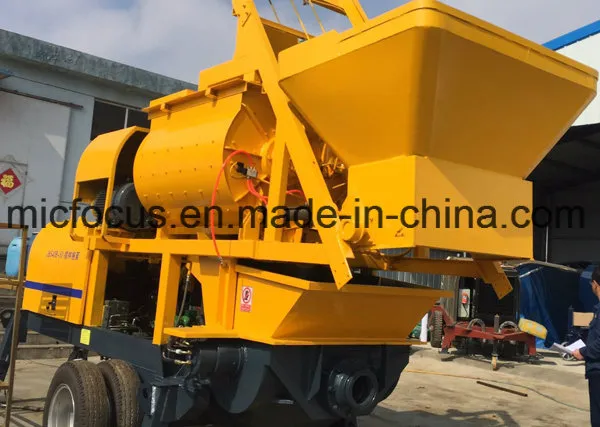

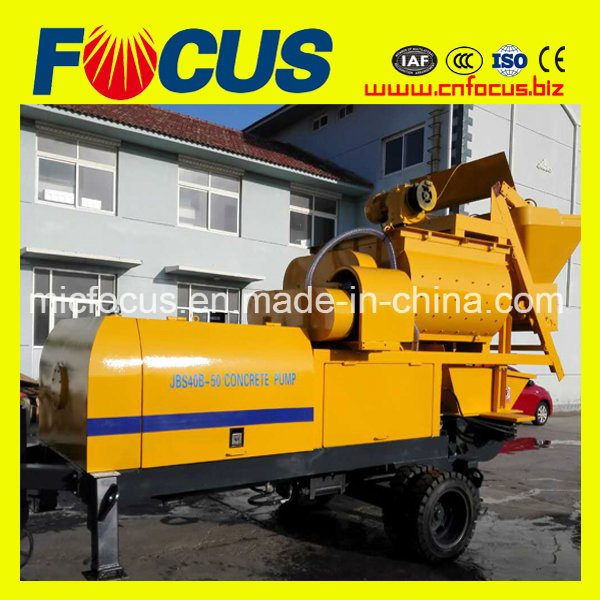

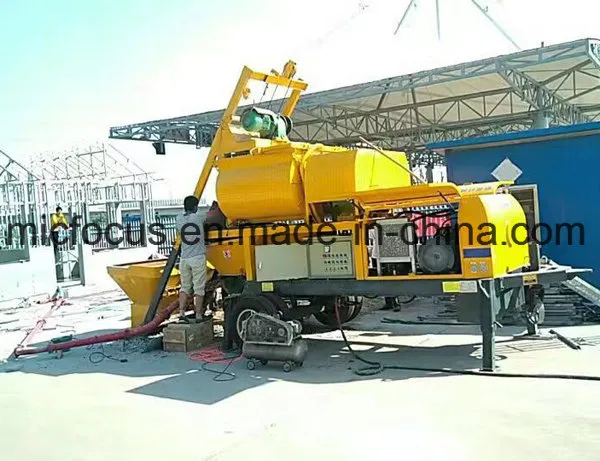

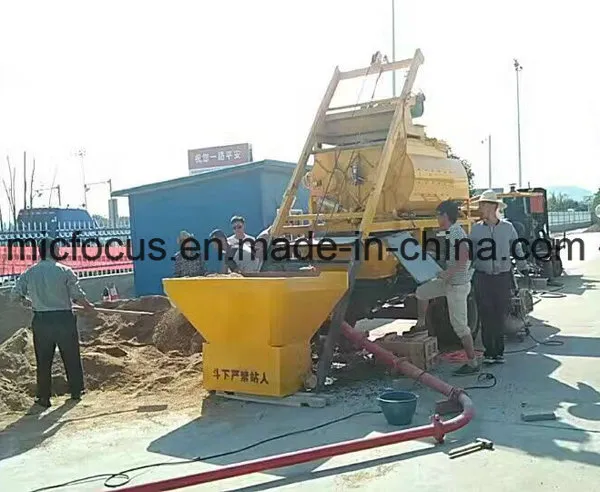

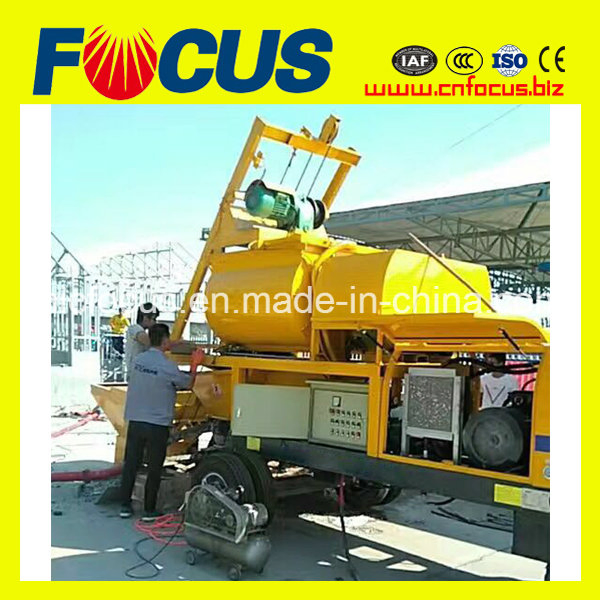

Portable Pumpcrete with Js500 Concrete Mixer

Product Description

Concrete mixer with pump/ concrete pump with mixer for sale
1. Application of concrete mixer with pump / concrete pump mixer:
Group building, bridges, and the small construction projects, 4-6 floors building.
2. Main Features of concrete mixer with pump / concrete pump mixer:
1) New combination of concrete pump and concrete mixer.
2) Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring
Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions
3)The pump construction operation system used in all automated, all material mixing, high pressure pumping.

Video:https://micfocus.en.made-in-china.com

Mixing system and Pumping system of concrete mixer with pump / concrete pump mixer
Mixing system:
Double motors for mixer mixing with features of quick and homogeneous mixing.
Grinding wheels for mixing drum rotation, stable and reliable.
Vibrating device for aggregate complete discharging.
Pumping system:
Fully hydraulic pumping system with double concrete cylinders and double oil cylinders, stable and reliable.
Hydraulic parts are famous brands from home and aboard with high and reliable quality.

Parameter of concrete pump with mixer:

Items		Unit	Parameter
Items		Unit	JBS40B-JS500
Whole performance of machine	Max. theo. concrete output (L./H.)	m³/h	40
	Concrete mixer		JS500
	Mixing capacity	m3/h	25
	Max.concrete pumping pressure (H. /L.)	MPa	8
	Distribution valve type		S Valve
	Concrete cylinder diameter×stroke	mm	200×1000
	Hopper capacity	L	600
	Outlet diameter	mm	180
Power system	Mixing Motor	kw	18.5
	Hoisting Motor	kw	5.5
	Water Pump Motor	kw	0.75
	Rated pump power	kw	45
Hydraulic system	Circuit type		Open circuit
	Pumping system pressure	MPa	28
	Mixing system pressure	MPa	6-8
	Capacity of oil tank	L	370
Max. transportation Distance (Vertical/Level)		m	120/500
Other parameters	Max. aggregate diameter	mm	pebble: 50 gravel: 40
	Inside diameter of delivering pipe	mm	125
	Dimensions:length×width×height	mm	5100×2250×3100
	Total weight	kg	4500
