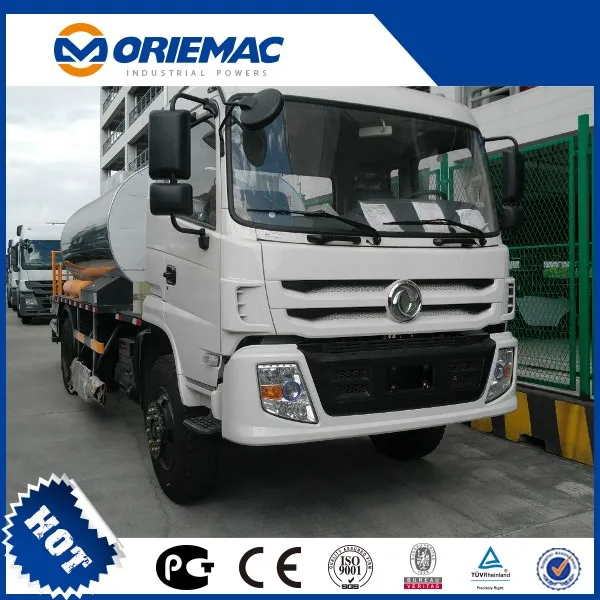

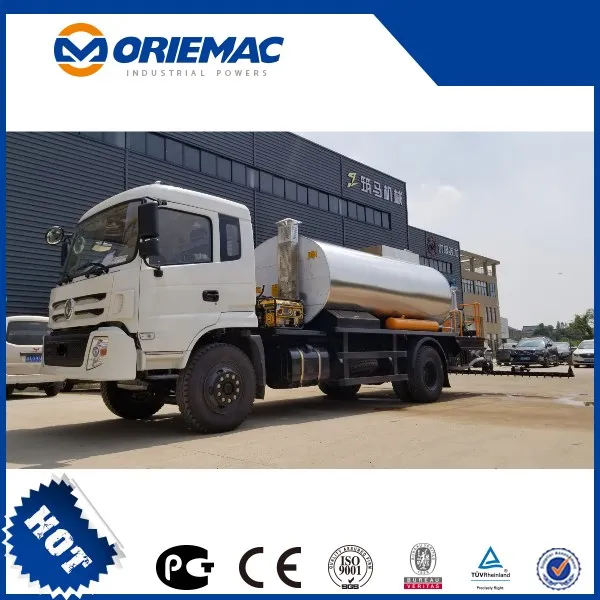

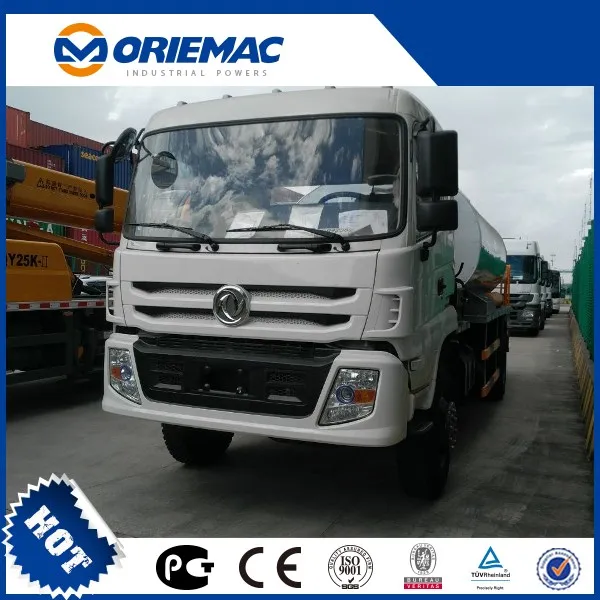

Sinotruck HOWO Asphalt Distributor Truck with 16cbm Capacity

Product Description

Sinotruck HOWO Asphalt Distributor Truck with 16cbm capacity

Product Description

Chassis brand: Dongfeng , SINOTRUK HOWO, JAC, Beiben etc
Driving type: left hand drive, right hand drive
Axle: 4x2, 6x4 , 6x2, 8x4
Tank volume: 3000 liters, 5000 liters, 6000 liters, 8000 liters, 10000 liters etc

Technical Parameters

Drive Model	Left or right driven hand, 6x4
Cabin	HOWO HW76 Cabin, with one sleeper, air conditioner
Engine	Engine Model	WD615.47
	Type	diesel engine, 4-stroke, 6-cylinder in line, inter-cooling and turbo-charging, euro-2 emission standard
	Power	HP	371
	Displacement	L	9.726
Dimensions	Overall LxWxH	mm	10200x2500x3450
	Wheel Base	mm	4600+1350
	Front/Rear Axles	kg	7000/18000
Gearbox	HW19710, 10forward & 2 reverse gear, manually
Steering	ZF Hydraulic steering with power assistance
Fuel Tank	300L
Clutch	Reinforced diaphragm clutch, diameter 430mm
Brakes	Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
Tyre	11.00-20,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR,315/80R22.5 16PR,12R22.5 16PR,295/80R22.5 16PR

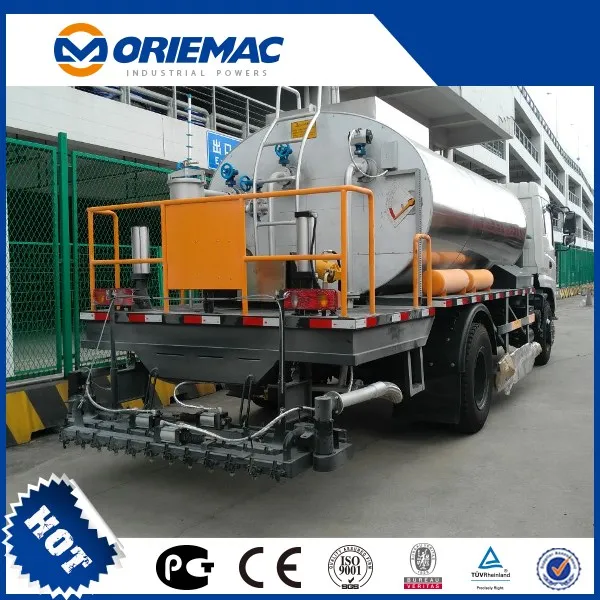

Tank
Volume	12 cbm
Asphalt Pump Model	QGB950 (950 liters / min)
Pump Model	CBQ563-L
Generator power	6 kilowatts
Sprinkle speed	0.2 to 3 liters / square meter
Sprinkle width	6 m
Hydraulic motor Model	05-110-BD31
Other specification	Asphalt nozzle 48; Conducting oil heating; Oil pump made in China; Italy imported G20 Burner;
