Product Description

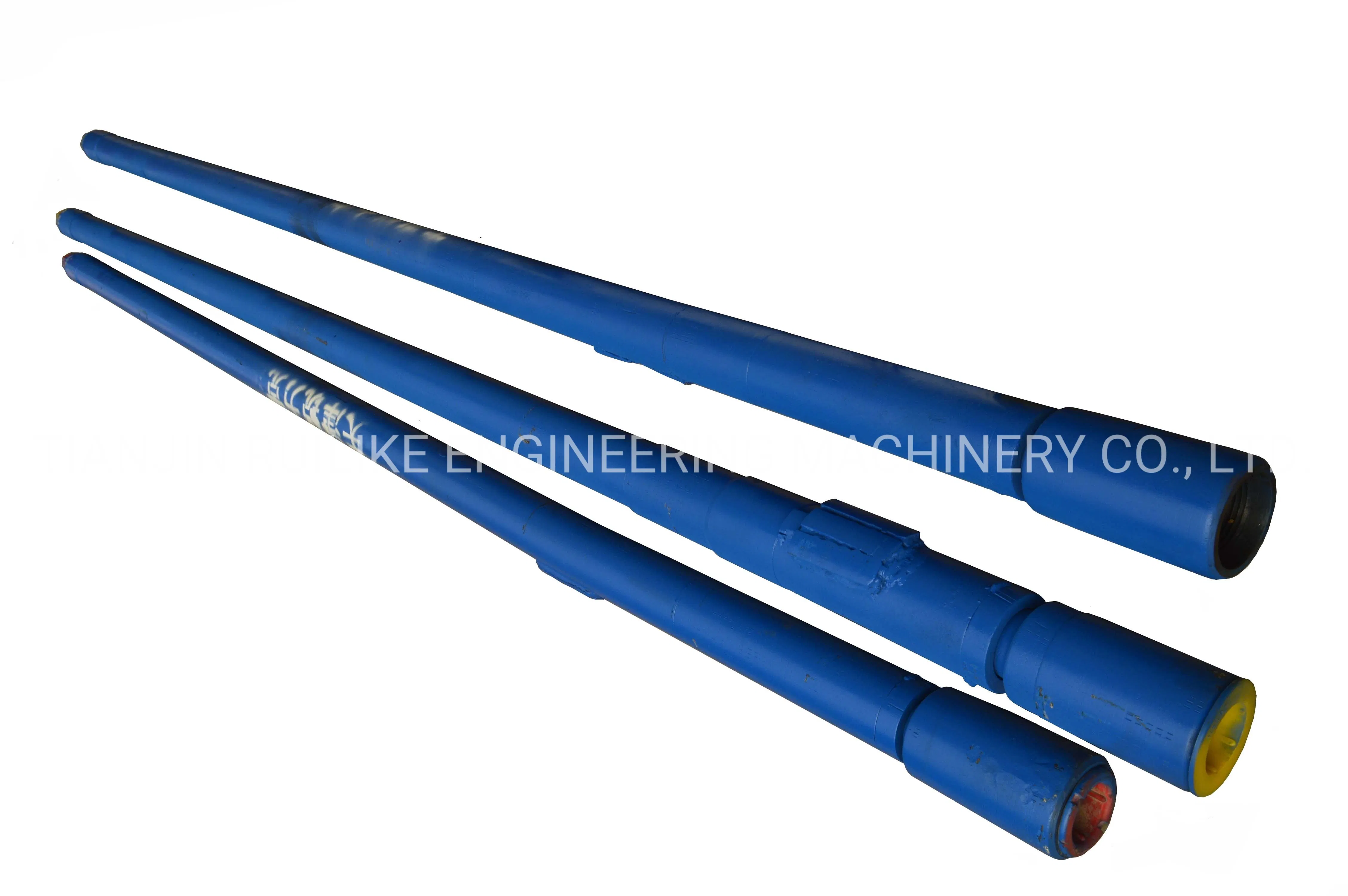

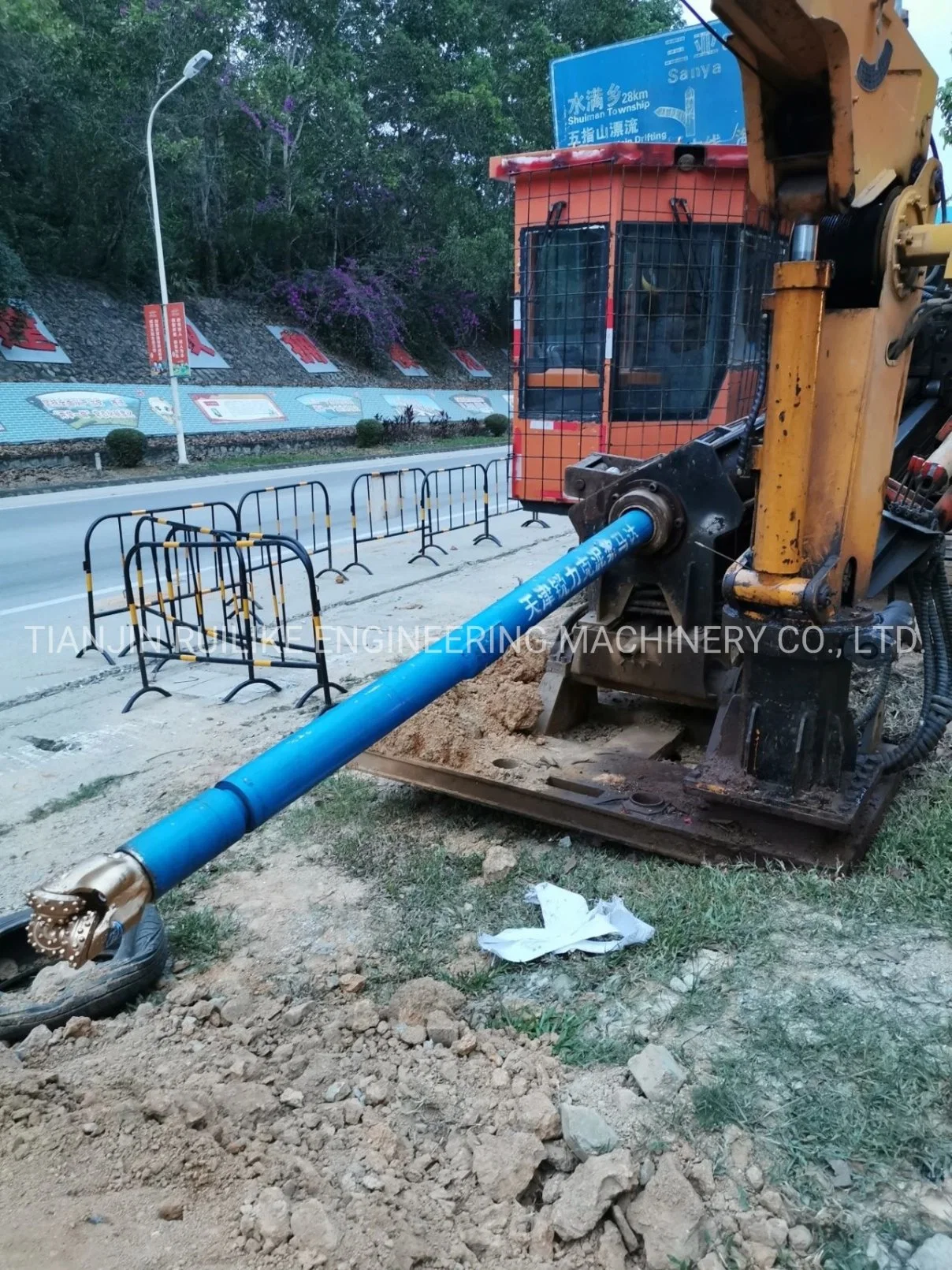

Mud motor for HDD rig for rock formation

Model	Mud Motor Size	Lobes	Rotary Speed	Max. Output Torque	Flow Rate Requiremtents	Working Pressure	Recommended Bit Size
RLK7LZ100	4"	7:8	80-180r/min	1260N·m	400-900LPM	4.0Mpa	6"(152mm)
				(929ft·lbs)	(95-190GPM)	(580psi)

RLK7LZ120	4-3/4"	5:6	95-190r/min	1600N·m	600-960LPM	3.2Mpa	6-1/2"(165mm)
				(1180ft·lbs)	(158-253GPM)	464(psi)

RLK5LZ165	6-1/2"	5:6	100-160r/min	3800N·m	1200-1920LPM	4.0Mpa	8-1/2"(216mm)
				(2800ft·lbs)	(317-507GPM)	(580psi)

RLK5LZ172	6-3/4"	5:6	106-170r/min	4600N·m	1200-2160LPM	4.0Mpa	9-1/2"(241mm)
				(3390ft·lbs)	(317-570GPM)	(580psi)

Remark:	Mud motor is available in more sizes as you order.

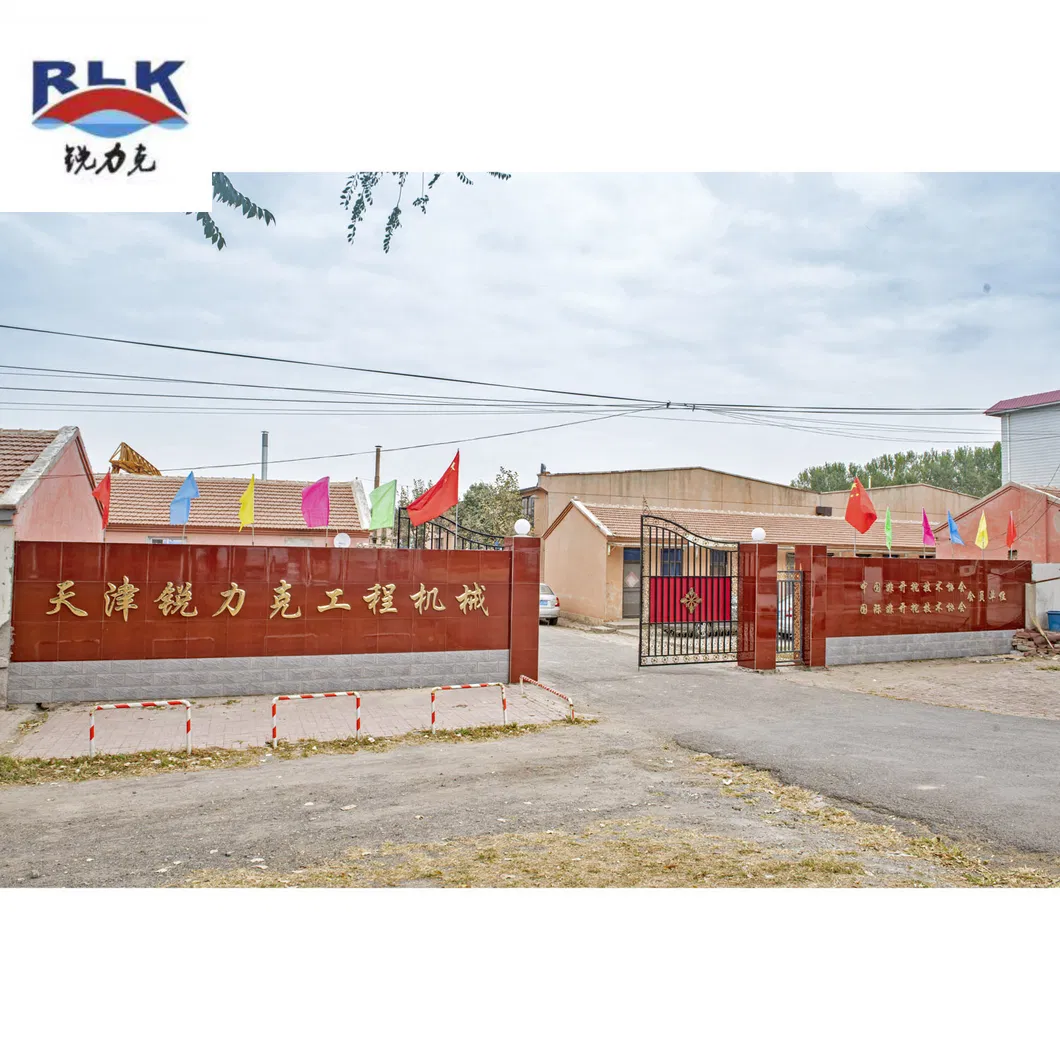

The Picture of Factory
Rock Drilling Tool Mud Motor for HDD Machine

Tianjin Ruilike Engineering Machinery Co., Ltd. was established on May 31,2012, located in Tianjin, China. produces HDD rock cutter, soil sand reamers, mud solid control system(including mud mixer,tank,mud cleaner,shale shaker,desander,desilter), sewage treatment system, municipal sewage treatment system and ect. Accoranding constantly develop, RUILIKE be known of brand suppliers, we adhering to "to forge ahead ","to be top ","to do the best" enterprise concept, people-oriented, and to service to create value, supply satisfactory product to globle more than 200 customers. We consciously integrate social responsibility into production and management activities, develop green machinery products, and protect environmental resources. Ruilike always keeping to the steady management, creating golden brand, making master style. RUILIKE pleasure to work with colleagues to create supreme future.
