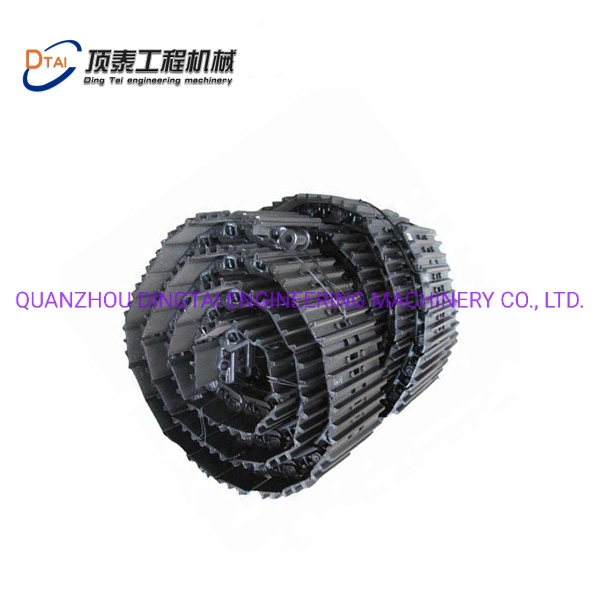

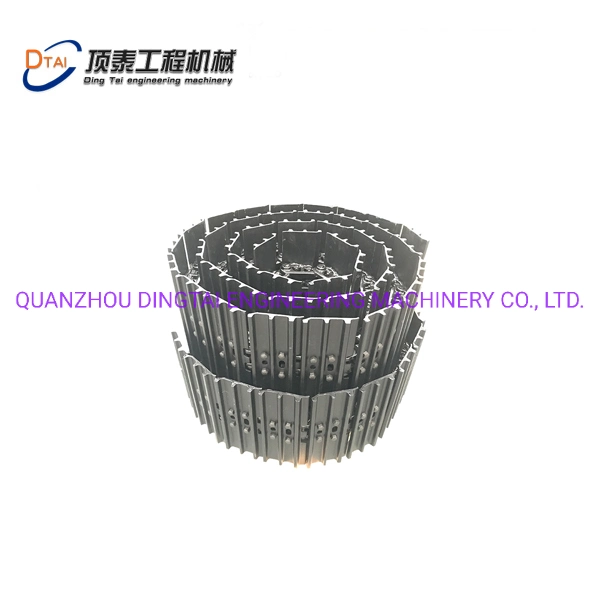

Track Chain Group for PC120-6 Ex100 Zx110 E200b Sh120 Track Link Assy

Komatsu Excavator Track Group

Komatsu Track shoe assemby

CAT Track shoe assemby

Dry chain assembly

Lubricated Track Group

EXCAVATOR STEEL TRACKS & PADS

Our steel chain links, made from a high-precision forging process, are heat treated to ensure durable core tenacity and hardness in the areas exposed to extreme wear. The heat-treatment reduces the chipping caused by violent knocks or strikes. All steel chain parts are high-precision machined. Additional hardness through heat treating is done on all critical wear areas.

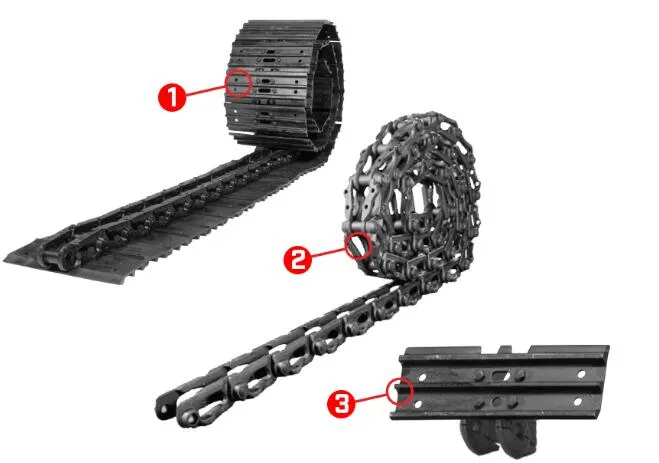

1.Track Assembly: Complete track groups are built with top quality precision parts. All parts are hardened and tempered to prevent cracking under extreme conditions to keep your machine operational.

2.Track Chains: All of our track links are forged from top quality 35Cr and 40Cr carbon chromium steel. The track link body is manufactured to a hardness of HRC33~37 and the top surface of the track links are manufactured with an induction heating process to a hardness of HRC52~56.

3.Track Shoes: All of our track shoes are milled into a long profile from top quality manganese boron steel billet (23MnB). The profiles are then precision cut to the required length and both bolt-holes and mud-holes are punched out to accommodate for the required sizes.

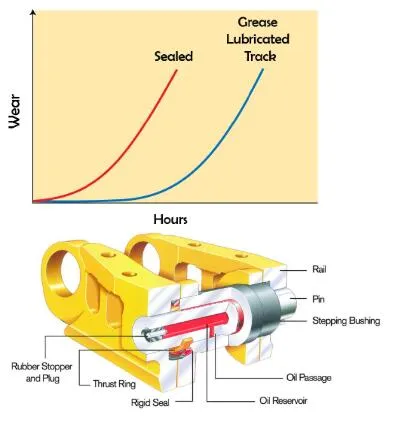

• Increases external wear life by 20% or more. See the graph.

• Link life, normally limited by bushing wear, is better utilized because internal and external bushing wear life is extended.

• Overall system wear life is enhanced by 25% or more due to the combined improvements of internal wear, external wear, and sprocket wear.

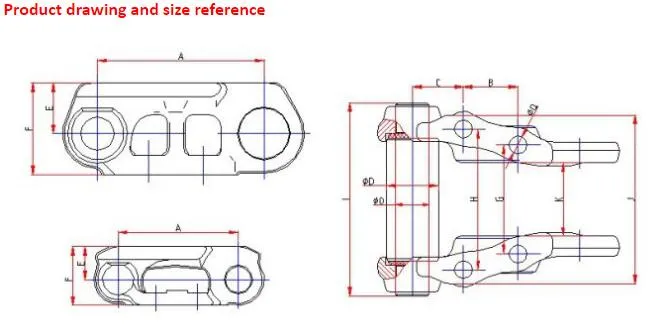

  Models	A	B	C	D	E	F	G	H	I	J	K	Q	O
  EX60	154	55	47.5	40.45	42	80	90	90	155	127	58	14.8	30.5
  EX100-1/2/3/5	171.45	60.32	55.56	50.75	51.8	95	107.95	107.95	178	138.95	75.24	16.8	33.4
  EX100M-3	171.45	60.32	55.56	50.75	51.8	95	107.95	107.95	178	138.95	75.24	16.8	33.4
  EX200-1	175	58.7	57.2	58.8	60.3	103.2	125.4	144.5	218	176.8	90.8	18.8	36.5
  EX300-5	216	76.2	63	71.2	70	129	140.4	178.4	244	197.6	102	22.8	47

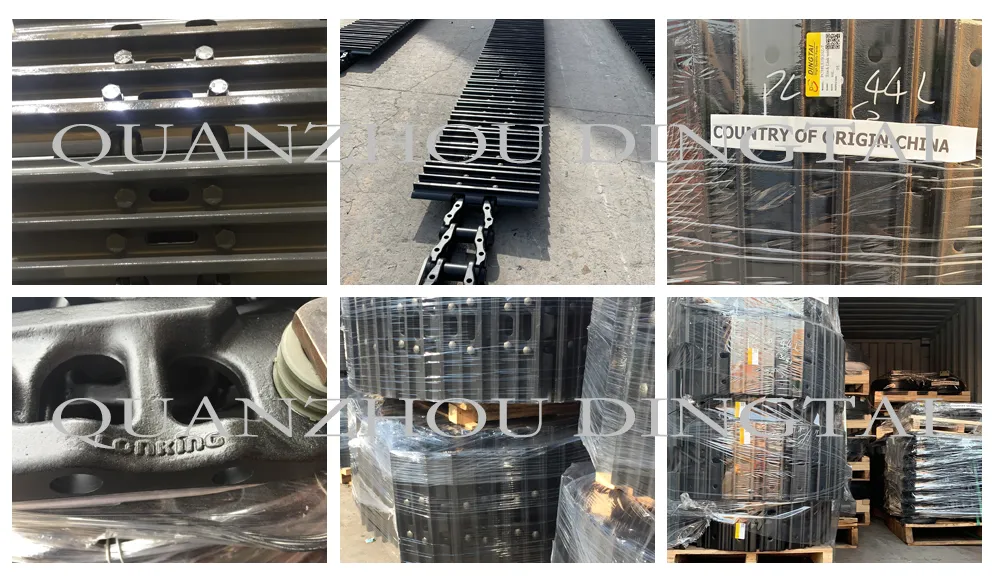

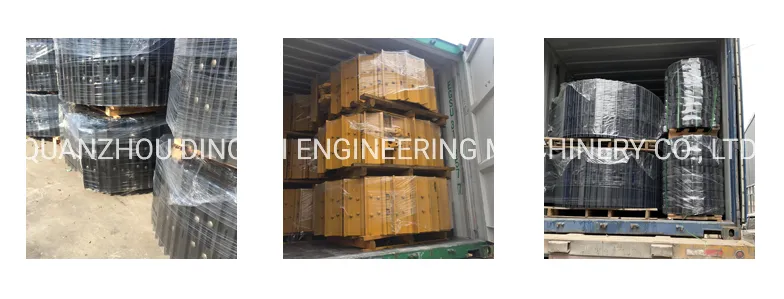

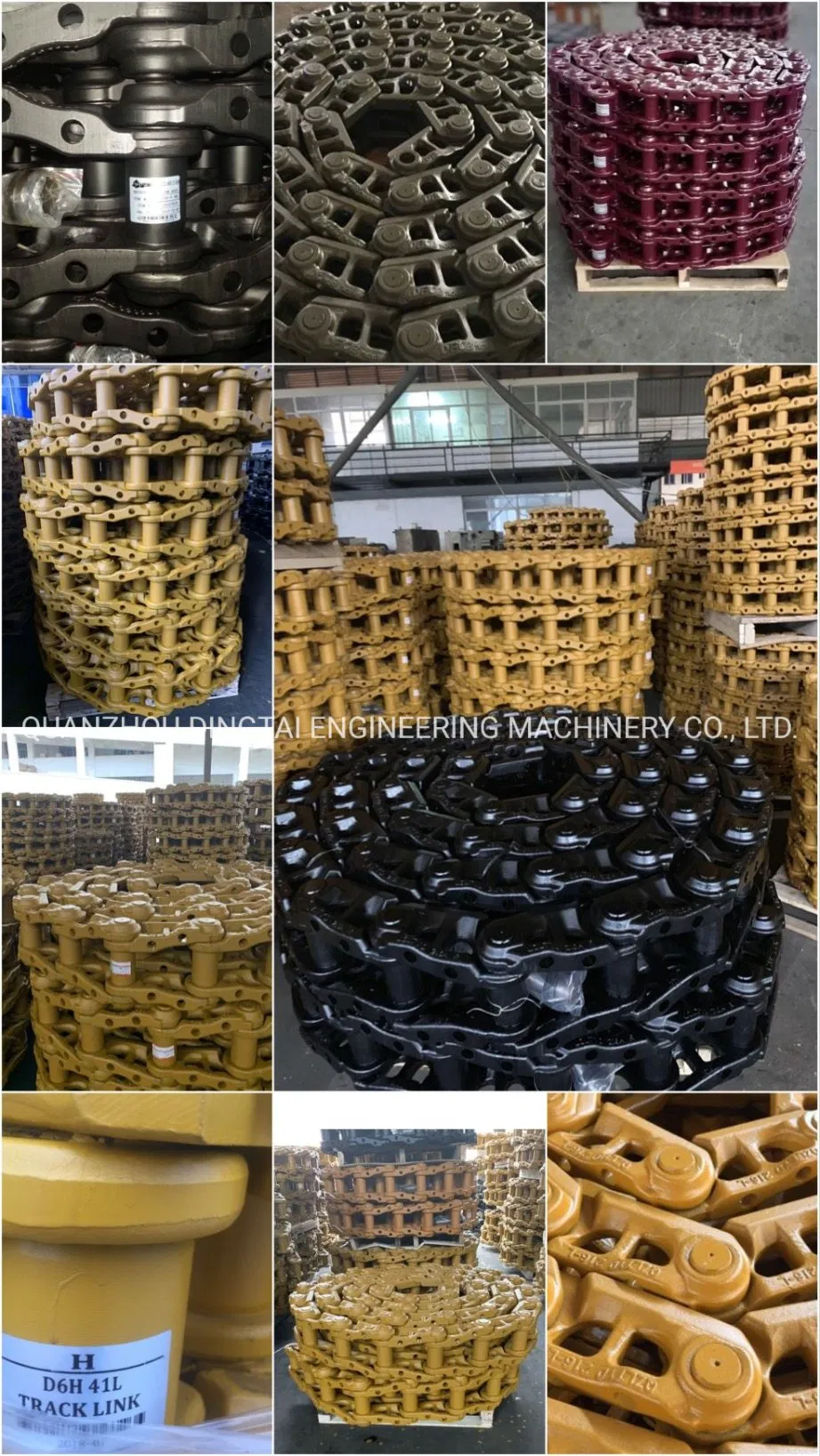

Packing&Shipping:

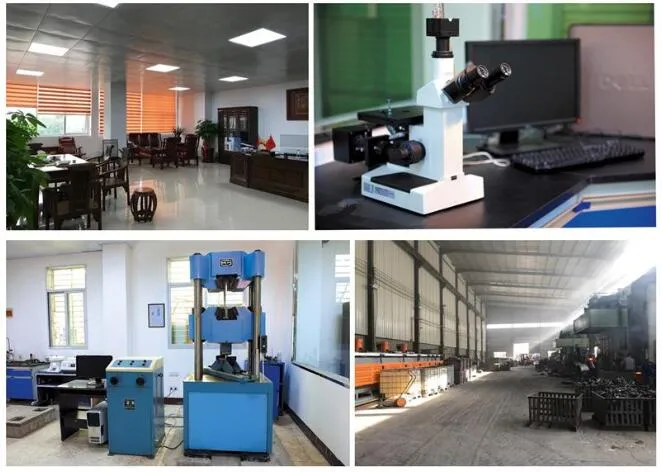

Company Information:

Founded in 2008, Quanzhou Dingtai Engineering Machinery Co., Ltd. is located in Quanzhou city, Fujian province, near to Xiamen port with convenient transportation. Our company is a professional manufacturer and exporter of undercarriage parts for excavators and bulldozers in China.

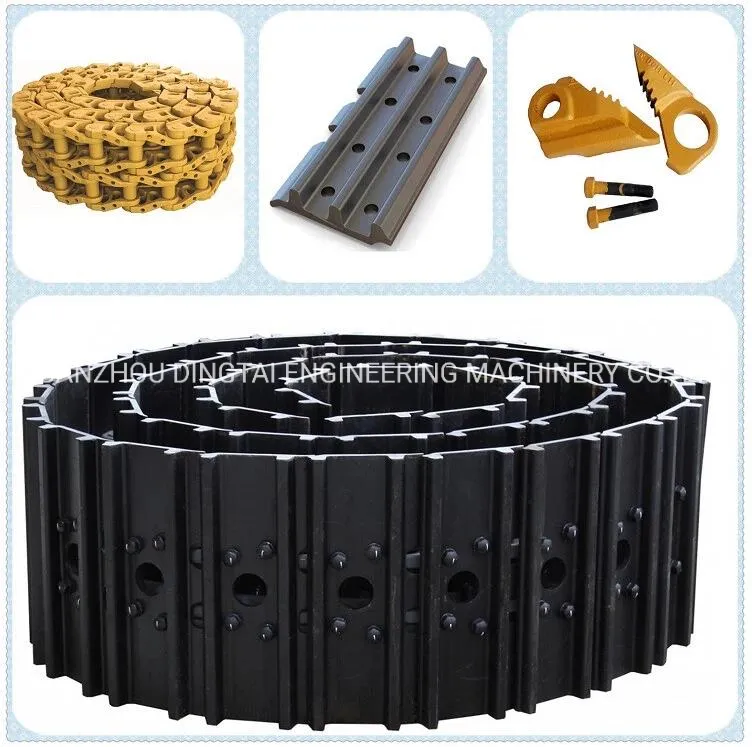

Our main products include track roller, top roller, idler, sprocket, track shoe, track links, track group, track bolt with nut, bucket, bucket link, teeth, and cylinder ect. These parts are applied for Caterpillar, Komatsu, Hitachi, Kato, Daewoo, Hyundai, Sumitomo, Samsung, Kobelco, and Mitsubishi. With more than 12 years' development, our company have all kinds of production lines, professional technicians and skillful workers, making sure our products with high quality and competitive price. We passed the certification of ISO9001-2000, quality management procedures are conducted in accordance with international standards.

Now all our products are exported to Southeast Asia, the Middle East, Europe, North and South America, Australia, and Africa and so on. We are enhancing the market share. "Mutual benefit" is our promise and value. We'd like to supply you with high quality products and professional after-sales service. We sincerely welcome you to join us for mutual development and a prosperous future!
