Wear Compound White Iron Chocky Bar 63HRC
HYSTER has been an independent international supply, design and engineering company, since 1995. welcome to choose us - the most experienced manufacturer and exporter for laminite wear plates(ASTM A532 chromium carbide white iron & mild steel backing plate, 63HRC-700BHN), domite chocky bars, chr......
Send Inquiry
Product Description
HYSTER has been an independent international supply, design and engineering company, since 1995.
welcome to choose us - the most experienced manufacturer and exporter for laminite wear plates(ASTM A532 chromium carbide white iron & mild steel backing plate, 63HRC-700BHN), domite chocky bars, chromium carbide wear blocks, grinder hammer tips, white iron wear bars as well as Cr-c overlay wear plate.
Laminated Wear Blocks are unique wear resistant materials in that they combine very high wear resistant qualities of a high chrome cast iron (ASTM A532 15/3CrMo, 700 BHN - 63 HRc) with a weldable & high impact toughness mild steel through a metallurgical bond to create a product that is exceptionally resistant to impact and abrasion while retaining.

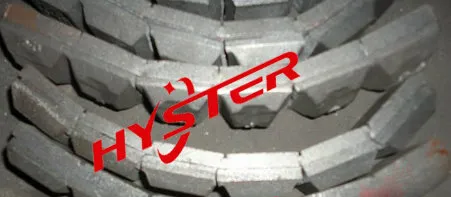

chrome carbide chockybar
PLEASE NOTE,
CAST LOGO FREE!
N means notch, for example CB25N means there is a notch in the mild steel for CB25N.
Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.
>Material,
ASTM A532 15/3 CrMo white iron casting , chemical composition ( percentage )
Q235 mild steel backing , chemical composition ( percentage )
>Mechanical Property,
-Minimum Hardness, 700 HBN / 63 HRC
-Minimum Tensile Strength, 630Mpa.
-Minimum Shearing Strength, 250Mpa.
THE BONDING LAYER IS VERY GOOD FOR OUR LAMINATED WEAR BLOCKS. GAIN MUCH APPRECIATION FROM END-USER.
OTHER TYPICAL PRODUCTS AND SERVICE
-Wear plates, wear liners
-Chocky bars and wear buttons
-Wear blocks, wear bars
-Custom made wear liners
-Bucket repair and protection
-Full Fabrication services
-Sugar mill hammer tips
-Drilling, milling or machining
-Casting/Investment casting
-Fast service and timely delivery
welcome to choose us - the most experienced manufacturer and exporter for laminite wear plates(ASTM A532 chromium carbide white iron & mild steel backing plate, 63HRC-700BHN), domite chocky bars, chromium carbide wear blocks, grinder hammer tips, white iron wear bars as well as Cr-c overlay wear plate.
Laminated Wear Blocks are unique wear resistant materials in that they combine very high wear resistant qualities of a high chrome cast iron (ASTM A532 15/3CrMo, 700 BHN - 63 HRc) with a weldable & high impact toughness mild steel through a metallurgical bond to create a product that is exceptionally resistant to impact and abrasion while retaining.
chrome carbide chockybar

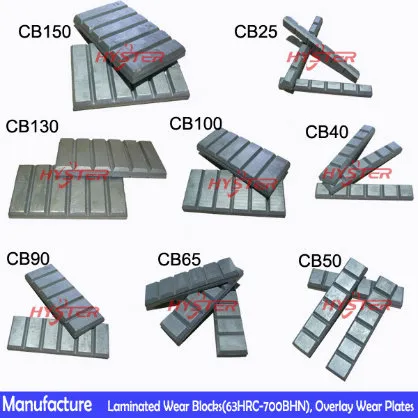

| ITEM NO. | DIMENSION(MM) | NET WEIGHT(KGS) |
| CB25(N) | 240X25X23 MM | 0.9 KGS |
| CB40(N) | 240X40X23 MM | 1.5 KGS |
| CB50(N) | 240X50X23 MM | 1.9 KGS |
| CB65(N) | 240X65X23 MM | 2.5 KGS |
| CB80(N) | 240X80X23 MM | 3.2 KGS |
| CB90(N) | 240X90X23 MM | 3.5 KGS |
| CB100(N) | 240X100X23 MM | 3.9 KGS |
| CB130(N) | 240X130X23 MM | 5.4 KGS |
| CB150(N) | 240X150X23 MM | 7.3 KGS |
PLEASE NOTE,
CAST LOGO FREE!
N means notch, for example CB25N means there is a notch in the mild steel for CB25N.
Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.
>Material,
ASTM A532 15/3 CrMo white iron casting , chemical composition ( percentage )
| C | Cr | Mo | Si | Mn | Ni | Cu | P | S |
| 2.0-3.3 | 14-18 | ≤ 3.0 | ≤ 1.5 | ≤ 2.0 | ≤ 2.5 | ≤ 1.2 | ≤ 0.1 | ≤ 0.06 |
Q235 mild steel backing , chemical composition ( percentage )
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu |
| 0.2 | 0.35 | 1.4 | 0.045 | 0.05 | 0.3 | 0.3 | 0.3 | 0.3 |
>Mechanical Property,
-Minimum Hardness, 700 HBN / 63 HRC
-Minimum Tensile Strength, 630Mpa.
-Minimum Shearing Strength, 250Mpa.
THE BONDING LAYER IS VERY GOOD FOR OUR LAMINATED WEAR BLOCKS. GAIN MUCH APPRECIATION FROM END-USER.
OTHER TYPICAL PRODUCTS AND SERVICE
-Wear plates, wear liners
-Chocky bars and wear buttons
-Wear blocks, wear bars
-Custom made wear liners
-Bucket repair and protection
-Full Fabrication services
-Sugar mill hammer tips
-Drilling, milling or machining
-Casting/Investment casting
-Fast service and timely delivery
