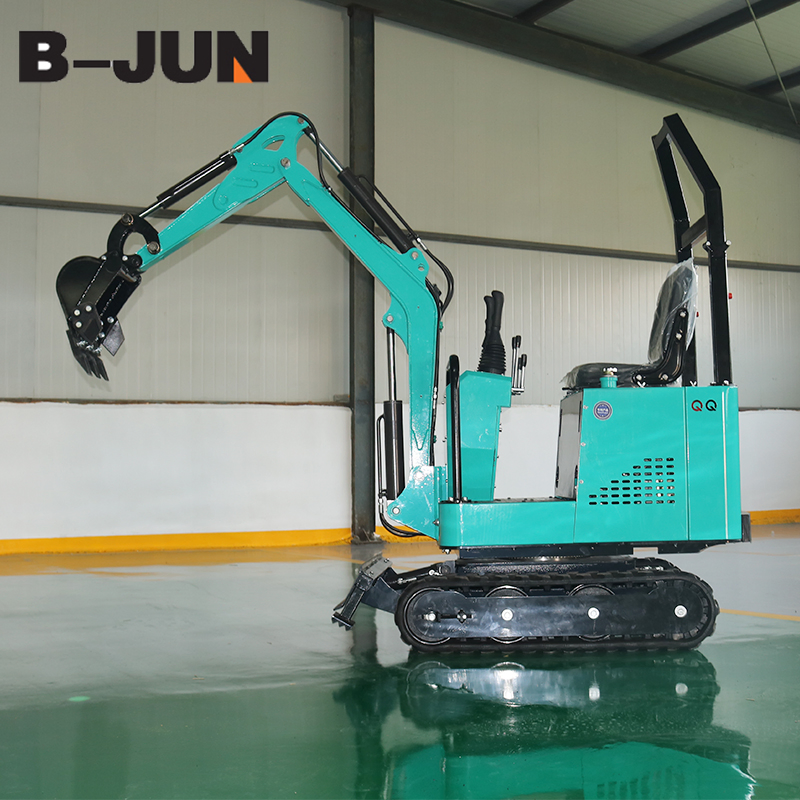

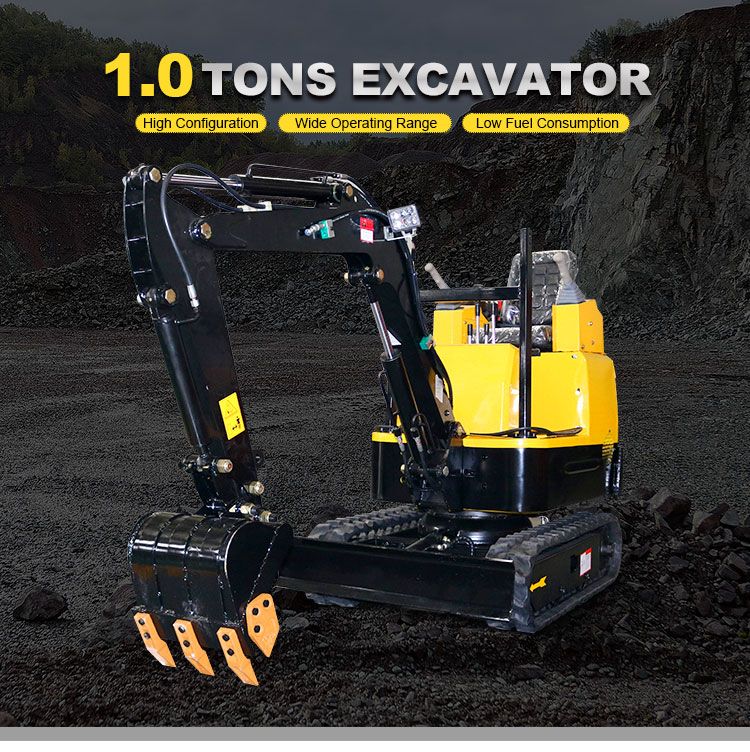

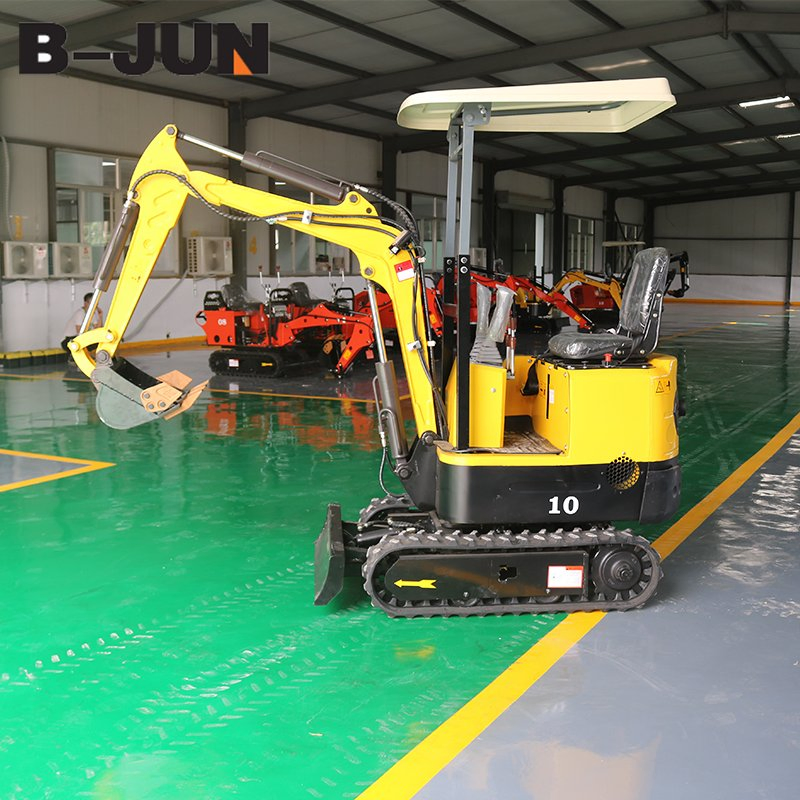

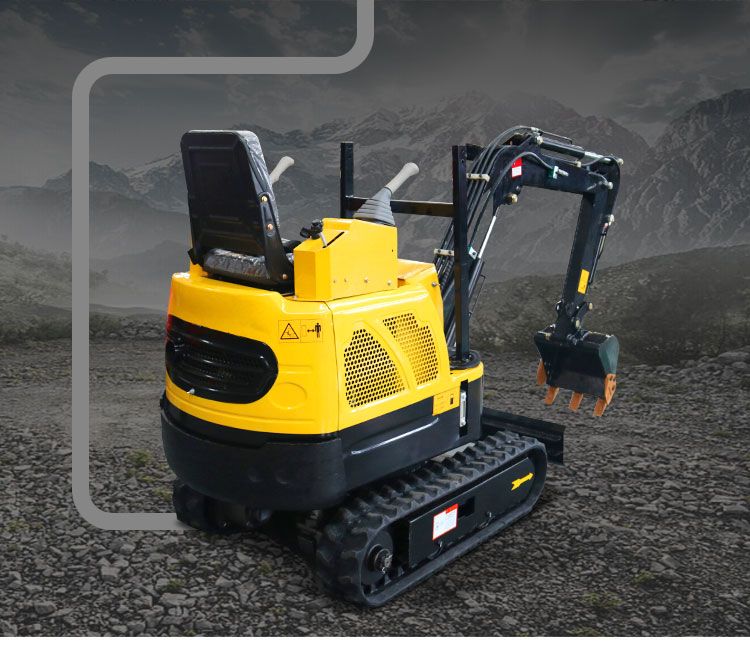

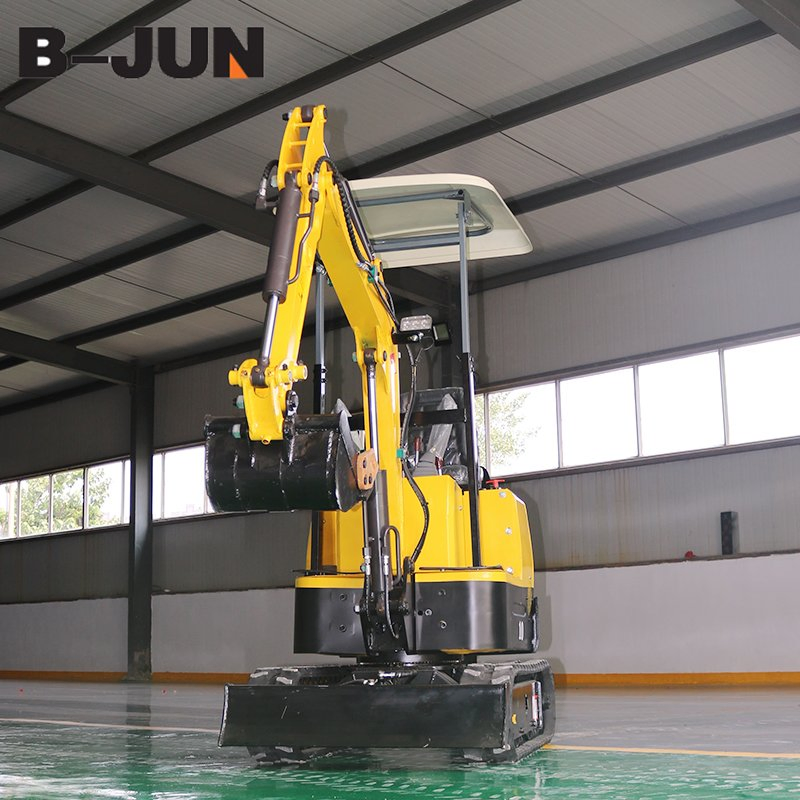

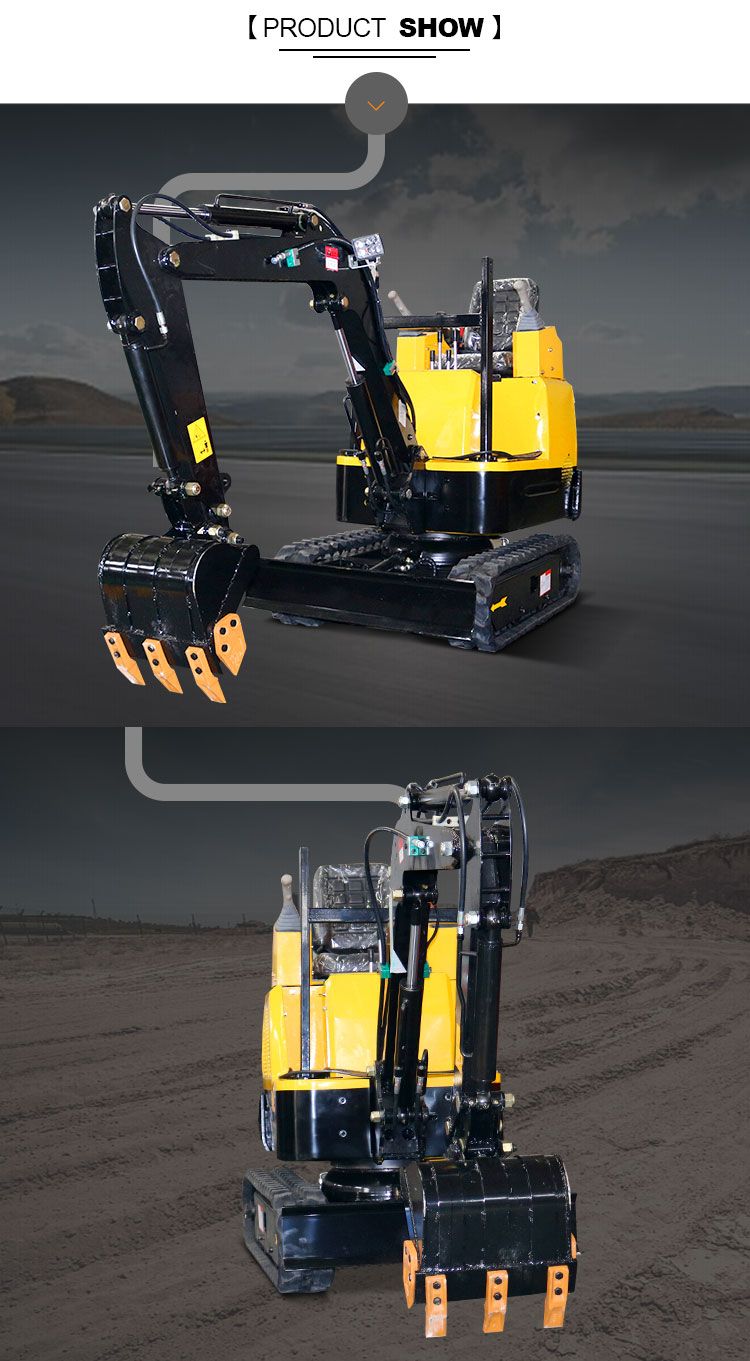

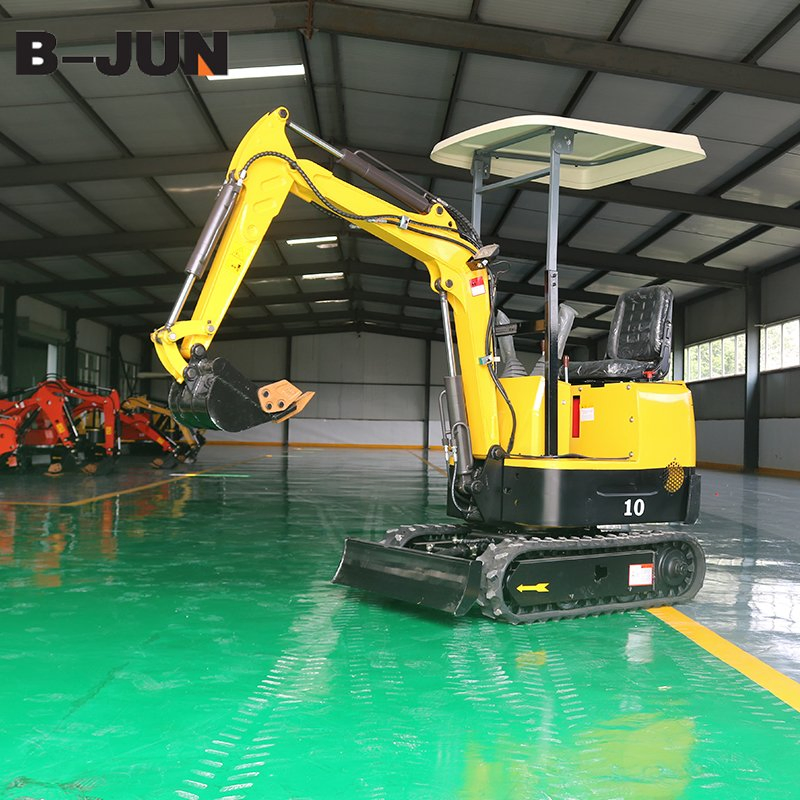

China 1 Ton Mini Excavator Small Digger Small Ditch Digging Machine Mini Track Excavator

Product Description

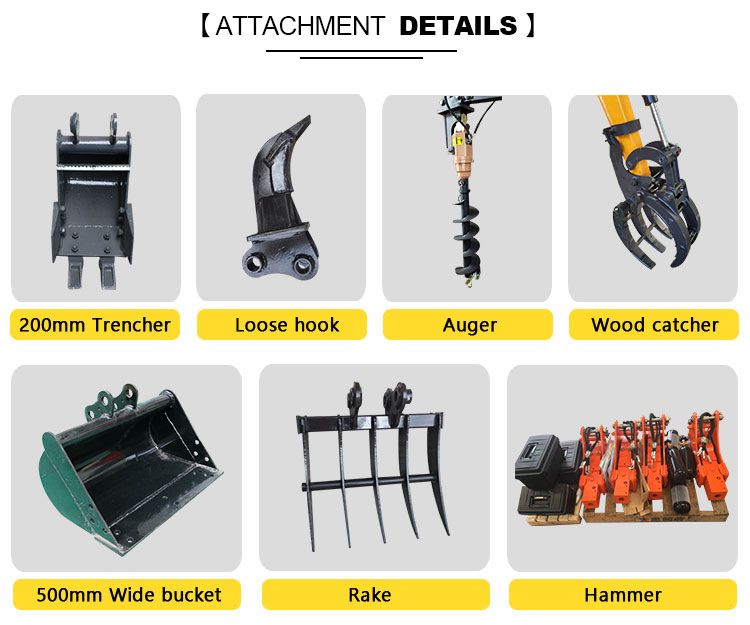

The product has beautiful appearance, high configuration, superior performance, low fuel consumption and wide operating range. It is suitable for small space construction operations such as loosening of land in vegetable greenhouses, landscaping of municipal departments, digging pits for planting trees in orchard nurseries, crushing of concrete pavement and mixing of sand and stone materials. Quick-change joints can be used to reduce maintenance and operation costs, liberate labor, increase mechanization, low investment and high return.

The performance parameters
Rated power	Kw	9.2
Digging bucket capacity	m³	0.03
Engine type	OEM 192
Work weight	kg	758
Maximum digging force	Kn	7.5
Pump type	Single gear pump
Set working pressure	Mpa	14
Rotary speed	Rpm	12
Walking speed	Km/h	2.2
Climbing ability	°	30
Ground pressure	Kpa	19
The scope of work
Maximum excavation distance	mm	2450
Maximum digging depth	mm	1410
The largest mining height	mm	2420
Maximum discharge height	mm	1650
Minimum radius of rotation	mm	1100
Maximum clearance of the bulldozer	mm	120
Maximum supporting depth of the shovel	mm	200
