China 14 Ton Mobile Wheel Excavator Xe150wb with Sturdy Structure

Product Description

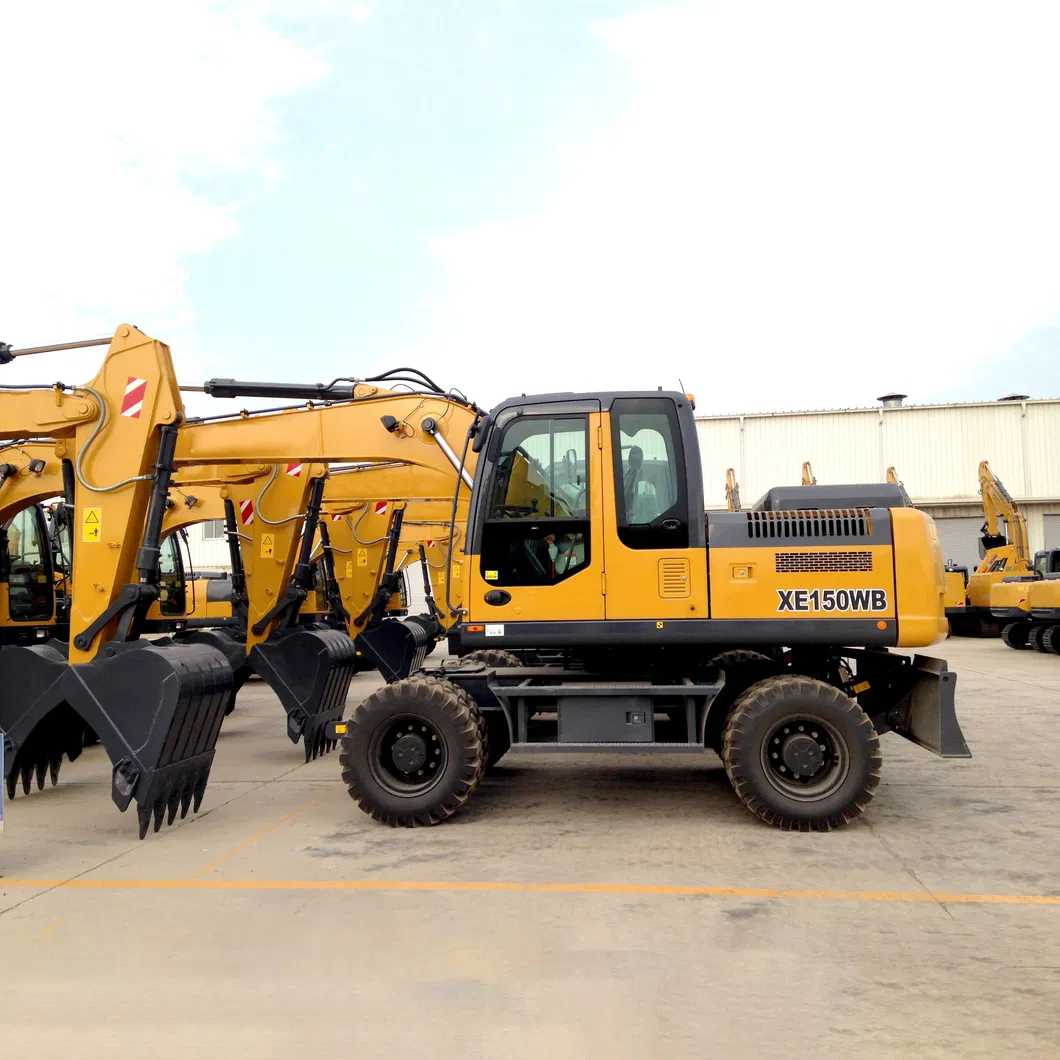

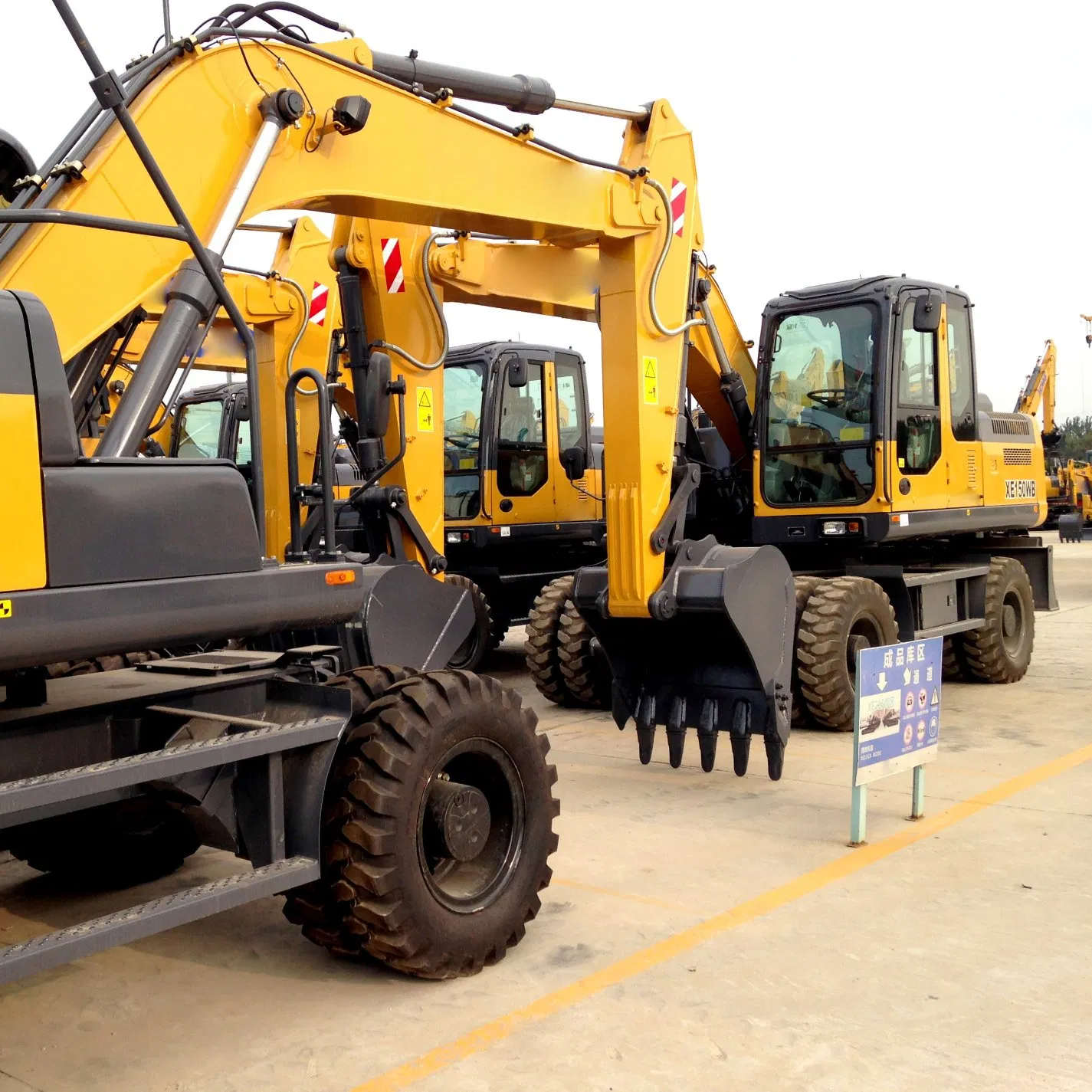

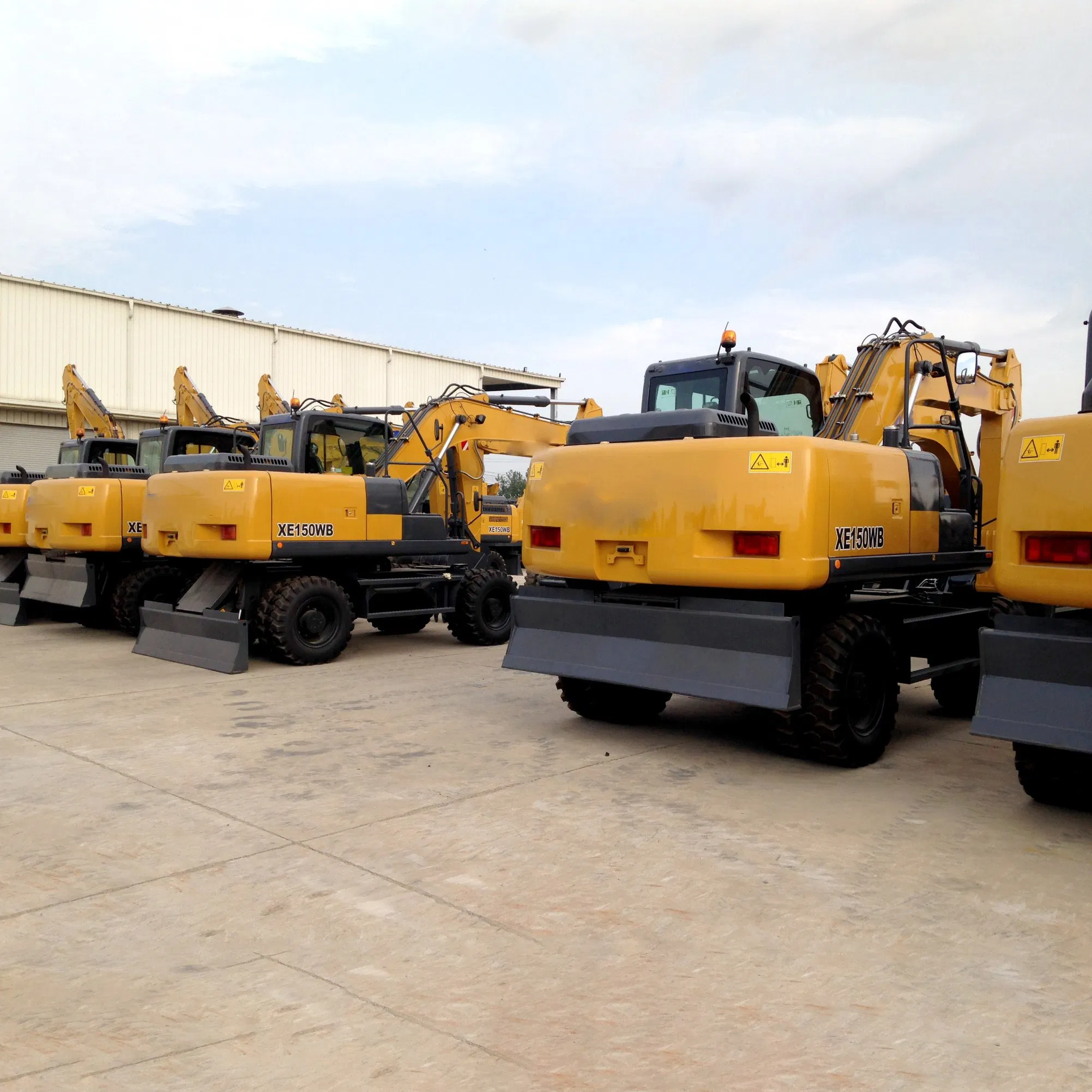

14 Ton Mobile Wheel Excavator Xe150wb with Sturdy Structure

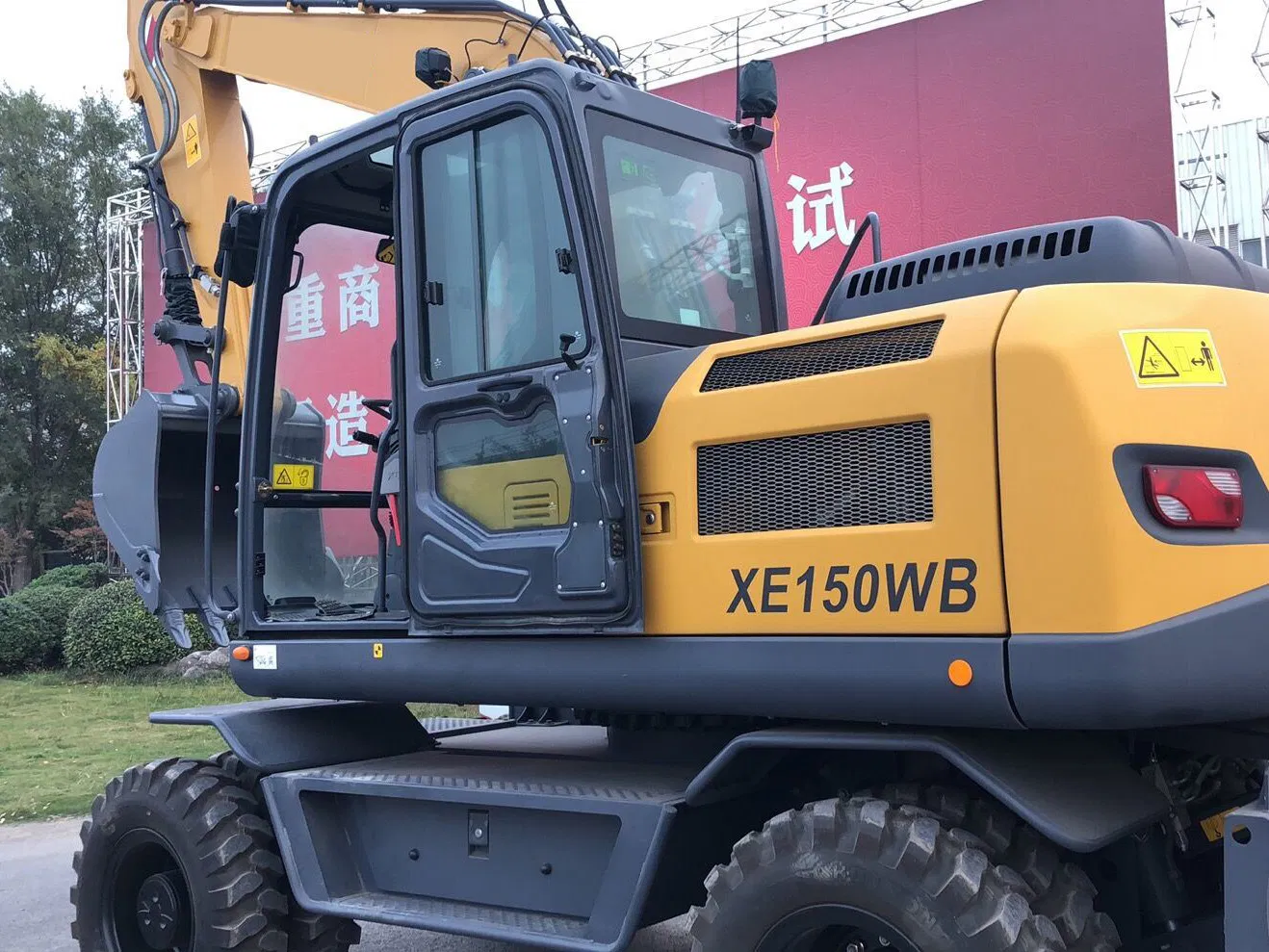

XE150WB wheeled hydraulic excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements. It plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.

This machine has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.

1. Equipped with a new generation of high-efficiency direct injection engine.
2. Using highly professional design and analysis tools, combined with bench tests, to ensure that our machines are strong and durable.
3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4. Fully functional, ergonomically designed man-machine driving and driving environment, equipped with high intensity cab certified with ROPS.

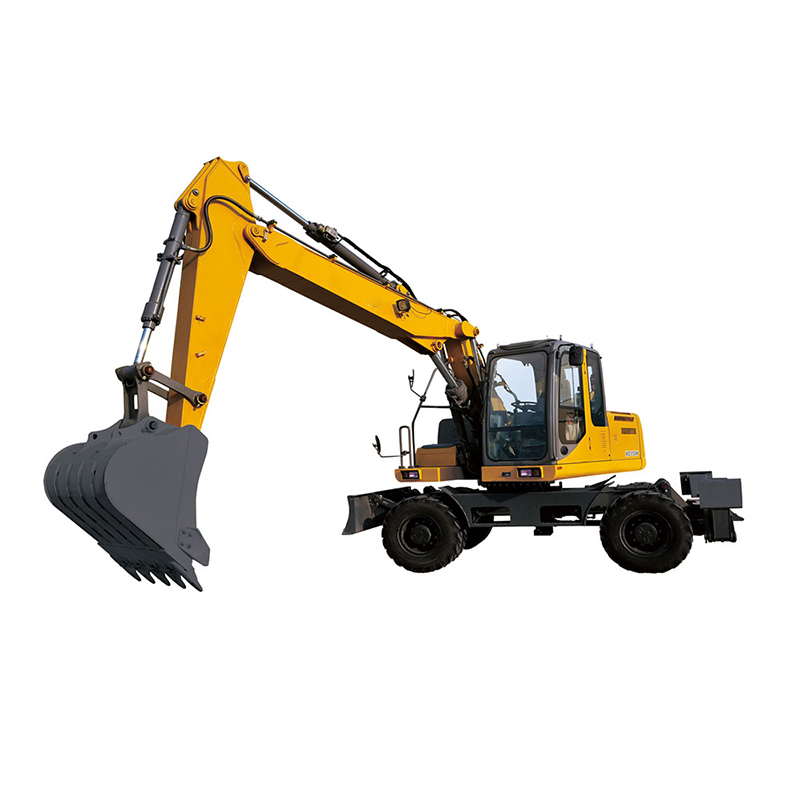

14 Ton Mobile Wheel Excavator Xe150wb with Sturdy Structure

Model	Unit	XE150WB
Engine model	/	QSB4.5
Output power of engine	Kw/r/min	104/2000
Operating Weight	KG	14000
Max.torque/engine	N.m	586
Displacement	L	4.5
Fuel tank capacity	L	250
Rated flow of main pump	L/min	2x160
Pressure of main safety valve	Mpa	31.4/34.3
Hydraulic tank capacity	L	135
Min.turning radius	mm	6500
Rated speed	KM/h	11/33
Gradient capability	%	70
Counterweight ground clearance	mm	1230
Min.ground clearance	mm	355
Min.tail swing radius	mm	2300
Wheelbase	mm	2800
Track gauge	mm	1920
Total width of chassis	mm	2495
Distance between front axle and turning center	mm	1700
The maximum digging depth of dozer	mm	105
Max. digging radius	mm	7780
Min. swing radius	mm	7570
Max. digging height	mm	8190
Max. dumping height	mm	5855
Max. digging depth	mm	4630
