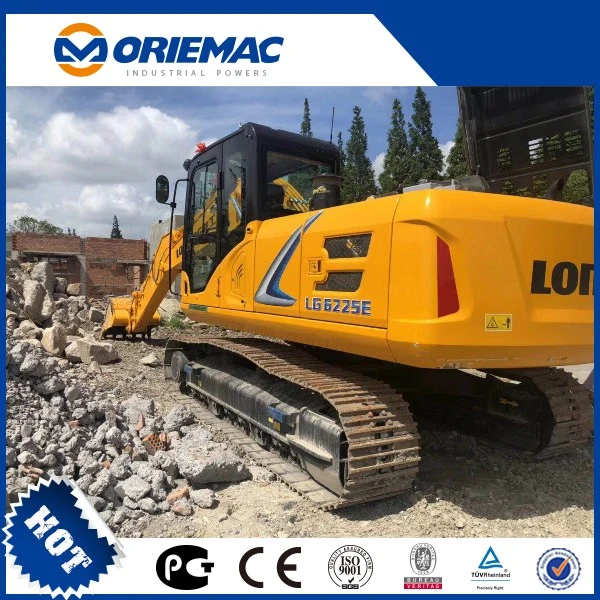

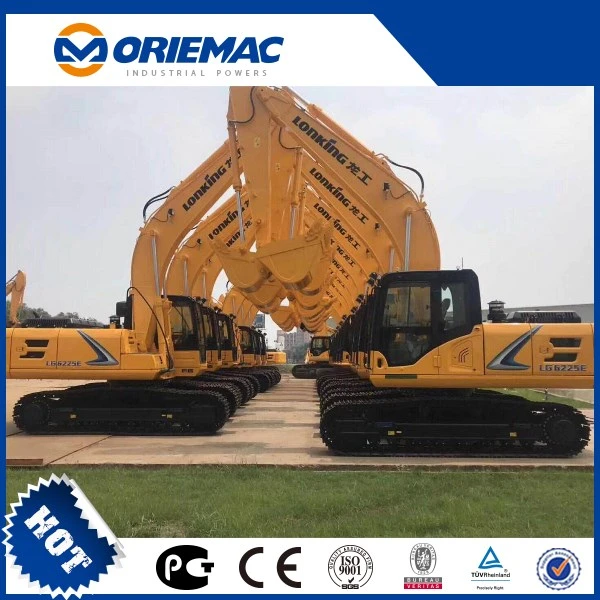

22tons LG6225e Lonking Brand New China Excavators
New Condition LG6225E Lonking China ExcavatorsProduct Description1. Major parts are all from world class suppliers.The improved boom and arm, reinforced undercarriageare designed to withstand some of the toughest workingenvironments.2. Equipped with a fuel efficient world-class B5.9engine, complian......
Send Inquiry
Product Description
Product Description
1. Major parts are all from world class suppliers.The improved boom and arm, reinforced undercarriageare designed to withstand some of the toughest workingenvironments.
2. Equipped with a fuel efficient world-class B5.9engine, compliant with EU stage II/EPA Tier 2, and theadvanced IPC (Intelligent Power Control) system balancesthe engine and hydraulic pump to achieve high efficiencyand low fuel consumption.
3.The machine meets European Certifying ROPS cab,compliant with ISO 12117-2:2008. Falling Object.Protection System (FOPS) is optional. An optional rearview.camera gives an exceptionally clear view of the rear work.zone on the wide-screen monitor.
4.Ergonomically designed cab for Liugong E series.excavator, with great visibility, expansive leg room, new.multi-function LCD monitor, automatic air conditioner, large.storage space, provide most comfortable
.Technical Parameters
| OVERALL DIMENSION | |||
| Overall width of upper assembly | 2700mm | Overall width | 2990mm |
| Overall height of cab | 2940mm | Tail swing radius | 2860mm |
| Overall height of engine hood | 2345mm | Ground clearance of counterweight | 1032mm |
| Wheelbase | 3660mm | Crawler length | 4460mm |
| Crawler gauge | 2390mm | Crawler pad width | 600mm |
| Min ground clearance | 460mm | Overall length | 9700mm |
| Overall height of boom | 2920mm | -- | -- |
| OVERALL PARAMETERS | |||
| Bucket capacity | 1m3 | Overall operating weight | 21700kg |
| Max excavation force | 147.1kN | Swing speed | 11.6r/min |
| Traveling speed(low/high) | 3.2/5.5km/h | Average ground pressure | 45.3kPa |
| Max digging radius | 9940mm | Max digging depth | 6730mm |
| Max digging height | 9450mm | Max dumping height | 6650mm |
| Min front swing radius | 3650mm | -- | -- |
| ENGINE | |||
| Model | BF6M2012C | Type | Four stroke, supercharged, intercooled |
| Rated power/speed | 120kW/2000r/min | Displacement | 6.057L |
| Cylinder bore/stroke | 101x126mm | Emission standard | China Tier II |
| Rated fuel consumption | 214g/kW.h | Max torque | 671N.m |
| TRAVELING/SWING SYSTEM | |||
| Qty of carrier rollers(single side) | 2 | Qty of track rollers(single side) | 8 |
| Traveling brake type | Wet disc | Swing mode | Hydraulic drive internal tooth single row ball bearing |
| Swing brake type | Wet brake | Hydraulic control Type | Pilot proportional control valve |
| Hydraulic system type | Double-pump constant power and negative flow control system | Max flow | 2x200+20L/min |
| Operating pressure | 330/350kgf/cm2 | Main pump model | K3V112DT |
| Arm cylinder-cylinder bore*diameter of piston rod * stroke | 1-135x95x1540mm | Boom cylinder-cylinder bore*diameter of piston rod * stroke | 2-125x80x1235mm |
| Bucket cylinder-cylinder bore*diameter of piston rod * stroke | 1-120x80x1065mm | ||
| FILL CAPACITY | |||
| Fuel | 350L | Engine oil | 19.5L |
| Hydraulic oil | 295L | Swing gearbox | 8.6L |
| Traveling gearbox | 2x5.8L | -- | -- |
