    6 Ton Track Excavator with Hammer
    • 6 Ton Track Excavator with Hammer6 Ton Track Excavator with Hammer
    • 6 Ton Track Excavator with Hammer6 Ton Track Excavator with Hammer
    • 6 Ton Track Excavator with Hammer6 Ton Track Excavator with Hammer
    • 6 Ton Track Excavator with Hammer6 Ton Track Excavator with Hammer

    6 Ton Track Excavator with Hammer

    Overall sizeMin. Radius of Rear Gyration1650mmMin Ground Clearance350mmPlatform width1810mmEngine hood height1750mmPlatform Height Above Ground830mmTransport Length5850mmArm Length1600mmBoom Length3000mmBucket Width670mmMachine parametersMachine Weight5880KgBucket Capacity0.28m³Rated Power3......

    Send Inquiry

    Product Description

    6 Ton Track Excavator with Hammer6 Ton Track Excavator with Hammer

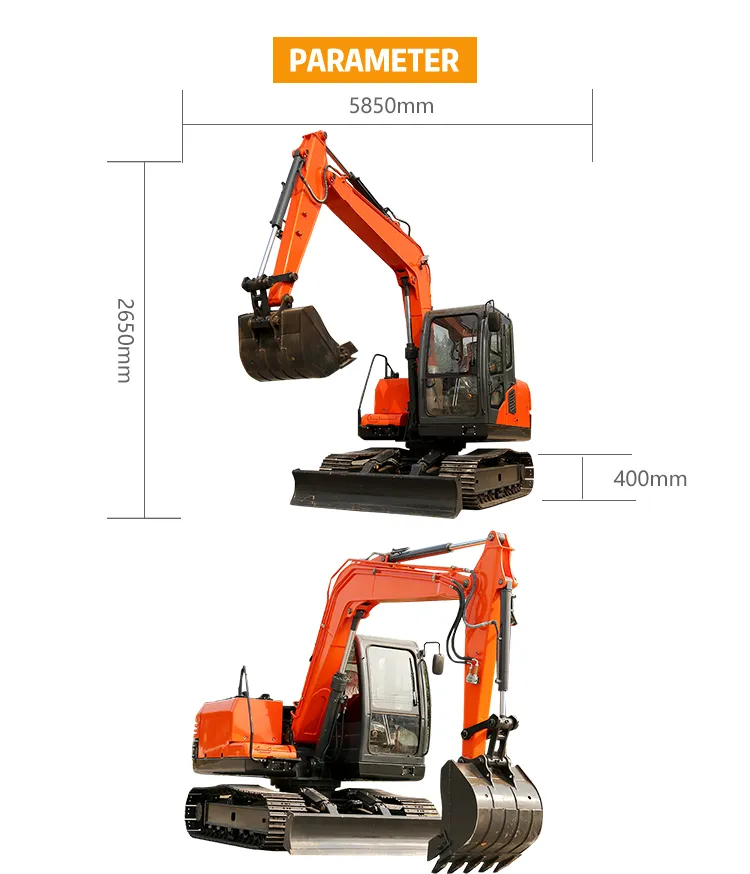

    Overall size
    Min. Radius of Rear Gyration1650mm
    Min Ground Clearance350mm
    Platform width1810mm
    Engine hood height1750mm
    Platform Height Above Ground830mm
    Transport Length5850mm
    Arm Length1600mm
    Boom Length3000mm
    Bucket Width670mm
    Machine parameters
    Machine Weight5880Kg
    Bucket Capacity0.28m³
    Rated Power37KW
    Cylinders4
    Hydraulic Pressure24MPa
    Max Grade30°
    Ground Pressuree35kpa
    Max Travel Speed2.5-4.5Km/h
    Max Traction38KN
    Platform rotation speed8-10rmp
    Max Bucket Digging Force37.7KN
    Max Arm Digging Force28.4KN
    Working range
    Max. Digging Height5760mm
    Max. Dumping Height4030mm
    Max. Digging Depth3820mm
    Max Digging Radius6150mm
    Min Radius of Rotation2100mm
    Max. Lifting Height of Bulldozer350mm
    Max. Sinking Depth of Bulldozer450mm

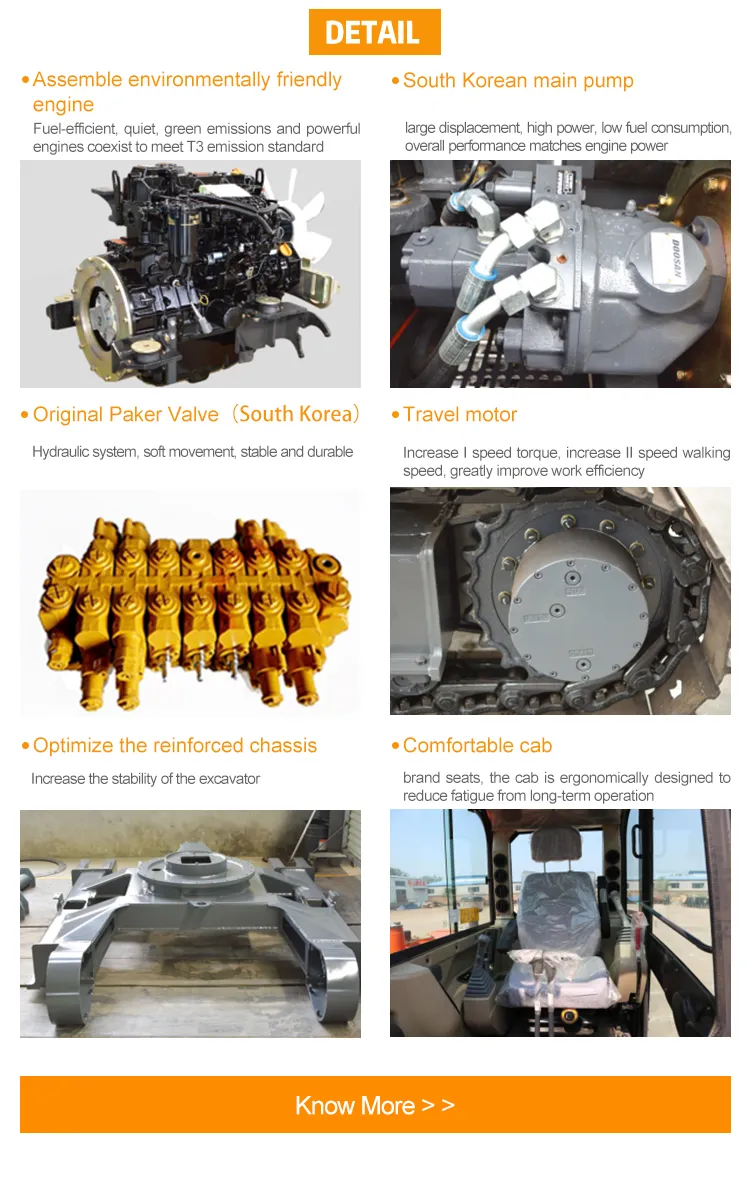

     Machine configure

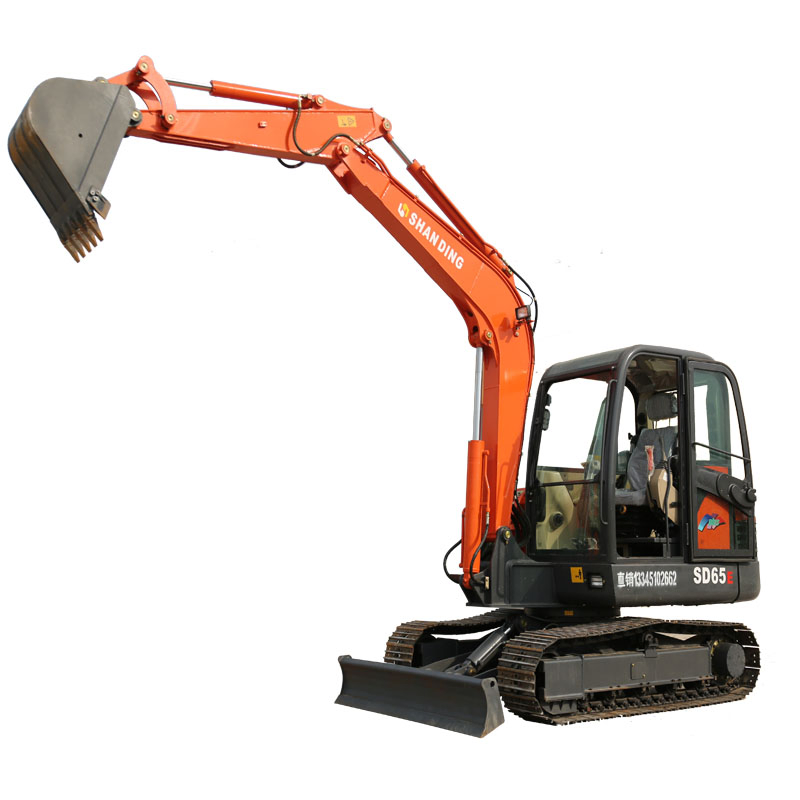

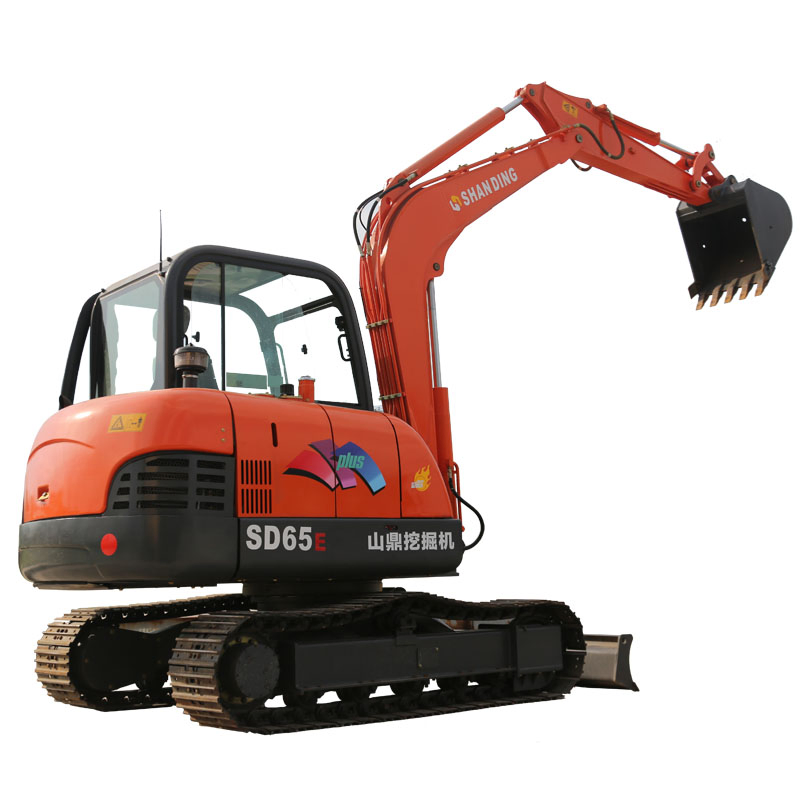

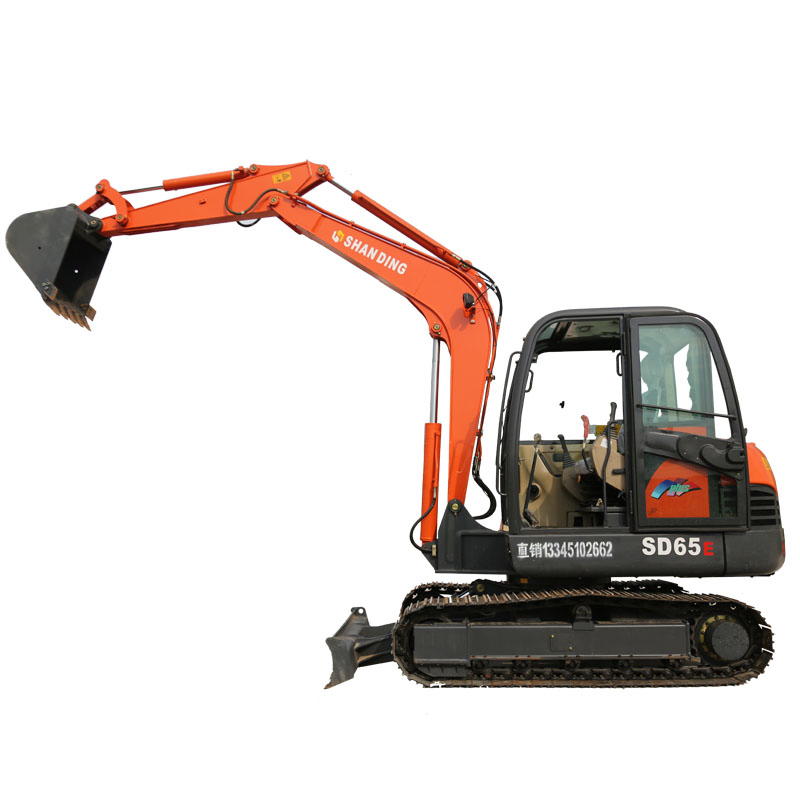

    Model NoSD65E
    Engine ModelYanmar4TNV494
    PumpImported MZFB327
    ValveParker-Korea
    Spray methodDirect injection
    Cylinders4
    MotorsImported Eaton
    6 Ton Track Excavator with Hammer6 Ton Track Excavator with Hammer6 Ton Track Excavator with Hammer6 Ton Track Excavator with Hammer6 Ton Track Excavator with Hammer6 Ton Track Excavator with Hammer
