China 0.8~2ton CE/EPA We08/We10/We12/We16/We18/We20 Mini Bagger/Digger/Excavator for

Product Description

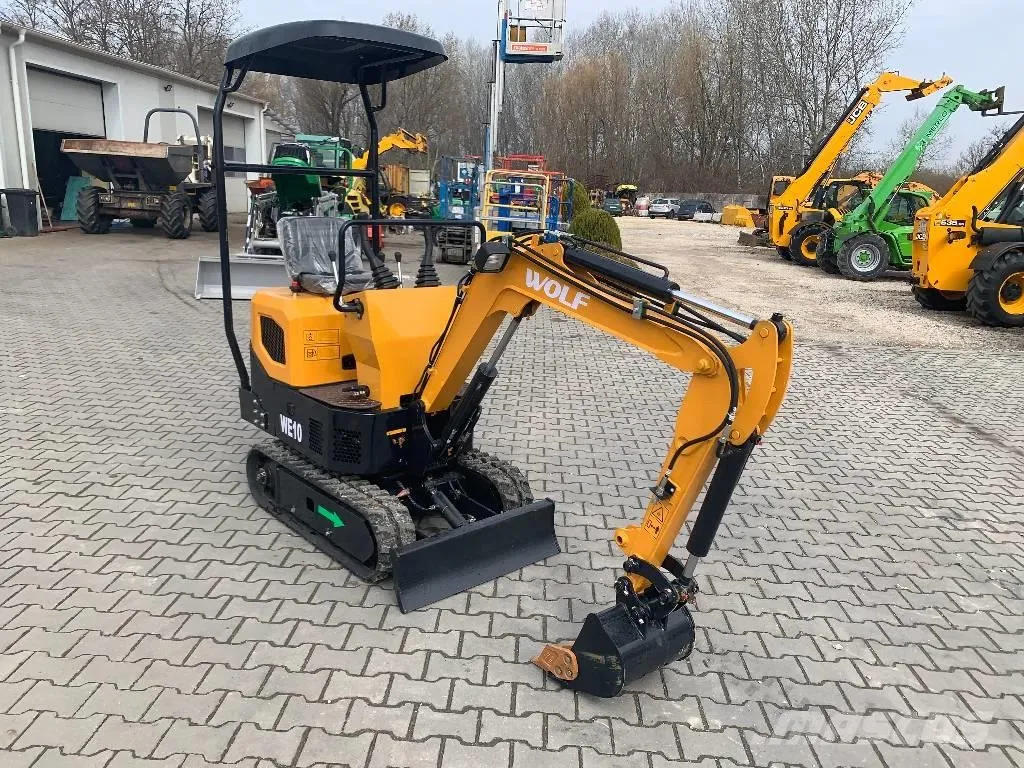

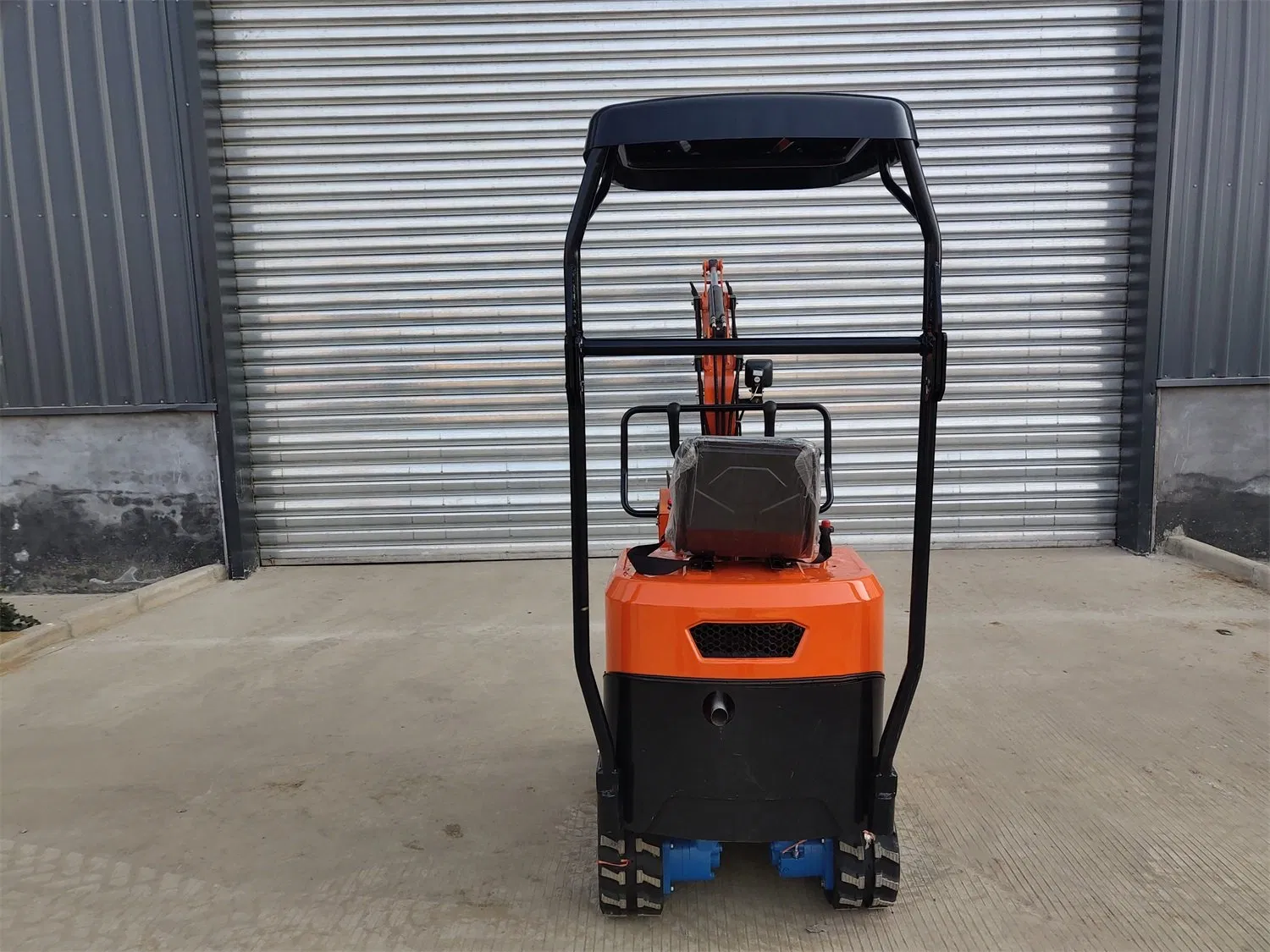

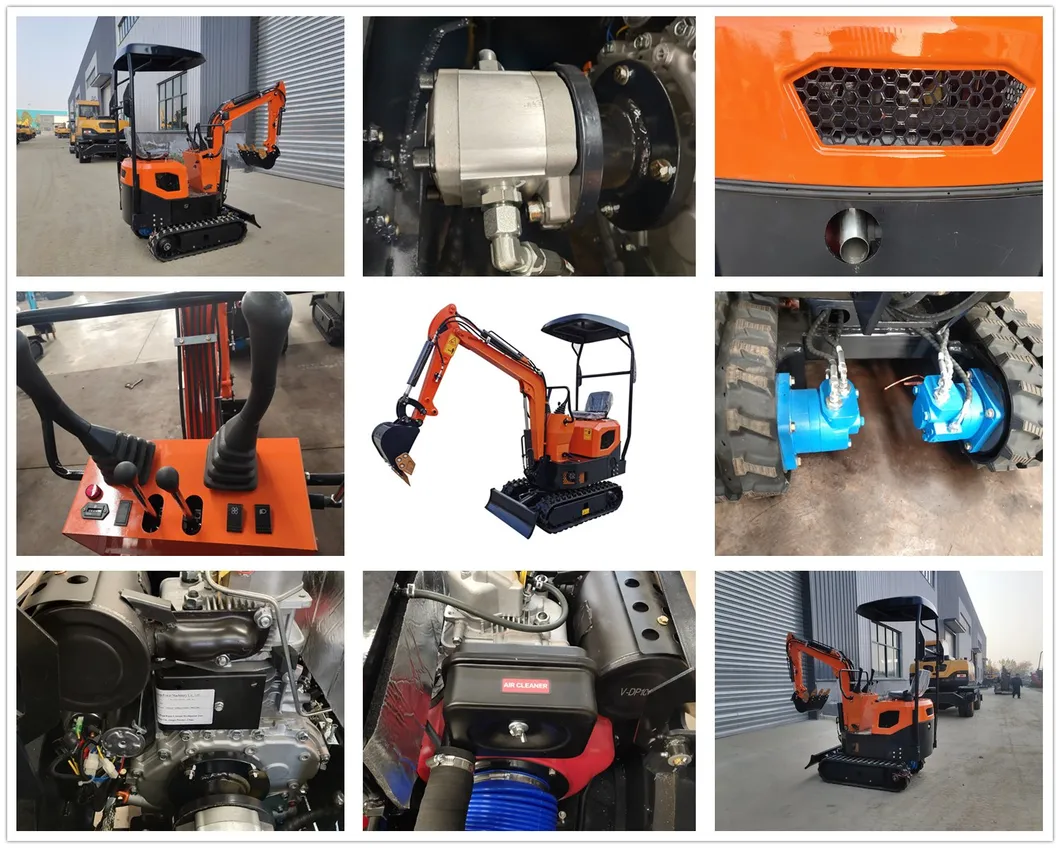

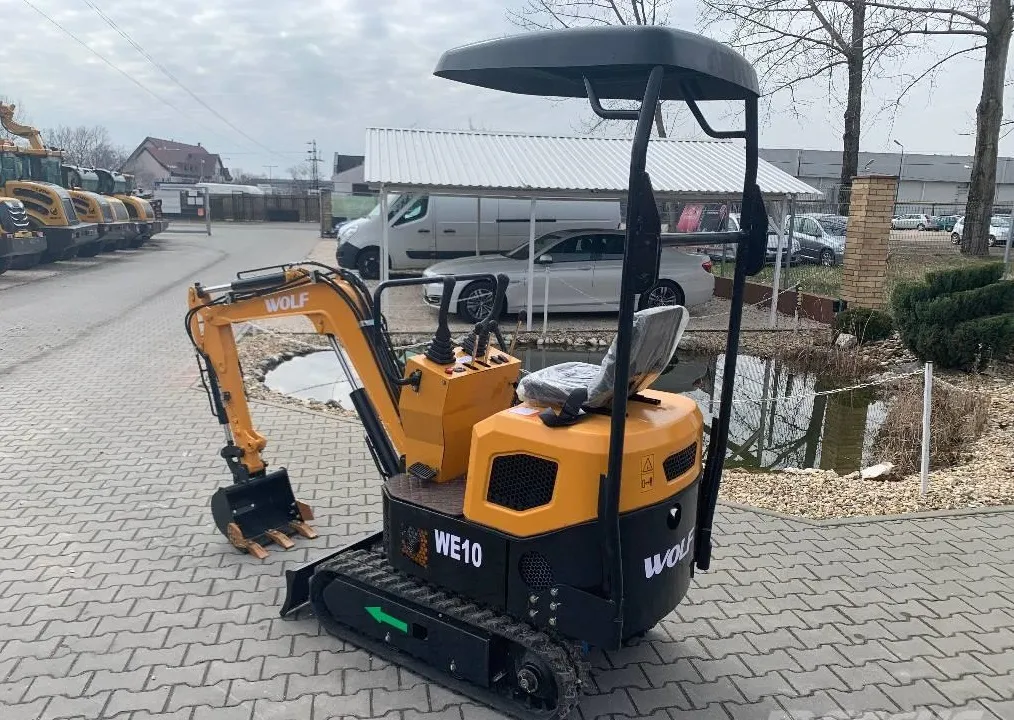

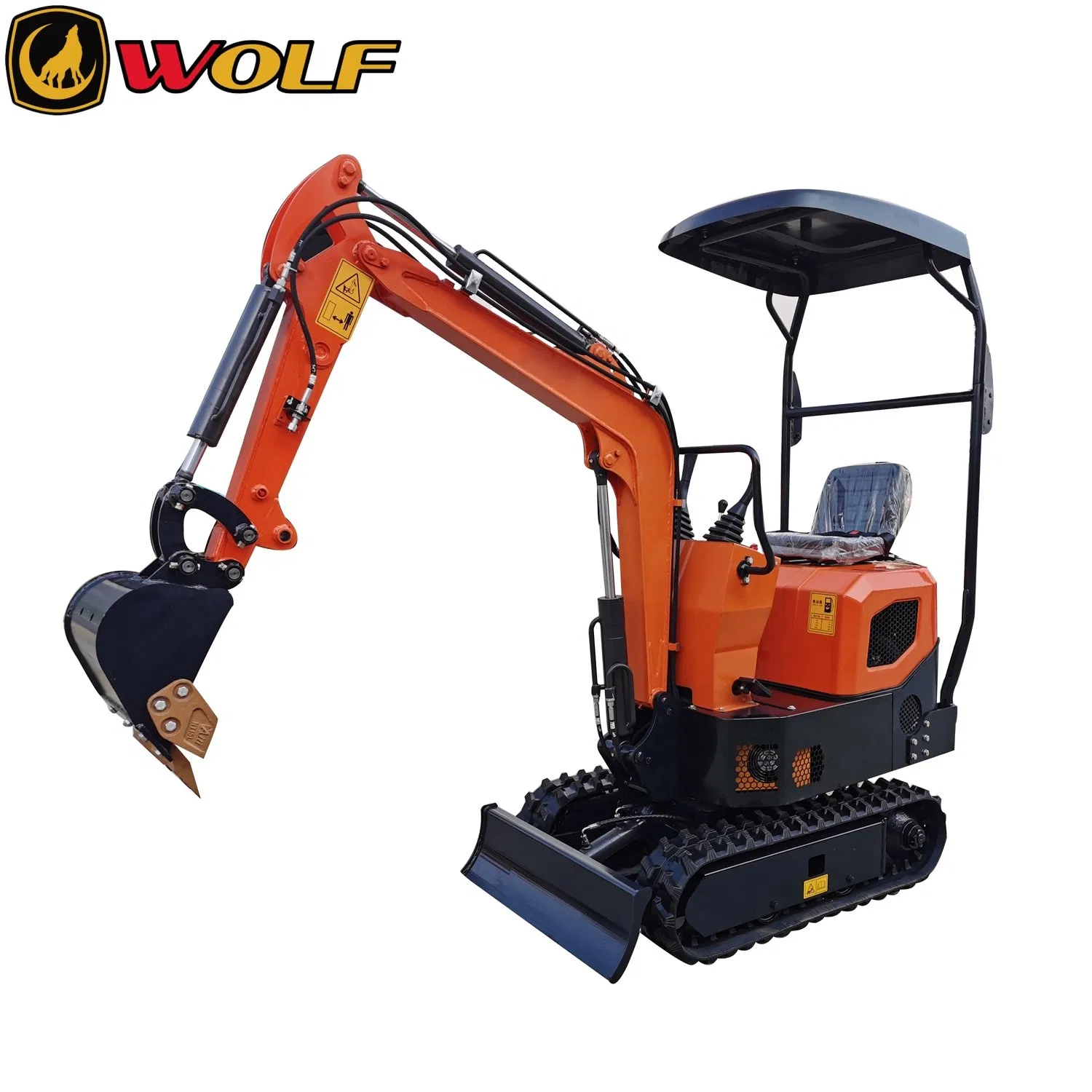

WE10 mini excavator

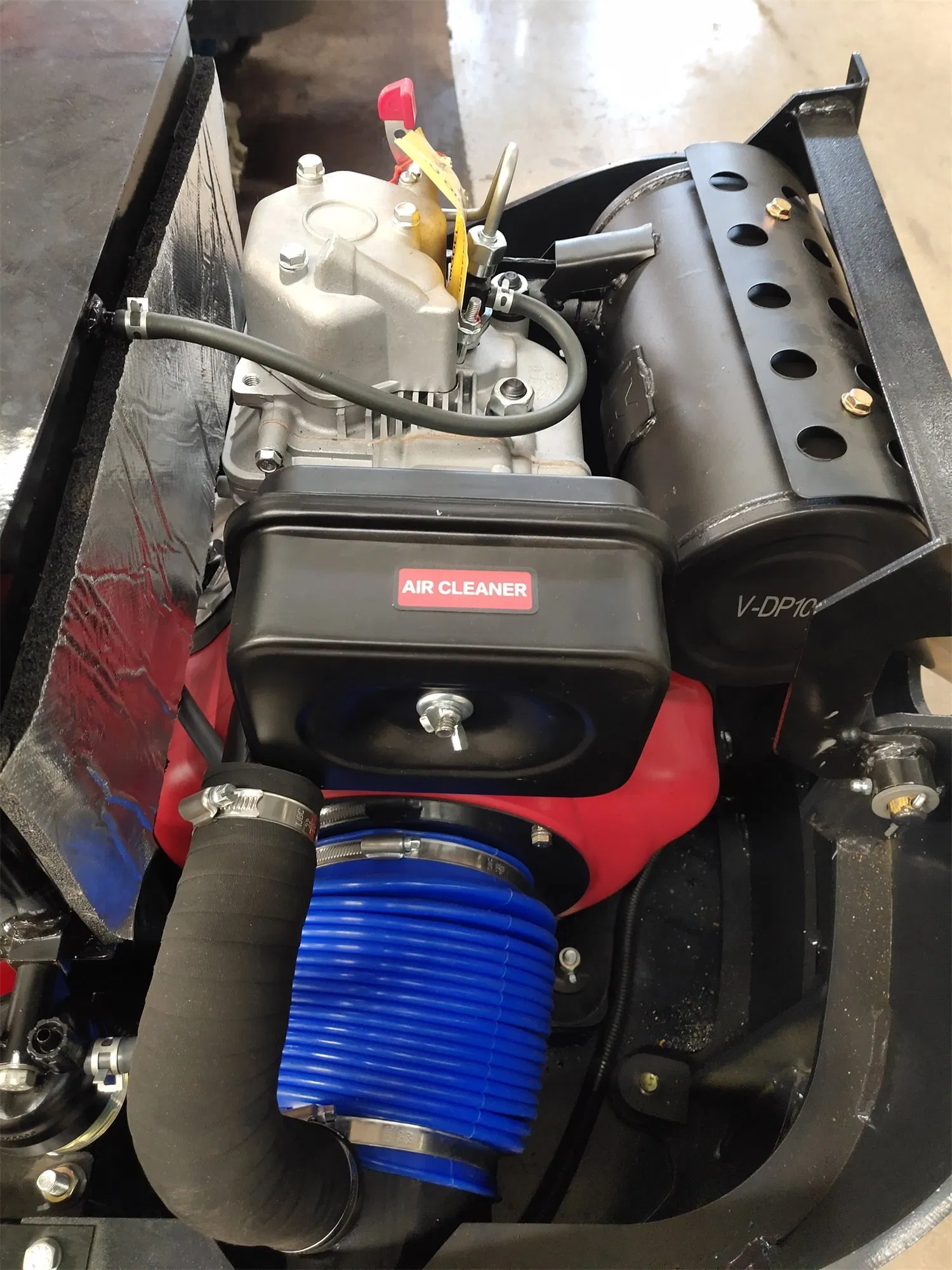

Koop single cylinder E5 engine included,
Bucket capacity 0.02m3/100kg,
operating weight 950kg,
max. digging depth 1715mm,
max. digging height 2600mm,
Rubber track
Standard digging bucket 400mm.

Features:

Small size and easy to transport, could be loaded onto light truck or small trailer
6 sets could be loaded into one 20GP container, 13~20 sets in 40HQ to save freight cost.
Famous brand hydraulic system parts ensure the stable quality.
boom deflection design meet narrow work condition, reinforced rubber track to protect road
extend hydraulic line for various attachments.
comfort seat make operator easy to work.
Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, paper-making factory etc. and could replace 4~5 manpower.

Specifications:

Engine	Model	KOOP KD192F-1 7kW/3000rpm Euro 5 stage
	Type	Direct injection, wind cooled, natural intake
	No. of cylinder	1
Main Performance	Swing Speed	r/min	0-13
	Traveling Speed	km/H	2
	Grade ability	%	30°
	Traveling Tracking Force	kN	8.3
	Bucket Digging Force	kN	7.2
	Arm Digging Force	kN	4.6
Hydraulic system	Hydraulic system working pressure	Mpa	16
	Hydraulic Pump		Gear Pump
	Hydraulic pump flow	L/min	18
	Fuel Tank Capacity	L	26
	Hydraulic Tank Capacity	L	14.5 in Hydraulic tank 21.5 in Hydraulic system
Overall Dimensions	Overall Length	mm	2840
	Overall Width	mm	880
	Overall Height	mm	2200
	Counterweight Ground clearance	mm	385
	Axle Base	mm	900
	Track width	mm	180
	Undercarriage width	mm	840
	Undercarriage ground clearance	mm	132
Operation parameters	Operation Weight	KG	950
	Bucket Capacity	m3	0.023
	Max. Digging Radius	mm	3065
	Max. Digging Depth	mm	1715
	Max. Digging Height	mm	2600
	Max. Dumping Height	mm	1830
	Tail Swing Radius	mm	800

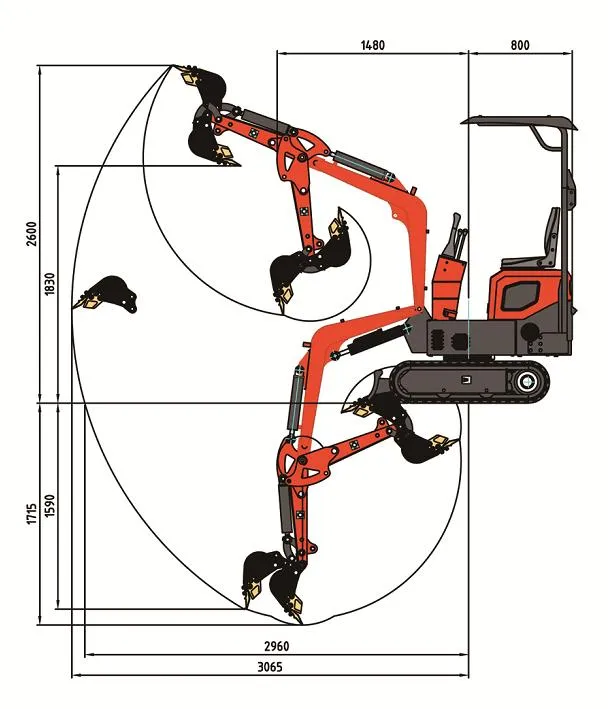

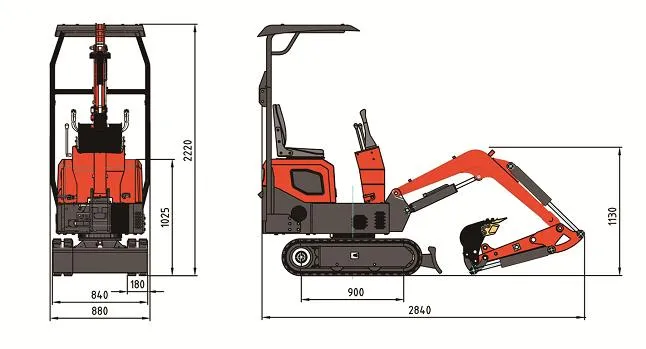

Techinical Drawing:

China 0.8~2ton CE/EPA We08/We10/We12/We16/We18/We20 Mini Bagger/Digger/Excavator for

FAQ

Q: Why should I choose Wolf instead of other brands?

A: With 10 years' exporting experience, Wolf has been a well known brand in the market, now you can see Wolf machines in more than 50 countries.
What we can provide:

lQuality machines, CE certificated.
lMore competitive price based on same configuration machines.
lMore timely and effective service base on same price.

Q: Can I test the machine before order?

A: Yes, we have dealers in Germany/ Austria/ Switzerland/ Portugal/ Sweden/ Finland/ Denmark/ Poland/Serbia etc. Please tell me your detailed address, then I would like to recommend the closest customer for you, then you could go to test.

Q: What is your delivery time?

A: The delivery time is around 30 working days. In peak season, the production time would take longer.

Q: What is the payment term?

A: Normally we use T/T 30% deposit for production, balance 70% before shipment. Or upon loading photos.

Q: What color can I choose?

A: There are Yellow, White, Orange, to choose. We can customize the color when you order more.

Q: Can I see the loader production progress after order?

A: Yes, during production, we could take some photos/videos for your reference.

Q: What kind of service can I get from you if I buy? How can I get parts?

A: We have 1 year warranty for each machine, within 1 year, if any parts broken because of quality issues, the new parts would be sent to you free of charge, within 5 working days. We have professional after sales department to support for you at any time.
We also have partner in Germany, could provide fast support for spare parts.
