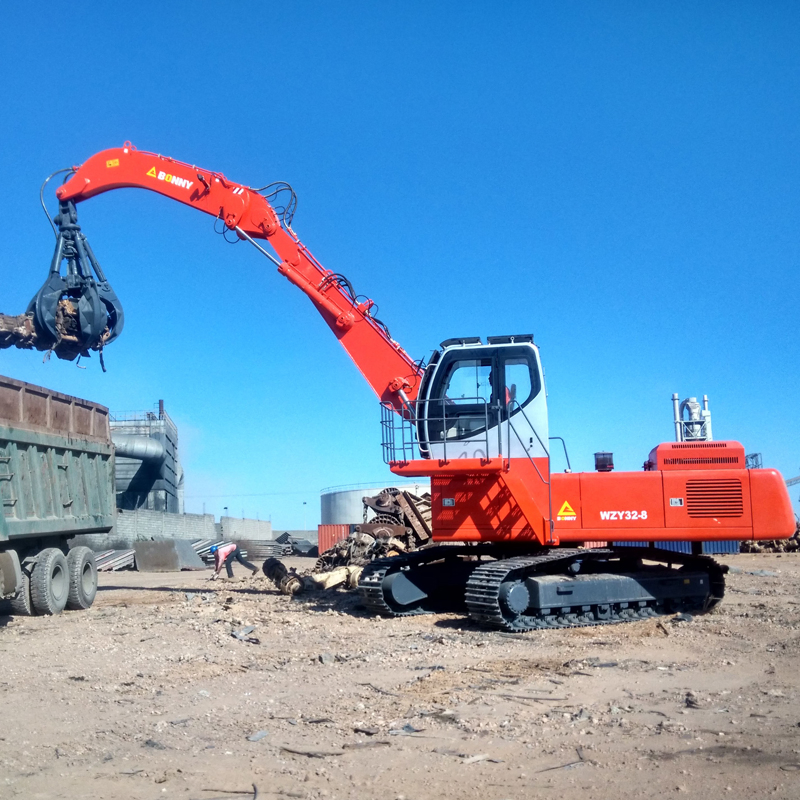

China Bonny Wzy32-8c 32 Ton Crawler Hydraulic Material Handling Equipment with Electromagnetic Chuck
Features & Advantages1. Bonny's material handlers are efficient special equipment for loading and unloading, specially designed for loading and unloading working conditions (including special main valves, special hydraulic systems, etc.), not simple modification from excavators.2. -8C series......
Send Inquiry
Product Description
Features & Advantages
1. Bonny's material handlers are efficient special equipment for loading and unloading, specially designed for loading and unloading working conditions (including special main valves, special hydraulic systems, etc.), not simple modification from excavators.
2. -8C series material handler is the latest products in Bonny, the diesel engine emmissions conform to the latest environmental regulations and it is equipped with the world famous brand hydraulic components. it adopted special undercarriage, enlarge distance between sprocket and idler, and two tracks, largely improve the working stability and elevating capacity; develop the working attachment further, largely improve the operation efficiency under ensuring the working reaching.
3. Bonny's material handlers have several individual scheme combinations between power unit, working attachment, working tools, driver's cab and undercarriage, can be fully satisfied the personalized requirements of customers.The following advanced systems can be selected individually or in combination as required: Monitoring system with displayer, electronic weighing system, radiation detection system, automatic central lubricating system, rubber track, tools applicable (Orange-peel grab, Clamshell grab, Timber grab, Hydraulic shears, Hydraulic pliers etc.).
4. Applicable for loading, unloading, stacking, transferring and packing in scrap steel yards, wharf yards, railway yards, as well as light material industry.
Specifications
Product Show
Certificate
Service on Site
Packing & Shipping
FAQ
1: What about the delivery time?
A: It depends on the type of machine. In general circumstance, it will take more than from 60 days to 90 days to produce the ordered machine after receiving the deposit. But we can reduce to 10 working days if the machine areinstock.
2: Which payment terms can be accepted?
A: Normally our payment term is based on by T/T (30% down payment, 70% before shipment) or irrevocable Letter of Credit at sight. But if you prefer other payment terms please contact us for further information.
3: What is the warranty time?
A: The warranty period shall be 15 months counted from goods arrival in Chinese port, or 1 year (12 months) or 2000 operating hours since handover (after assembling and commissioning) on operation site, whichever comes earlier.
4: How soon can you respond client inquires?
A: Our team is consisted of a group of diligent and dynamin people, working 24/7 to respond clinent inquires and questions all time, most of them can be solved within 12 hours.
5: What kind of logistic service do you supply?
A: We can ship construction machinery by various transportation ways including by road, railway and container. For light spare parts in urgent demand, we can send it by international express service, such as DHL, TNT, UPS, FedEx, or by Air.
6. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
1. Bonny's material handlers are efficient special equipment for loading and unloading, specially designed for loading and unloading working conditions (including special main valves, special hydraulic systems, etc.), not simple modification from excavators.
2. -8C series material handler is the latest products in Bonny, the diesel engine emmissions conform to the latest environmental regulations and it is equipped with the world famous brand hydraulic components. it adopted special undercarriage, enlarge distance between sprocket and idler, and two tracks, largely improve the working stability and elevating capacity; develop the working attachment further, largely improve the operation efficiency under ensuring the working reaching.
3. Bonny's material handlers have several individual scheme combinations between power unit, working attachment, working tools, driver's cab and undercarriage, can be fully satisfied the personalized requirements of customers.The following advanced systems can be selected individually or in combination as required: Monitoring system with displayer, electronic weighing system, radiation detection system, automatic central lubricating system, rubber track, tools applicable (Orange-peel grab, Clamshell grab, Timber grab, Hydraulic shears, Hydraulic pliers etc.).
4. Applicable for loading, unloading, stacking, transferring and packing in scrap steel yards, wharf yards, railway yards, as well as light material industry.
Specifications
| Item | Unit | Data |
| Machine weight | t | 31 |
| Diesel engine power | kW | 169 |
| Rated speed | rpm | 2000 |
| Max. flow | L/min | 2×224 |
| Max. operation pressure | MPa | 30 |
| Swing speed | rpm | 12.3 |
| Travel speed | km/h | 3.4/5.2 |
| Cycling time of operation | s | 16-22 |
| Working attachment | Data | |
| Boom length | mm | 6800 |
| Stick length | mm | 5800 |
| Capacity with orange-peel grab | m3 | 0.8 (semi-closure)/1.0 (open type) |
| Max. grabbing reach | mm | 13407 |
| Max. grabbing height | mm | 10874 |
| Max. grabbing depth | mm | 7415 |

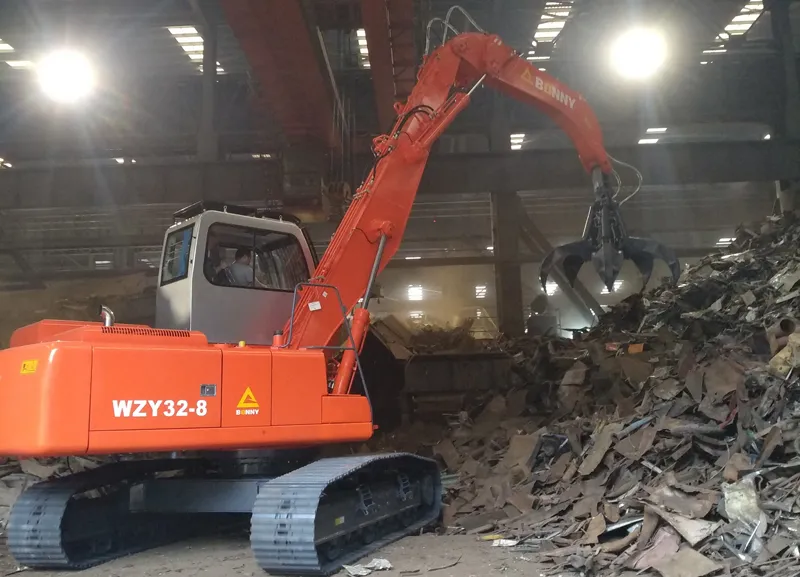

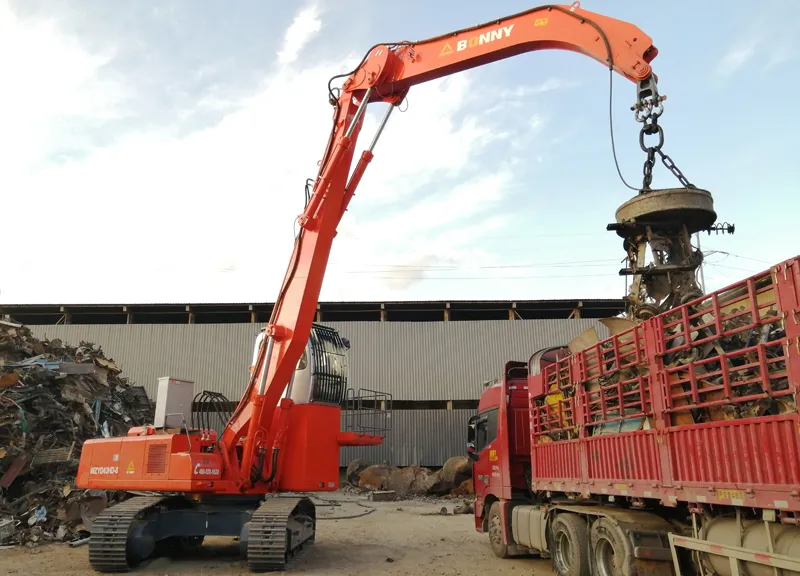

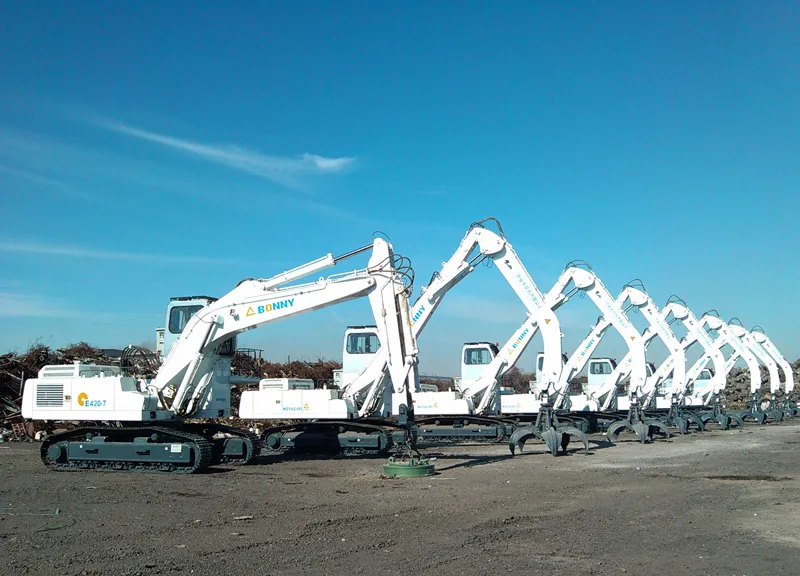

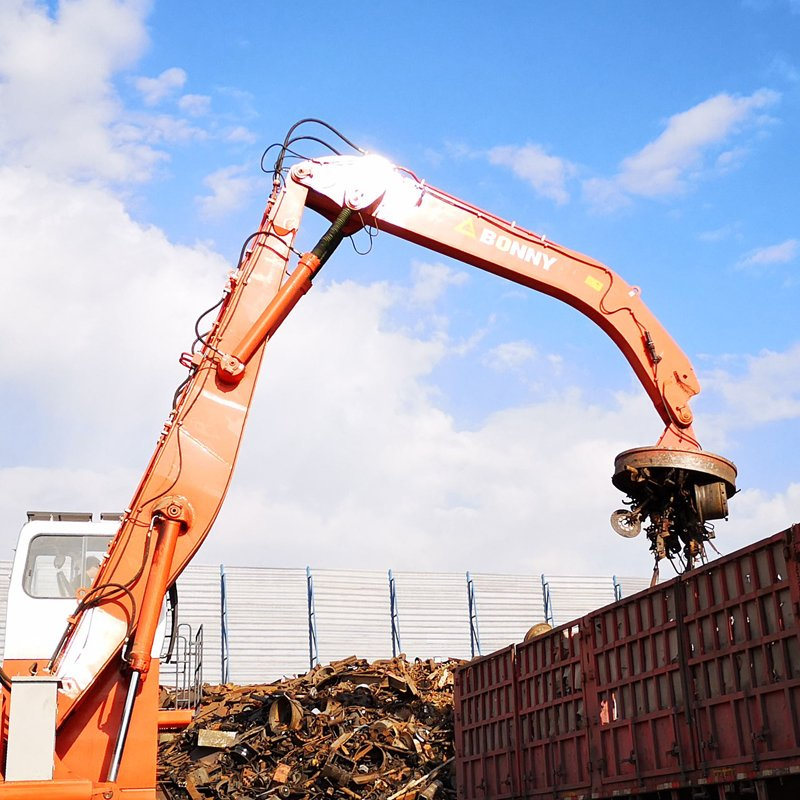

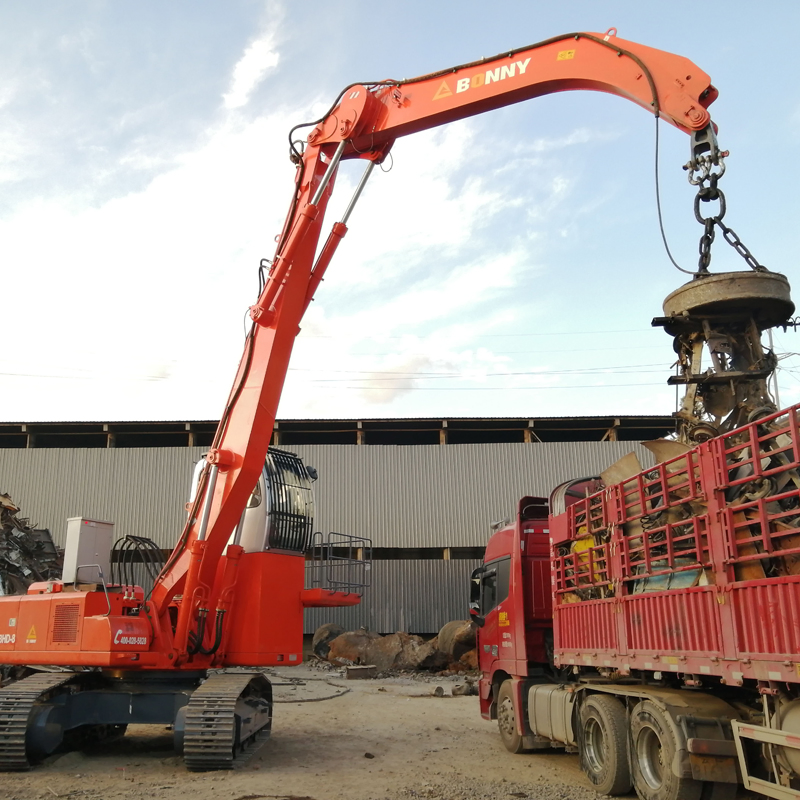

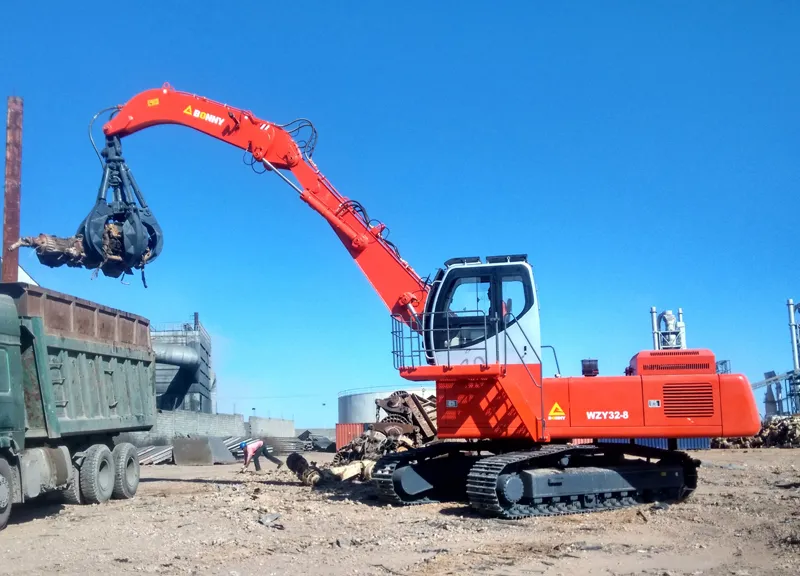

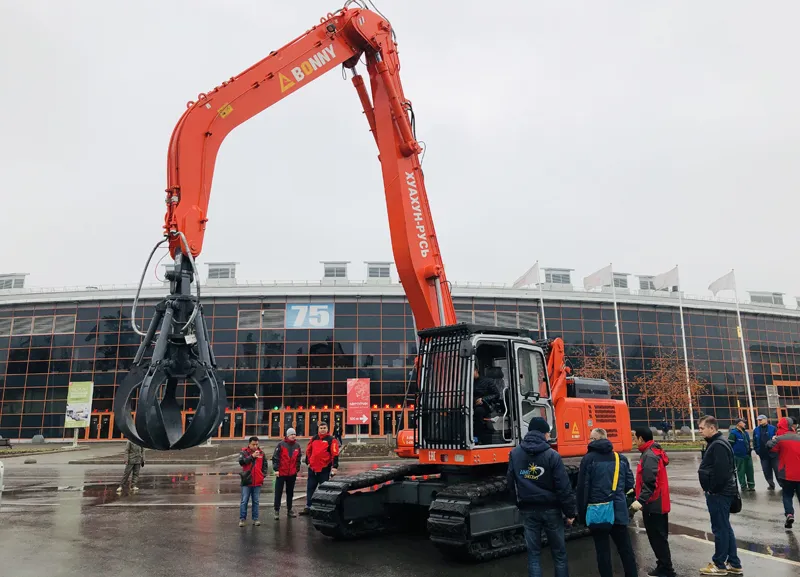

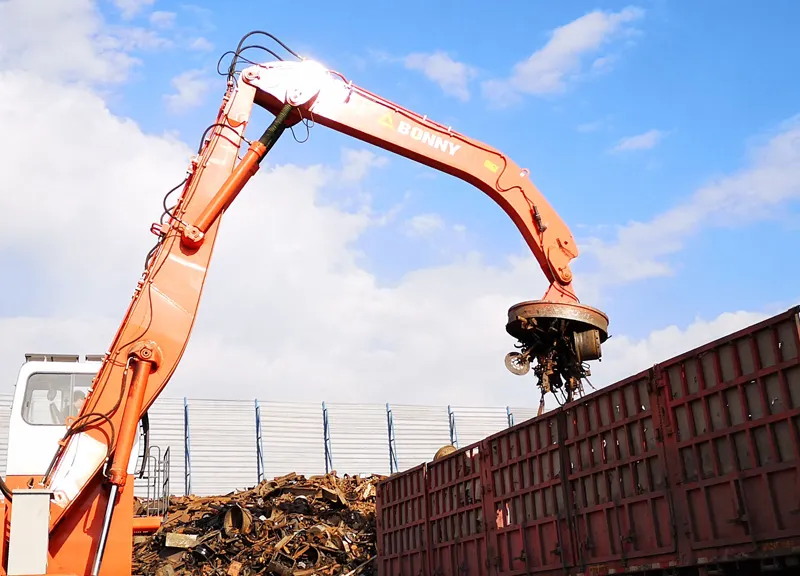

Product Show
Certificate

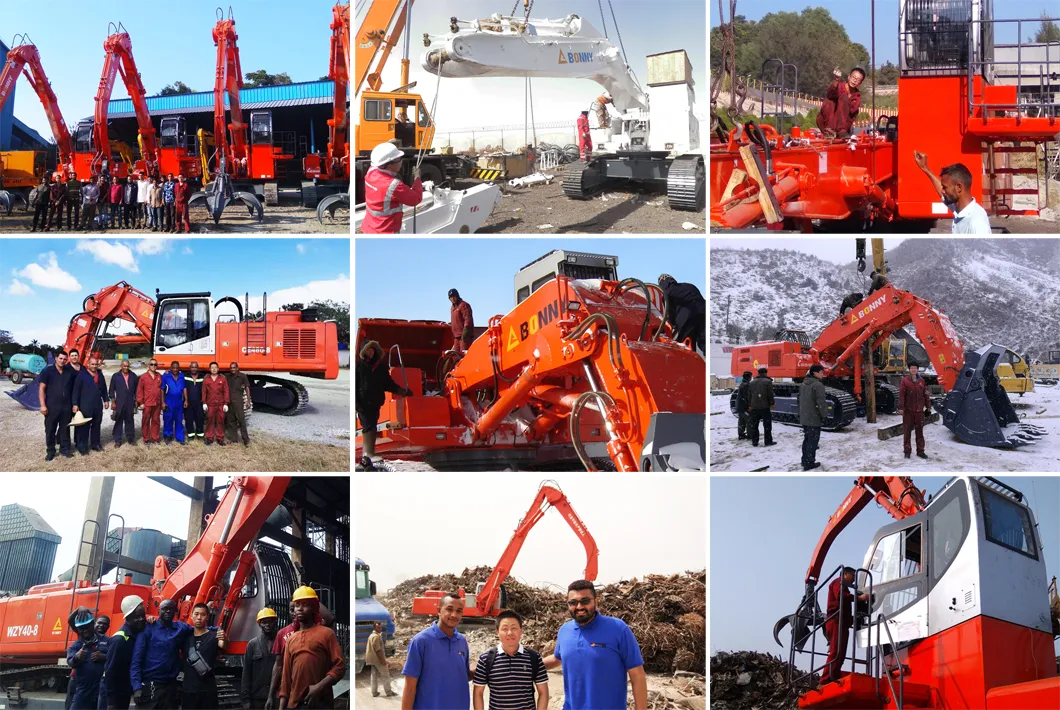

Service on Site
Packing & Shipping
FAQ
1: What about the delivery time?
A: It depends on the type of machine. In general circumstance, it will take more than from 60 days to 90 days to produce the ordered machine after receiving the deposit. But we can reduce to 10 working days if the machine areinstock.
2: Which payment terms can be accepted?
A: Normally our payment term is based on by T/T (30% down payment, 70% before shipment) or irrevocable Letter of Credit at sight. But if you prefer other payment terms please contact us for further information.
3: What is the warranty time?
A: The warranty period shall be 15 months counted from goods arrival in Chinese port, or 1 year (12 months) or 2000 operating hours since handover (after assembling and commissioning) on operation site, whichever comes earlier.
4: How soon can you respond client inquires?
A: Our team is consisted of a group of diligent and dynamin people, working 24/7 to respond clinent inquires and questions all time, most of them can be solved within 12 hours.
5: What kind of logistic service do you supply?
A: We can ship construction machinery by various transportation ways including by road, railway and container. For light spare parts in urgent demand, we can send it by international express service, such as DHL, TNT, UPS, FedEx, or by Air.
6. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
