Chinese Excavator Seller Mini Digging Machine Small Digger
Chinese Excavator Seller Mini Digging Machine Small Digger from China Mini Digging Machine Hydraulic Crawler Excavator Description : This mini digger crawler excavator is desiged for small works , small for projects , in garden , farmland , municipal works , vegetable greenhouse , digging trench . I......
Send Inquiry
Product Description

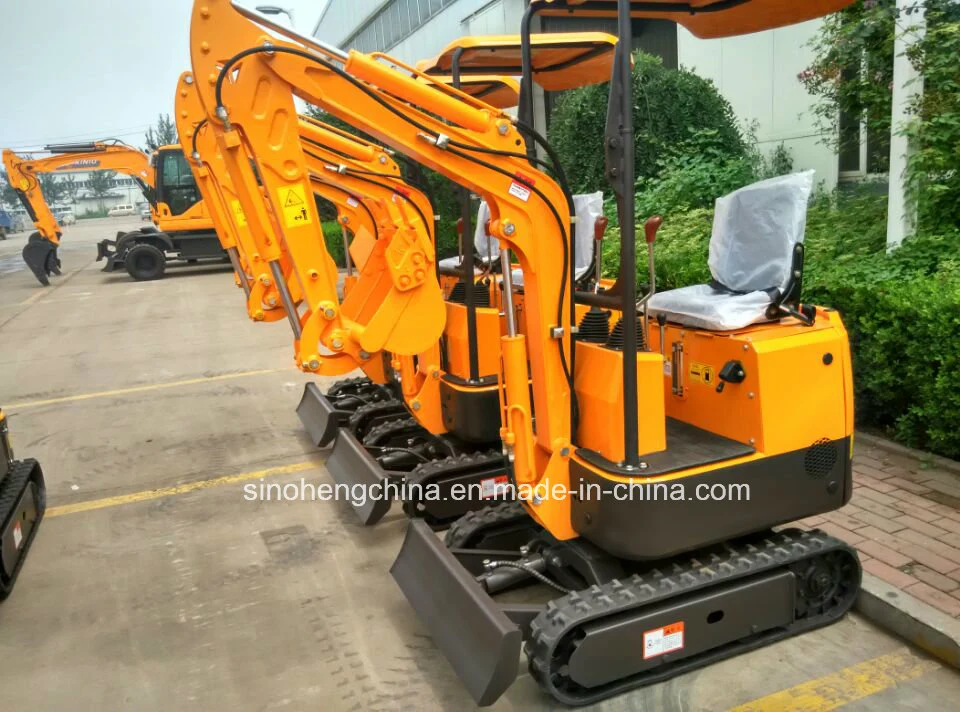

Chinese Excavator Seller Mini Digging Machine Small Digger from China
Mini Digging Machine Hydraulic Crawler Excavator Description :
This mini digger crawler excavator is desiged for small works , small for projects , in garden , farmland , municipal works , vegetable greenhouse , digging trench . It with small engine , simple design , easy to maintaince .

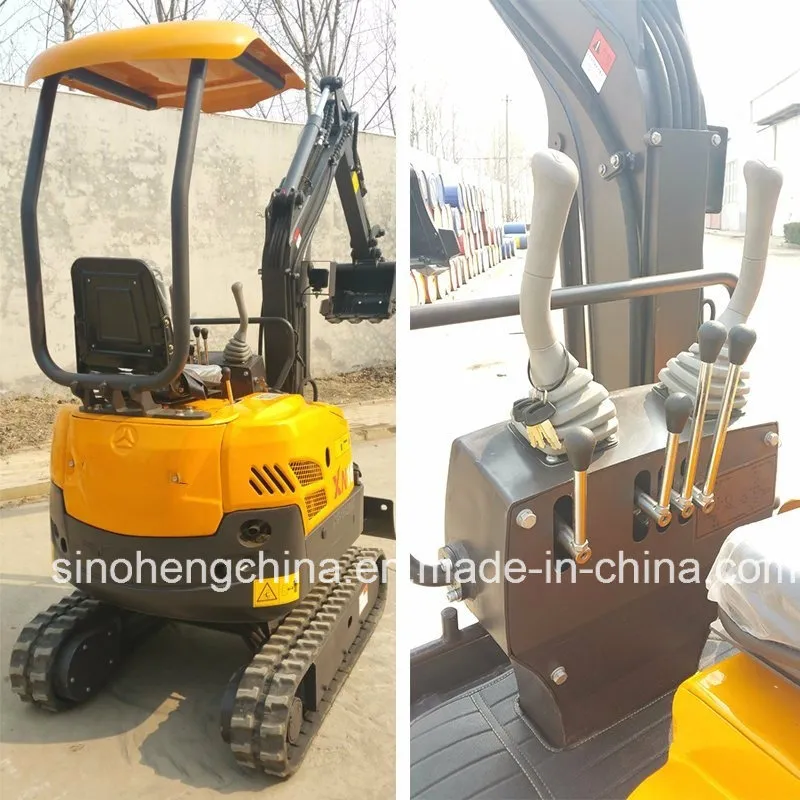

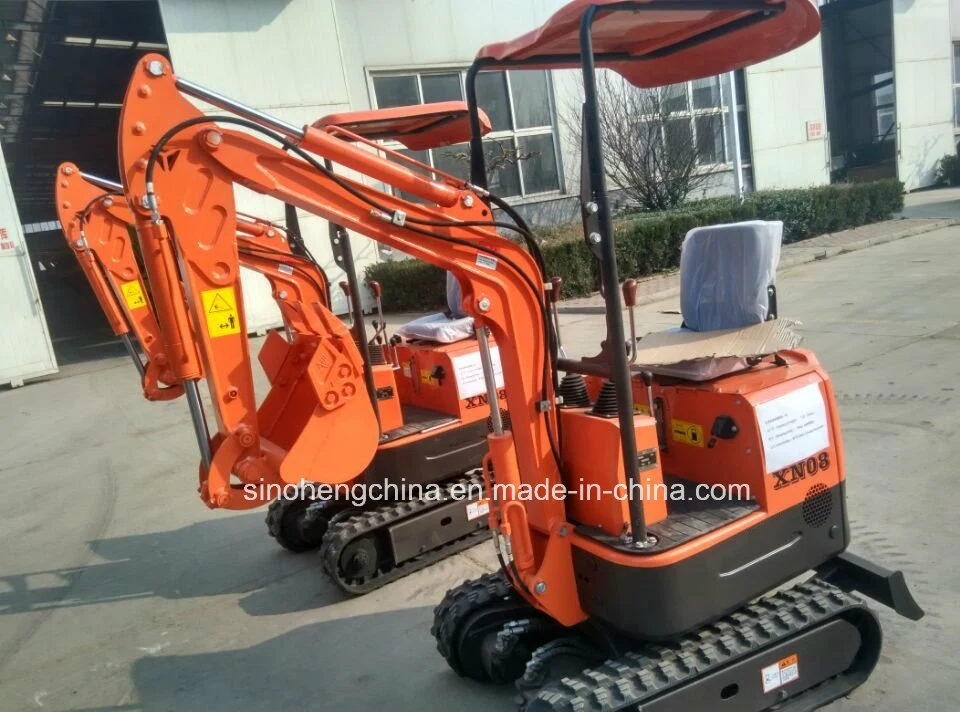

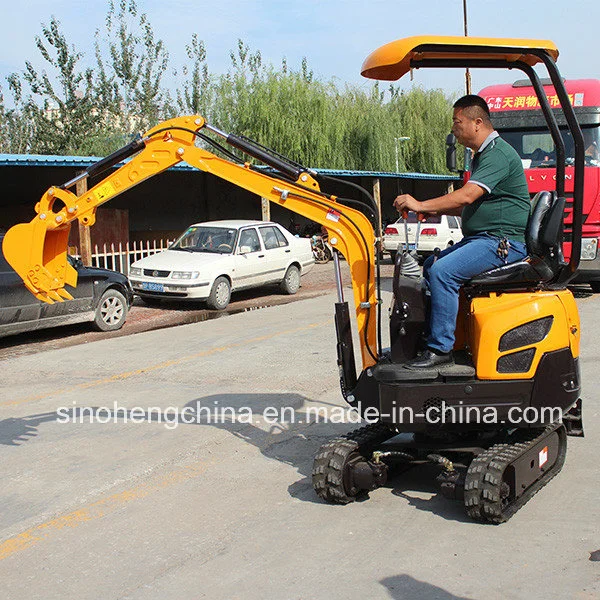

XN16 Small Excavator Details :

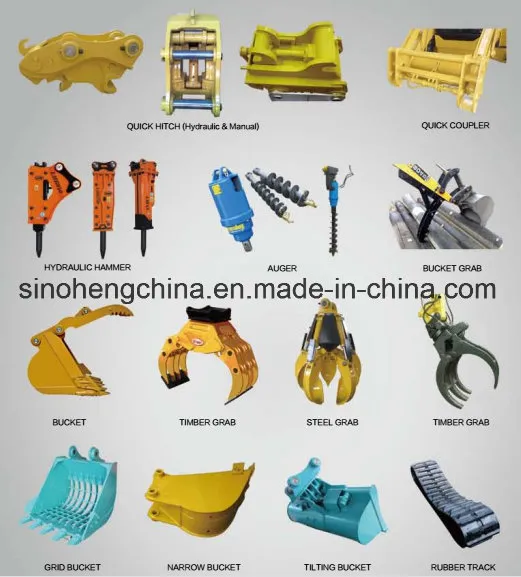

Mini Excavator Attachments :
Crawler excavator XN16 Specification:
Model | XN16 |
Operating Weight | 16000kg |
Digging bucket capacity | 0.045cbm/400kg |
Digging bucket width | 400mm, can add narrow bucket is 200mm |
Engine | Yanmar (3TNV70-S) |
Rated power | 10.3kw/2200/r/min |
Displacement | 0.854L |
Bore stroke | three cylinder, water cool |
Main pump | KDK |
Valve | PERMCO |
Displacement | 6.8ml/r |
Swing motor | EATON |
Traveling motor | DONGHYUAN |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 3160x1040x2377mm |
Total length of track on land | 1670mm |
Platform ground clearance | 460 mm |
Platform back turning radius | 740 mm |
Chassis width | 1130 mm |
Track width | 180 mm |
Chassis ground clearance | 460 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max. Digging depth | 2150 mm |
Max. Vertical digging depth | 1740 mm |
Max. Diggine height | 3275 mm |
Max. Dumping height | 2310 mm |
Max. Digging radius on ground | 3470 mm |
Min. Rotation radius | 1440 mm |
Max. Upgrade height of bulldozer blade | 262 mm |
Max. Digging depth of bulldozer blade | 192 mm |
Delivery Time : 10 days of working , after receive the receipt of advance payment of the buyer .
Packing&Shipping : Generally 5sets/20'GP , it can also by LCL, according to the excavators quantity that customer needs .
Warranty : 12 month or 1200 working hours.
Mini Excavators Shipping Packaging Photos :
FAQ:
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers . Each machine is carefully tested before send to customer.
How many units can be put in container?
A: 6 units can be loaded in a 20 GP, 12 units in a 40GP.
Spare parts supply
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year. There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
If you have interest in our mini excavators , pls feel free to contact with us !
JINAN SINOHENG IMPORT AND EXPORT CO., LTD
Contact Person: Estrella Wang
Tel: 0086-531-67803861
Looking forward to your any time inquiry !
