China Construction Machinery Hot Sale 2.5 Ton Mini Digger with Attachments From Manufacture

Product Description

Construction Machinery Hot Sale 2.5 Ton Mini Digger with Attachments From Manufacture

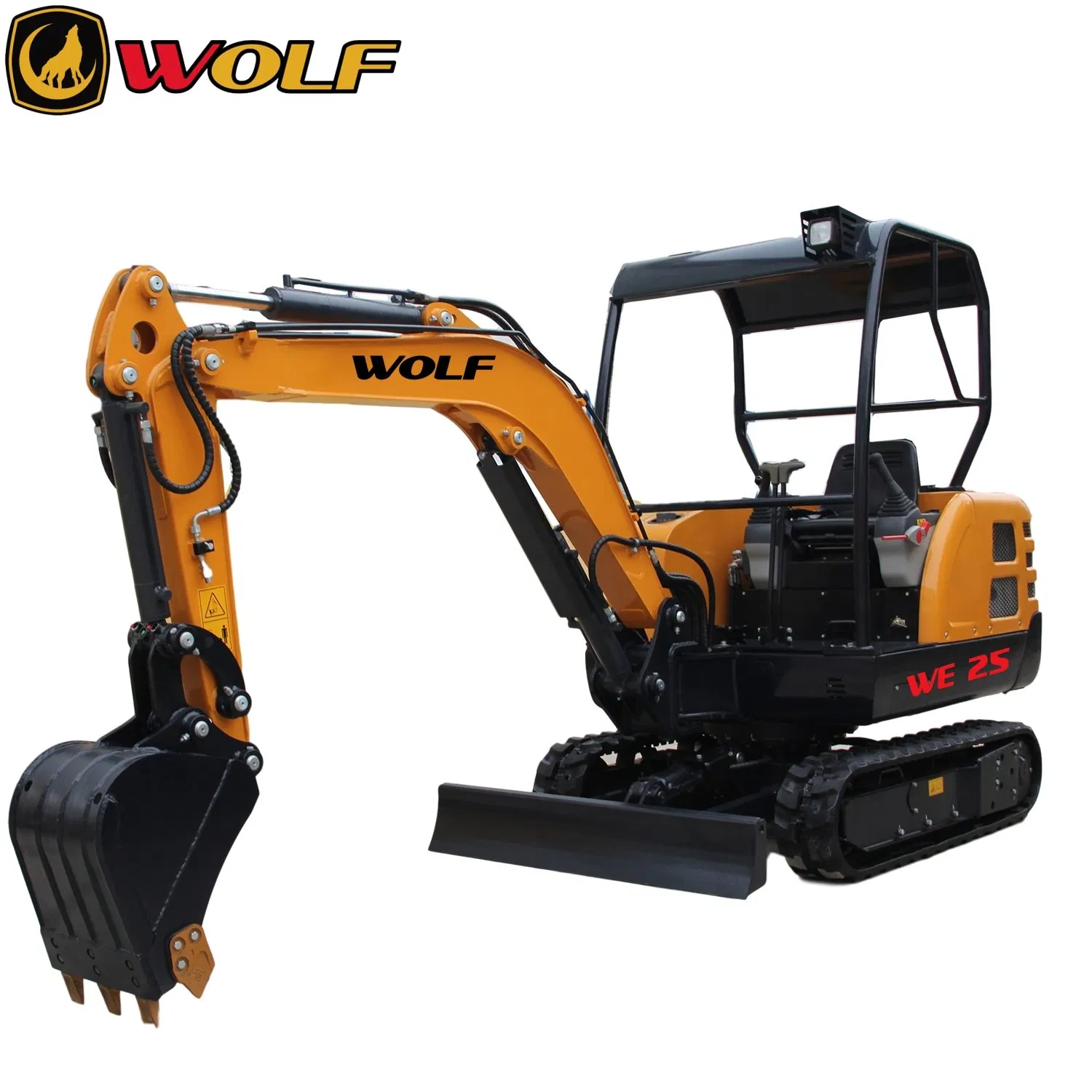

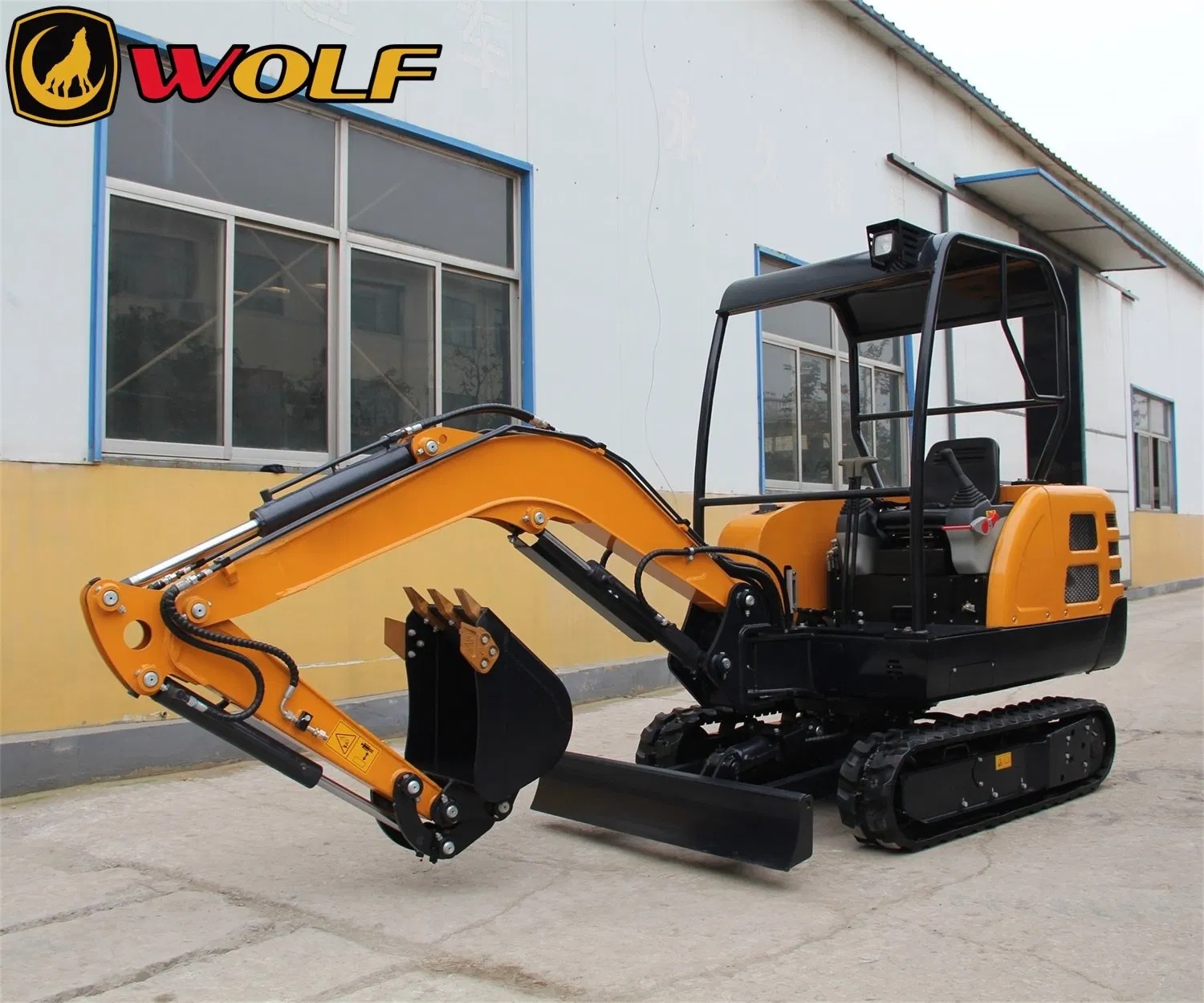

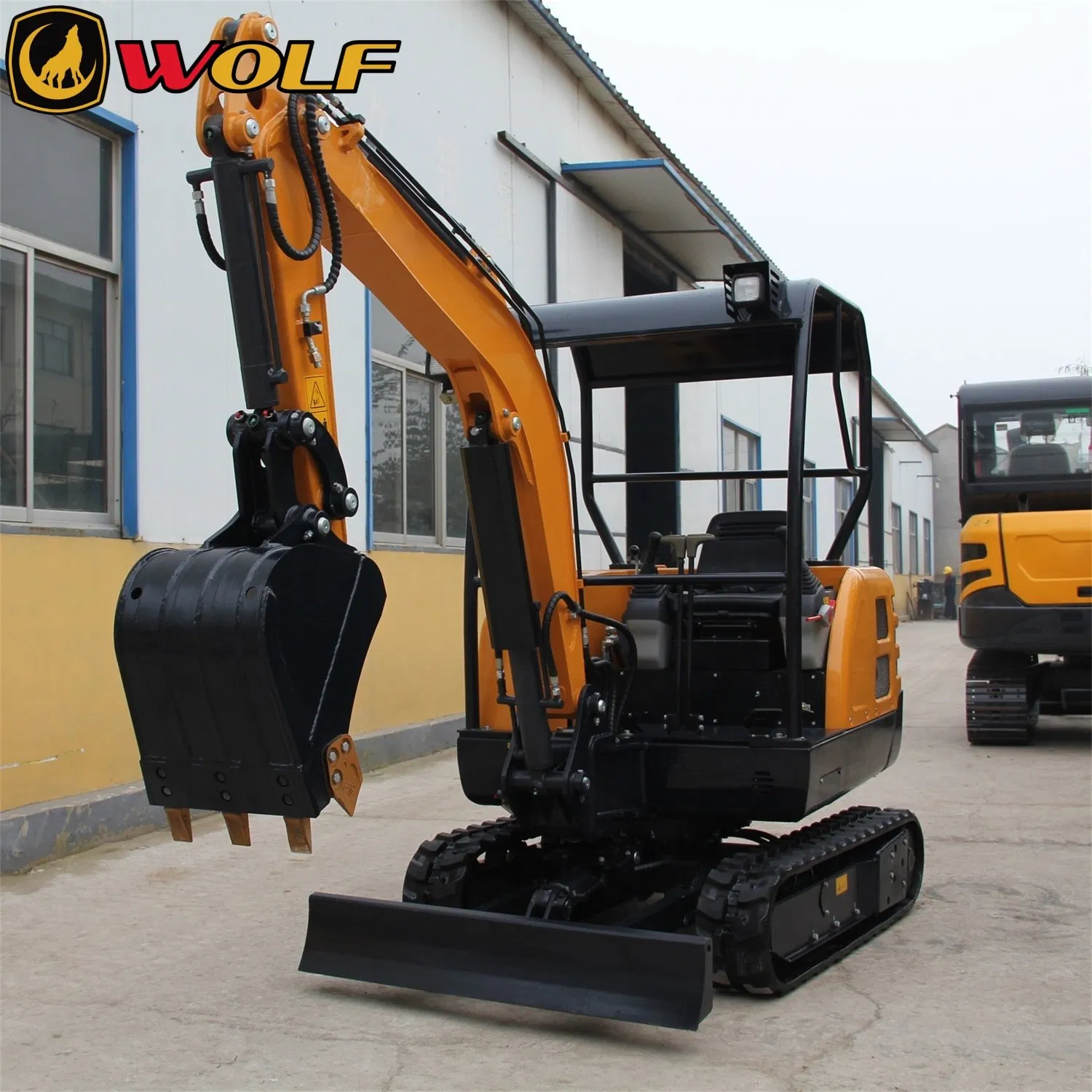

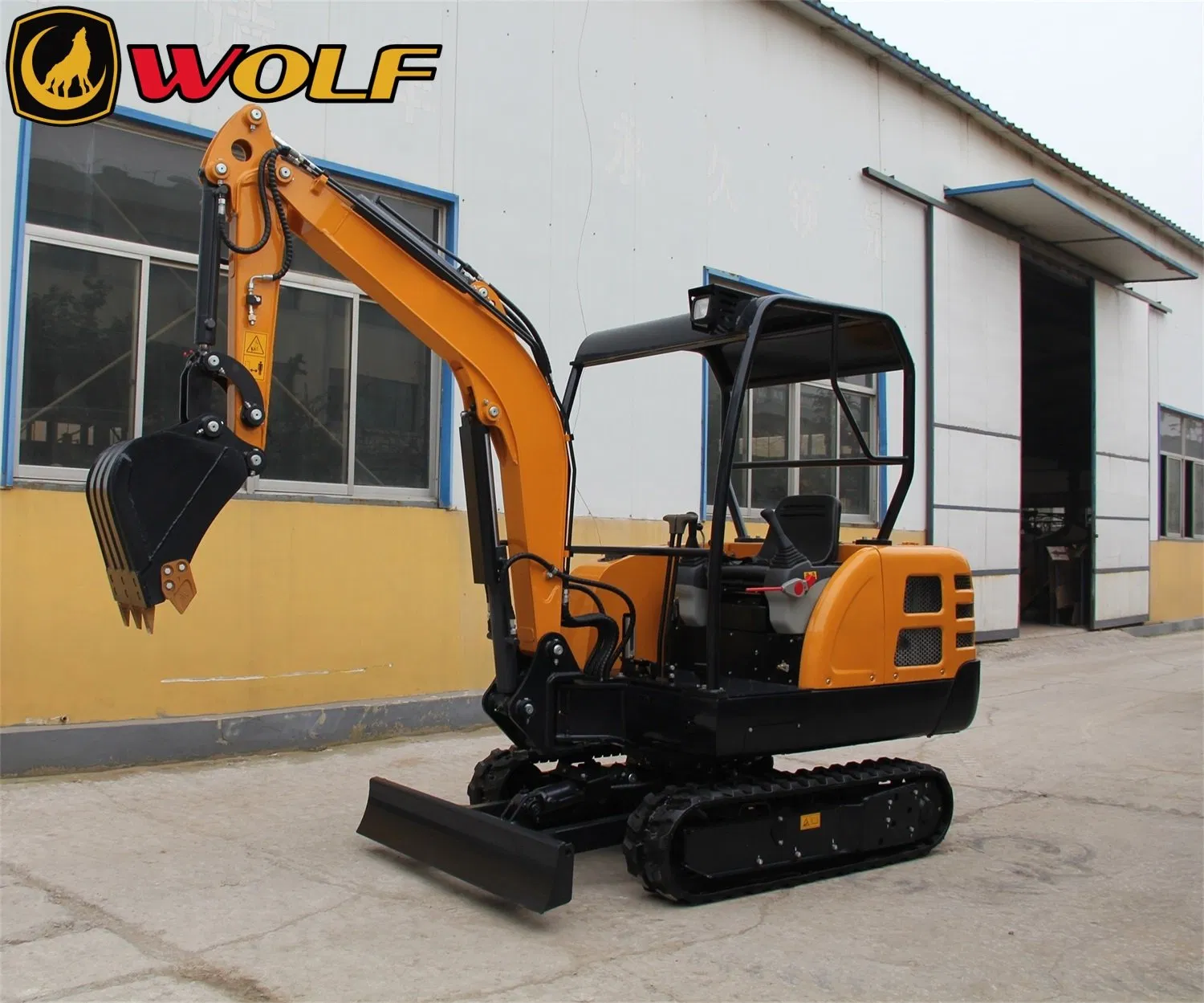

WE25 is one popular excavator, smaller radius, more convenient and flexiable.

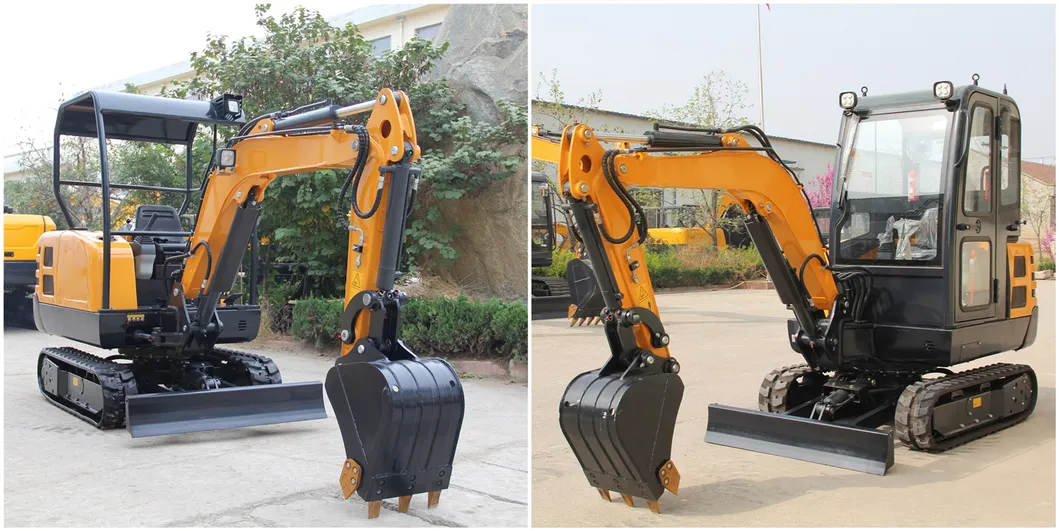

It has 2 types cabins, open and enclosed. Meet your different demands

Surely, there is also other different models to meet your different demands:

Wolf mini excavator from 800kg to 2500kg
Model	WE08	WE10	WE12	WE16	WE18	WE20	WE25
Weight	800kg	1000kg	1040kg	1600kg	1800kg	2000kg	2500kg
Engine	Koop KF192 Euro5	Koop KF192 Euro5	Yanmar3TNV70S	Yanmar3TNV70S	Laidong3TE25(EFI engine)	Yanmar 3TNV76	Laidong3TE30(EFI engine)
Power	7kw	7kw	10kw	10kw	18.1kw	15kw	22.1kw
Hydraulic system working pressure	16Mpa	16Mpa	16Mpa	16Mpa	16Mpa	21Mpa	20Mpa
Swing speed	0-13r/min	0-13r/min	0-13r/min	0-15r/min	10-12r/min	0-9r/min	12-14r/min
Travelling speed	1.5km/h	2km/h	2km/h	2.3km/h	2.8km/h	2.8km/h	2.8km/h
Grade ability	30°	30°	30°	30°	35°	30°	35°
Traveling Tracking Force	8.5KN	8.3KN	8.5KN	13.5KN	15KN	15KN	15KN
Bucket Digging Force	9.5KN	7.2KN	9.5KN	11KN	11.5KN	18KN	11.5KN
Arm Digging Force	5KN	4.6KN	5KN	7.9KN	9.3KN	11KN	9.3KN
Overall length	1877mm	2840mm	2770mm	3290mm	3800mm	3867mm	4080mm
Overall width	896mm	880mm	896mm	1050mm	1050mm	1000mm	1300mm
Overall height	1990mm	2200mm	1990mm	2400mm	2280mm	2313mm	2280mm
Axle base	896mm	900mm	896mm	1140mm	1050mm	1270mm	1270mm
Track width	130mm	180mm	130mm	180mm	230mm	250mm	250mm
Max. Digging Radius	2850mm	3065mm	2850mm	3470mm	3860mm	3889mm	4370mm
Max. Digging Depth	1650mm	1715mm	1650mm	2150mm	2050mm	2110mm	2450mm
Max. Digging Height	2550mm	2600mm	2550mm	3275mm	3370mm	3327mm	3700mm
Max. Dumping Height	1800mm	1830mm	1800mm	2310mm	400mm	2361mm	2450mm

Construction Machinery Hot Sale 2.5 Ton Mini Digger with Attachments From Manufacture

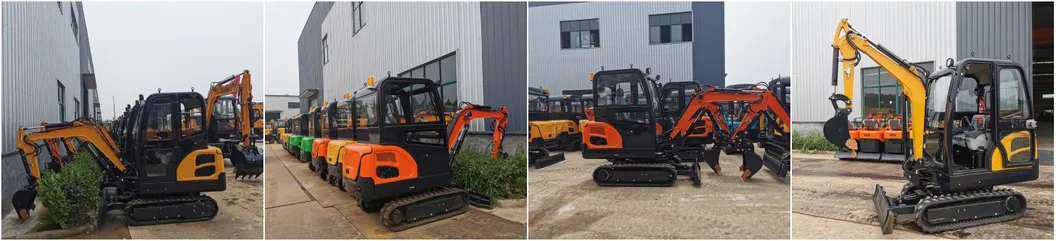

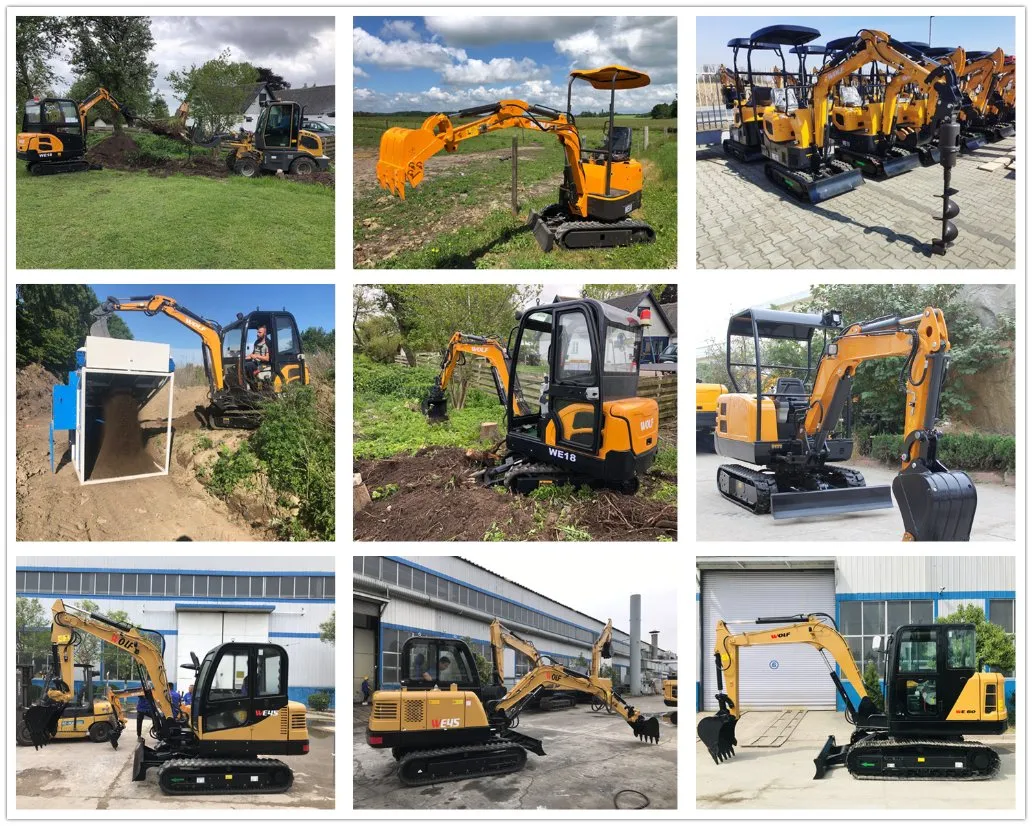

More excavator in warehouse:

Mini Excavator 2 Ton with Different Attachments for Farm

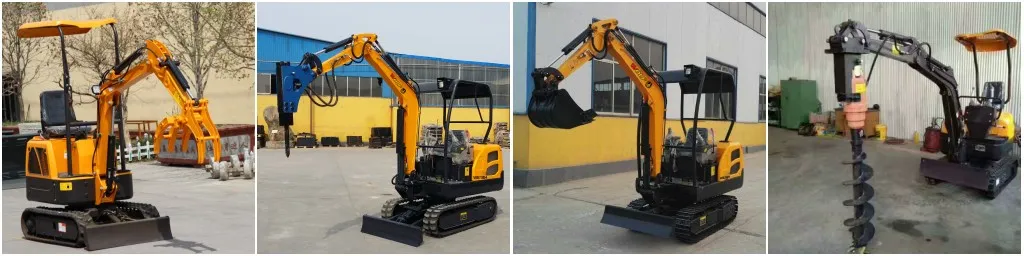

Attachments:

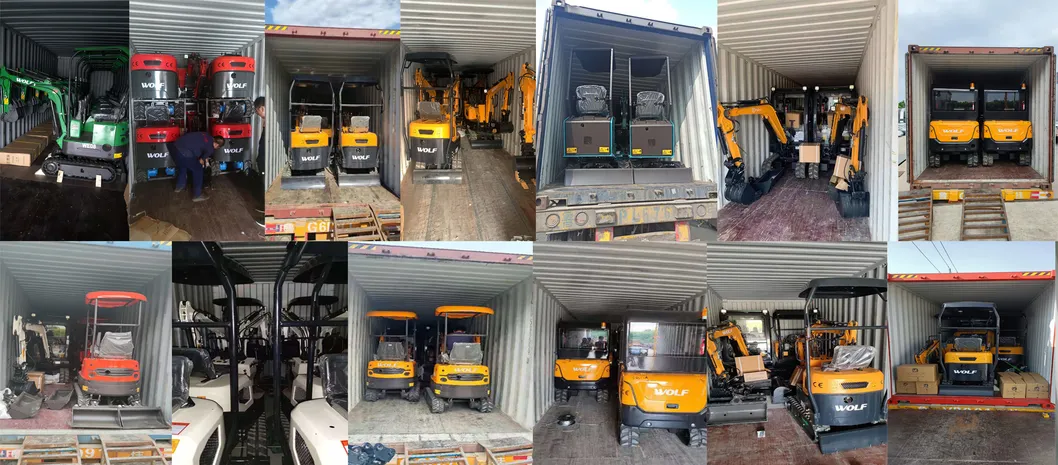

Shipment:

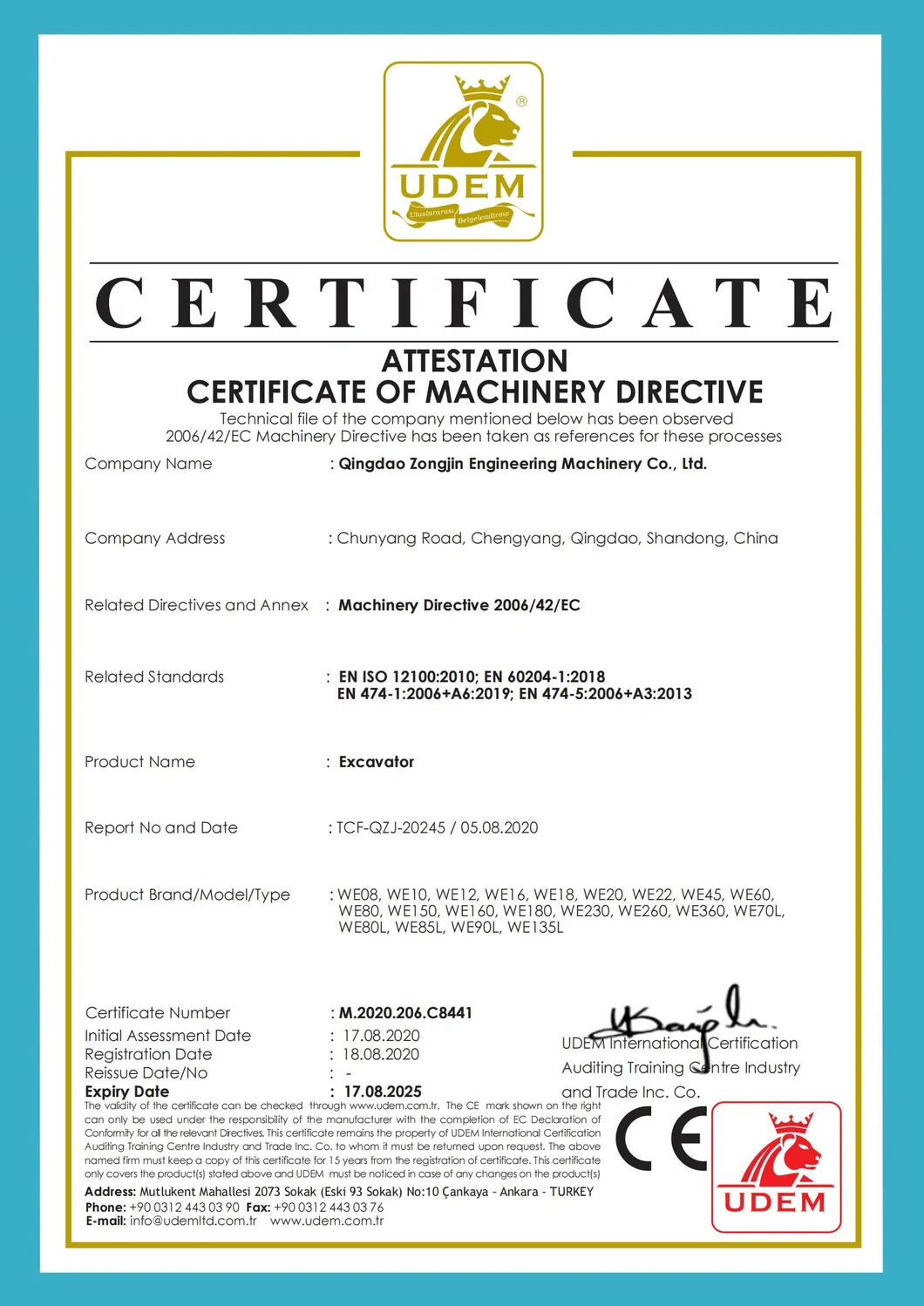

All machines got CE approved.
