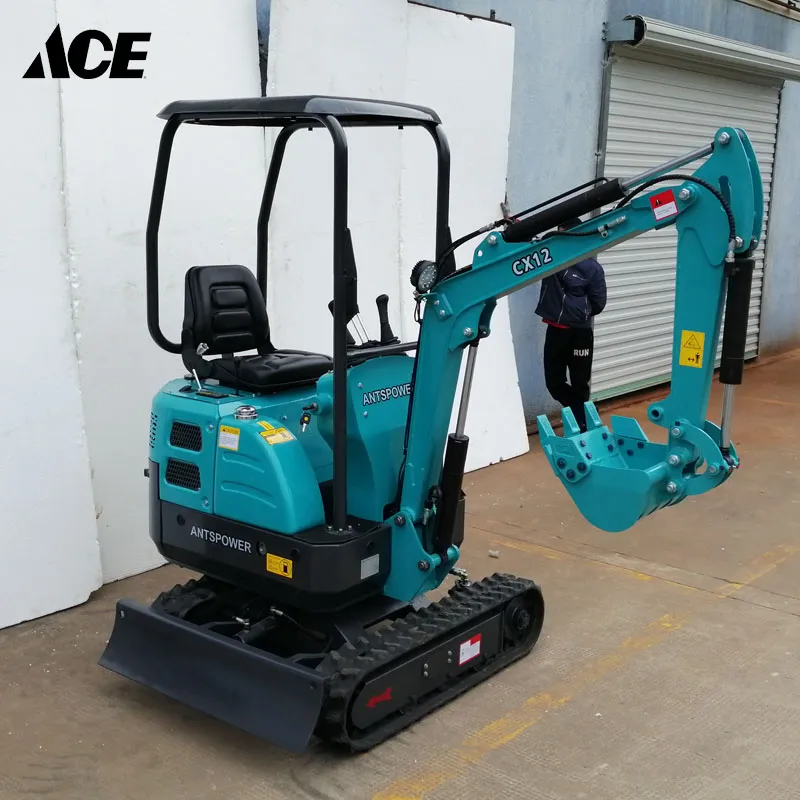

Diesel Powered Excavators Mini Excavator Bulldozer 1.2ton

Product Description

New Hydraulic Mini Excavator bucket price

Product Uses:

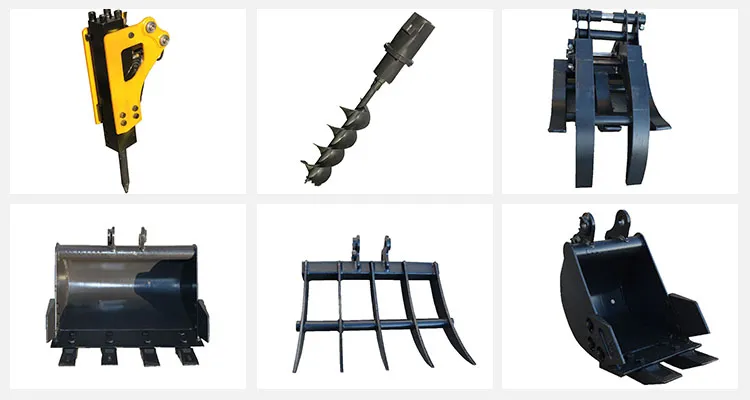

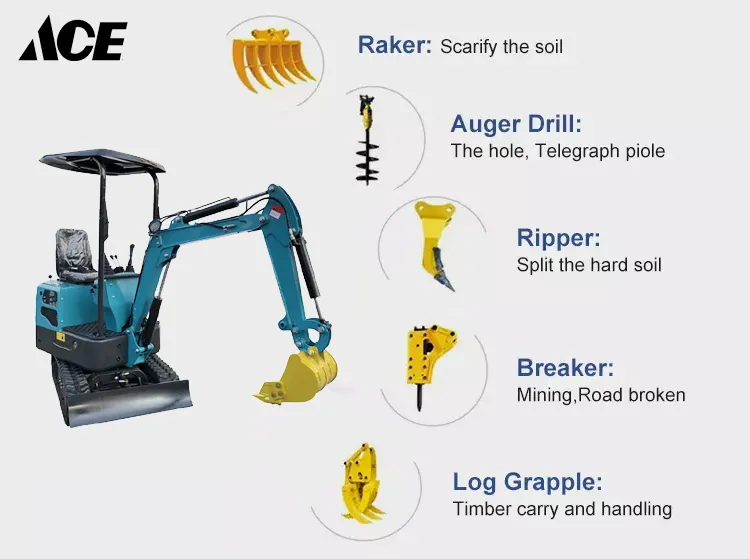

The product is suitable for farming,gardening,orchard ditching fertilization, small earthwork engineering,municipal engineering,road repair,basement and interior construction, concrete crushing,undergroud cables,pipe laying,tap water,river dredging and river garden cultivation engineering and other working environment. With mining,crushing,cleaning,drilling,bulldozing hook functions,fast changing accessories,machine utilization rate is greatly improved,can be applied to various kinds of soil,good use effect,simple operation,compact and flexible,convenient transportatin, can work in small venues.

SPECIFICATION:

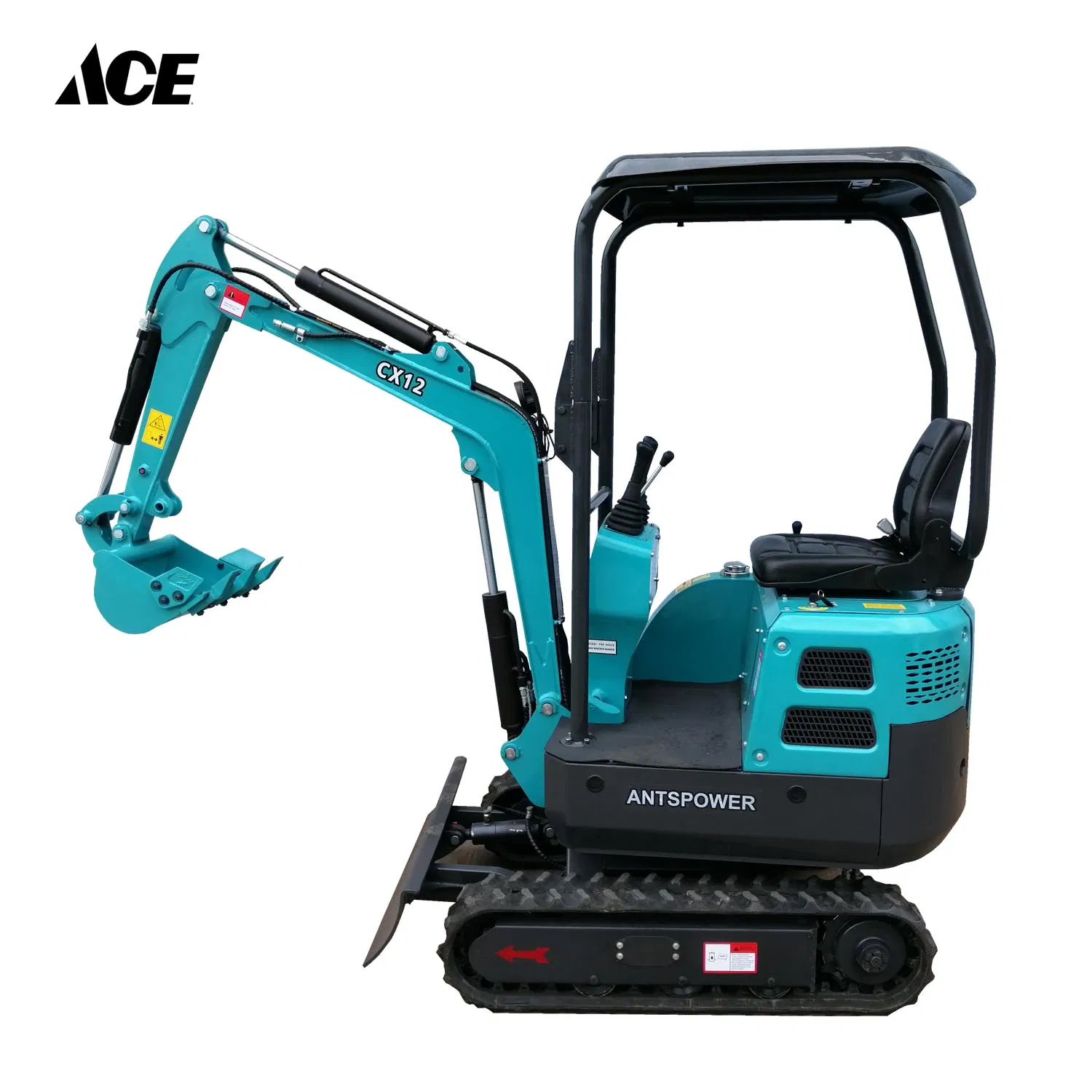

Model		CX12
Dimensions		Specification
Wheel Tread		1040 mm
Length of track		2808 mm
Ground clearance of upper platform		400 mm
Turning radius of tail		784 mm
Width		1000 mm
Width of track		180 mm
Height of track		330 mm
Length		2870 mm
Height(with Conpoy)		2200 mm
Operating range		Specification
Working ranges		2950 mm
Maximum digging radius		1750 mm
Maximum digging depth		2710 mm
Maximum digging height		1950 mm
Maximun vertical digging depth		1475 mm
Minimum swing radius		1430 mm
Height of bulldozing plate		350 mm
Depth of bulldozing plate		260 mm
Engine type		KM192FS
Engine power		8.6 KW
Operation Weight		1320 KGS
Bucket capacity		0.03 m³

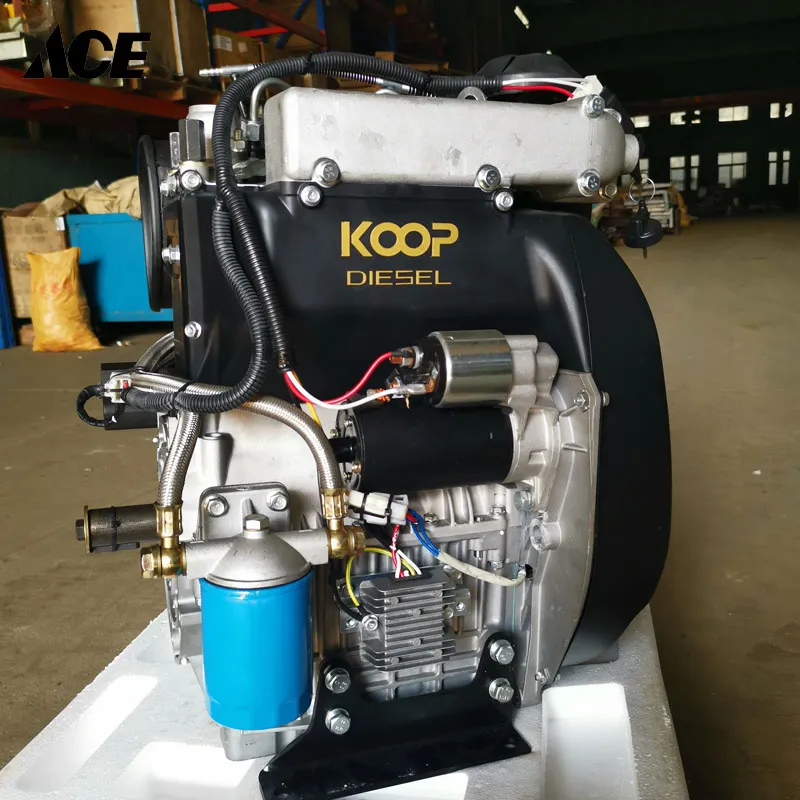

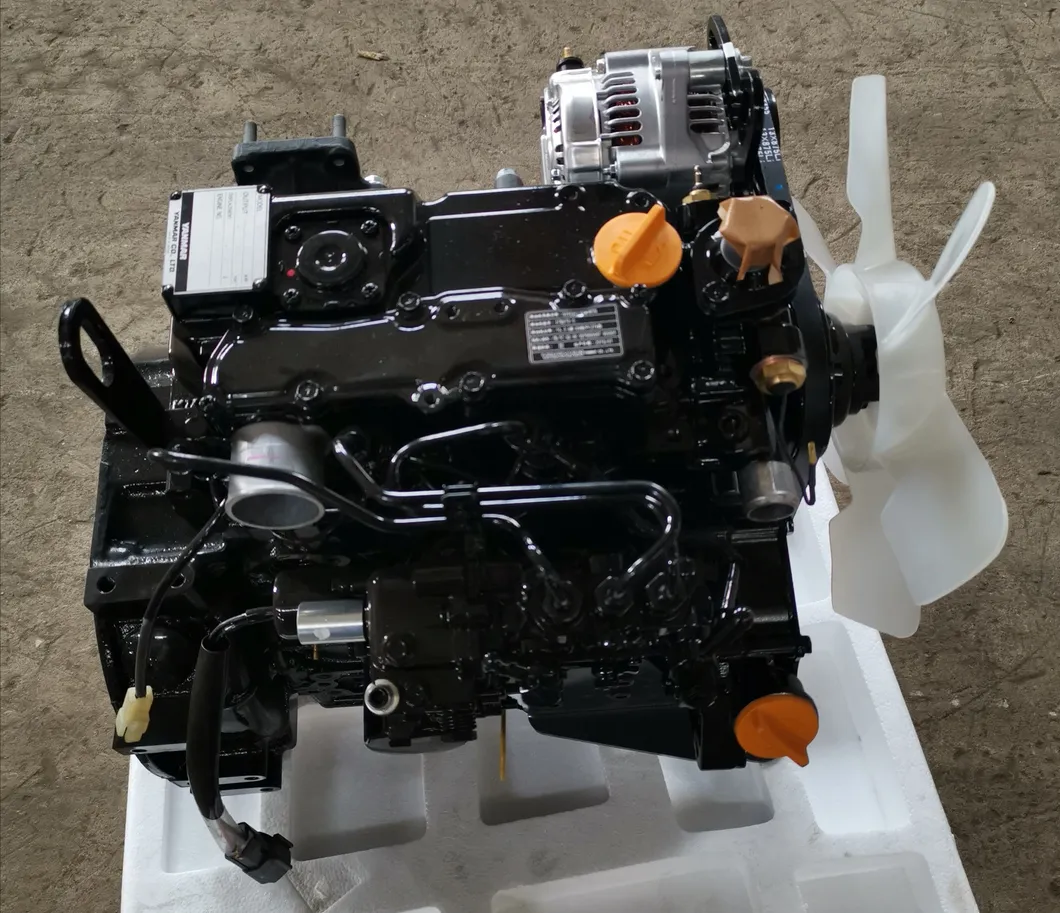

Engine	Engine Type	YANMAR 3TNV70	KOOP KD292F
	Output power	10 kW	14 kW
	Rotate speed	2200r/min	3000r/min
	Displacement	0.854 L	0.997 L
