China Everun CE Approved New Design Ere10 PRO Mini Hydraulic Crawler Excavator 1ton Mini Digger

Product Description

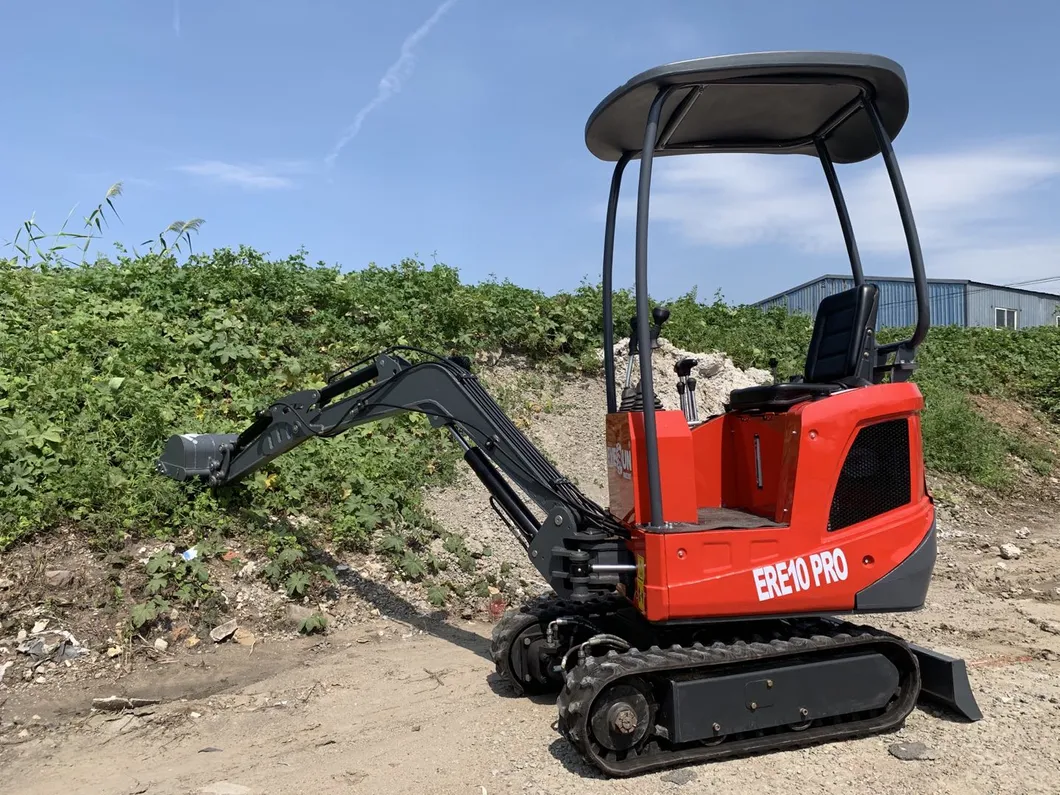

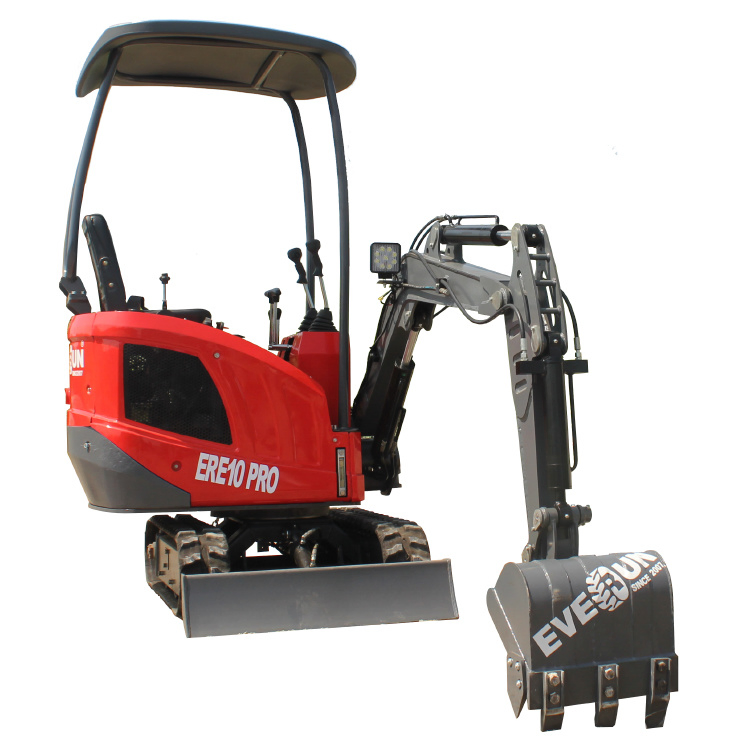

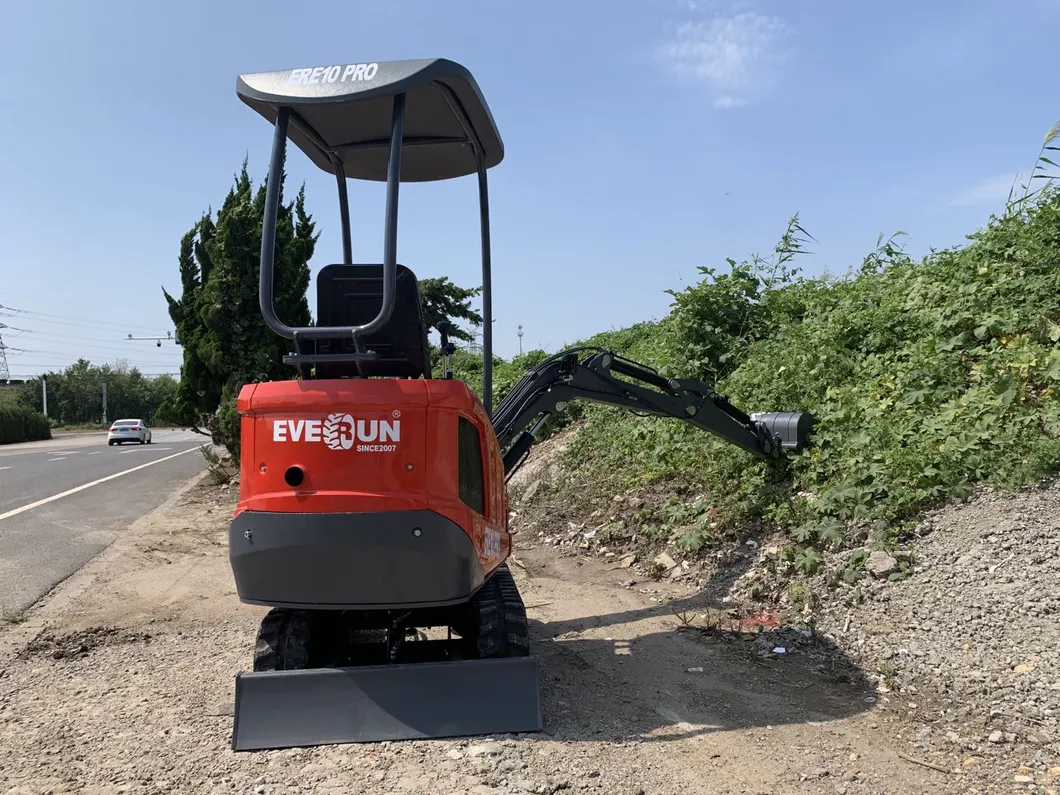

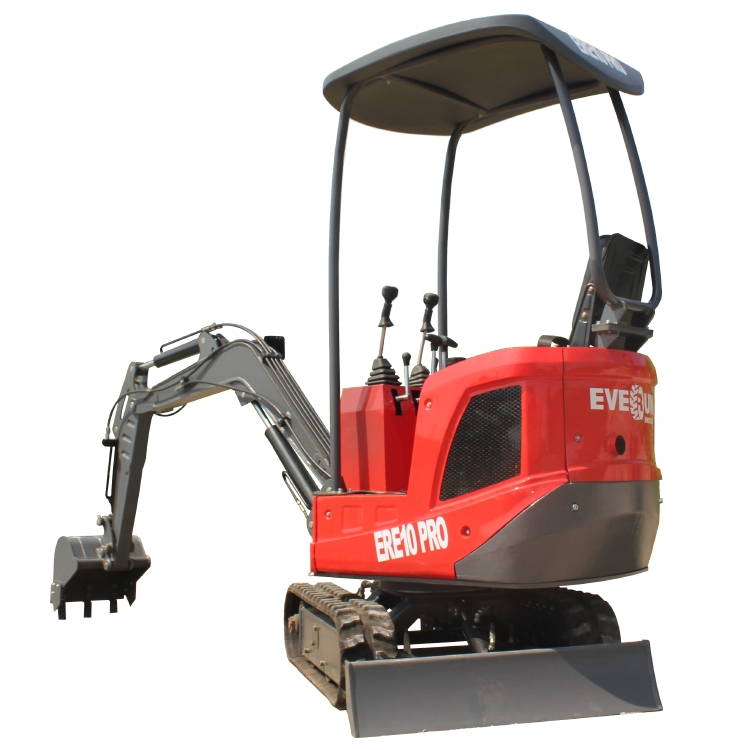

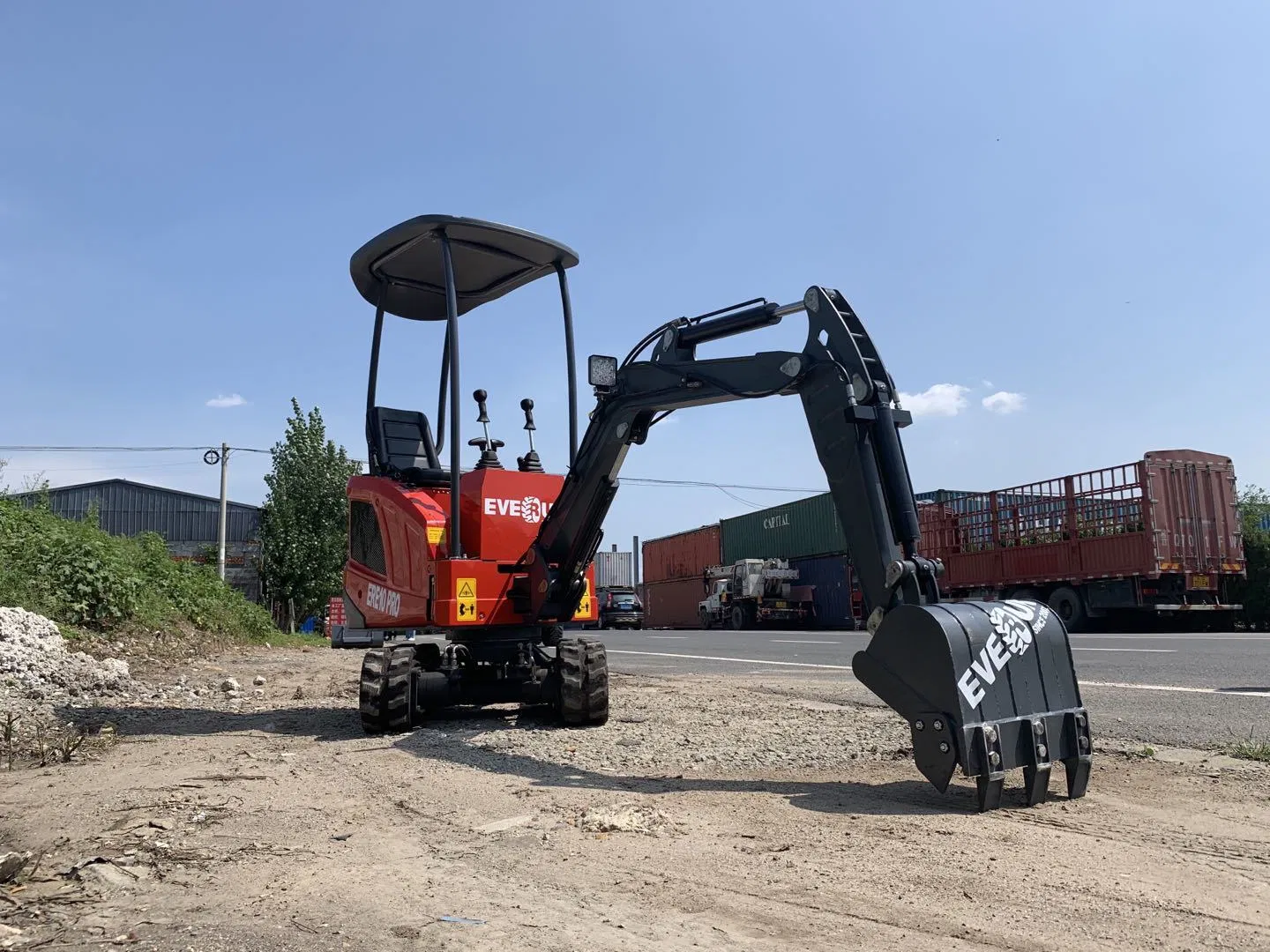

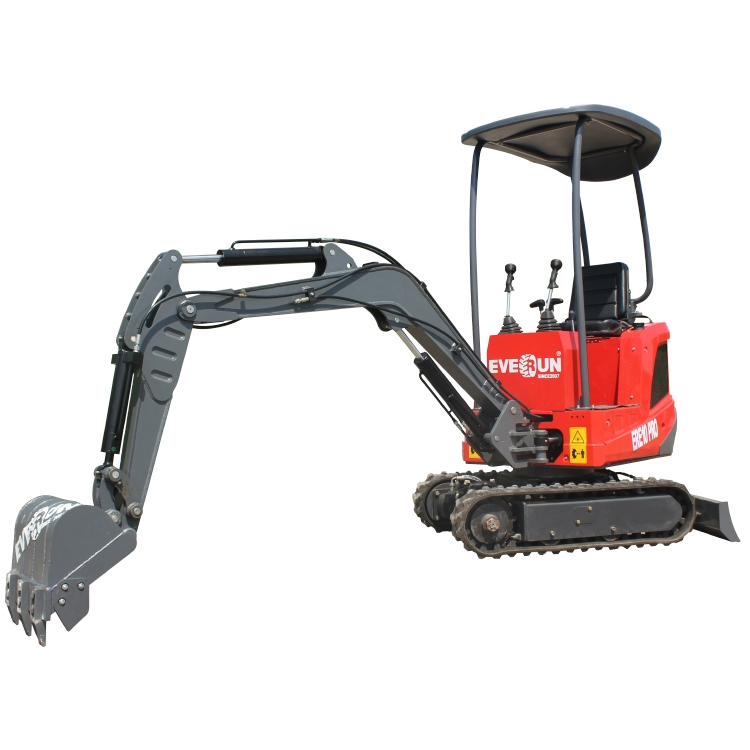

EVERUN CE Approved New Design ERE10 Pro Mini Hydraulic Crawler Excavator 1Ton Mini Digger

Product Description

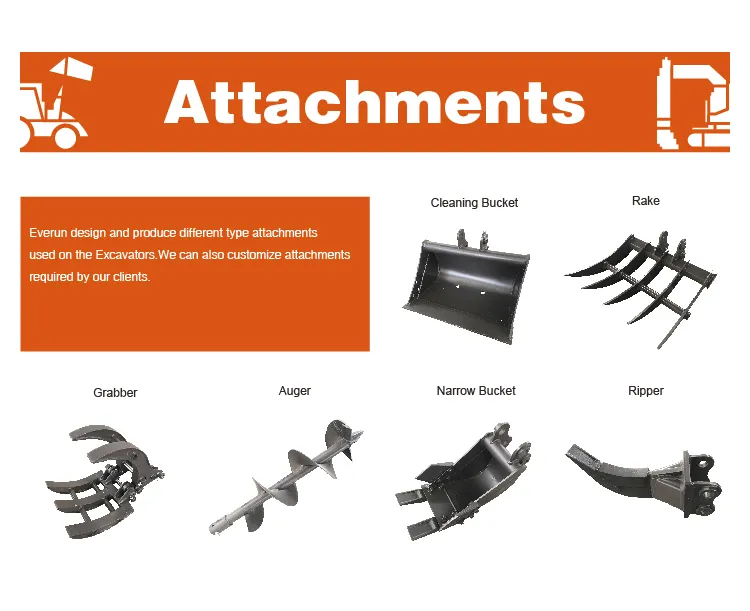

EVERUN CE Approved Multi-Attachments 1000kg ERE10 Pro Mini Crawl Excavator

DESCRIPTION

This excavator is designed for small project,garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy tomaintain.

ERE10 Pro crawler excavator with 1000kg operating weight, 350mm bucket, canopy, changchai engine, Zaneda pump, Beifang valve,
Hydro Man swing motor, head lights.

SPECIFICATIONS

Model	ERE10 Pro
Operating Weight	1000kg
Digging bucket capacity	0.023cbm/120kg
Digging bucket width	410mm
Engine	CHANGCHAI-192FAM
Rated power	7.5kw
Displacement	6ml/r
Bore stroke	single cylinder, fan cool
Main pump	ZANEDA
Pump flow	18L/min
Valve	BEIFANG
Swing motor	Hydro Man(ZMP-1-200)
Traveling motor	EATON 612-4173-1
MAIN DEMENSIONS
Overall dimension( LxWxH)	3127x950x2195mm
Wheelbase	920 mm
Total length of track	1220mm
Platform ground clearance	380 mm
Platform back turning radius	810mm
Chassis width	870mm
Track width	180mm
Chassis ground clearance	94.5mm
Bucket digging force	9.7kn
Arm digging force	8.6kn
Rubber track height	310mm
OPERATING RANGE
Max. Digging depth	1735mm
Max. Vertical digging depth	1581mm
Max. Digging height	3006mm
Max. Dumping height	2248mm
Max. Digging radius on ground	3224mm
Min. Rotation radius	1430mm
Max. Upgrade height of bulldozer blade	200mm
Max. Digging depth of bulldozer blade	200mm
Boom deflection angle (left)	30°
Boom deflection angle (right)	90°
