Excavator Fr220d 22tons Crawler Hydraulic Excavators for Sale
Excavator FR220D 22tons Crawler hydraulic excavators for sale 1. Product Features1. More efficient: With independently developed EDS system, matching performance of the whole machine is optimized, and operation efficiency is increased by 10%.2. Advanced energy-saving compact main valve is adopted, w......
Send Inquiry
Product Description
1. Product Features
1. More efficient: With independently developed EDS system, matching performance of the whole machine is optimized, and operation efficiency is increased by 10%.
2. Advanced energy-saving compact main valve is adopted, which reduces internal pressure loss by 20%.
3. The new cab is equipped with a suspension seat, which provides adjustable angles and makes it comfortable.
4. The ergonomic long handle has a small operating force and good micro-control performance.
2. Product Parameters| Specification | FR220D | |
| Operating weight (kg) | 22200 | |
| Boom length | 5700mm | |
| Standard bucket capacity (m³) | 0.92m3 | |
| Transport dimensions(L×W×H) | 9580×2980×3060 | |
| Engine Brand | ISUZU | |
| Engine Model | AA-6BG1TRP-03 | |
| Rated power | 113.2/2100 | |
| Bore × Stroke | 105×125 | |
| Displancement | 6.494 | |
| Fuel consumption (g/kW·h) | 237 | |
| Fuel tank capacity (L) | 385 | |
| Main pump pressure (Mpa) | 34.3/37.3 | |
| Main pump flow (L/min) | 234×2 | |
Groundability | ° | 147/156 |
| % | 102/109 | |
| Ground pressure (kPa) | 2.7/4.9 | |
| Maximum digging height (mm) | 11 | |
| Maximum unloading height (mm) | 217 | |
| Maximum digging depth (mm) | 35 | |
| Maximum digging radius (mm) | 70 | |
| Bulldozing blade size (mm) | 44.9 | |
Frame | Rail distance (mm) | 10190 |
| Wheelbase (mm) | 7260 | |
| Track | Width of track shoe (mm) | 6510 |
| Track length (mm) | 9875 | |
| Voltage (V) | 2380 | |

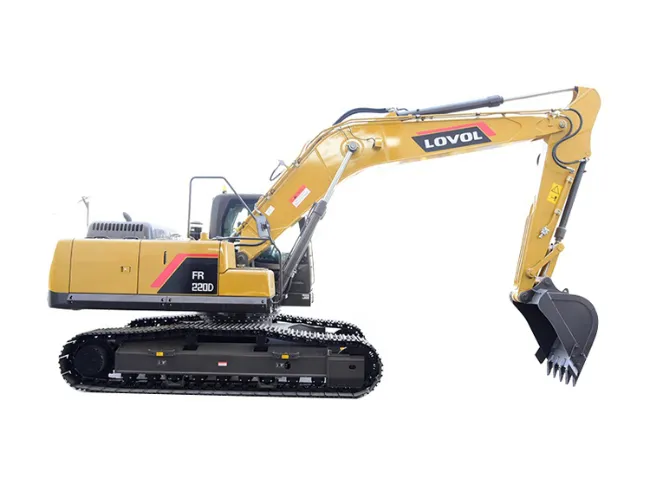

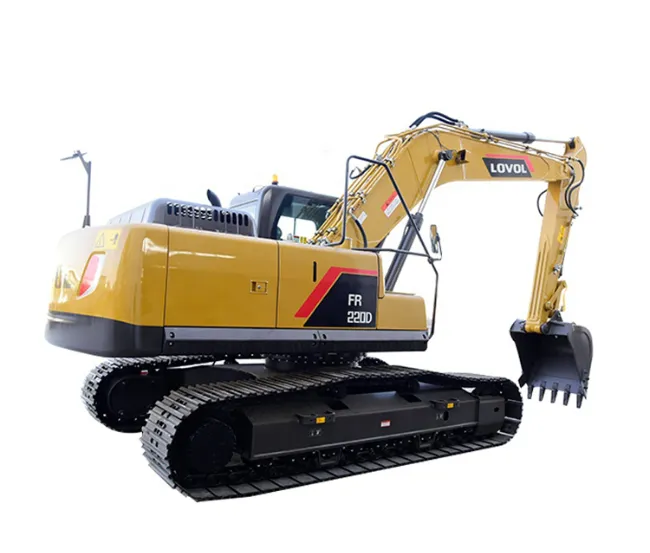

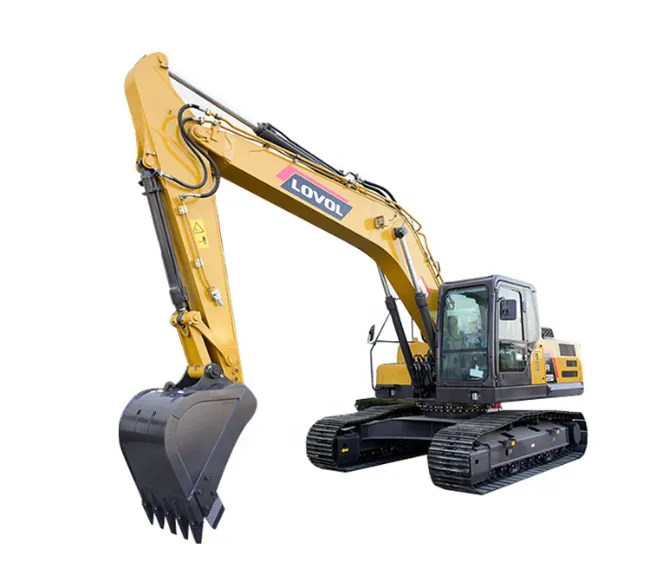

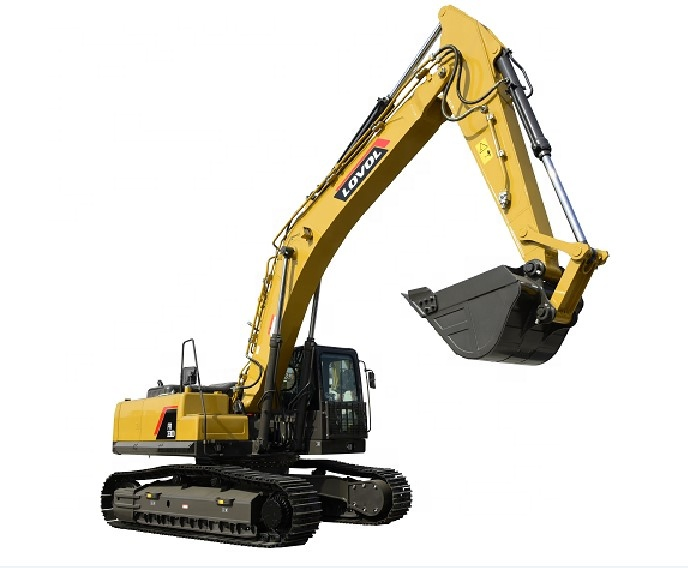

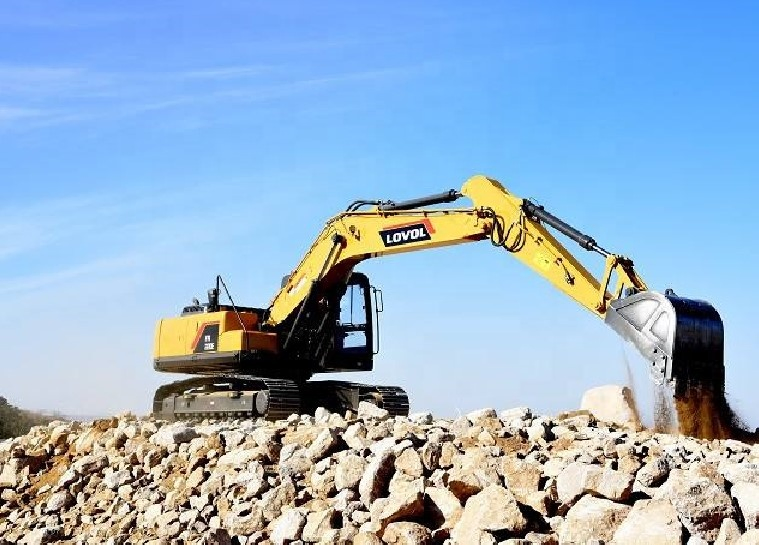

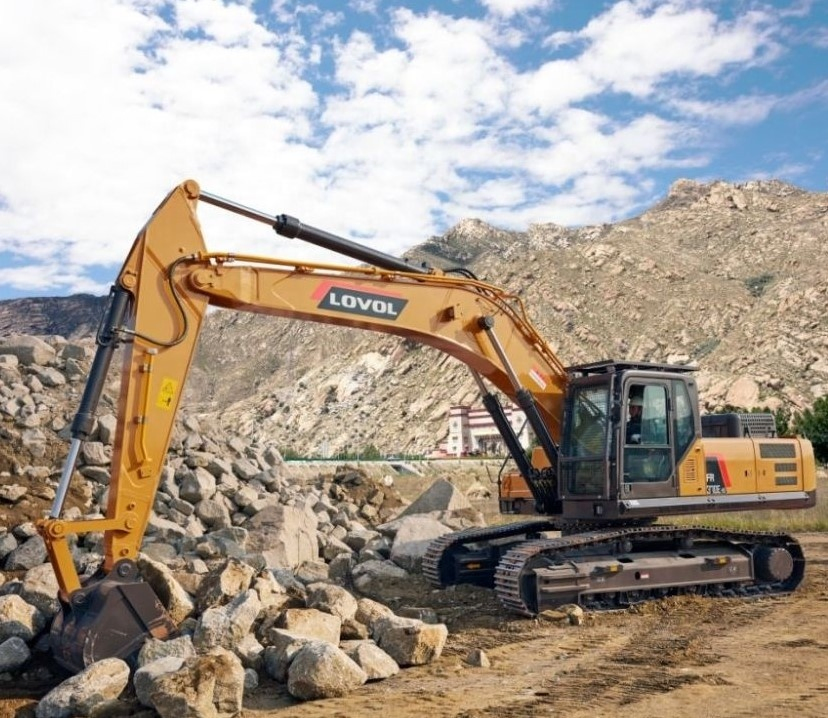

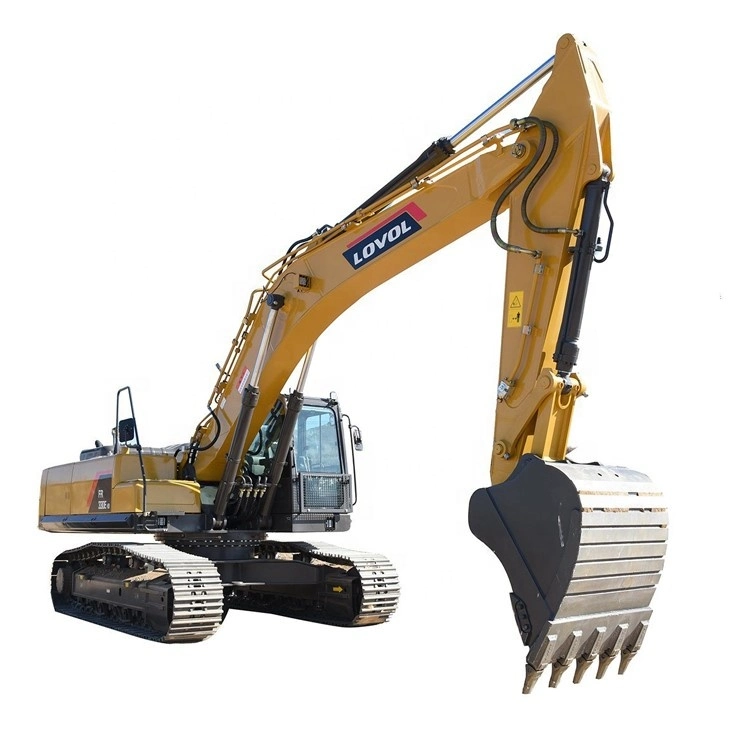

3. Product Pictures
4. Company Information
