Mini Excavator 1 Ton with CE Certificate CT10 CT08 CT06

Product Description

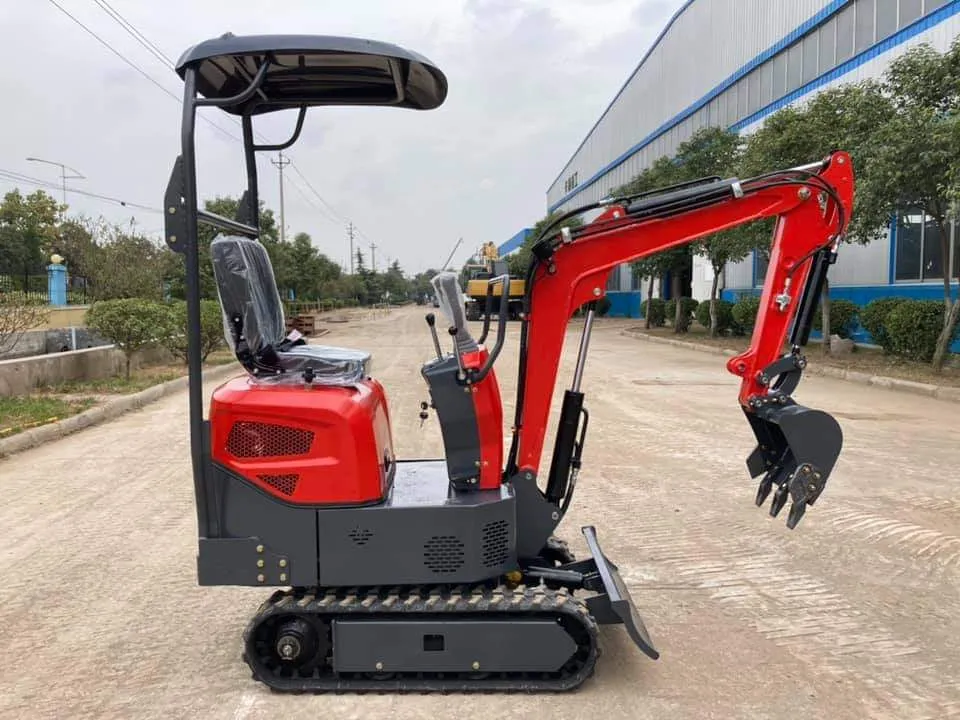

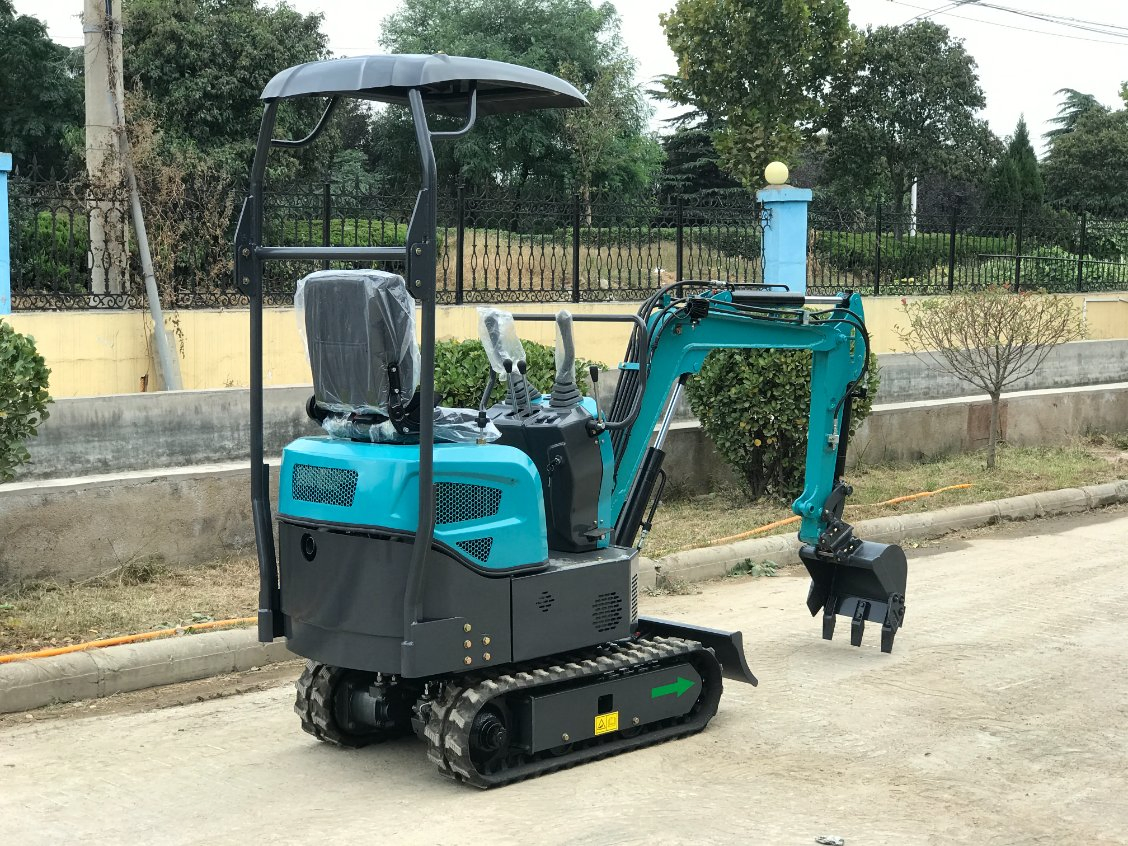

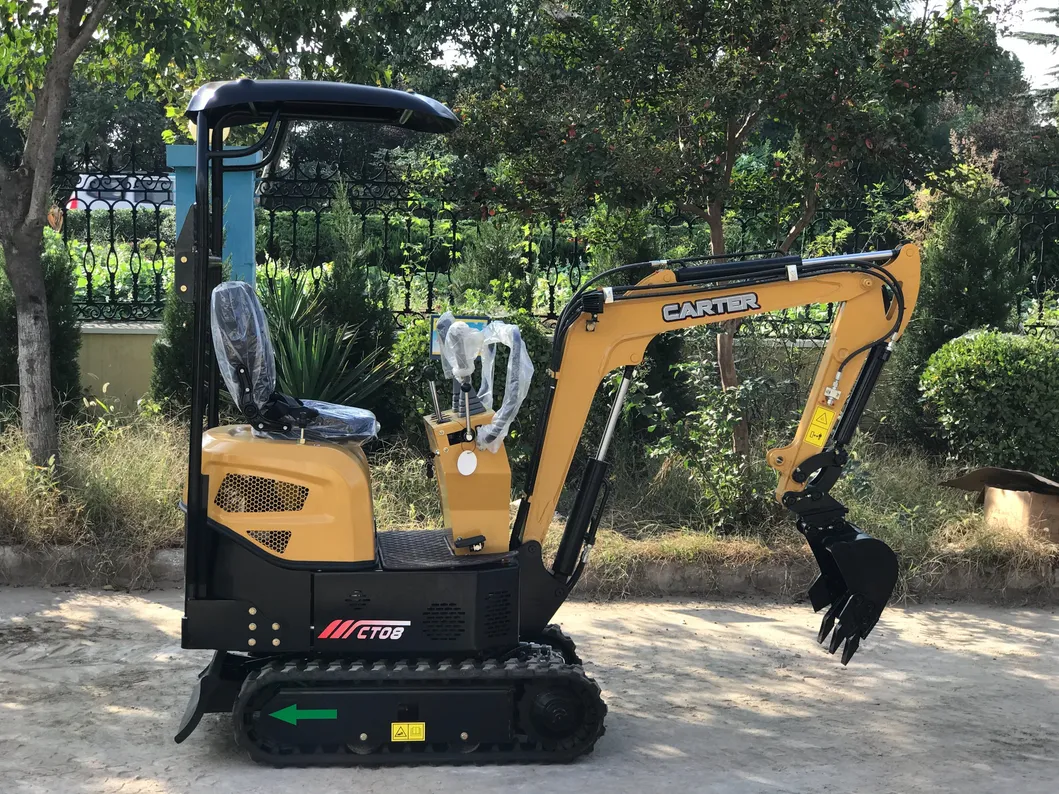

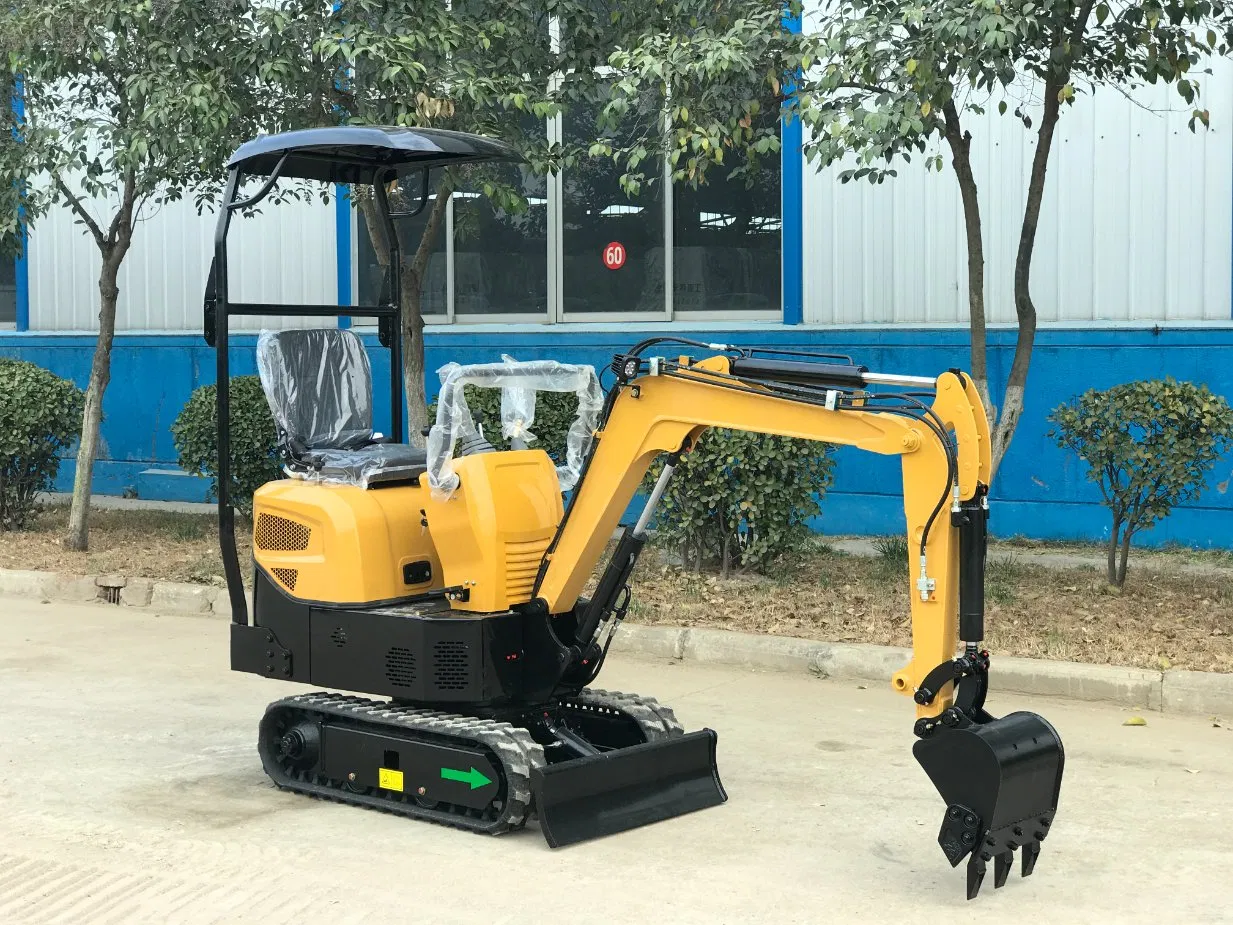

Carter CT08 Euro5 Mini Excavator

Cabin Type: canopy;

Operating Weight: 850kg;

Bucket (400mm) Capacity: 0.022M³;

KOOP 192F-1 Engine Euro5, 7.0kw;
Well-Known Brand Pump;
Well-Known Brand Valve;
Well-Known Brand Travel Motor;
Well-Known Brand Swing Motor;
Rubber Track;

CE Certificate;

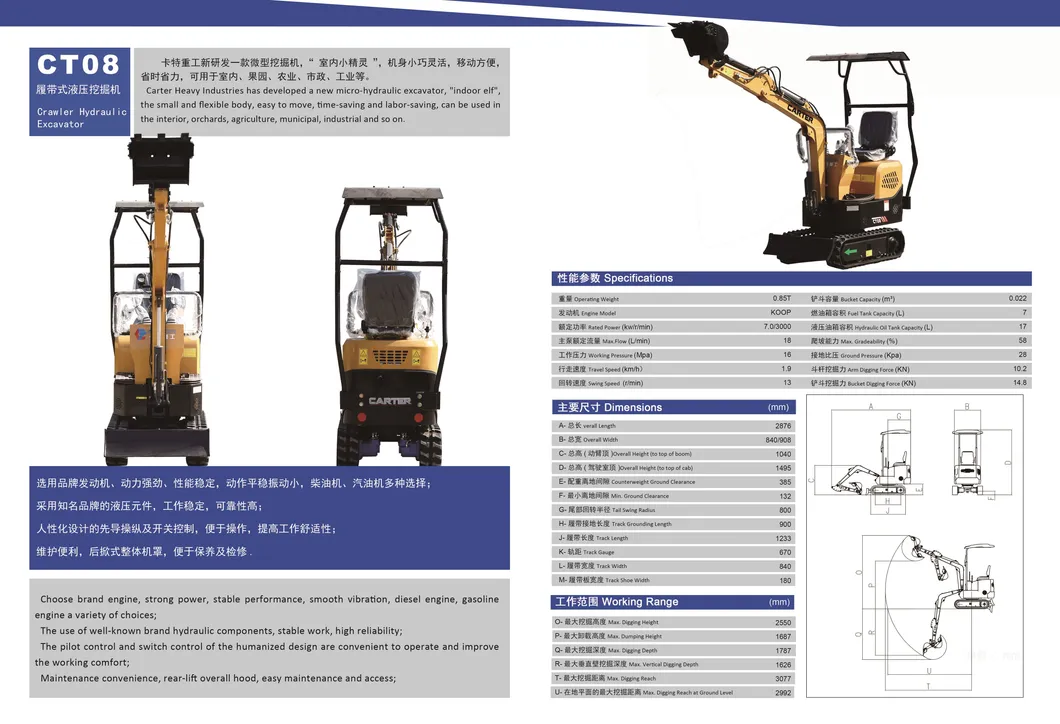

Model	CT08 (Euro 5)
Operating weight (ton)	0.85
Bucket capacity (cbm)	0.022
Engine model	KOOP KD192F-1
Rated power (kw/r/min)	7.0/3000
Hydraulic pump model	China Brand
Max.flow (L/min)	18
Working pressure (Mpa)	16
Control valve model	China Brand
Swing motor model	OMR200
Travel motor model	SMT310
Fuel tank capacity (L)	7
Hydraulic oil tank capacity (L)	14.5
Travel speed (km/h)	1.9
Swing speed (r/min)	13
Max. climbing degree (%)	58
Arm digging force	4.6
Bucket digging force (KN)	7.2
Average grounding pressure (Kpa)	20
A-Overall length (mm)	2876
B-Overall width (mm)	840/908
C-Overall height (to top of boom)(mm)	1040
D-Overall height (to top of cab)(mm)	1495
E-Counterweight ground clearance(mm)	385
F-Min. ground clearance (mm)	132
G-Tail swing radius (mm)	800
H-Track Ground Length (mm)	900
J-Track length (mm)	1233
K-Track gauge (mm)	670
L-Track width (mm)	840
M-Track shoe width (mm)	180
N-Turntable width (mm)	760
O-Max. digging height (mm)	2550
P-Max. dumping height (mm)	1687
Q-Max. digging height (mm)	1787
R-Max. vertical wall digging depth (mm)	1626
T-Max. digging reach (mm)	3077
U-Max. digging reach at ground level (mm)	2992
V-Min. swing radius (mm)	1483
X-Distance between center of rotation and tail length (mm)	795
Y-Track shoe thickness (mm)	-
Z-Height of counterweight (mm)	366
A1-Ground length (in transportion)(mm)	2650
Arm length (mm)	800
Boom length (mm)	1480

Our factory: -CARTER

Our brand is Okite; we mainly manufacture engineering machinery.

Our engineering machinery had been exported to more than 130 countries. We have got the SGS certificates. Our engineering machinery was known well by lots overseas customers, which is the easiest way for customers to know us and trust our quality. In the overseas market, We have sample projects in many countries, and our team could help customers solve any problems timely. Overseas warehouses make it convenient for the customer to get any spare part they need.

Mini Excavator 1 Ton with CE Certificate CT10 CT08 CT06

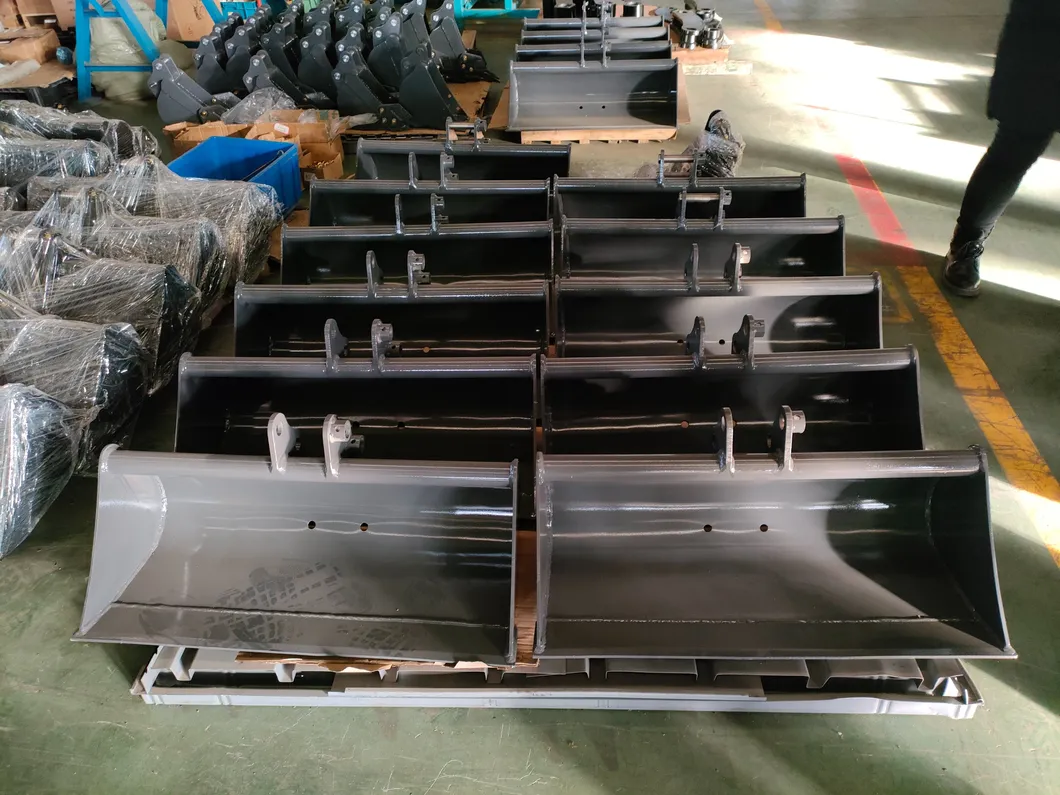

All kinds of attachments

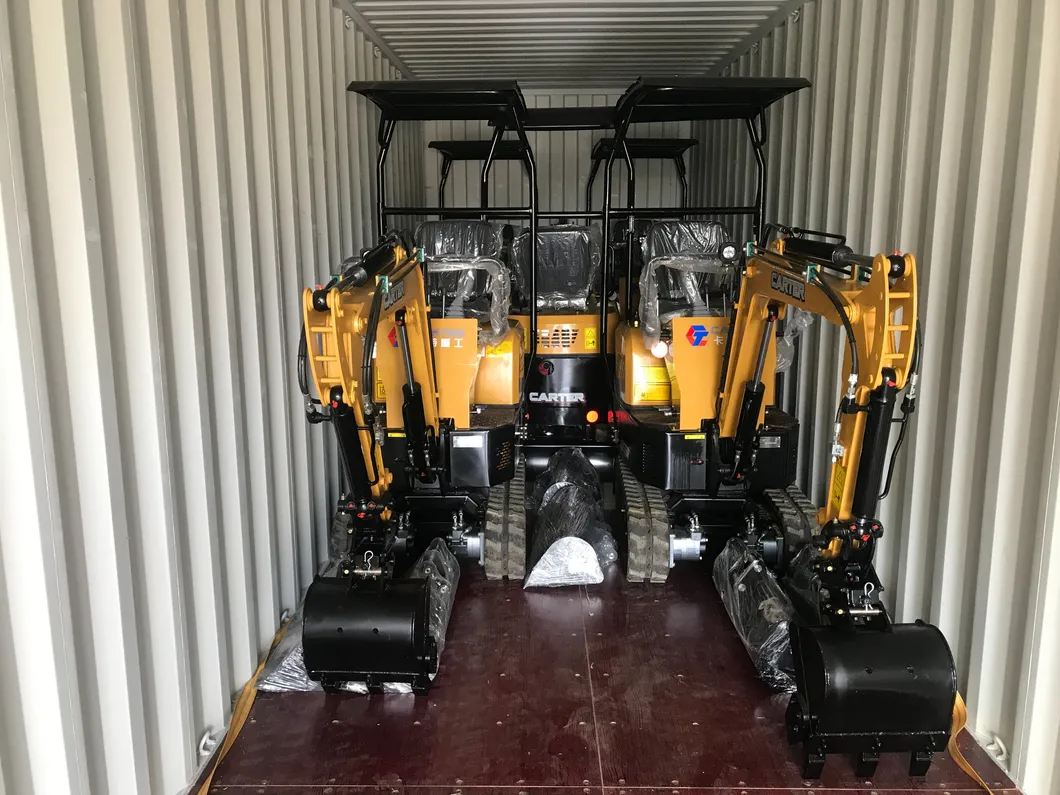

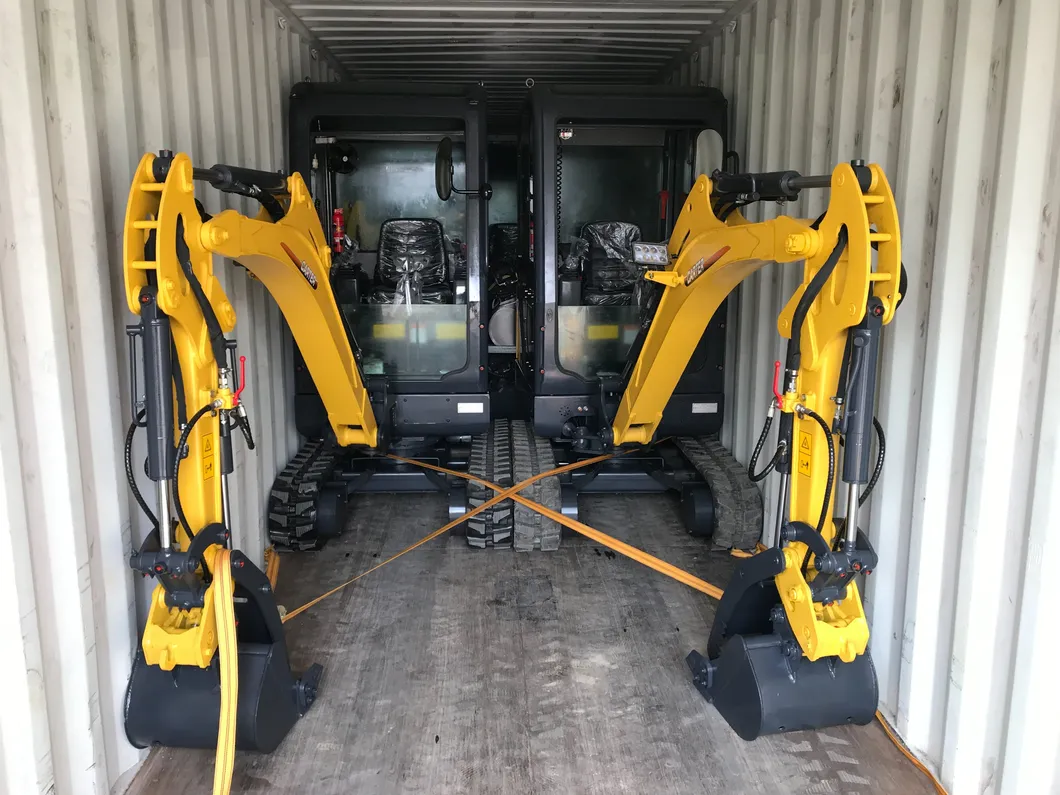

Loading containers

6 sets into 1*20 ft container

Warranty time:

CT08, 1000 working hours or 6 months, whichever comes first;

FAQ

Q	What are our advantages?
A	1.High quality 2.Competitive price, 3.Fast delivery 4.Quick response 4.Famous Brand
Q	What's your payment term
A	T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the products and packages before you pay the balance
Q	Which unicorn term can we accept?
A	FOB, EXW, CFR, and CIF all acceptable
Q	What's the delivery time?
A	The specific delivery time depends on the items and the quantity of your order.
Q	How long the warranty time?
A	Our main machine enjoys a 1-year warranty, during this time all accessories are broken can be changed for a new one. And we provide videos for machine install and operation.
Q	Which certificate do you have?
A	CE, EPA, SGS...
Q	Is it convenient to visit your factory?
A	Warmly welcome to visit us.
Q	Do you test your machine before delivery?
A	Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.
Q	Do you have after-sales service?
A	Sure 1.Our Sales team will respond to your question with 24 hours (Holiday Encluded). 2.Technical Support will be available at any time. Free replacement will provide once the failure confirmed caused by our product quality.
Q	Do you Preferred to provide wear parts for transacted clients?
A	Yes, we have records for your clients and will prefer to provide accessories to clients.
Q	How long will our price be valid?
A	We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year.We only adjust our price based on two situations: The rate of USD: RMB varies significantly according to the international currency exchange rates. Manufacturers/Factories adjusted the machine price, because of the increasing labor cost, and raw material cost.
A	Can we choose a color?
Q	Yes, we could customized color.
A	Can we be the dealer?
Q	Yes, After we cooperate, after we know more about both ourselves, we could discuss this.
A	Which market do you export to?
Q	Europe, Australia, South America, North America...
