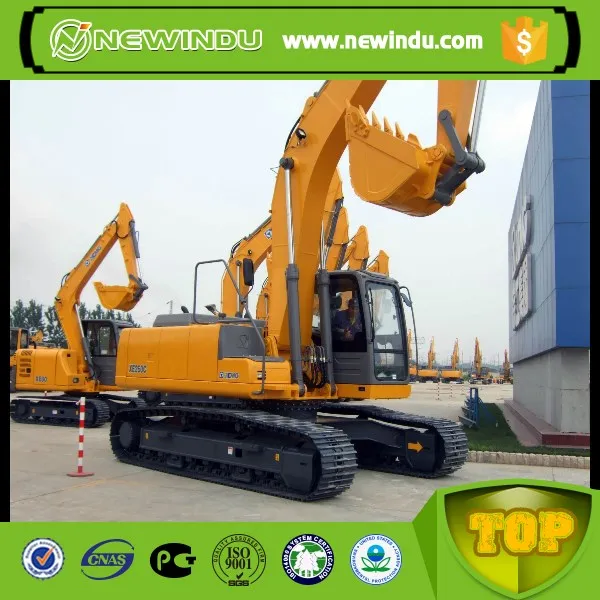

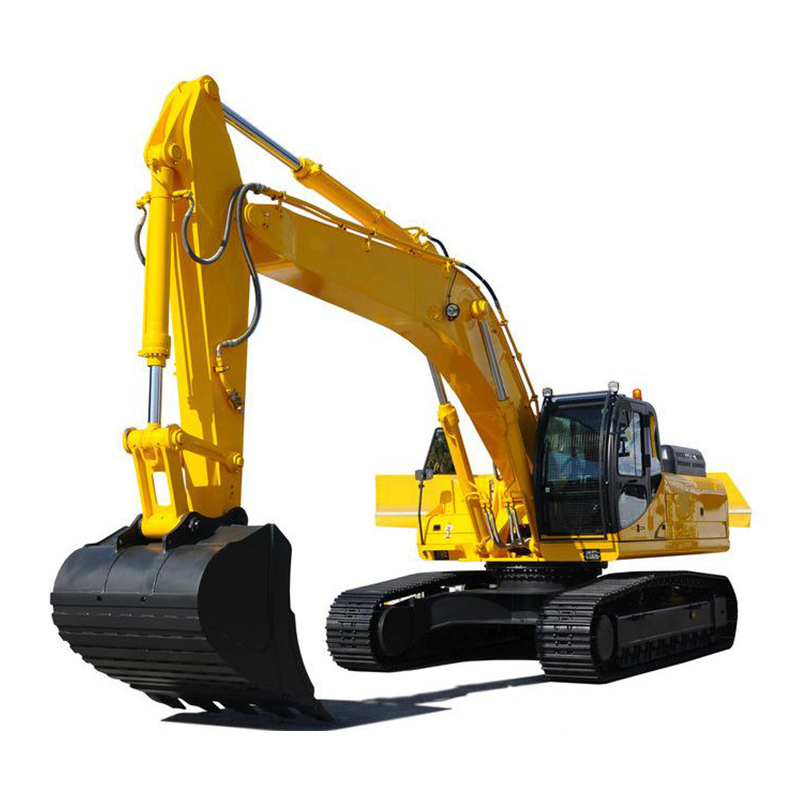

New China 34 Ton Crawler Excavator Xe335c Price in Stock
Low price high power XE335C model Excavator price for saleFeature The high-end configuration, performance excellence. a strong driving force, low noise, low fuel consumption, more reliable.The advanced hydraulic system for energy saving, the key hydraulic components are the international wellknow......
Send Inquiry
Product Description
Low price high power XE335C model Excavator price for sale
Feature
The high-end configuration, performance excellence.
a strong driving force, low noise, low fuel consumption, more reliable.
The advanced hydraulic system for energy saving, the key hydraulic components are the international wellknown brand manufacturers imported, quality of products can be a good guarantee; combined with the latest research results, low energy consumption, fast response speed, control precision, the impact is small, can maintain a strong mining capacity and excellent operation efficiency.
Parameters
| Model | Unit | XE335C | |
|---|---|---|---|
| Operating weight | kg | 33800 | |
| Standard bucket capacity | m³ | 1.4~1.6 | |
| Engine | Engine Model | / | ISUZU AA-6HK1XQP |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo charged | / | √ | |
| Air to air intercooler | / | √ | |
| No. of cylinders | / | 6 | |
| Rated power/speed | kw/rpm | 184/2000 | |
| Max. torque/speed | N.m | 872.8/2000 | |
| Displacement | L | 7.79 | |
| The main performance | Travel speed | km/h | 5.5/3.3 |
| Swing speed | r/min | 9.7 | |
| Max. gradeability | / | ≥35 | |
| Ground pressure | kPa | 66 | |
| Max.Bucket digging force | kN | 225 | |
| Max.arm crowd force | kN | 183 | |
| Max.traction force | kN | 261 | |
| Hydraulic system | Main pump | / | 2 pison |
| Rate flow of main pump | L/min | 2×280 | |
| Max pressure of prime relief valve | MPa | 31.5/34.3 | |
| Max pressure of travel system | MPa | 34.3 | |
| Max pressure of swing system | MPa | 27.5 | |
| Max pressure of pilot system | MPa | 3.9 | |
| Oil capacity | Fuel tank capacity | L | 630 |
| Hydraulic tank capacity | L | 320 | |
| Engine lubrication | L | 28 | |
| Overall dimensions | A Overall length | mm | 11246 |
| B Overall width | mm | 3190 | |
| C Overall height | mm | 3330 | |
| D Overall width of upperstructure | mm | 2960 | |
| E Track length | mm | 4725 | |
| F Overall width of undercarriage | mm | 3190 | |
| G Crawer width | mm | 600 | |
| H Track length on ground | mm | 3183 | |
| I Crawer gauge | mm | 2590 | |
| J Clearance under counter weight | mm | 1170 | |
| K Ground clearance | mm | 495 | |
| L Min.tail swing radius | mm | 3450 | |
| Working range | A Max. digging height | mm | 10404 |
| B Max. dumping height | mm | 7256 | |
| C Max. digging depth | mm | 7158 | |
| D 8inch horizonal digging depth | mm | 6935 | |
| E Max. vertical wall digging depth | mm | 6526 | |
| F Max. digging reach | mm | 10887 | |
| G Min. swing radius | mm | 4424 | |
| Angle of arm deflection | Degree | 2.9m bucket rod | |
Our company
We, Newindu E-Commerce (Shanghai) Co., Ltd, are professional in construction machinery for nearlly 10 years,exporting with good quality and low price, having excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,dump truck,road roller,forklift,reach stacker,and also including the spare parts,etc.
