New Te35s 3.5ton/ 3500kg Home Garden Farm Agriculture Small Digger Mini Hydraulic Crawler Excavator with CE ISO
New TE35S 3.5ton/3500kg Home Garden Farm agriculture Small Digger Mini Hydraulic Crawler Excavator with Ce ISOTE35S MINI CRAWLER EXCAVATOR WITH ATTACHMENT ENGINEERING MACHINERY ALL-ROUND SOLUTION EXPERET TE35 Mini Excavators with compact dimensions can easily drive through narrow passages and doors,......
Send Inquiry
Product Description

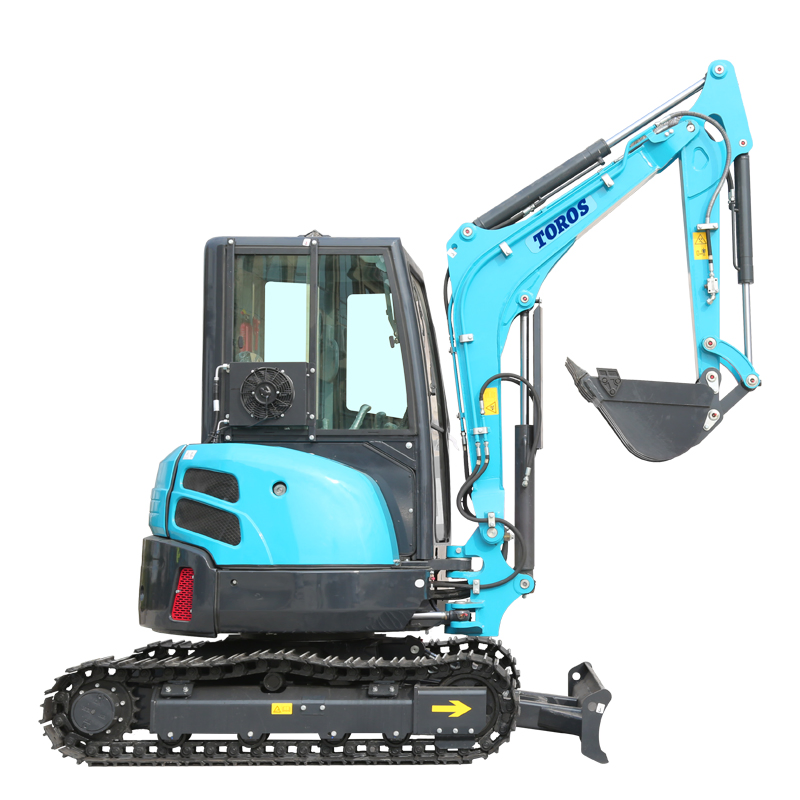

New TE35S 3.5ton/3500kg Home Garden Farm agriculture Small Digger Mini Hydraulic Crawler Excavator with Ce ISO

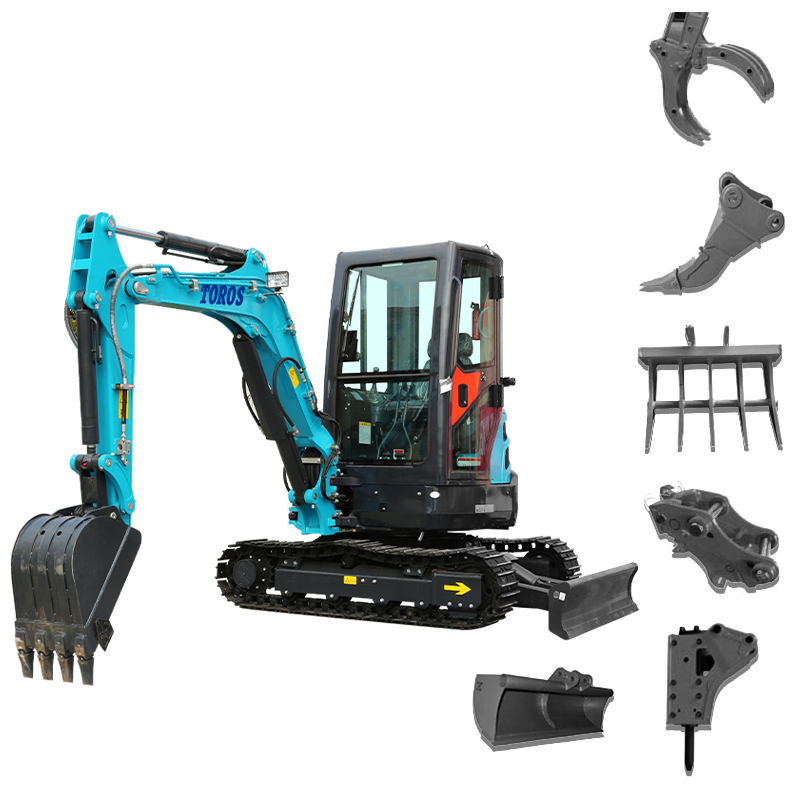

TE35S MINI CRAWLER EXCAVATOR WITH ATTACHMENT ENGINEERING MACHINERY ALL-ROUND SOLUTION EXPERET
TE35 Mini Excavators with compact dimensions can easily drive through narrow passages and doors, small radius of gyration, adjustable dozer blade, easy to disassemble simple shed and cabin , 360 degree rotation, high configuration, high performance, small size, light weight, good transportation, low fuel consumption, high efficiency, stable performance, beautiful appearance, safe and reliable, operation Flexible and convenient, and wide application.
Equipped powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs, and a wide range of adaptability. Reducing maintenance and operating costs, improving the degree of mechanization.
| TE35S Mini Crawler excavator | |||
| METRIC | IMPERIAL | ||
| Bucket Capacity | 0.09m³ | Bucket Capacity | 3.18ft³ |
| Excavator Width | 1550mm | Excavator Width | 61.02in |
| Track Length | 2100mm | Track Length | 82.68in |
| Chassis Ground Clearance | 290mm | Chassis Ground Clearance | 11.42in |
| Crawler Material | Rubber/steel tracks | Crawler Material | Rubber/steel tracks |
| Track Width | 300mm | Track Width | 11.81in |
| MAX.digging Force | 26.5 KN | MAX.digging Force | 26.5 KN |
| Gradeability | 30° | Gradeability | 86ºF |
| Excavator Height | 2440mm | Excavator Height | 96.06in |
| Overall Dimension( LxWxH) | 4485*1550*2440mm | Overall Dimension | 176.57*61.02* 96.06in |
| Taifeng Multi-way Valve | Two-speed Traveling Motor | ( LxWxH)Taifeng Multi-way Valve | Two-speed Traveling Motor |
| Engine | YANMAR 3TNV88 | Engine | YANMAR 3TNV88 |
| Engine Power | 20.5kw/2400rpm | Engine Power | 27.49hp/2400rpm |
| Turning Radius | 2035mm | Turning Radius | 80.12in |
| Max.Digging Height | 4600mm | Max.Digging Height | 181.10in |
| Max.Dumping Height | 3175mm | Max.Dumping Height | 125in |
| Max.Digging Depth | 2880mm | Max.Digging Depth | 113.39in |
| Max.Digging Radius | 4845mm | Max.Digging Radius | 190.75in |
| Max.Vertical Digging Depth | 2305mm | Max.Vertical Digging Depth | 90.75in |
| Fuel Tank Capacity | 40L | Fuel Tank Capacity | 8.80UK gal |
| Weight | 3515kg | Weight | 7749lb 3.986oz |
| Swing Motor | Taifeng Plunger Hydraulic Pump | Swing Motor | Taifeng Plunger Hydraulic Pump |
Zero-tail type:
Zero-tail type:
