Agricultural Mini Loader ( HQ910J ) with Euro III Engine

Product Description

Haiqin Brand Strong Compact Wheel Loader (HQ910PRO) with Euro5 engine

Agricultural Mini Loader (HQ910J) with Euro III Engine

1, Advantage of HQ910Pro Wheel loader

1) With strong lift arm, can lift 1500kg.
2) With CE Certificate, Rops&Fops cabin, E4 lamp.
3) Mini Loader with Euro III Emission Engine
4) Multi-function: Hydraulic controlling pilot joystick reduces workforce intensity, improves working efficiency and enhances the driver's comfort.

2, Specifications of HQ910Pro wheel loader:

Specifications of HQ910Pro wheel loader
Item	Specifications	Item	Specifications
Rated loading weight	1300kg	Operating weight	3150kg
Rated bucket capacity	0.54-0.7m 3	Overall dimensions(LxWxH)	4450x1430x2600mm
Bucket width	1500mm	Engine model	XINCHAI 490 EURO III Engine ( Yanmar or Perkins for option )
Track base	1160mm	Engine type	In-line arrangement, water cooled, four-cycle diesel engine
Wheel base	1710mm	Engine starting mode	Electric
Min. turning radius(outside of rear wheels)	3750mm	Rated power/Rated speed	32.4KW/2400rpm
Min. Ground clearance	230mm	Brake mode	Four-wheel hydraulic spread-shoed brake
Dump height fully raised	2420mm	Warranty	15 months
Dump height fully raised	2420mm	Warranty
Reach fully raised	850mm	Color	According to the requirements of customers
Lifting time + Dumping time + Lowering time	9S	Tyre type	12-16.5 or 3115.515 or 400/60 wide tyre
Steering angle	35 degree	Shipping port	Qingdao port, China
Max. Breakout Force	40KN	Packing details	Nude package, 1Unit/20' s GP with disassembled cabin, 3Units/40' s HQ
Driving mode	Four-wheel drive	Delivery time	30 days after confirm the order
OEM Service	Yes

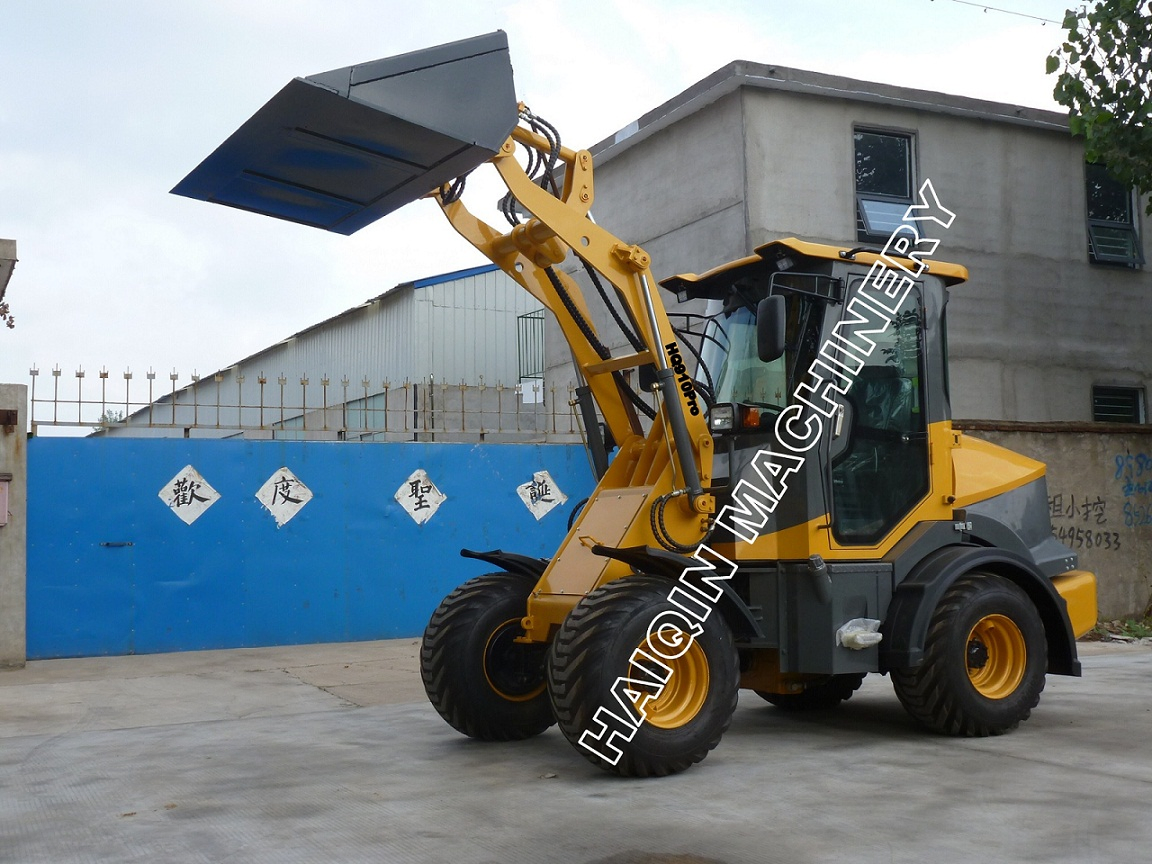

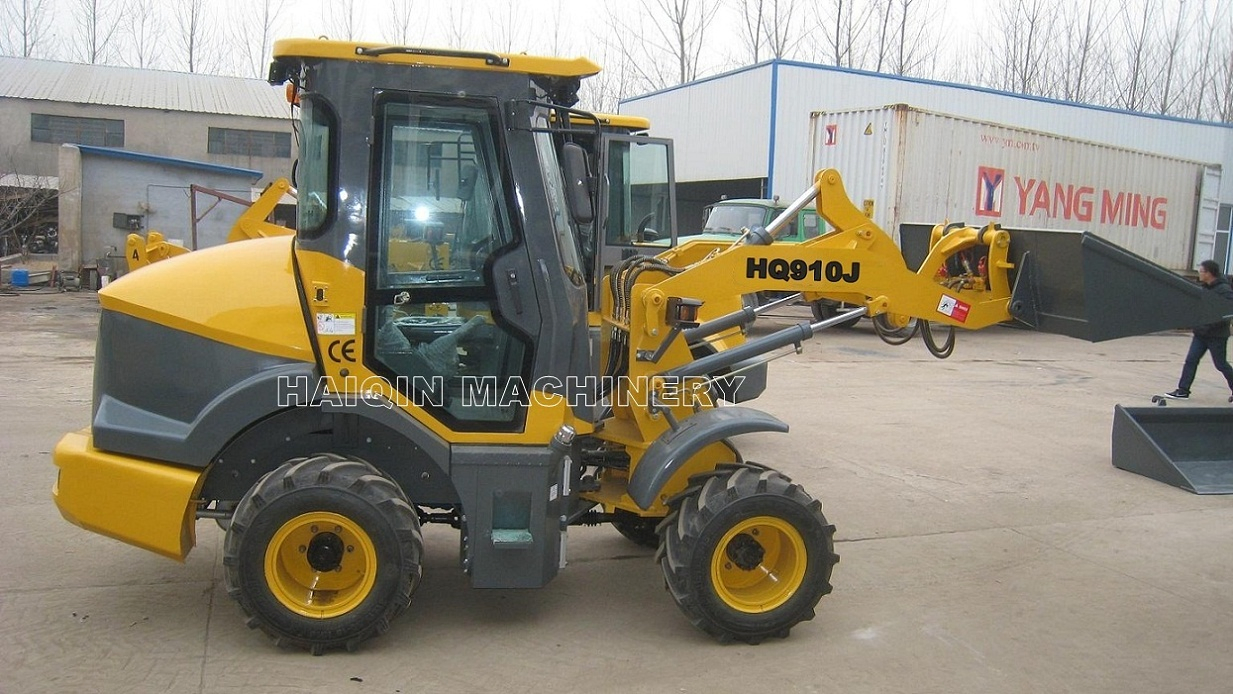

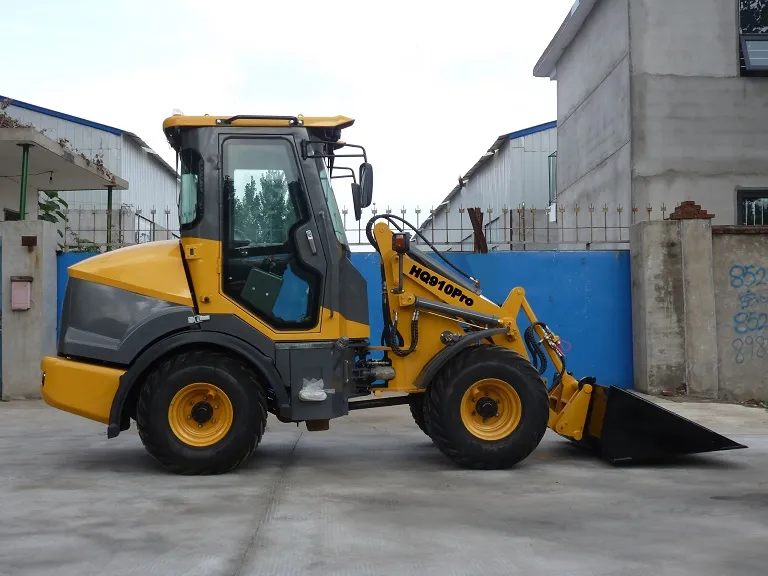

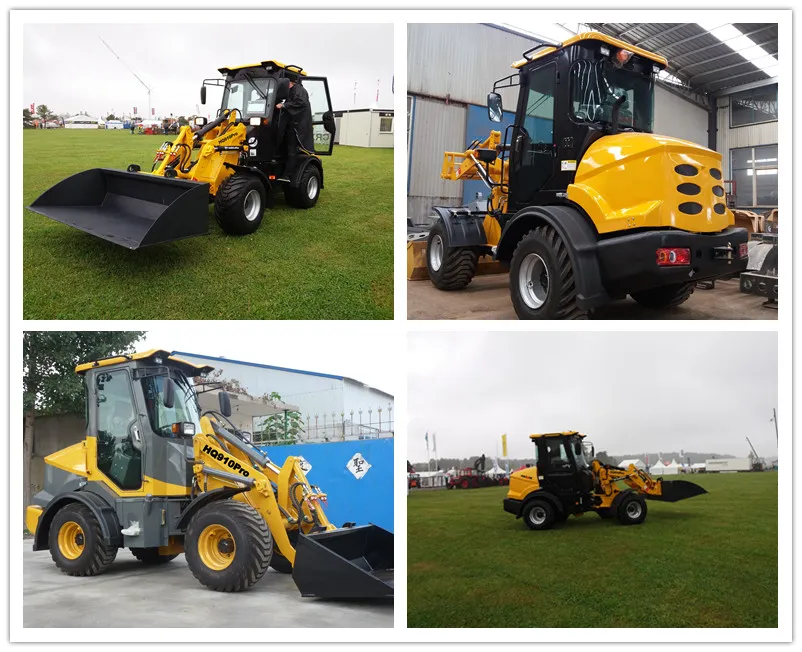

3, Details Photos of HQ910Pro Wheel Loader

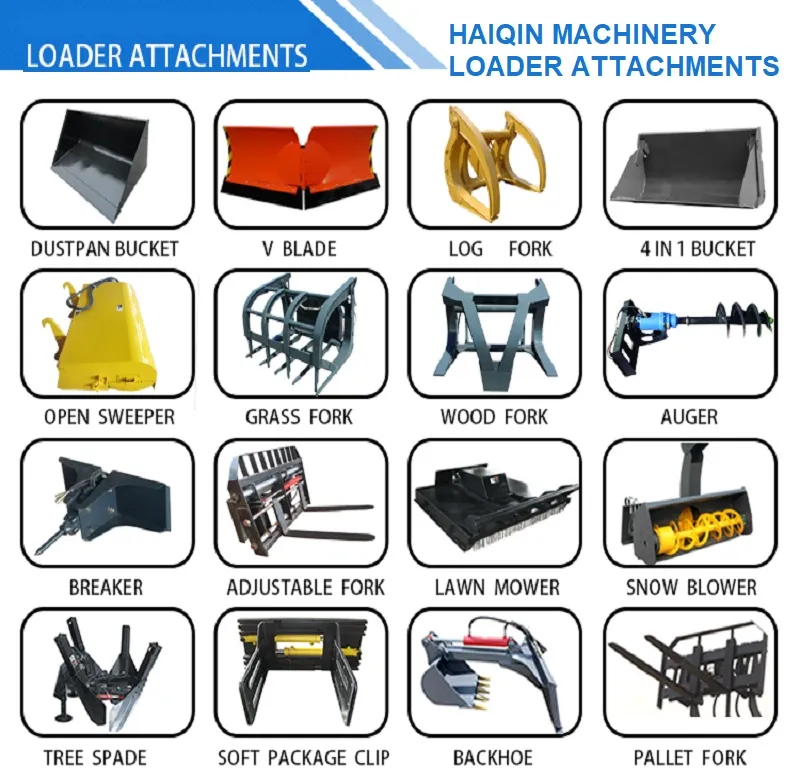

4, Optional Attachments for HQ910pro Wheel Loader

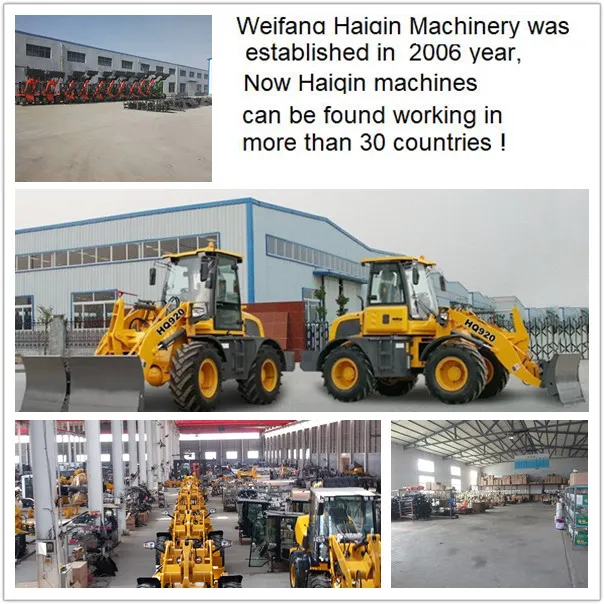

5, Factory introduction of Haiqin Machinery

6, Feedback from HaiQin's Customers

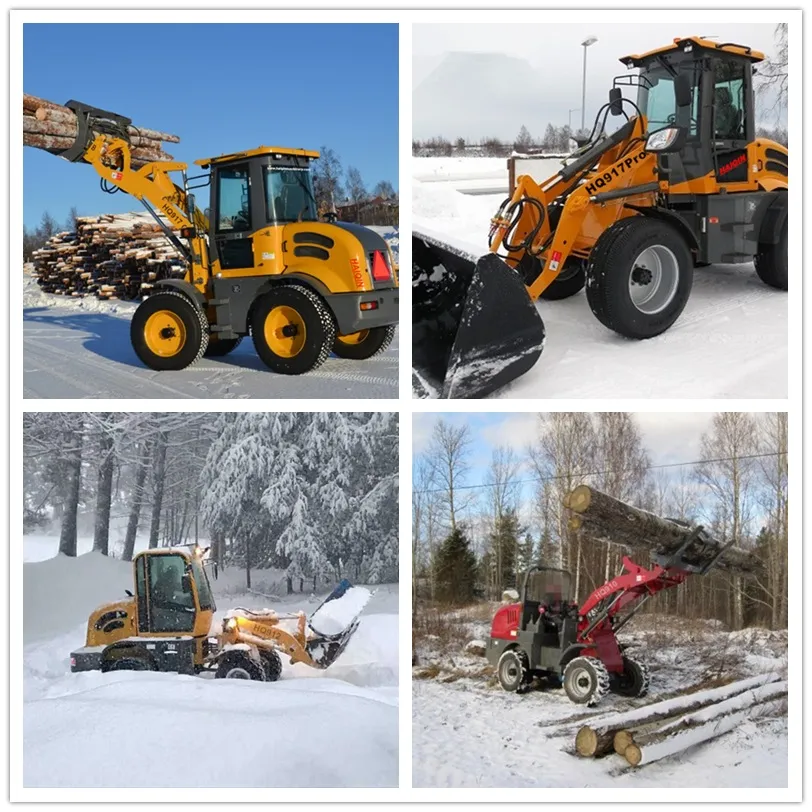

7, Working Case in the foreign countries of Haiqin Machinery' Loaders.

8,Certificate of Haiqin Machinery

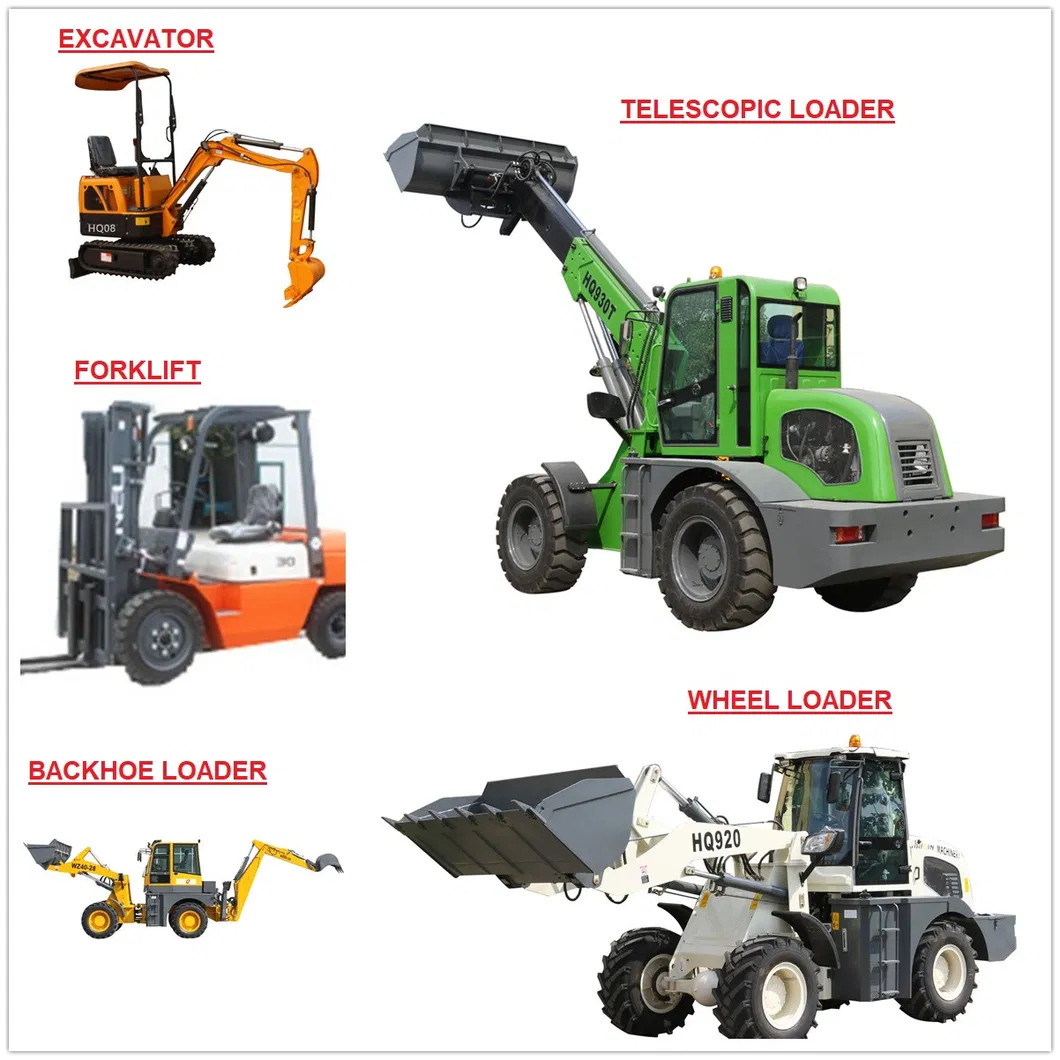

9,MORE PRODUCT CATEGORIES

10,Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.
