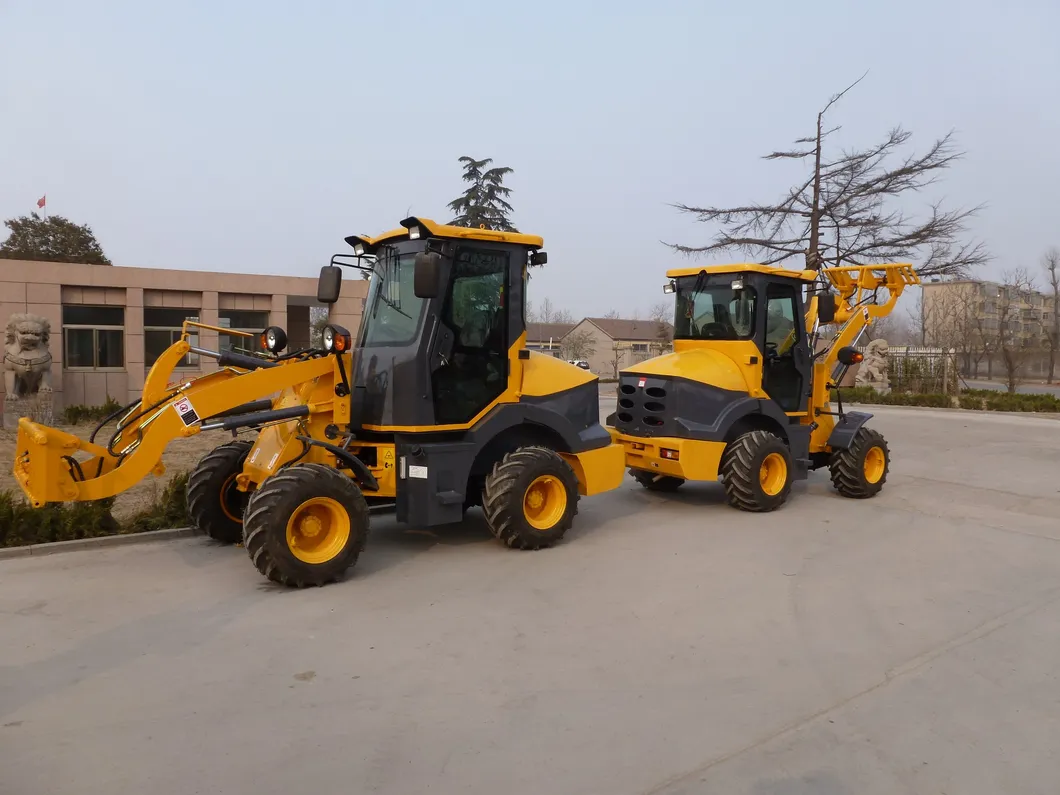

CE Multi-Function Wheel Loader ( HQ910J ) with European Fork

Product Description

Advantage of HQ910J wheel loader :
1) With Whole hydraulic drive .
2) With CE Certificate, Rops&Fops cabin, E4 lamp.
3) Wheel Loader with Euro III Emission Engine
4) Multi-function: Hydraulic controlling pilot joystick reduces workforce intensity, improves working efficiency and enhances the driver's comfort.

Specifications of HQ910J Wheel Loader:
Item	Specifications	Item	Specifications
Rated loading weight	1000kg	Operating weight	2750kg
Rated bucket capacity	0.54-0.7m 3	Overall dimensions(LxWxH)	4450x1430x2600mm
Bucket width	1500mm	Engine model	XINCHAI 490 EURO III Engine ( Yanmar or Perkins for option )
Track base	1160mm	Engine type	In-line arrangement, water cooled, four-cycle diesel engine
Wheel base	1710mm	Engine starting mode	Electric
Min. turning radius(outside of rear wheels)	3750mm	Rated power/Rated speed	32.4KW/2400rpm
Min. Ground clearance	230mm	Brake mode	Four-wheel hydraulic spread-shoed brake
Dump height fully raised	2420mm	Warranty	15 months
Dump height fully raised	2420mm	Warranty
Reach fully raised	850mm	Color	According to the requirements of customers
Lifting time + Dumping time + Lowering time	9S	Tyre type	12-16.5 or 3115.515 wide tyre
Steering angle	35 degree	Shipping port	Qingdao port, China
Max. Breakout Force	35KN	Packing details	Nude package, 1Unit/20' s GP with disassembled cabin, 3Units/40' s HQ
Driving mode	Four-wheel drive	Delivery time	20 days after confirm the order
OEM Service	Yes
