Cheap Price Backhoe Loade Selling in China
WZ30-25 Backhoe Loader1. Product DescriptionBackhoe loader is mainly used for small-scale engineering operations such as afforestation, agriculture and animal husbandry construction, channel construction, sewer cleaning, water channel dredging, clean-up and reloading in factories and mines, and is ......
Send Inquiry
Product Description

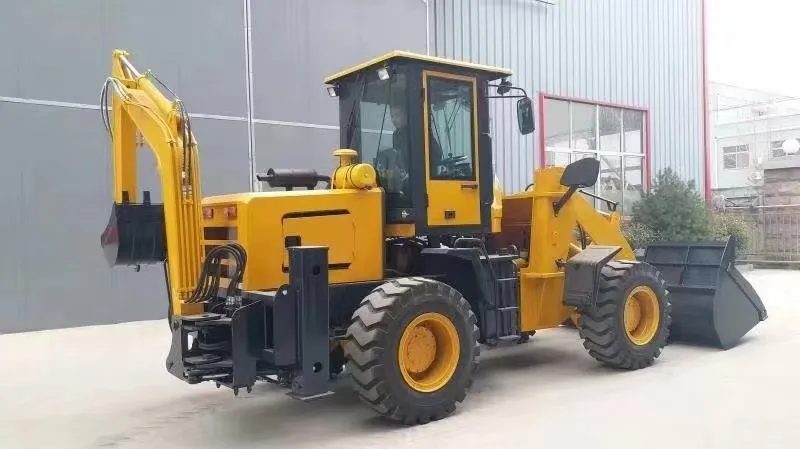

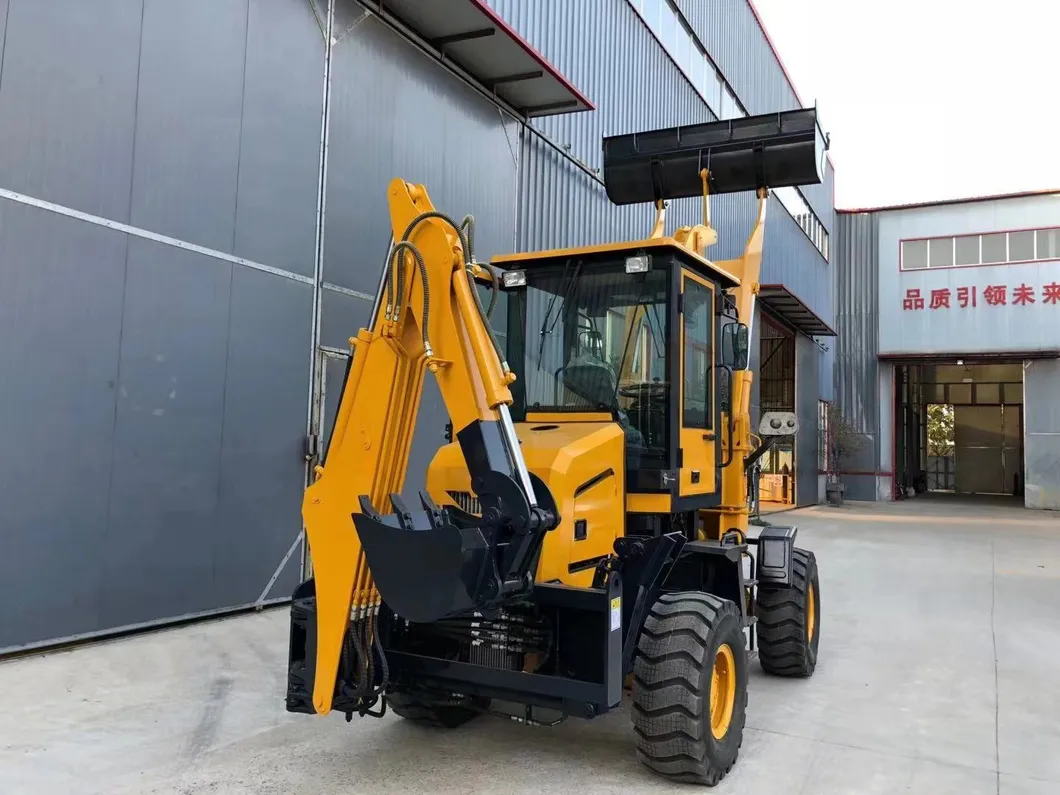

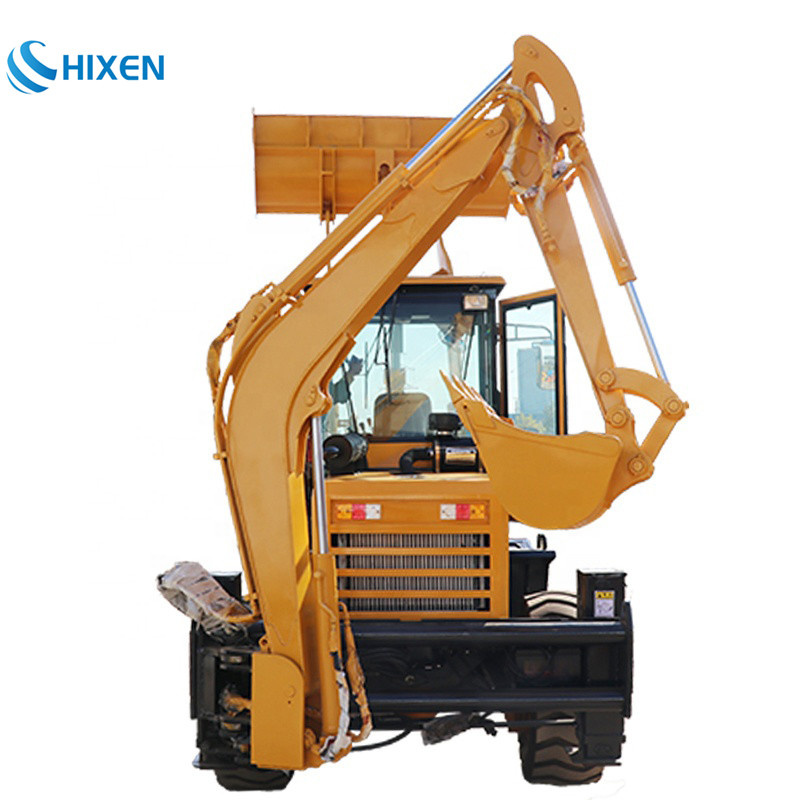

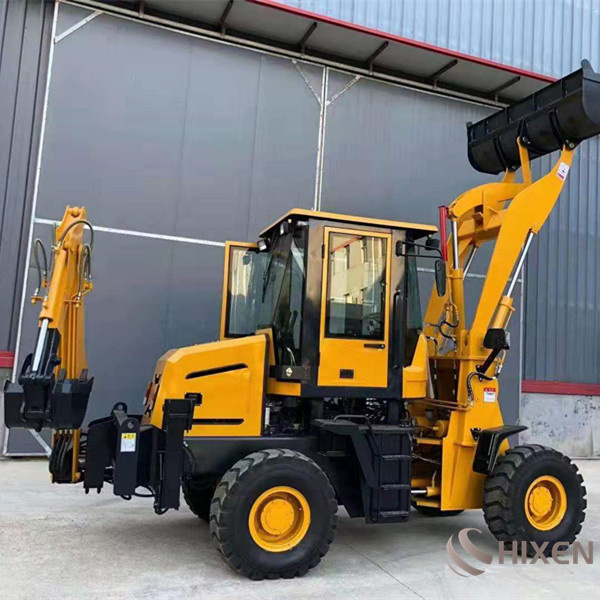

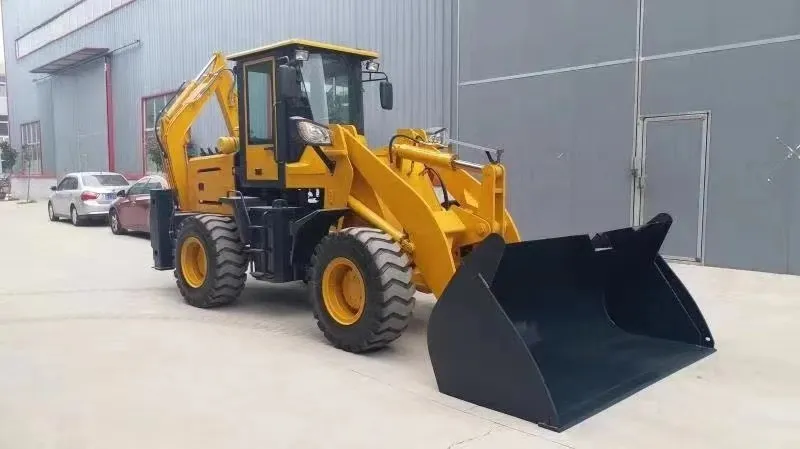

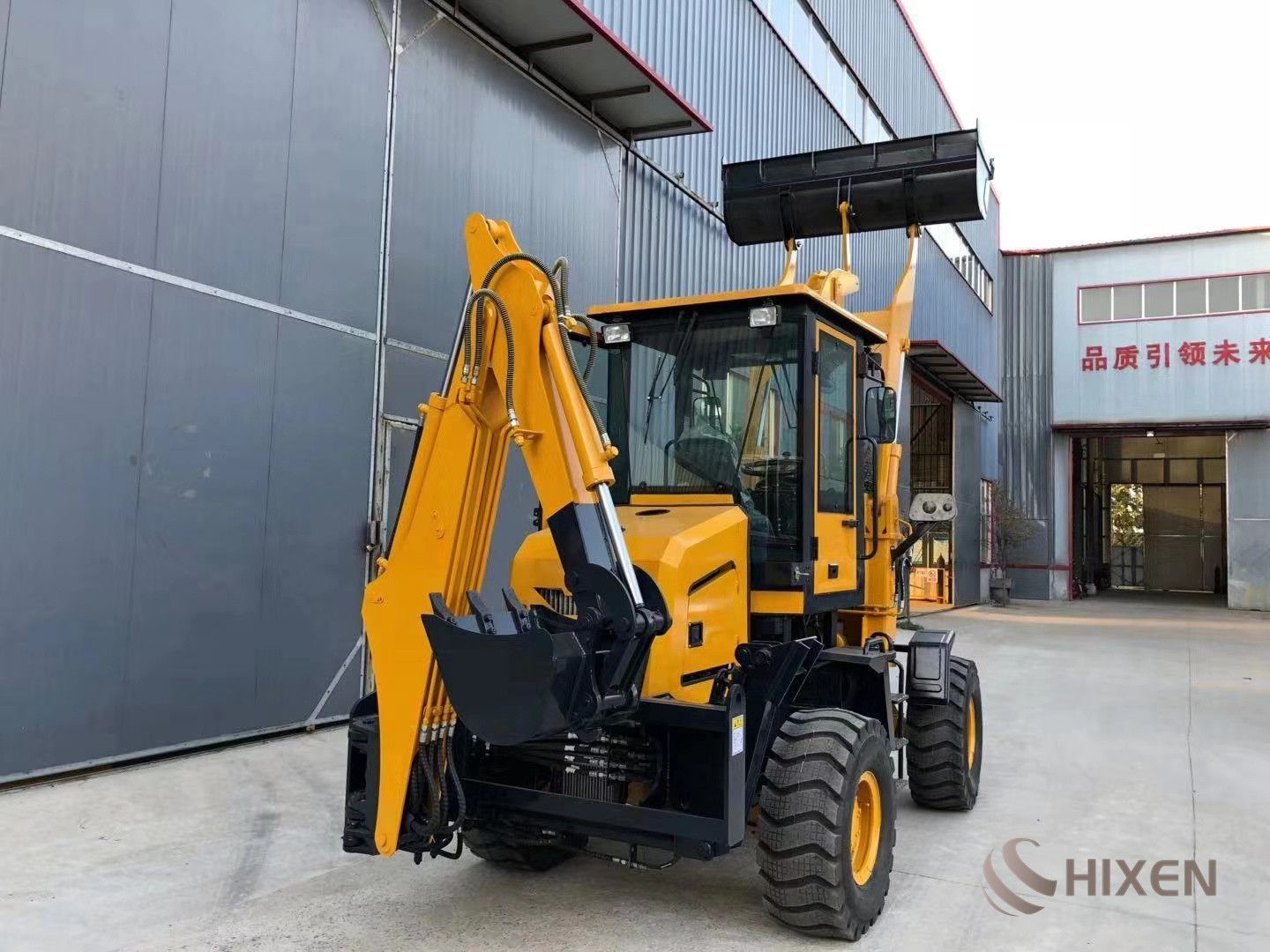

WZ30-25 Backhoe Loader
1. Product Description
Backhoe loader is mainly used for small-scale engineering operations such as afforestation, agriculture and animal husbandry construction, channel construction, sewer cleaning, water channel dredging, clean-up and reloading in factories and mines, and is widely used in small and medium-sized roadways with a width of 2 meters or more.
2. Product Parameters
3. Main features:
1) Front-end loading and back-end excavating structure, streamline design.
2) Cab is equiped with a fan, and front tilting function for good service maintenance.
3) Brake system with Hydraulically-actuated, wet disc brakes, safe and reliable.
4) High performance diesel engine, powerful and environmental protect.
5) The equipment can be attached with many accessaries to comply different functions.
4. Production Process
5. Multifunctional Attachments:
7. Company Profiles
Shandong Hixen Machinery Co., Ltd, is a reputed manufacturer and exporter of construction machines, farm machines and mine machines with large years' experience.Located in the capital city Jinan of Shandong province, the company has developed into a comprehensive machinery group.
The products mainly include:Wheel loader, excavator, backhoe loader, skid steer loader, forklift, self-loading concrete mixer and mucking loader etc.Which are widely used in construction, farming, mining and all the related machinery areas.Besides domestic market, the products have also been supplied to numerous places all over the world which has earned large reputation and enjoyed great population.
Since established, the company has been devoted to the scientific and technological innovation, precision manufacturing and all-around service.With all the related certificates, we strictly follow the industry standard, fully control the production flow guaranteeing high quality of every product.We sincerely welcome your visit to reach a mutual success.
8. Packaging&Delivery
1) For land transportation, we usually adopt the nude packing, fastening the equipment to the truck;
2) For sea transportation, we adopt the export standard packing, disassembly the cabin and then fastened inside the container;
3) For the specific moistureproof purpose, we also wrap the equipment by plastic paper or wooden box.
9. FAQ
Q1.What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days.The rest time depends on the distance and transport method which need to be negotiated.
Q2.What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.
Q3.How long is the product guarantee?
We provide one year quality guarantee.
Q4.What kind of service could you provide?
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.
2) On-sale service:We strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.
3) After-sale service:We provide some consumables with the equipment;
We have operation manual for instructing the basic installation and operation;Video guidance for trouble shooting;Engineers ready for field maintenance and repairing when necessary.
Q5.Can we have the special order like specification change, logo making?
Yes, we accept the customization.We can make it clear in the contract and then our technical start design and production as per your requirement.
For more questions, please feel free to contact us.
We sincerely welcome all friends paying visits to us and reach a mutural success.
Stefan
Web: mini-excavator.en.made-in-china.com
1. Product Description
Backhoe loader is mainly used for small-scale engineering operations such as afforestation, agriculture and animal husbandry construction, channel construction, sewer cleaning, water channel dredging, clean-up and reloading in factories and mines, and is widely used in small and medium-sized roadways with a width of 2 meters or more.
2. Product Parameters
| Overall Dimension | Dimension | 6200*1960*2800 mm |
| Tread | 1580 mm | |
| Wheel base | 2550 mm | |
| Minimum clearance to ground | 290 mm | |
Performance | System pressure | 18 Mpa |
| Machine weight | 5400 Kg | |
| Maximum walking speed | 28 Km/h | |
| Maximum climbing gradient | 25° | |
| Minimum turning radius | 4500 mm | |
| Rated load | 2500 KG | |

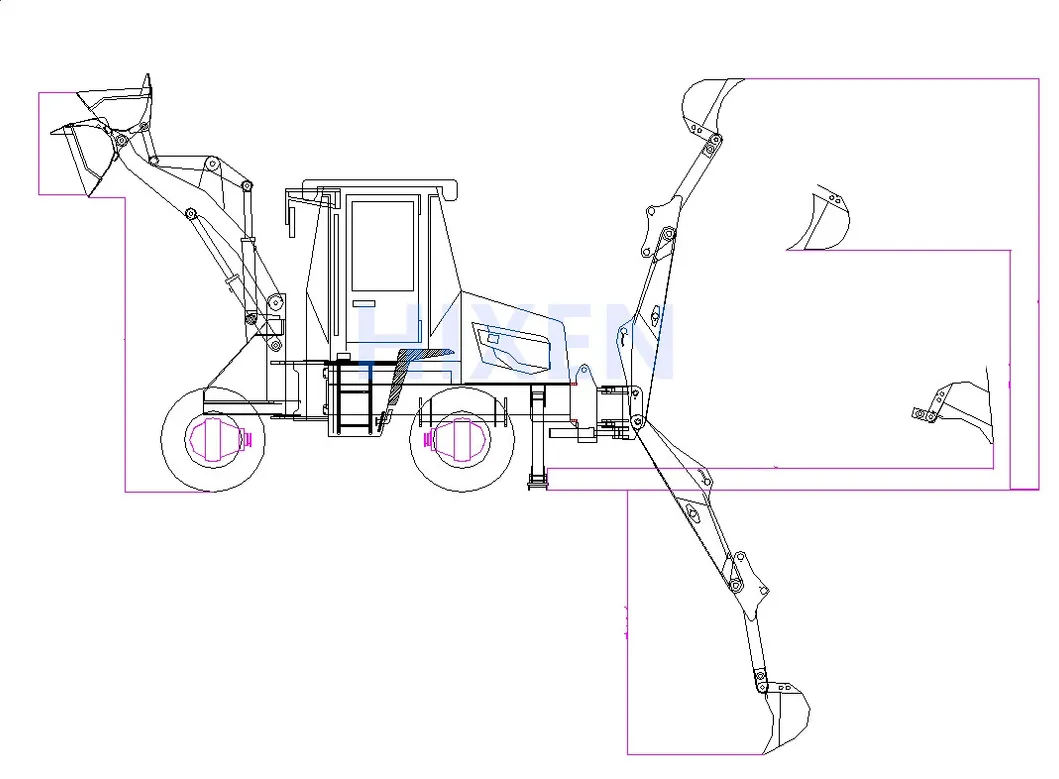

Digging parameter | Maximum digging depth | 2600 mm |
| Digging dumping height | 2300 mm | |
| Maximum digging radius | 4600 mm | |
| Maximum digging height | 4300 mm | |
| Maximum digging force | 28 Kn | |
| Digging bucket capacity | 0.2 cbm | |
| Digging bucket width | 400 mm | |
| Turning angle | 180° | |
| Loading parameter | Maximum dumping height | 3500 mm |
| Maximum dumping reach | 900 mm | |
| Loading bucket capacity | 1 cbm | |
| Loading bucket width | 2100 mm | |
| Maximum loading height | 4300 mm | |
| Maximum force | 42Kn | |
| Engine | Brand | Yunnei |
| Type | Turbo charged, 4-stroke | |
| Rated power | 76 KW | |
| Rated speed | 2400 r/min | |
| Transmission | Hydraulic torque converter ZL29A | |
| Steer system | Hydraulic articulated steering | |
| Tire | 16/70-20 | |
3. Main features:
1) Front-end loading and back-end excavating structure, streamline design.
2) Cab is equiped with a fan, and front tilting function for good service maintenance.
3) Brake system with Hydraulically-actuated, wet disc brakes, safe and reliable.
4) High performance diesel engine, powerful and environmental protect.
5) The equipment can be attached with many accessaries to comply different functions.

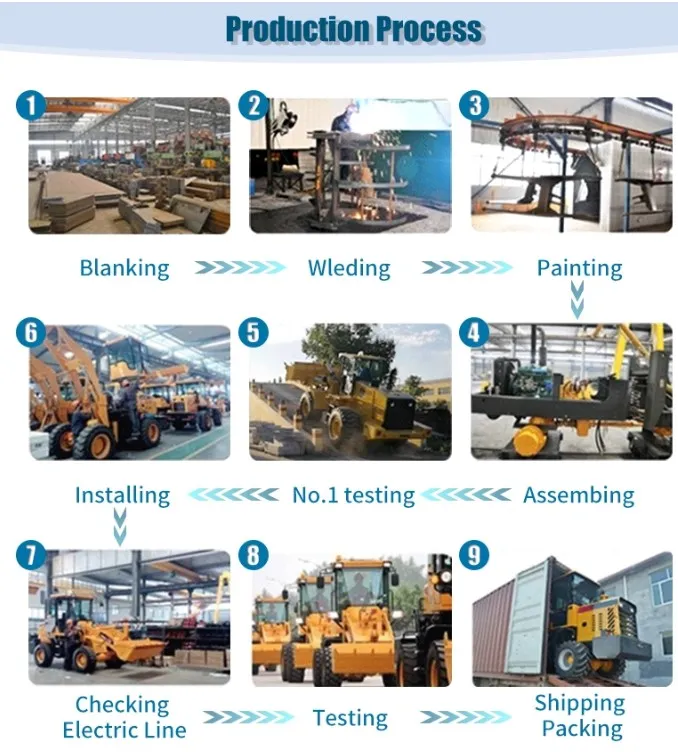

4. Production Process
5. Multifunctional Attachments:

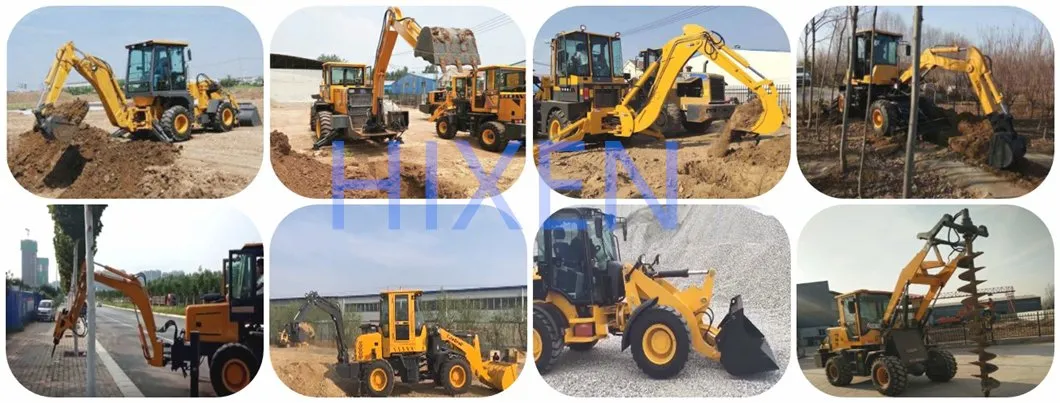

6. Application
The equipment can be attached to many accessaries which is used in municipal, construction, water conservancy, roads, water, power supply, garden and other departments, can be engaged in agricultural construction, plumbing, cable laying, landscaping, etc.

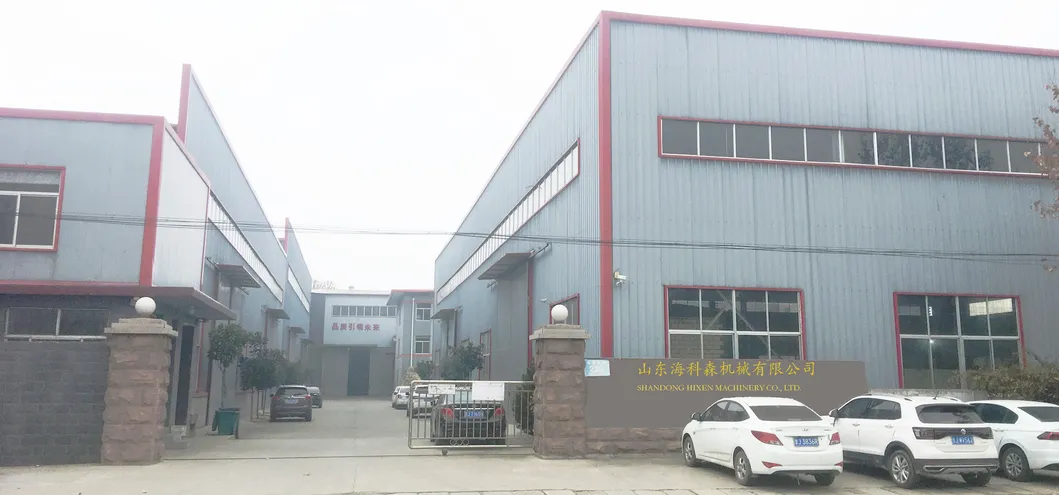

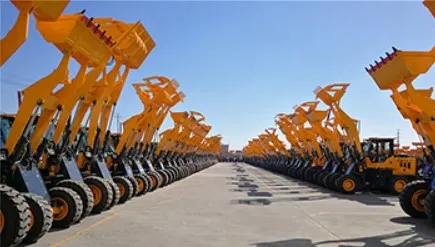

7. Company Profiles
Shandong Hixen Machinery Co., Ltd, is a reputed manufacturer and exporter of construction machines, farm machines and mine machines with large years' experience.Located in the capital city Jinan of Shandong province, the company has developed into a comprehensive machinery group.
The products mainly include:Wheel loader, excavator, backhoe loader, skid steer loader, forklift, self-loading concrete mixer and mucking loader etc.Which are widely used in construction, farming, mining and all the related machinery areas.Besides domestic market, the products have also been supplied to numerous places all over the world which has earned large reputation and enjoyed great population.
Since established, the company has been devoted to the scientific and technological innovation, precision manufacturing and all-around service.With all the related certificates, we strictly follow the industry standard, fully control the production flow guaranteeing high quality of every product.We sincerely welcome your visit to reach a mutual success.

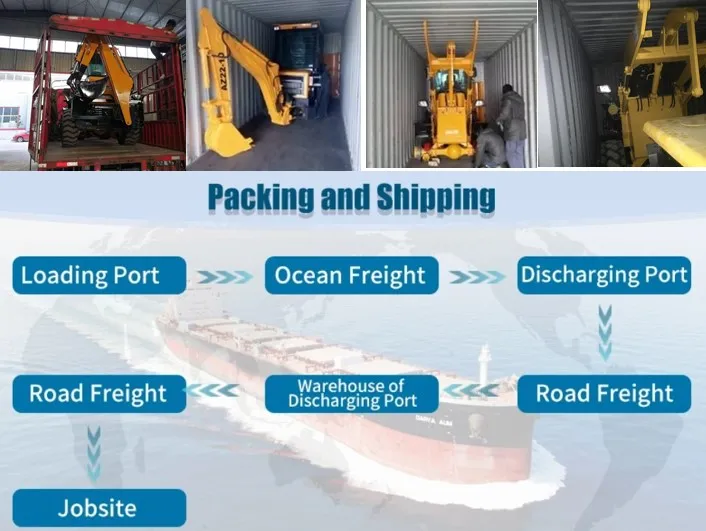

8. Packaging&Delivery
1) For land transportation, we usually adopt the nude packing, fastening the equipment to the truck;
2) For sea transportation, we adopt the export standard packing, disassembly the cabin and then fastened inside the container;
3) For the specific moistureproof purpose, we also wrap the equipment by plastic paper or wooden box.
9. FAQ
Q1.What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days.The rest time depends on the distance and transport method which need to be negotiated.
Q2.What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.
Q3.How long is the product guarantee?
We provide one year quality guarantee.
Q4.What kind of service could you provide?
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.
2) On-sale service:We strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.
3) After-sale service:We provide some consumables with the equipment;
We have operation manual for instructing the basic installation and operation;Video guidance for trouble shooting;Engineers ready for field maintenance and repairing when necessary.
Q5.Can we have the special order like specification change, logo making?
Yes, we accept the customization.We can make it clear in the contract and then our technical start design and production as per your requirement.
For more questions, please feel free to contact us.
We sincerely welcome all friends paying visits to us and reach a mutural success.
Stefan
Web: mini-excavator.en.made-in-china.com
