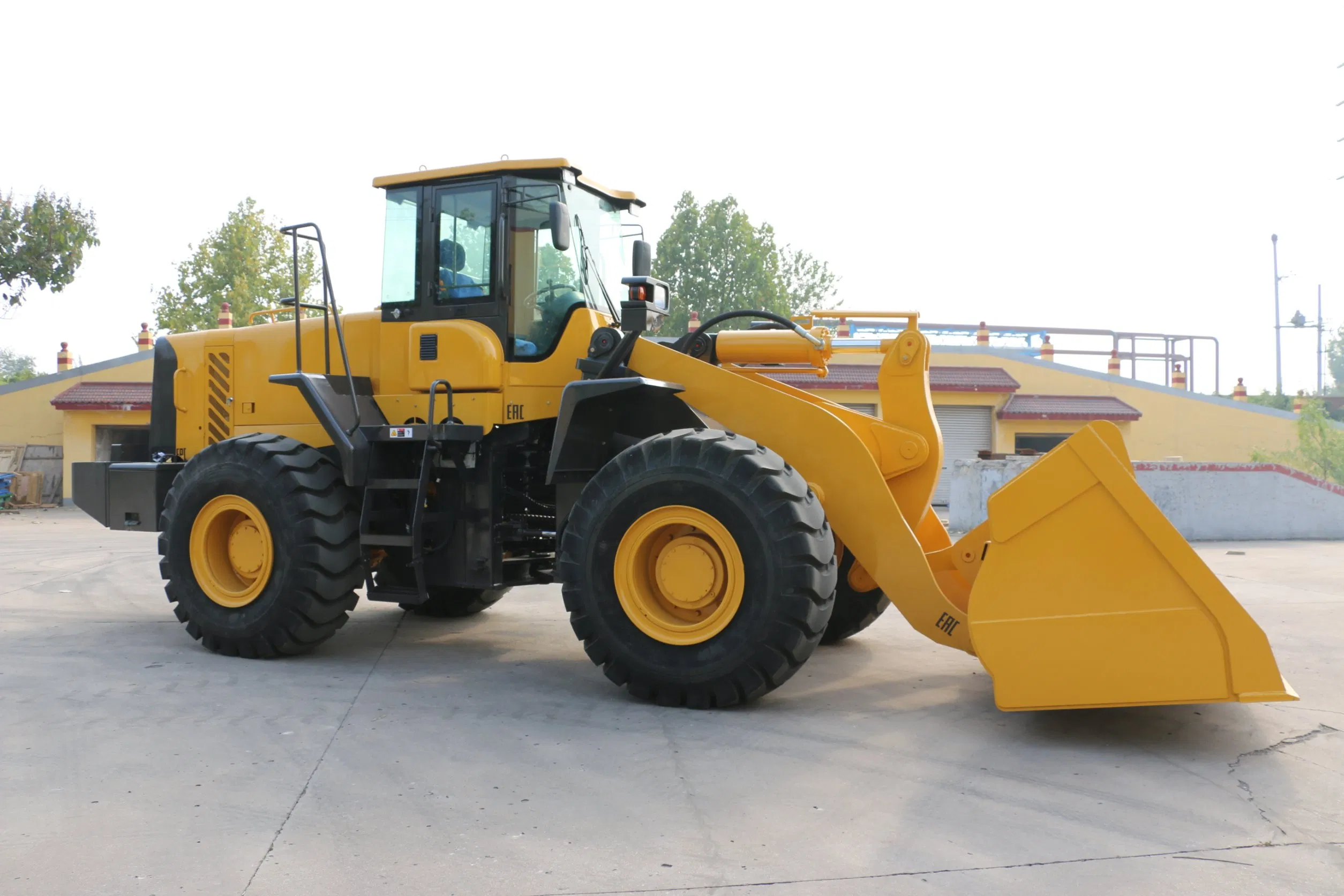

China Factory Price Luqing CE Certified Articulated Compact Zl50 5ton Farm Bucket Shovel Construction Equipment Machinery Small Mini Big Wheel Loader
Main Components and Configuration:-- Heavy duty, much more powerful, suitable for tough working condition.--Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and easier maintenance,--Pilot controlled, fully hydraulic steering system,......
Send Inquiry
Product Description
Main Components and Configuration:
-- Heavy duty, much more powerful, suitable for tough working condition.
--Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and easier maintenance,
--Pilot controlled, fully hydraulic steering system, power shift transmission, easier operation,
--Bucket can be leveled automatically, optimized working device, higher productivity,

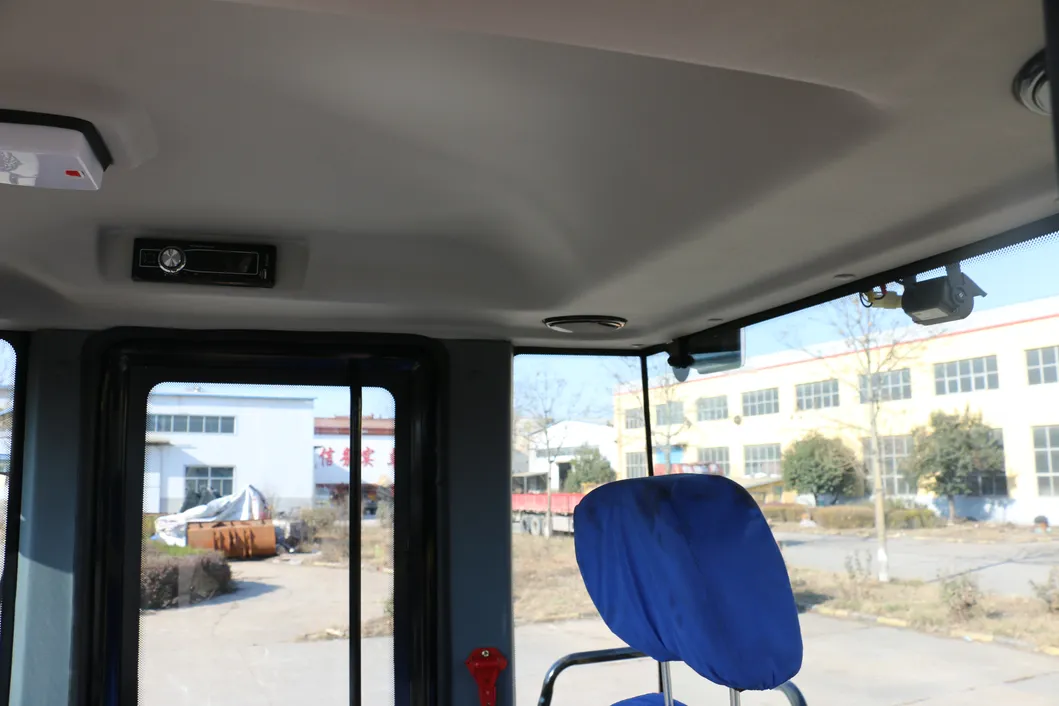

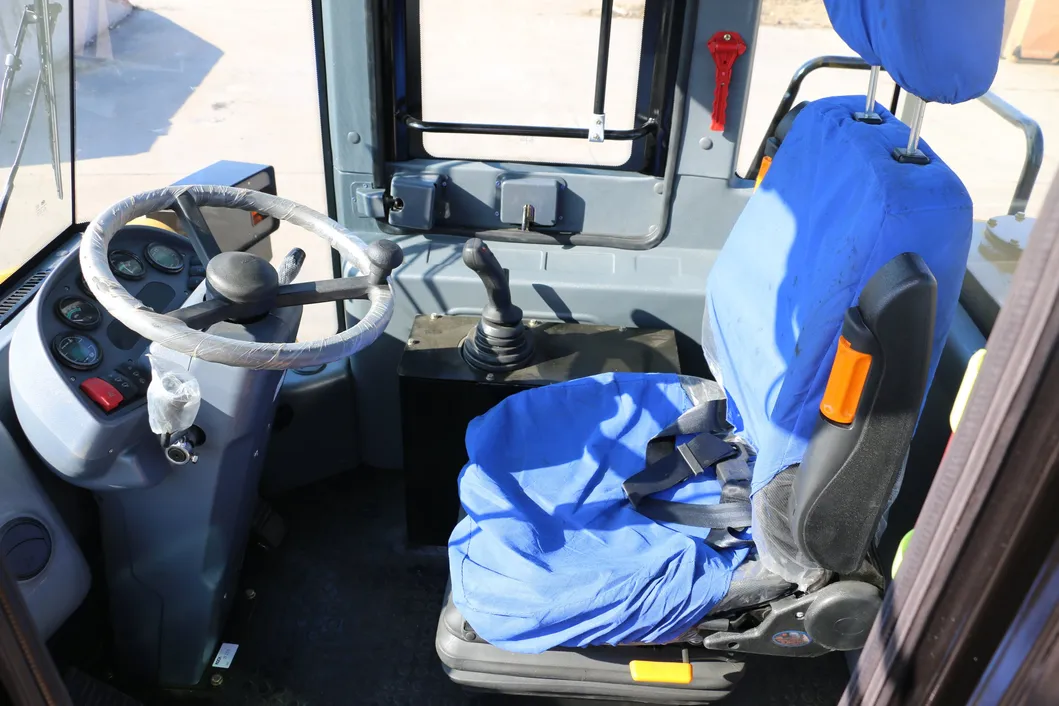

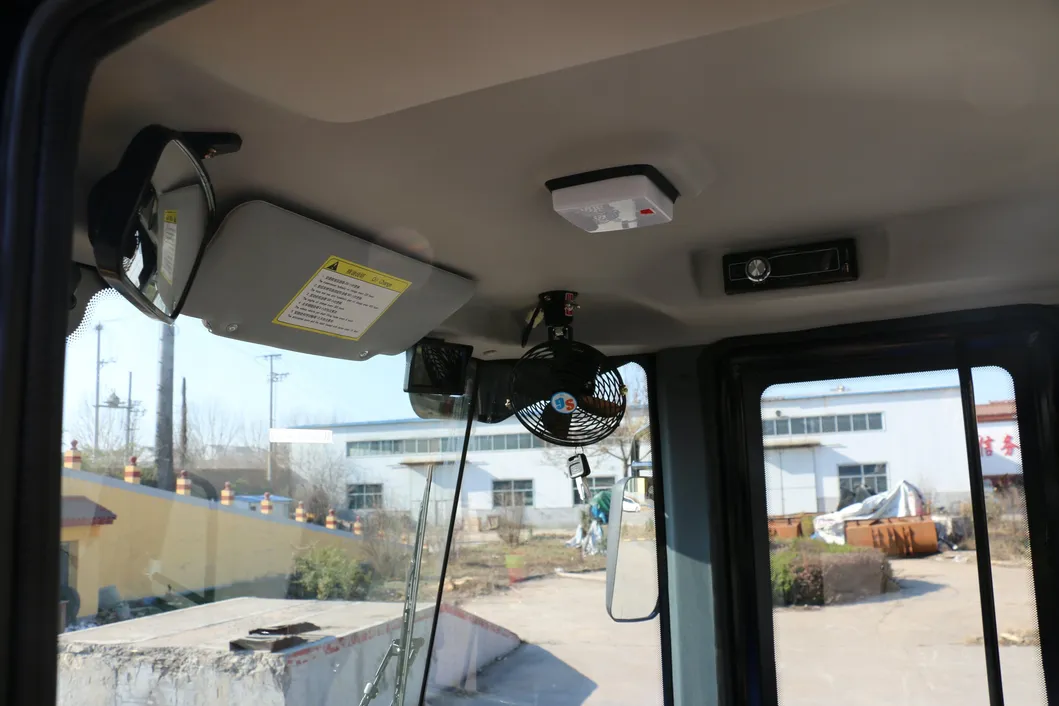

--Comfortable operation environment, new design cabin, Grammer seat, air-conditioner at option,

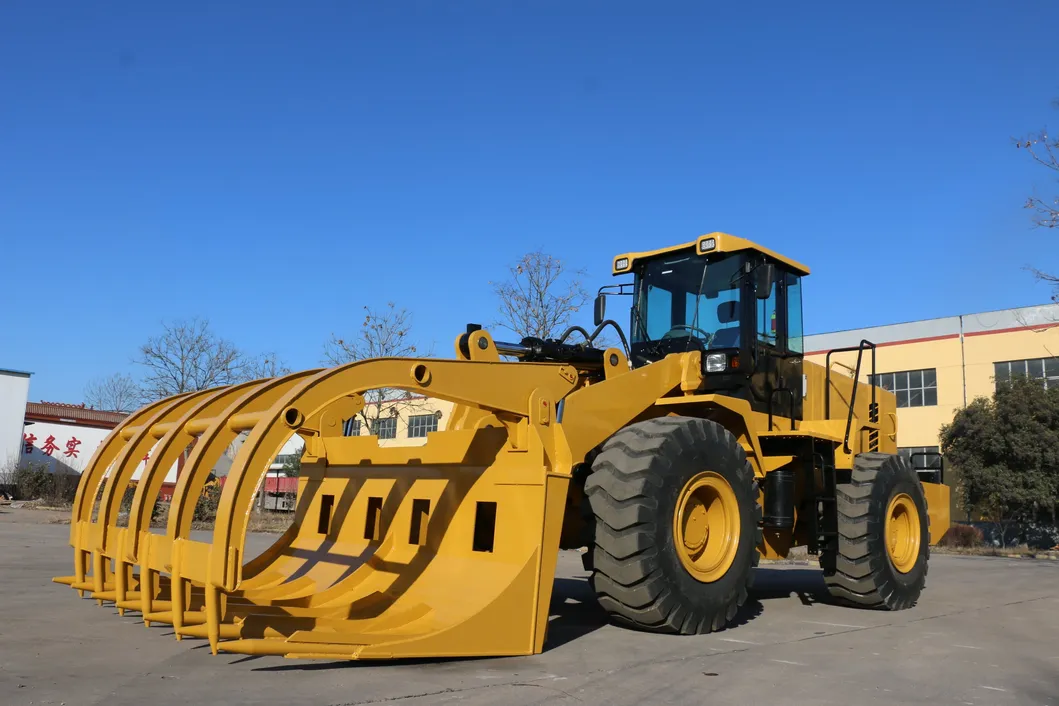

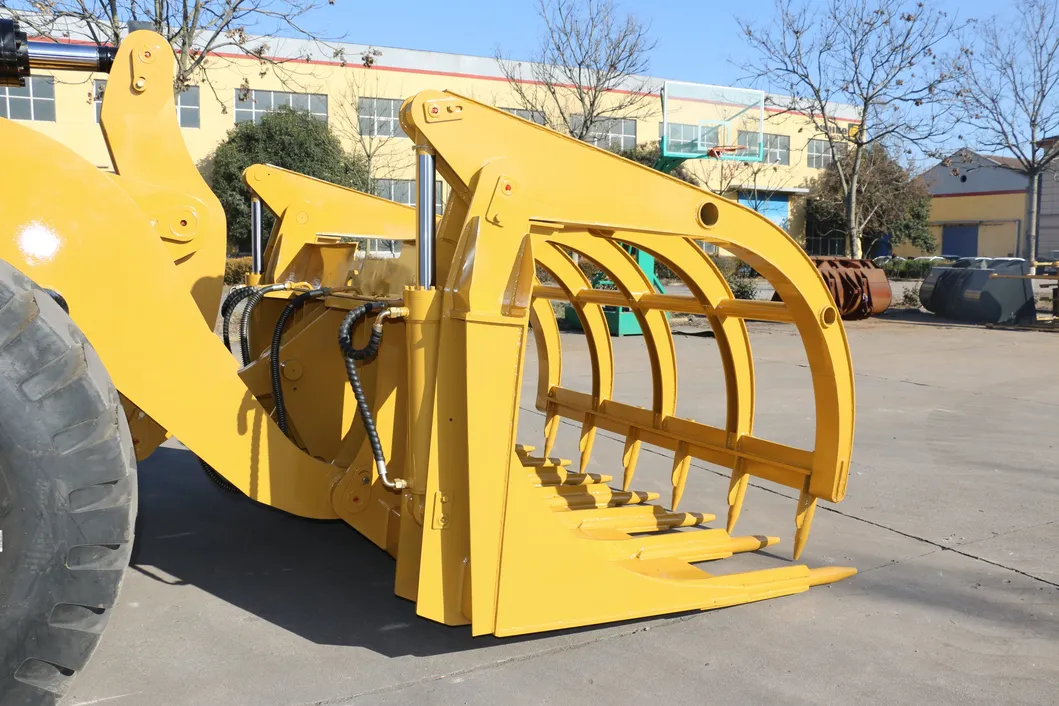

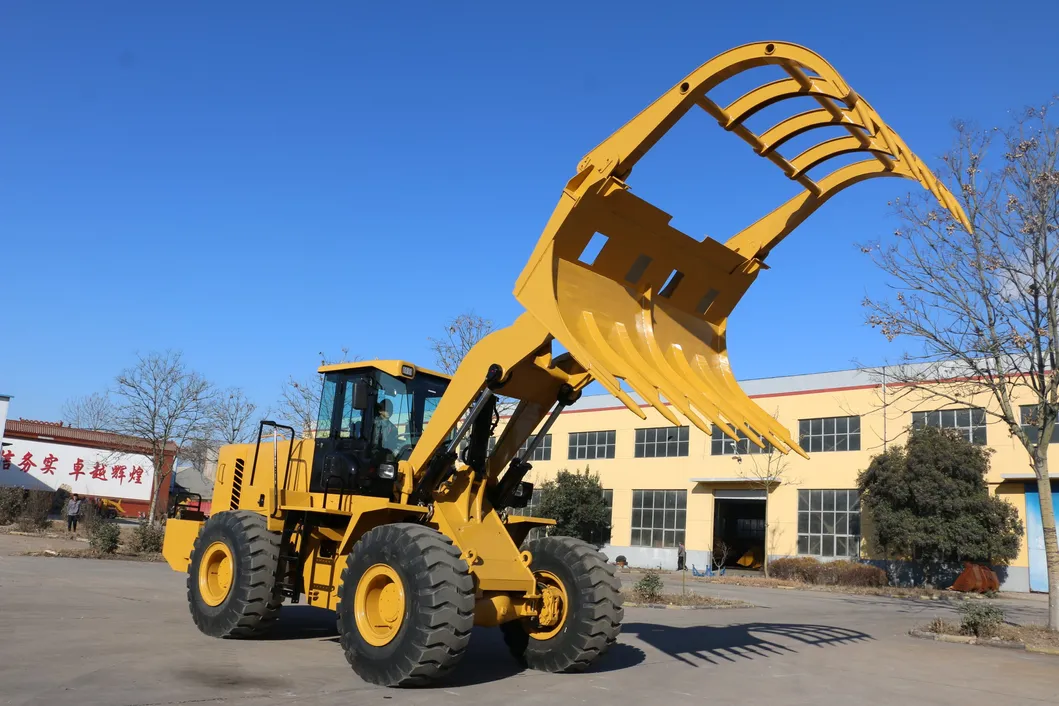

--Various working devices of attachment are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork, etc to meet different needs.
Details:
-- Heavy duty, much more powerful, suitable for tough working condition.
--Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and easier maintenance,
--Pilot controlled, fully hydraulic steering system, power shift transmission, easier operation,
--Bucket can be leveled automatically, optimized working device, higher productivity,
--Comfortable operation environment, new design cabin, Grammer seat, air-conditioner at option,
--Various working devices of attachment are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork, etc to meet different needs.
| Techncial Parameters | |
| Rated capacity | 3m³ |
| Rated weight | 5000Kg |
| Operating weight | 17000Kg |
| Max. breakout force | 172.3KN |
| Total time | 11s |
| Max. dump height | 3098mm |
| Dump distance | 1198mm |
| Wheel base | 3200mm |
| Tread | 2250mm |
| Transportation | 7934*3060*3483mm |
| Engine | |
| Model of engine | WEICHAI STEYR WD10G220E22 or CUMMINS 6CTA8.3-C215(TIGER1) or 6CTAA8.3-C215(TIGER2) |
| Pattern | Turbocharger, vertical, water-cooled, 4-stroke, direct injection |
| Rated power | 162KW/160KW |
| Max. torque | 860N.m |
| Torque converter and transmission system | |
| Model of torque device | HANGZHOU ADVANCE Torque Converter and Gearbox Combination/ZF 4WG200/HANGZHOU 4WG180 |
| Model of torque converter | YJSW315-6J01 |
| Pattern | 4-element,single stage |
| Transmission type | Full-power shift, countershaft type |
| Number of gear | 2 forward,1 reverse |
| Max. travel speed | 40km/h |
| Axle | XUZHOU |
| Main reducer type | Arc taper gear, model ration of first grade |
| Pattern of wheel side moderation | Single stage planetary |
| Tire | |

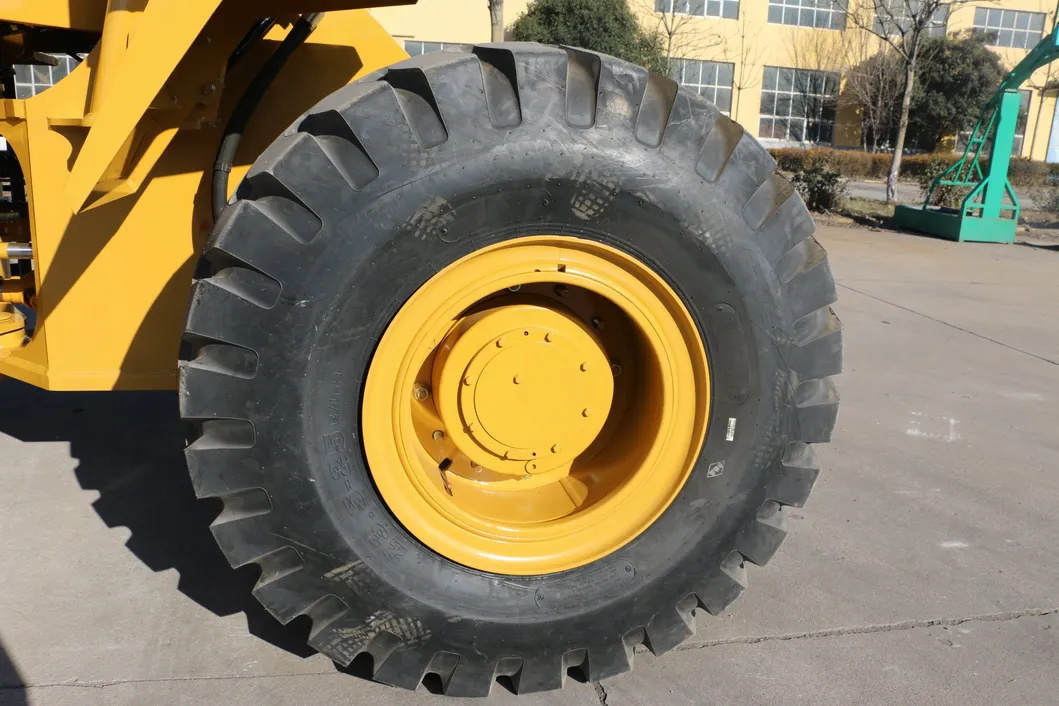

| Tire size | 23.5-25 |
| Steering system | |
| Pattern | Full hydraulic steering system |
| Min. turning radius(outside of bucket) | 7268mm |
| Max. turning angle | 35°±1 |
| Implement hydraulic system | |
| Implement pump | CBGJ2080 |
| Displacement | 250L/min |
| System working pressure | 20.3MPa |
| Distribution device model | DF32 |
| Pilot valve model | DJS |
| Brake system | |
| Brake system | Air assisted oil disc on four wheel |
| Parking brake | Air cutting control inner expand hoof |
