Product Description

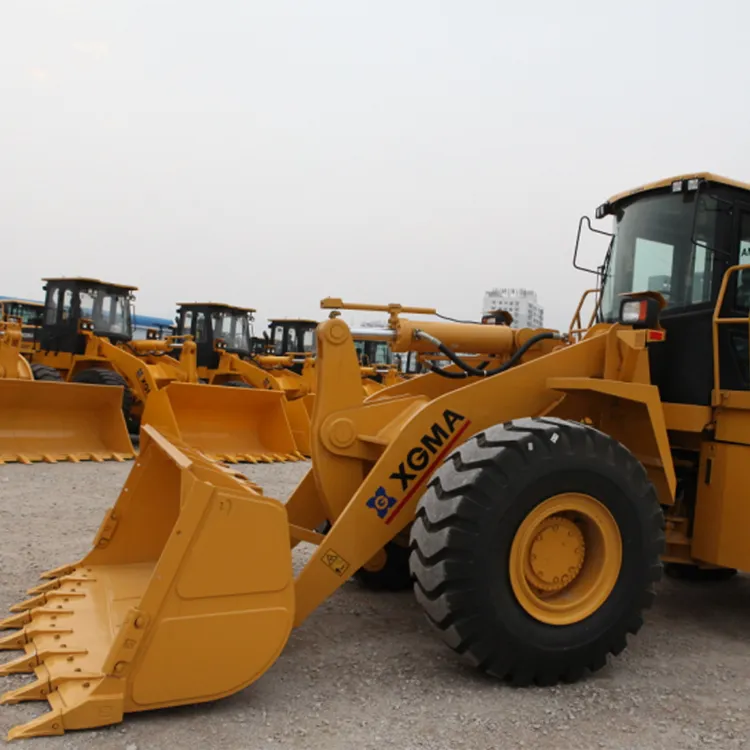

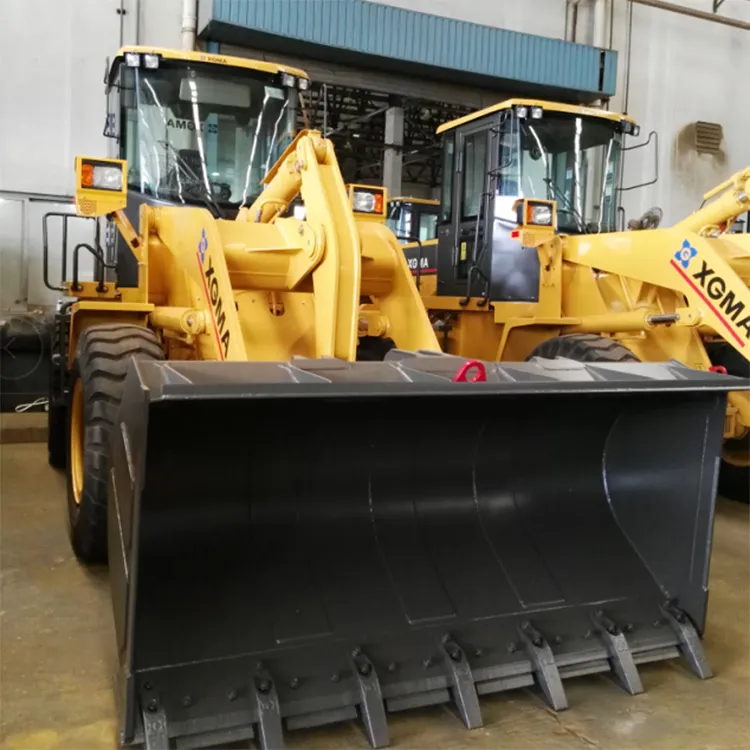

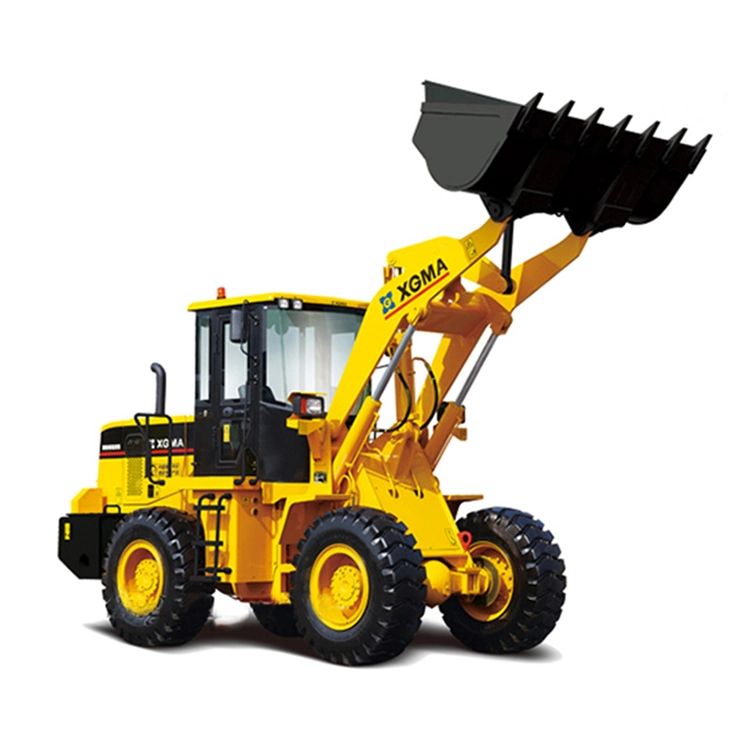

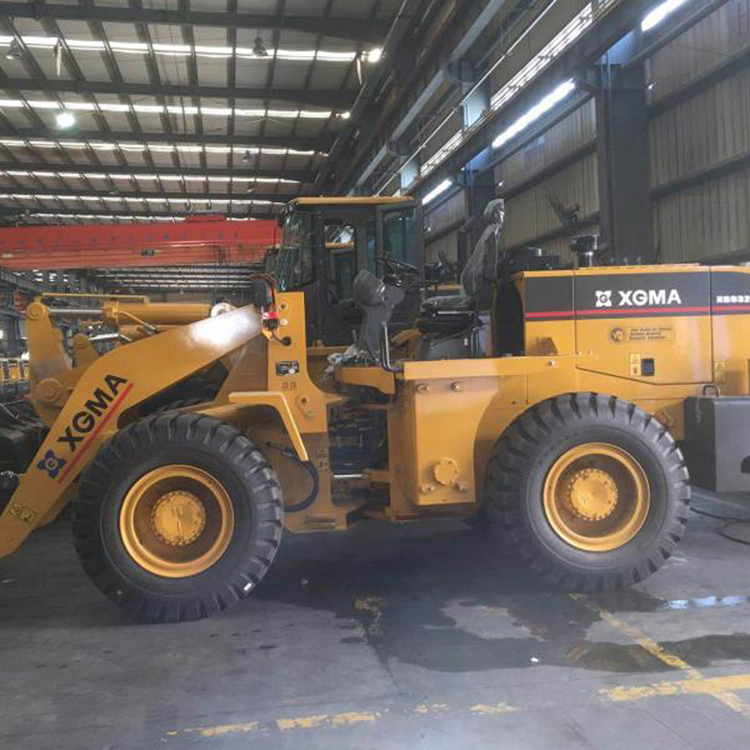

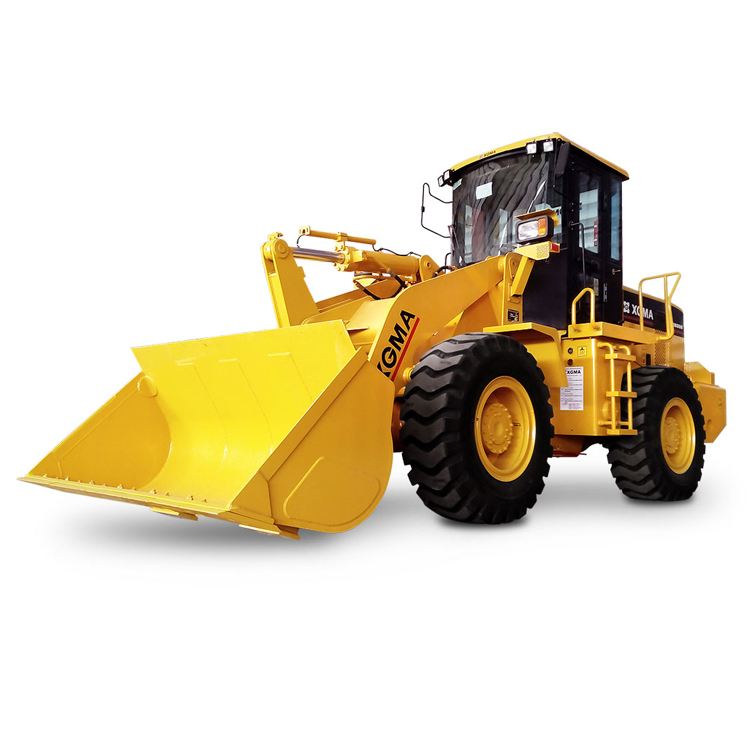

China loader XG935H 3stere 92kw aftermarket front end loaders

1.High Reliability

Upgraded & enhanced front & back frames

Reinforced counterweight

Fully optimized layout of pipes

Waterproof connectors

Improved painting process

2.High Efficiency and Energy Conservation

Patented dual-pump confluence and diffluence technology

Standard models provide the highest dumping height

Small turning radius

Green, turbocharged, intercooled engine

3.Safety

Complete safety signs

Optional ROPS/FOPS cab

Flame retardant materials and EU-certified glass are used in the cab, offering higher safety

4.Comfortable Operation

Ergonomic design for more comfortable operation

Large space in the H-series cab

The low-noise and shock-absorbing cab

Electronic oil level indicator comes as standard

Optional models with adjustable directions

5.Convenient Maintenance

Leading-out grease fitting is convenient for lubrication

The brake caliper is exposed to facilitate servicing

Central electrical control box for easier servicing

Wide-opening hood for easier servicing & maintenance of engine

Convertible fuel tank

Optimized servicing marks

6.Multifunctional

Standard bucket

Rock bucket

Enlarged bucket

Flat sand bucket

Log grapple(single clamping arm)

Log grapple(double clamping arm)

Grass grapple

Snow blade

Side dump bucket

Quick coupling bucket

Quick coupling 4-in-1 bucket

Quick coupling log grapple

Quick coupling fork

Quick Coupling: multifunctional, efficient and reliable

1.Full hydraulic quick coupling device system

2.Hydraulic quick change of various working attachments

3.Quick coupling working attachments have full coverage of a variety of workplaces

Super Long Arm:

1.boom: FEM optimized design of the super long boom and its rated mechanism,with the dumping height reaching 3.8m.

2.Cab: The new luxury cab with large space greatly increases the cab's field of vision,and the ergonomic design offers comfortable environment for the driver.

3.Counterweight: The new enhanced counterweight can increase the breakout force and make the overall performance more stable.

4.Bucket: The large and wearable bucket of 2.5 m3with three-segment auxiliary cutting eage is quite suitable for the agricultural use.

Product Description

Manufacturer		XGMA
Model		XG935H Super Long Arm
Overall length(mm)		8390
Overall height(mm)		3450
Overall width(mm)		2245
Wheel base(mm)		2750
Ground clearance(mm)		356
Tread(mm)		1800
Bucket Width (mm)		3010
Turn radius(mm)		5280
Min.Turn radius outside of bucket (mm)		6990
		4760
Max. Dumping Height(mm)		3800
Dumping Reach(mm)		2030
Digging depth(mm)		130
		46

Engine model		YC6J125Z-T20/ 6BTAA5.9-C130
Rated power (kw)		92/97
Fuel comsumption per hour(g/kw.h )		225/237
Rated speed (r/min)		2200
Max torque(N.m)		500/580
Operating Weight (Tonnes)		12
Rated Load(Tonnes)		1.85
Bucket capacity (m3)		2.5(For rice)
Lifting time/Lifting, dumping and lowering(s)		7/12
Max Breakout force(KN)		77
Max.drawing force (KN)		108
Max. turning angle(°)		±35°
Climbing ability(°)		≤ 30 °
Fuel tank(L)		135
Hydraulic tank(L)		160
Working pressure of steering hydraulic system(MPa)		13
Working pressure of load hydraulic system(MPa)		16
Travel speeds(km/h)	FORWARD 1ST	0~12
	FORWARD 2ND	0~38
	FORWARD 3RD
	FORWARD 4TH
	REVERSE 1ST	0~16
	REVERSE 2ND
Gear Box		XG
Axle		XG
Implement pump		132
Distibuting valve		YGDF-25-00-WX
Steering Hydraulic system		BBZ5-500
Steering pump		90
Tyre size		17.5-25-12PR
Air Conditioning/Anti-mist when idleing		√
Heating		√
Radio/Cassette		√
Bucket and arm raiseing (limit height) Device		√
Hydraulic Operation system		√
Seat Buckle		√
Head lamp		√
Reversing Alarm (Back vehicle)		√
ROPS/FOPS		×
