Product Description

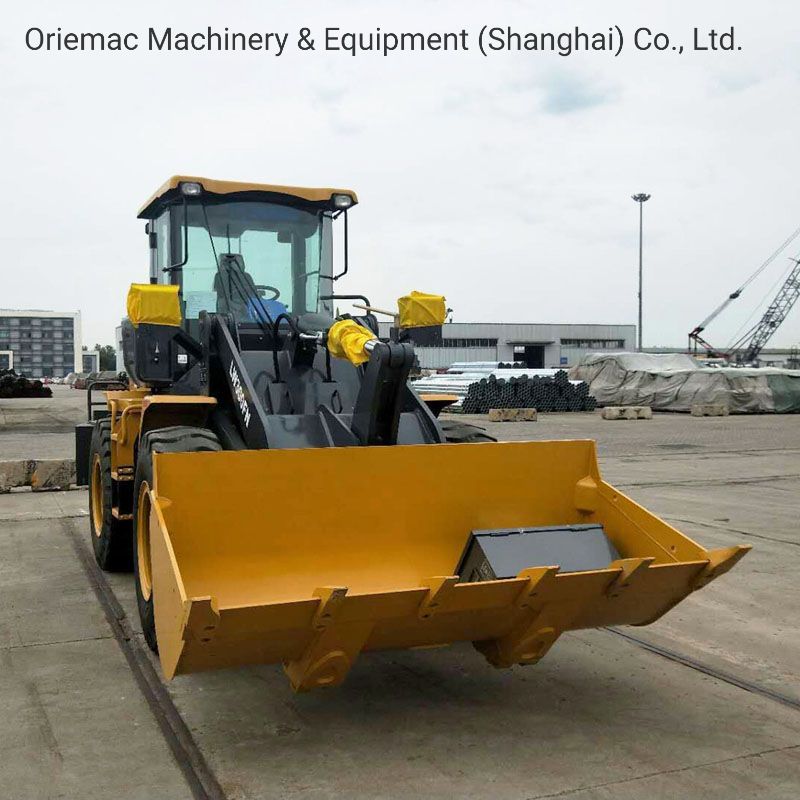

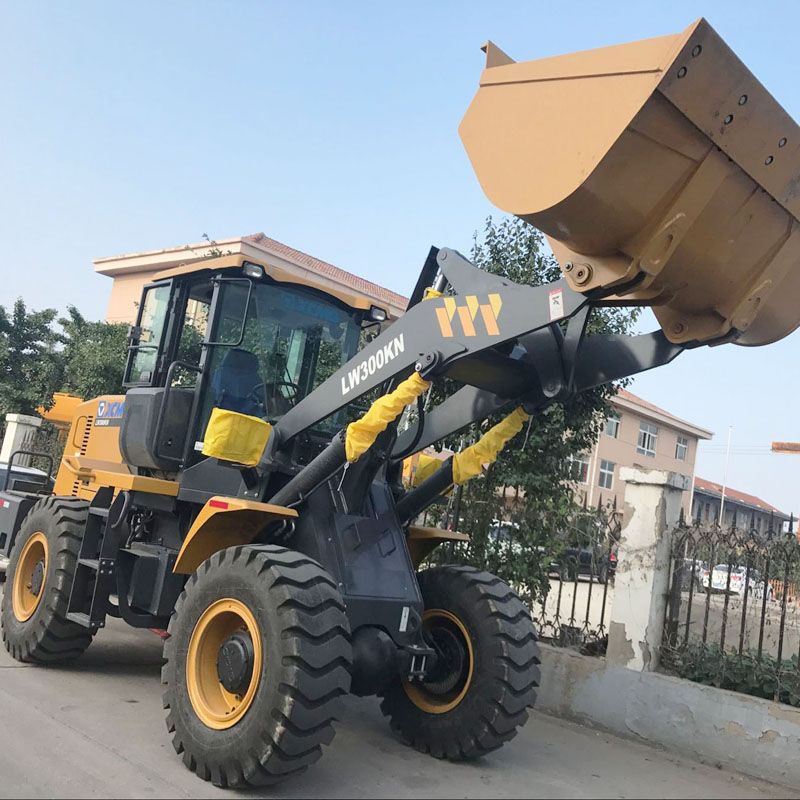

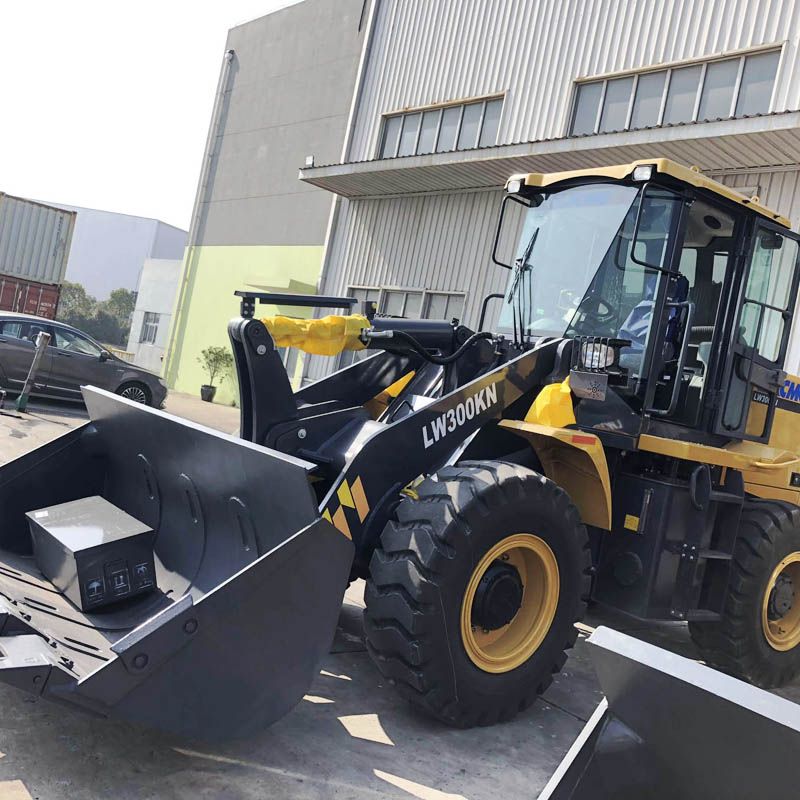

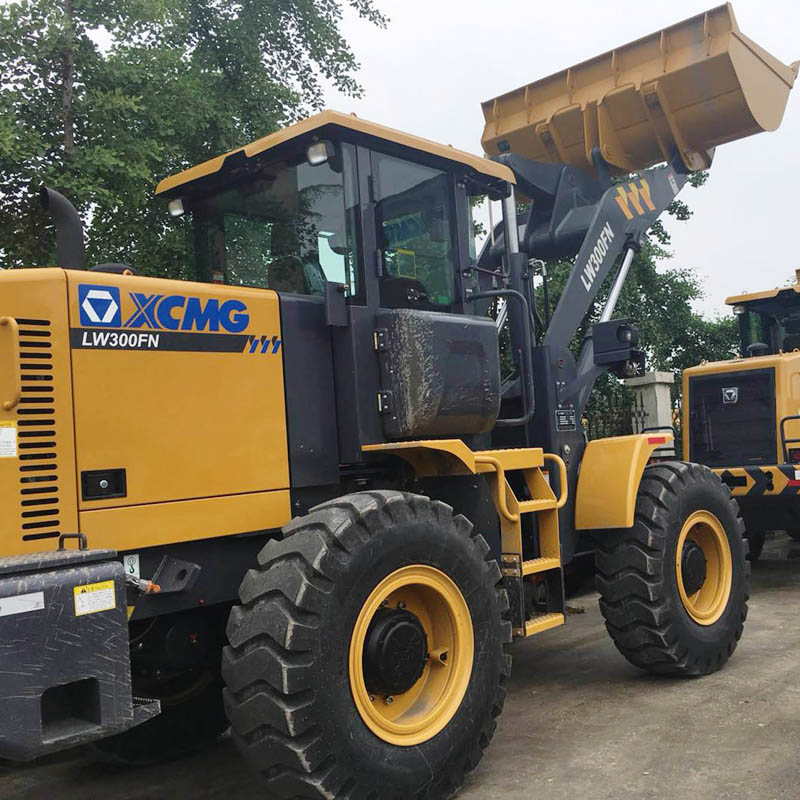

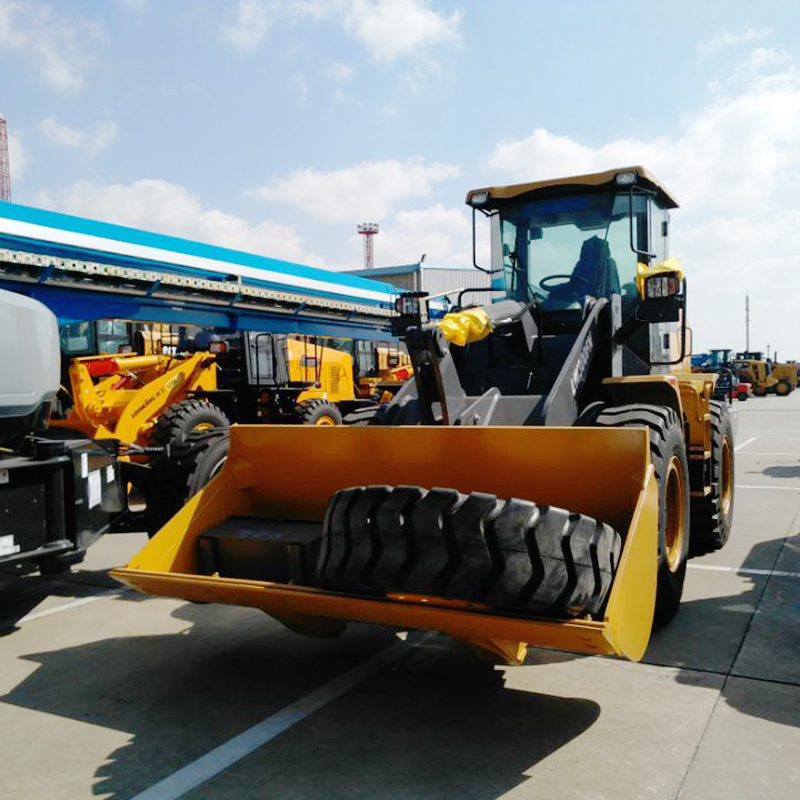

China Oriemac 3ton Wheel Loader Lw300fn Wheel Loader Price

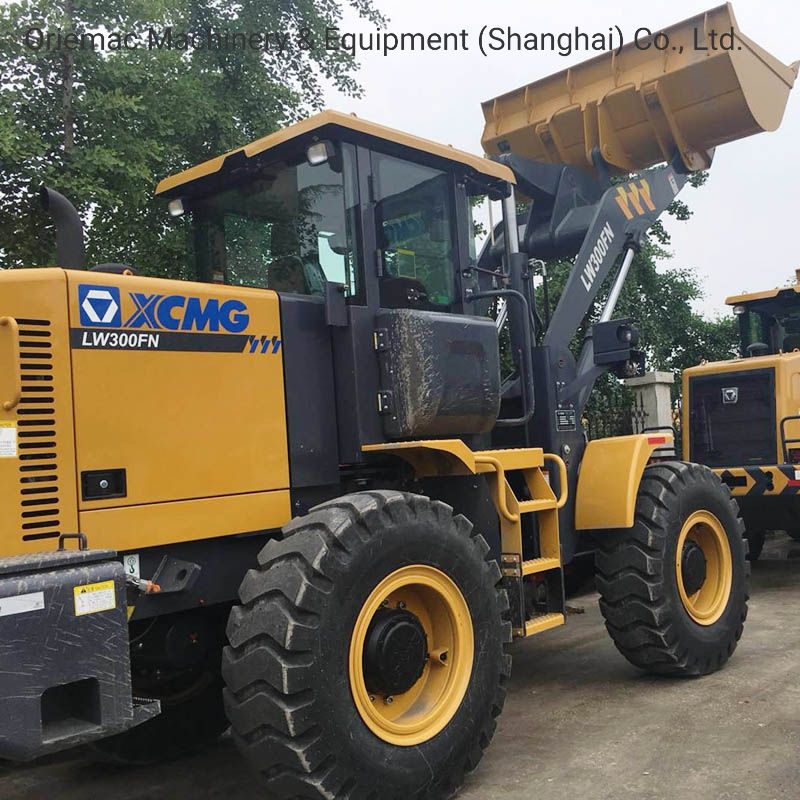

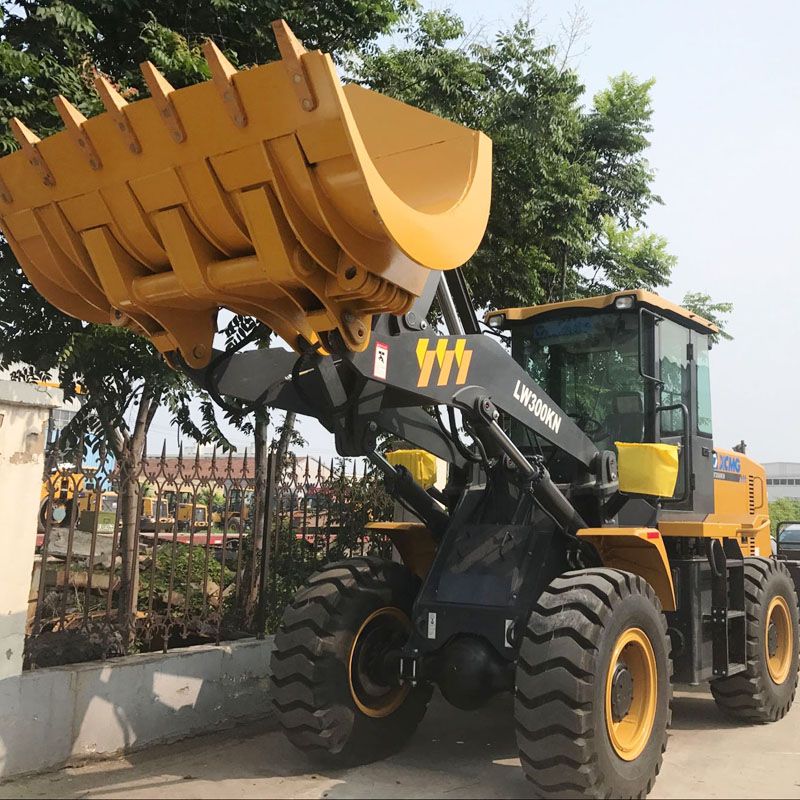

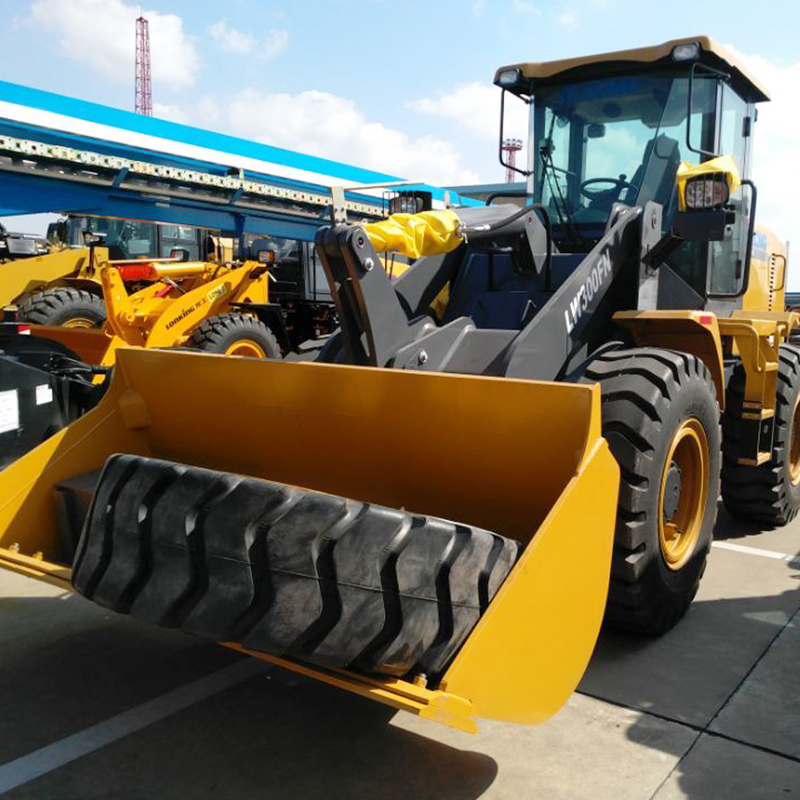

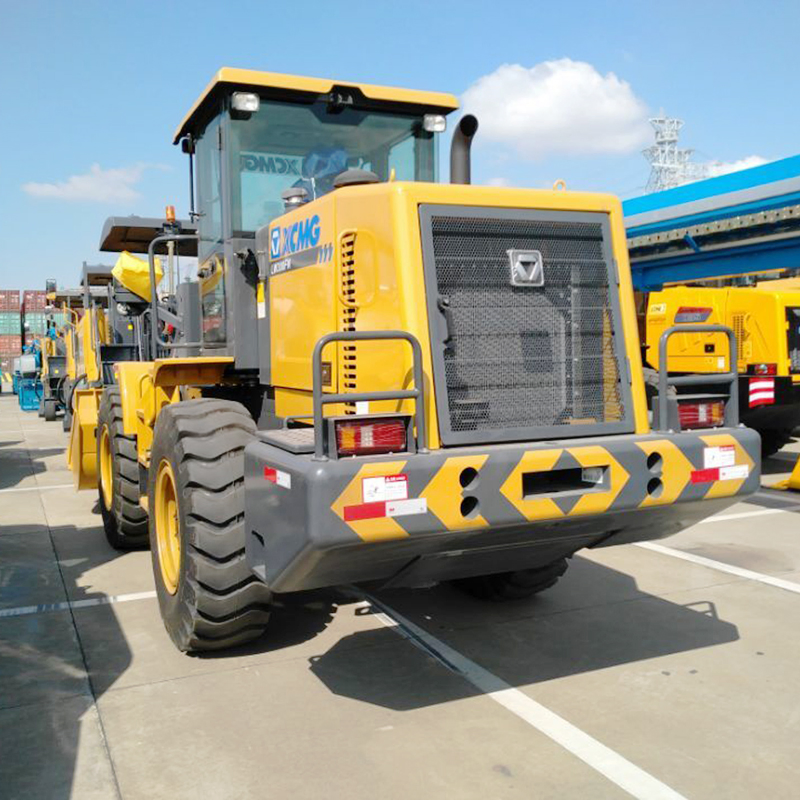

LW300FN is the popular loader, the updaged edition of ZL30E (LW321F). With the features of maturity and reliability of the old model, LW300Fis improved all round, and leads in the same kind of product. LW300F adopts metal cab and hood, and electrophoretic coating. The machine features high efficiency, strong power, long service life and comfortability, and is applicable to various conditions.

Item	Parameter	Unit
Rated load	3.0			t
Bucket capacity	1.8			m³
Dumping height	2892			mm
Dumping distance	1104			mm
Max.drawing force	≥120			kN
Max. traction	≥90			kN
Dimension (Length × Width × Height )	6905×2470×3028			mm
Operating weight	10.0			t
Boom lifting time	5.65			s
Total time of three devices	10.3			s
Wheelbase	2600			mm
Min. turning radius (bucket outer)	5925			mm
Rated power	92			km/h
Travel speed I Gear (Forward/Backward)	0~10/14			km/h
II Gear (Forward/Backward)	0~16/25			km/h
III Gear (Forward)	0~21			km/h
IV Gear (Forward)	0~35			km/h
Boom Parameter
Bucket capacity		1.5/1.8	m³
Rated load		2.6/2.6	t
Dimension (Length × Width × Height)		7127×2470×3028 7226×2470×3028	mm
Dumping height		3253/3200	mm
Dumping distance		1051/1142	mm
Operating weight		10.2/10.2	t

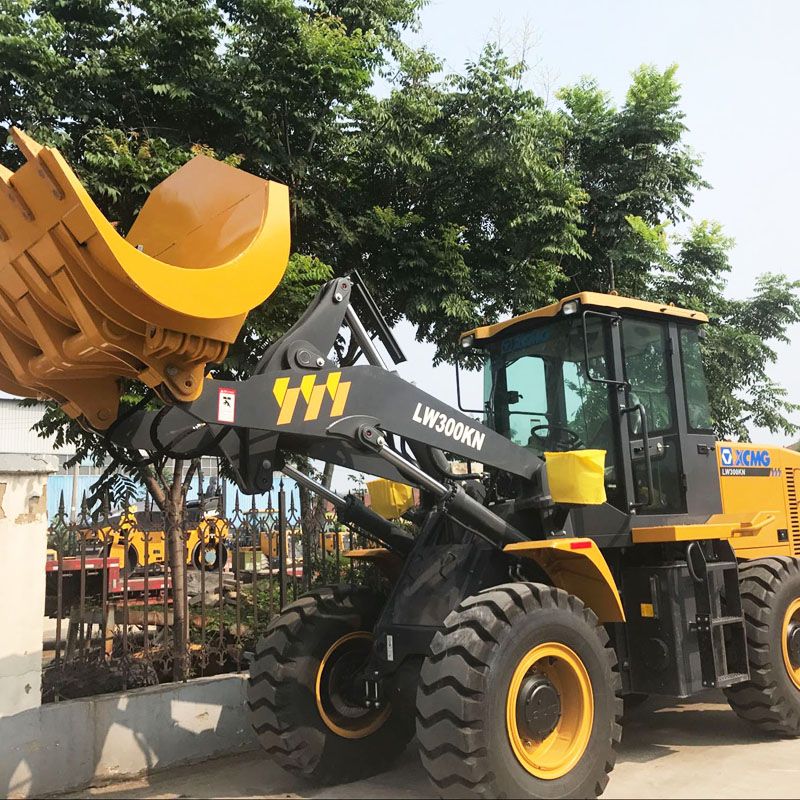

Attachment parameter-grasping grass
Dumping height		2948	mm
Dumping distance		2036	mm
Clamp body width		2200	mm
Max. opening		2800	mm
