China Top Loaders Shantui Wheel Loader 5 Ton Front End Loader L53-C3

Product Description

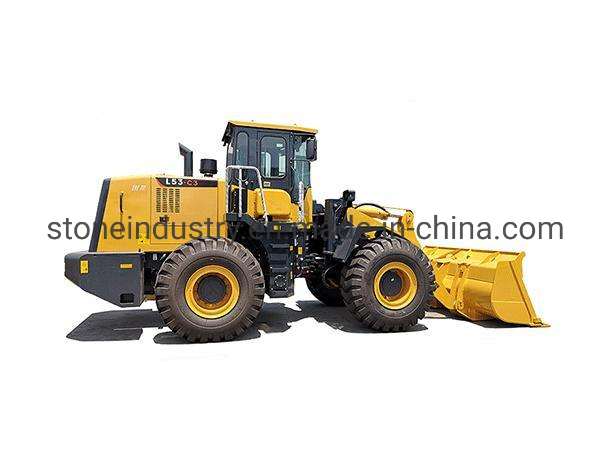

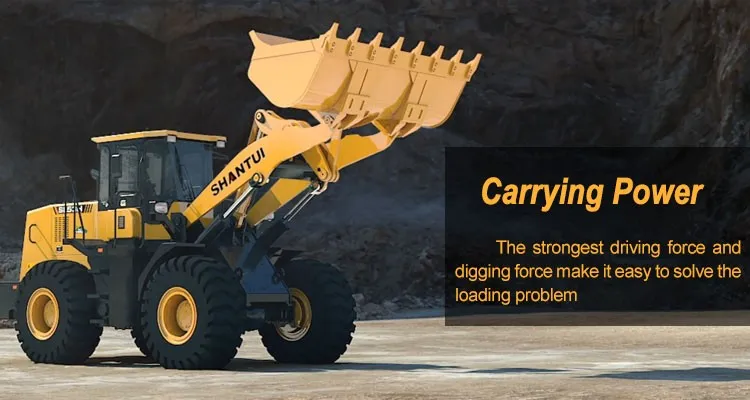

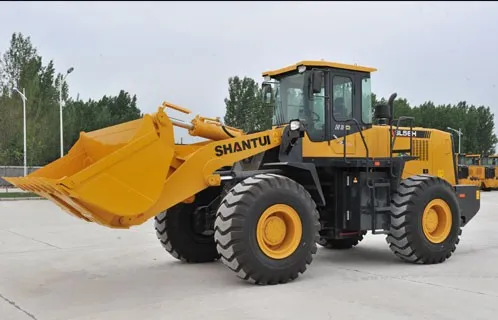

SHANTUI 5 Ton Articulated Front Wheel Loader L53-C3

L53-C3 is a long-wheelbase product adopting the latest generation of Shantui's appearance. It is equipped with Weichai electronically controlled three-stage low-speed engine. The vehicle is articulated in the middle position, flexible in steering, efficient, reliable, energy-saving, comfortable and easy to maintain. It is a Suitable for long wheelbase products in mines and sand and gravel plants.

Parameter name	L53-C3 FL (Flexible version)
Performance parameters
Operating weight (Kg)	16700
Maximum dumping height (mm)	3415
Dumping reach (mm)	1050
Maximum breakout force (kN)	≥168
Total cycle time (s)	10
Engine
Engine model	WP10
Rated power/rated speed (kW/rpm)	162/2000
Overall dimensions
Overall dimensions of machine (mm)	797530303500
Driving performance
Forward speed (km/h)	F1:0-13,F2:0-42
Reversing speed (km/h)	R:0-15
Chassis System
Wheelbase (mm)	2920
Tank capacity
Fuel tank (L)	193
Working device
Rated bucket capacity (m³)	3
Rated loading capacity (t)	5

STONE(Shanghai) Engineering Machinery Co.,Ltd, founded in 2004, is headquartered in Shanghai, China which is the most prosperous city for trade and economic development.

CNPINE and STONE are the two major brands of the company at present. Now the company has two main business segments.
One is construction machinery equipment sales and trading, including excavators, bulldozers, motor graders, road rollers, trucks etc. The company has reached a strategic partnership with SHANTUI, WEICHAI, and SINOTRUCK.
Another business line is construction machinery parts R&D, production and trade especially in undercarriage parts and ground engaging tools. They are widely used in mining, road construction, water conservancy engineering and other fields.
