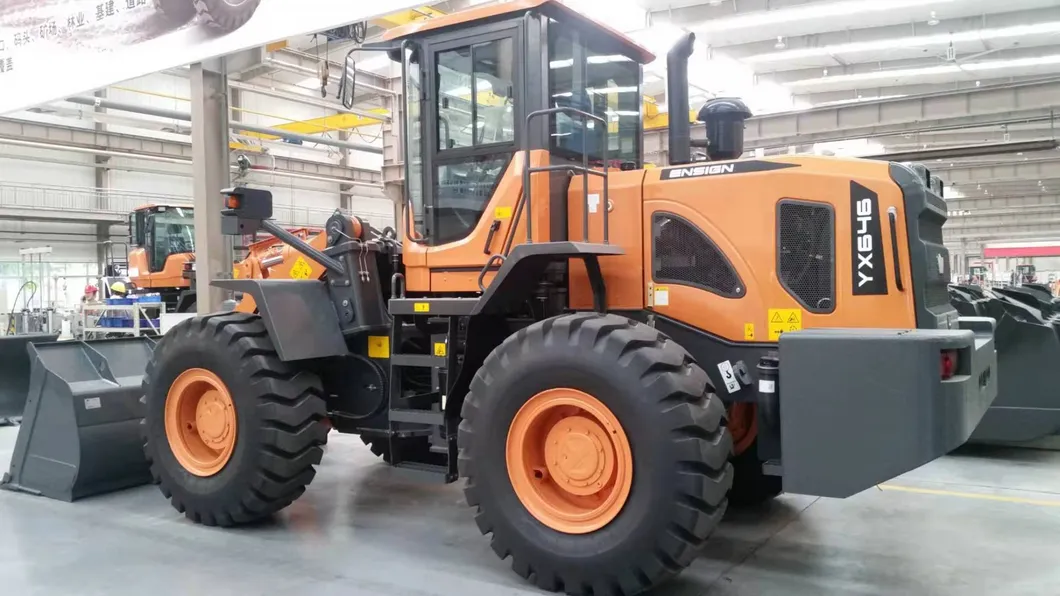

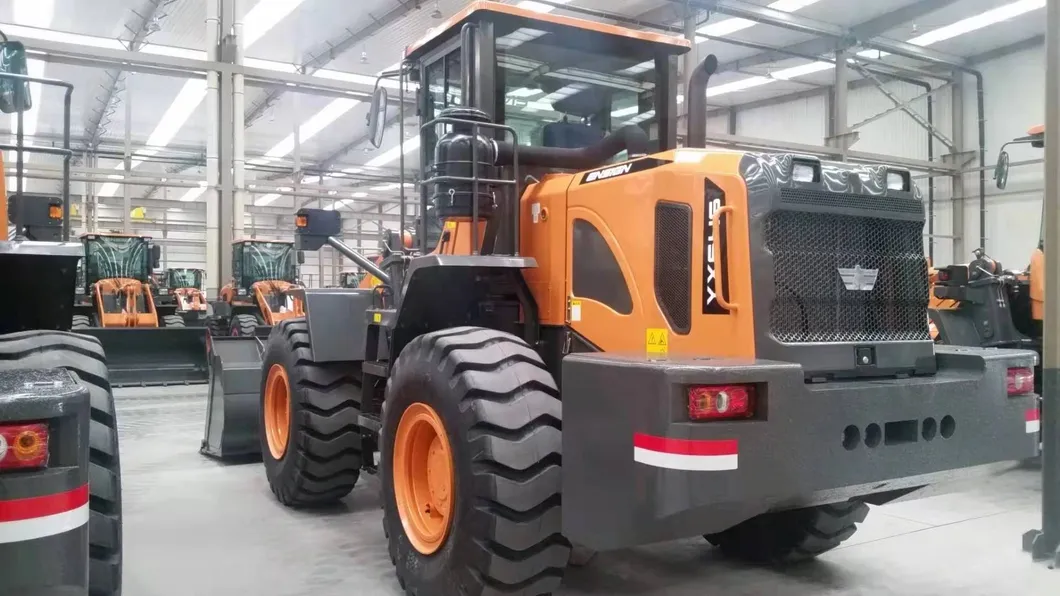

Ensign Yx646 Wheel Loader 4ton Lift

Product Description

ENSIGN YX646 Wheel Loader 4ton Lift Capacity 2.3m3 Bucket

Technical Parameters


Bucket capacity	m3	2.3	Total cycle time(lift, dump& lower)	s	<9
Rated load	kg	4000	Dump height/Dump angle	mm/ °	3010/45
Overall operating weight	kg	13490	Dump distance/Dump angle	mm/ °	1170/45
Max. traction force	kN	>130	Min. ground clearance	mm	428.5
Max. breakout force	kN	>123	Wheel base	mm	2880
Grade ability	°	30	Wheel tread	mm	2054
Min. turning radius(outer side of the bucket)	mm	6158	Departure angle	°	30
Min. turning radius(outer side of the tire)	mm	5569	Steering angle(left & right)	°	38

Overall dimension (standard configuration) mm 7244*2776*3353

Core components

Engine		Drive System
Model	Cummins 6BT5.9-C180 or Weichai WP6G175E201 or Shangchai SC8D170.1G2B1	Torque converter type	single stage, 2 phase, 4 elements
Type	vertical, in-line, direct injection, water cooling, four-stroke, turbo charged	Transmission type	planetary power shift
Rated power	132kW(Cummins) 129KW (Weichai) 125KW (Shangchai)	Gears	HangZhou Advance WG180 electro transmission(4F/3R) HangZhou Advance ZL50 planteary transmisison(2F/1R)
		Main drive type	spiral bevel gear, first reduction
		Hub reduction type	planetary
		Drive axle	dry type axle
Steering System		Braking System
Type	steady distributing hydraulic	Service brake	Air-over-oil caliper disc
Oil pump type	gear pump	Parking brake (emergency brake)	manual pneumatic caliper disc
Working Device Hydraulic System		Tire
Control type	joystick	Specification	20.5-25
Oil pump type	gear pump	Tread pattern	general pattern

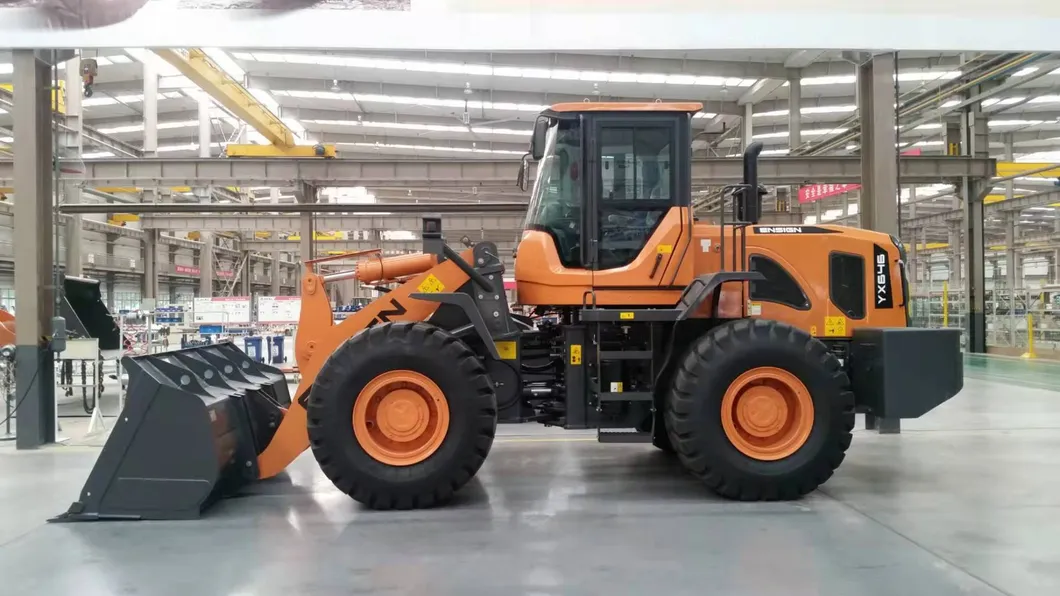

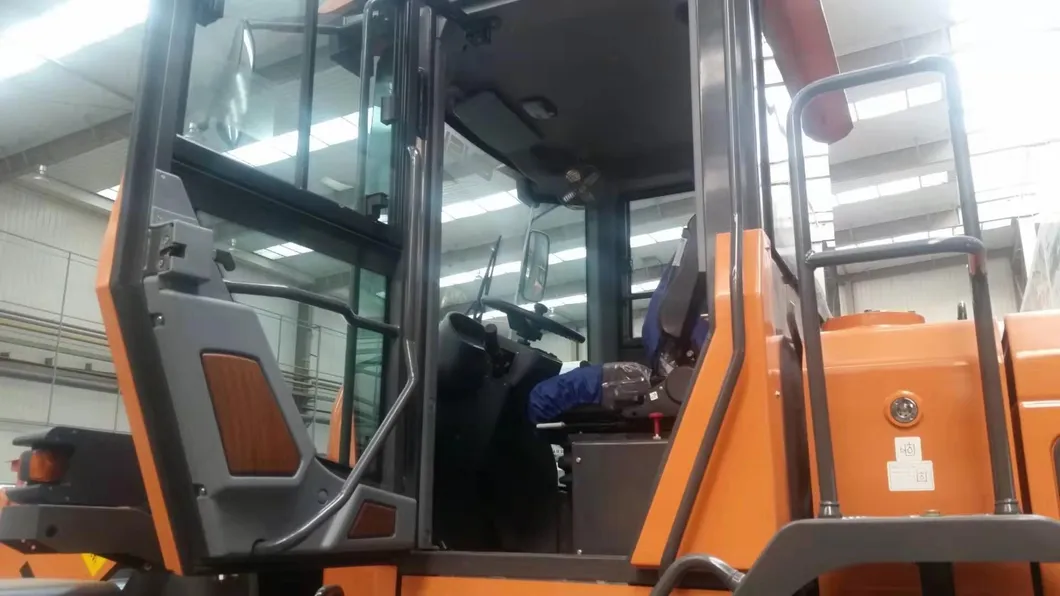

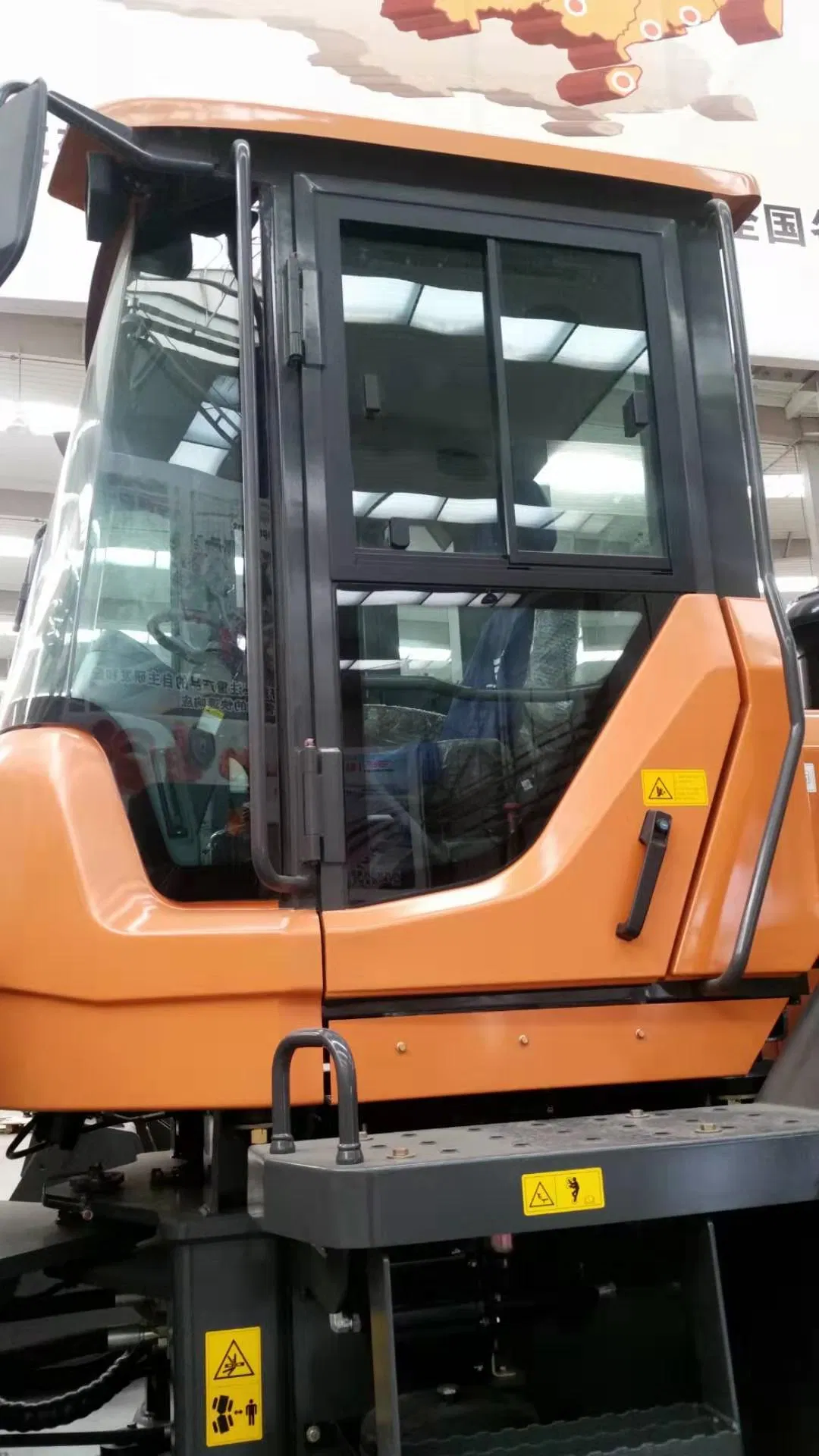

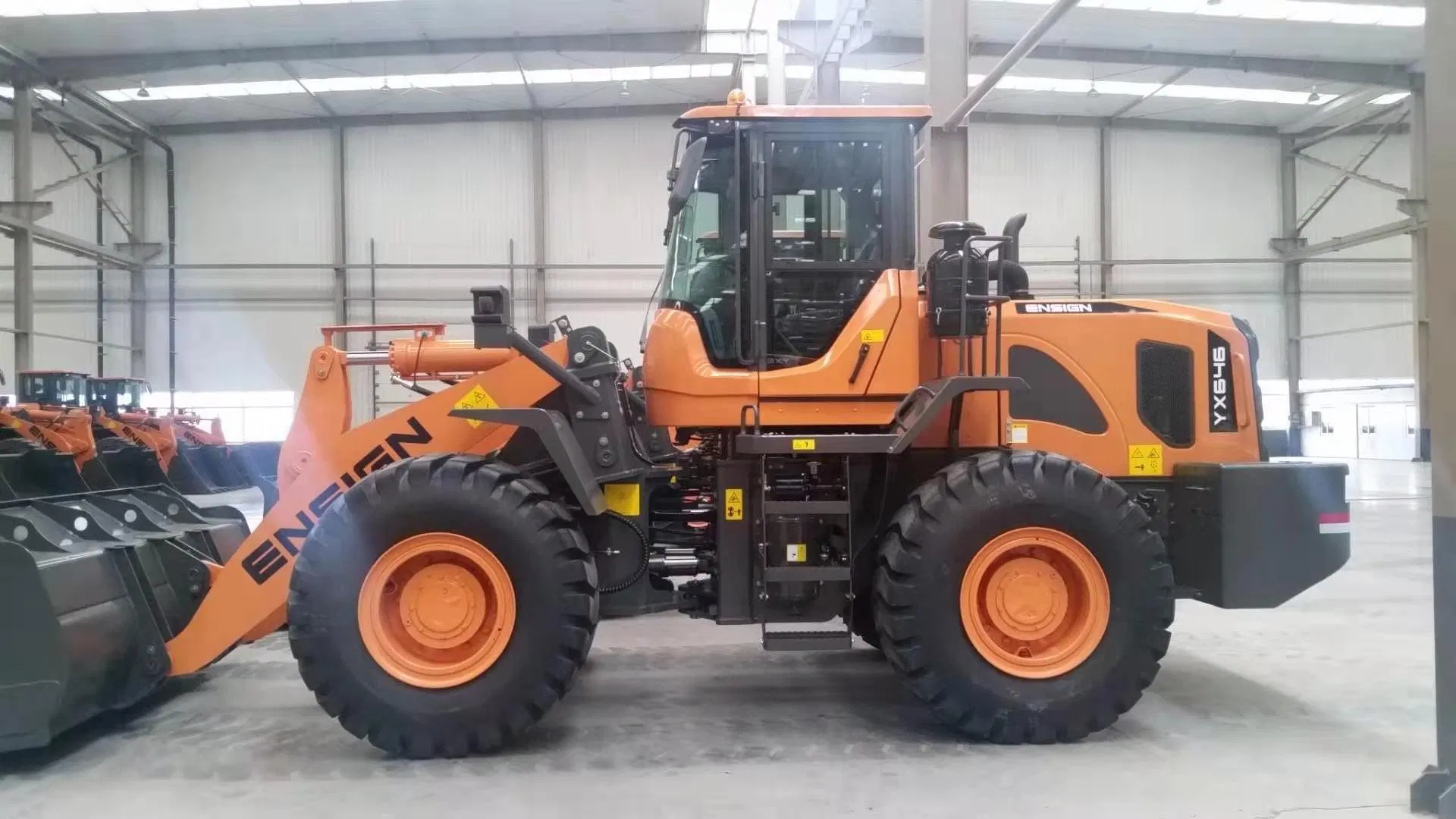

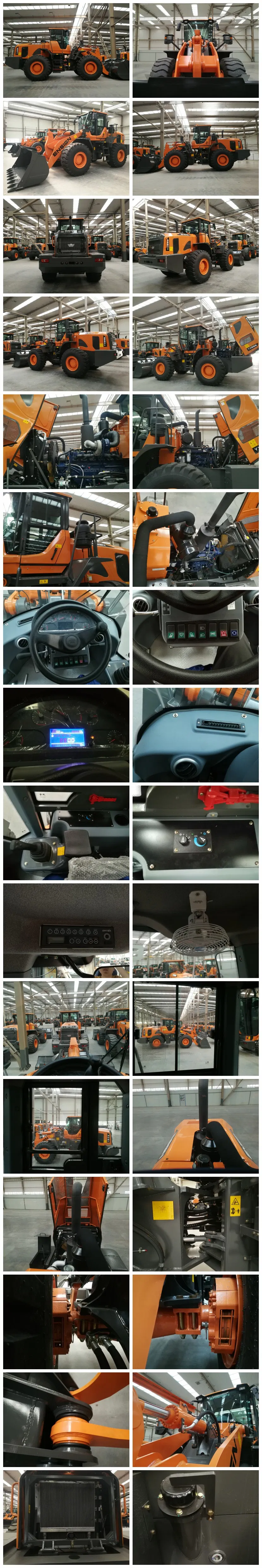

Detailed photos:

Operating Weight 13-14 Ton Wheel Loader Yx646

Main features:

Reliability & Durability

Heavy duty front & rear frames, long wheel base and matured transmission system increase the overall reliability. Upgraded radiation system enables the loader to adapt to worse working conditions.

High Efficiency & Energy Conservation

Power match is optimized and upgraded, improving the speed, breakout force and traction force, and increasing the working efficiency.

Driving Comfort

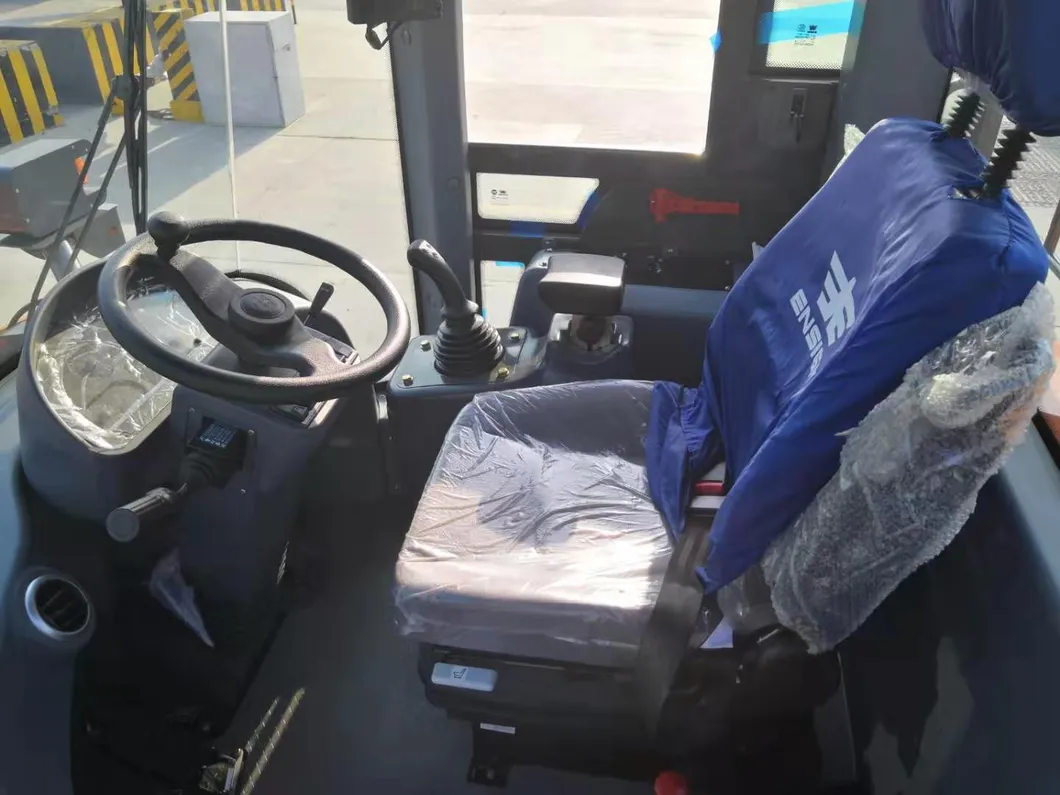

Stepping type high-end instrument panel increases human-machine interaction. Joystic operation is easy and flexible. Spacious cab also has good sound & shock insulation.

Convenient Maintenance
Back-flipped engine hood, tidy pipelines, and humanized design for maintenance contribute to convenience of daily maintenance.

Optional devices:
Quick Hitch
Third function valve
  Longer arm
  Rops/Fops
  Tyre Chain
Rock Bucket
Pallet/Grass Fork
Grapple Forks/Wooden Forks
Grapple Bucket
Snow Bucket
New Wooden Forks
Hydraulic Snow Blade
Sweeper
Snow Blower
4 In 1 Bucket

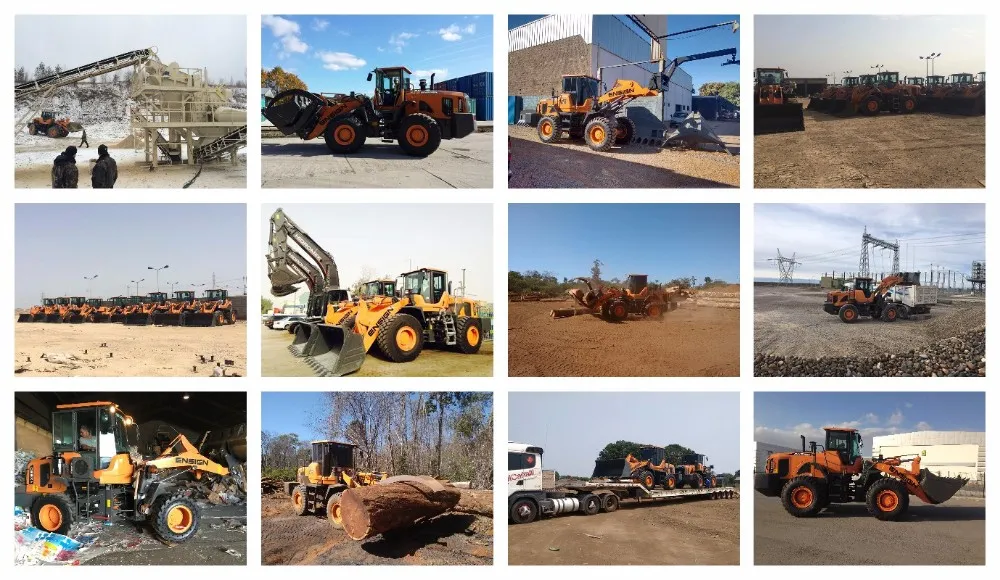

ESNIGN wheel loader in the world:
