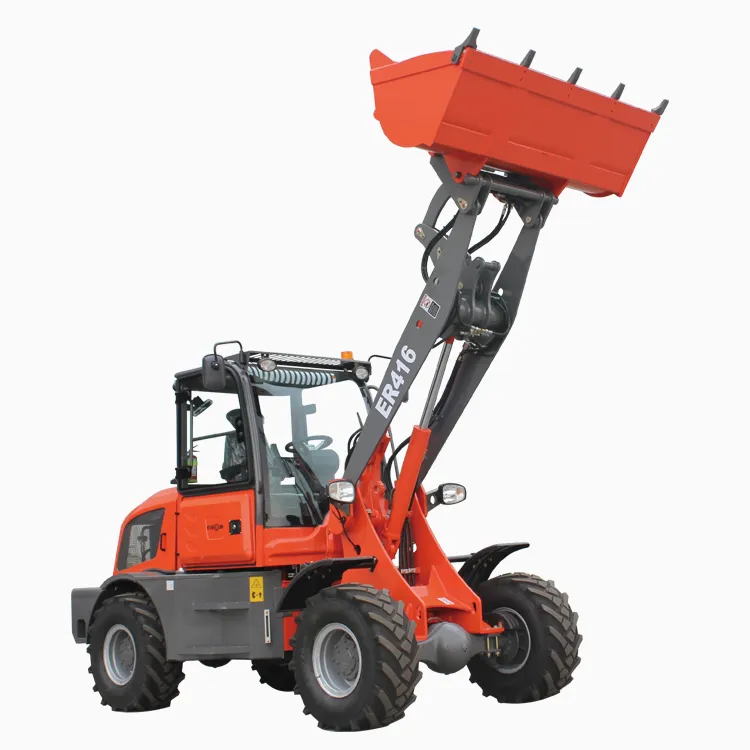

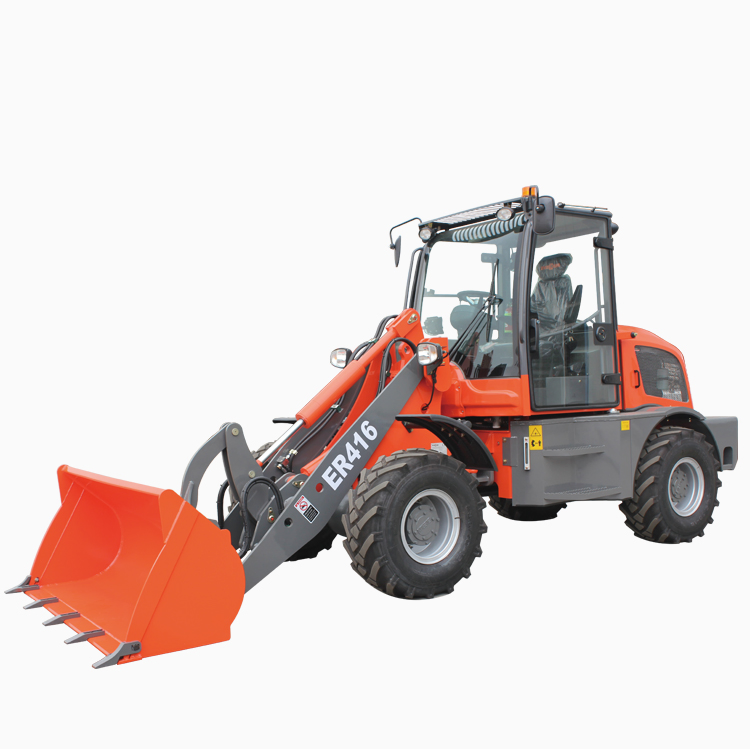

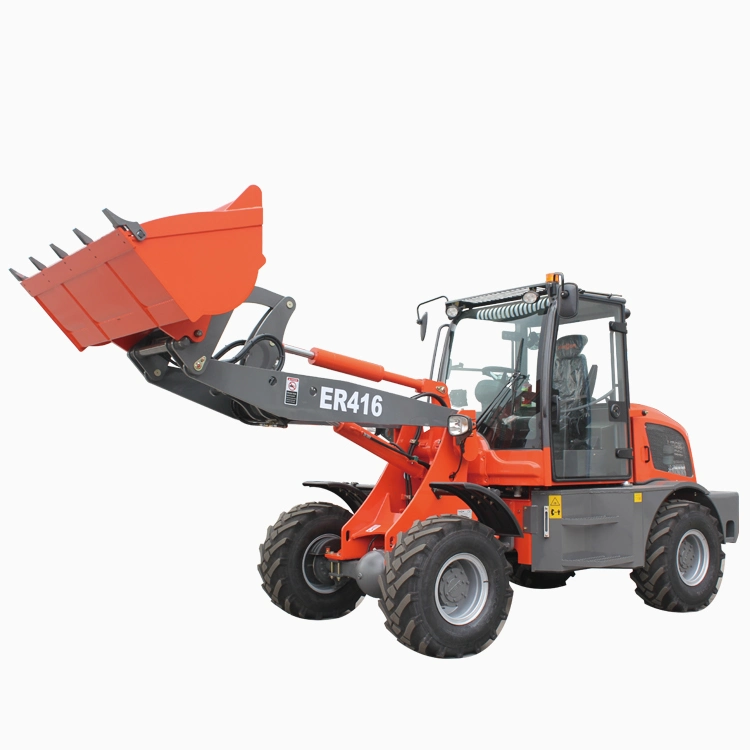

Everun 1.6t Wheel Loader Er416 with Floating Articulation
*Everun Products Categories * Pictures *Technical Specifications Performancerated loading (kg)1600overall weight (kg)4400rated bucket capacity (CBM)0.73maximum tractive force (kN)33maximum breakout force (kN)28maximum grade ability(°)20maximum dump height(mm)2453maximum dump reach(mm)891ove......
Send Inquiry
Product Description
*Everun Products Categories
* Pictures
*Technical Specifications
| Performance | rated loading (kg) | 1600 |
| overall weight (kg) | 4400 | |
| rated bucket capacity (CBM) | 0.73 | |
| maximum tractive force (kN) | 33 | |
| maximum breakout force (kN) | 28 | |
| maximum grade ability(°) | 20 | |
| maximum dump height(mm) | 2453 | |
| maximum dump reach(mm) | 891 | |
| overall dimension (L×W×H) (mm) | 5267*1850*2535 | |
| minimum turning radius(outside of wheels)(mm) | 4451 | |
| Oscillation angle | 8° | |
| Engine | model | XINCHIA 498BT1 |
| type | lnline water cooled, four stroke | |
| No. of cylinder-bore/stroke (mm) | 4-98×105 | |
| displacement (L) | 3.168 | |
| rated power(kW) | 36.8 | |
| idel speed (r/min) | 850-900 | |
| rated speed (r/min) | 2400 | |
| maximum torque N.m @speed r/min | 210 @1500- 1680 | |
| min fuel-consume ratio | ≤238g/kw.h | |
| Transmission system | torque converter | 265 |
| gearbox mode | Power shift normally engaged straight gear | |
| gear shift | Electric, 2forward shift 2 reverse shift | |
| maximum speed | 19km/h | |
| Drive axles | main reducing mode | Bevel gear grade l reduction |
| wheel base (mm) | 2475 | |
| wheel tread(mm) | 1510 | |
| ground clearance(mm) | 443 | |
| Hydraulic system | system working pressure (Mpa) | 18 |
| boom lifting time (s) | 4.5 | |
| total time (s) | 8.7 | |
| fuel tank capacity (L) | 90 | |
| function of leveling automatically | yes | |
| Brake system | service brake | Air-assist hydraulic, disc brake |
| parking brake | Manual disc brake | |
| Tyre | type specification | 23.5/70-15 |
| front tyre pressure (kPa) | 320 | |
| rear tyre pressure (kPa) | 320 |
And we have our own attachments design department, we can design and make attachments according to your requirements.

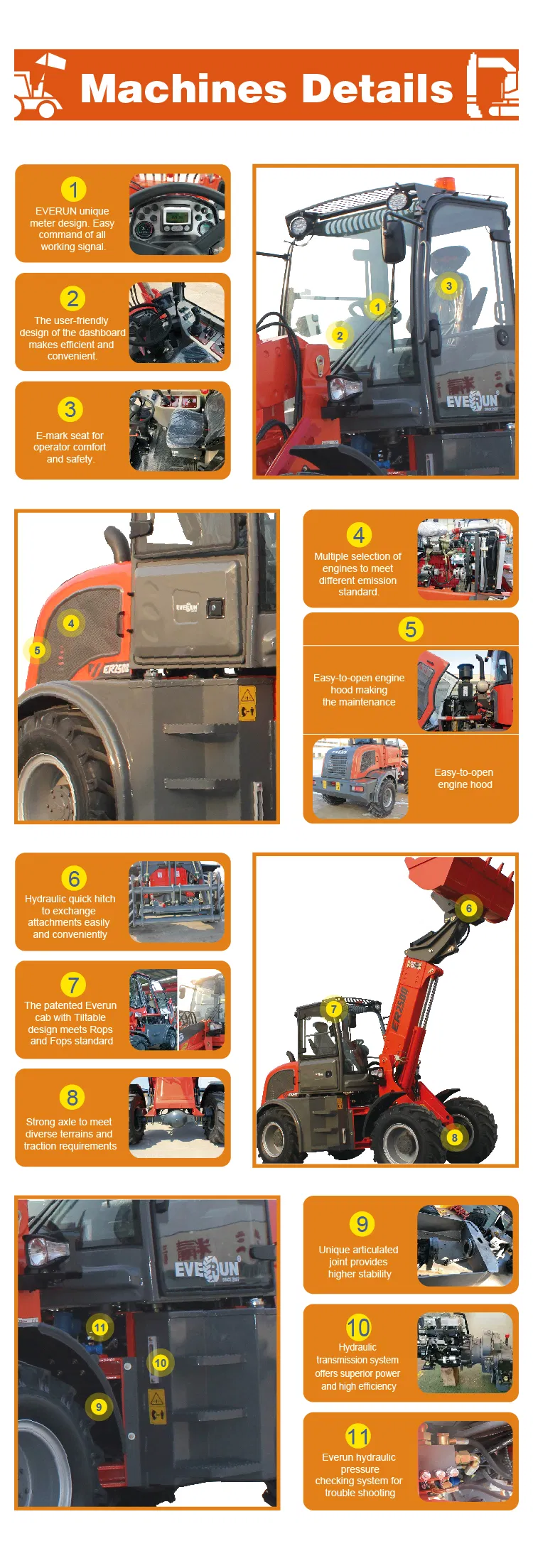

*Machines Details
*Everun Wheel Loader Attachments
Everun Oversea Branch Company
In order to offer customers a better after-sale service, we establish Everun Europe in Germany and Everun WA in Australia ,which can supply fast spare parts and technical training.
*Everun Advantages
As a leading manufacturer of small wheel loaders and excavators, Everun has made great progress on their sales number in recent years. Our strengths can be concluded in the following 4 aspects:
#1 Price
We sell every machine at a fair price.
As our production increases, we are getting much support from the purchase source of raw material. We leave the maximum profit to customers!
#2 Quality
The quality control is not an empty word in Everun.
Our products are tested and granted CE certificate by TÜV Rheinland.
The cabin of our loader meets the European standard for Rops and Fops protection.
We focus on details. By adopting quality imported and top quality domestic spare parts, we stand out of the competition.
As a manufacture, we are at the forefront of technological development. The professional Everun R&D team absorbs the latest technology for the product development and make improvement on the suggestions from our customer's. Our production lines meet the American and European standard,
# 3 Service
Our trained Professional service team offers high quality in-time service in a very friendly way. For a good customer experience, the content of pre -sales includes the recommendation on the right products basis on physical condition. All you have to do is to inform us your needs.
For After-sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 3 working days.
We have professional technician to support trouble clearing and maintenance.
For European customer, we built Everun Europe in Germany to supply the in-time technical support, and machine trial run and spare parts delivery.
#4 Packing & Transport
Everun Transport packaging team helps our customer to transport their machine in safe and secure way without any damage.
Close to Qingdao port, we have the natural advantage to deliver your cargo safe, on time with competitive freight cost.
*Everun Certification
1. Everun products are CE approved from TÜV,CE number: AM 50257603 0001
2. Everun loader cabin has ROPS&FOPS certification
3. Everun has patent of whole appearance
*Everun Machines Working Picture
Everun has dealers in Europe, Australia, North America, South America, South Africa, and Everun machines can be seen working in more than 50 countries.
*Everun Achieve Good Praise
*Everun Exhibitions
*FAQ
Q: What Payment terms would you accept?
A: Normally we accept L/C, or T/T 30% down payment, balance to be paid against BL copy and loading pictures.
Q: What is your delivery time?
A: For standard machine, the delivery time is Within 25-35 days after receiving the down payment
Q: What services would you offer if I buy from you?
A: Our trained Professional service team offers high quality in-time service in a very friendly way. For a good customer experience, the content of pre -sales includes the recommendation on the right products basis on physical condition. All you have to do is to inform us your needs.
For After-sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 5 working days.
We have professional technician to support trouble clearing and maintenance.
For European customer, we built Everun Europe in Germany to supply the in-time technical support, and machine trial run and spare parts delivery.
Any questions, please feel free to contact me.
