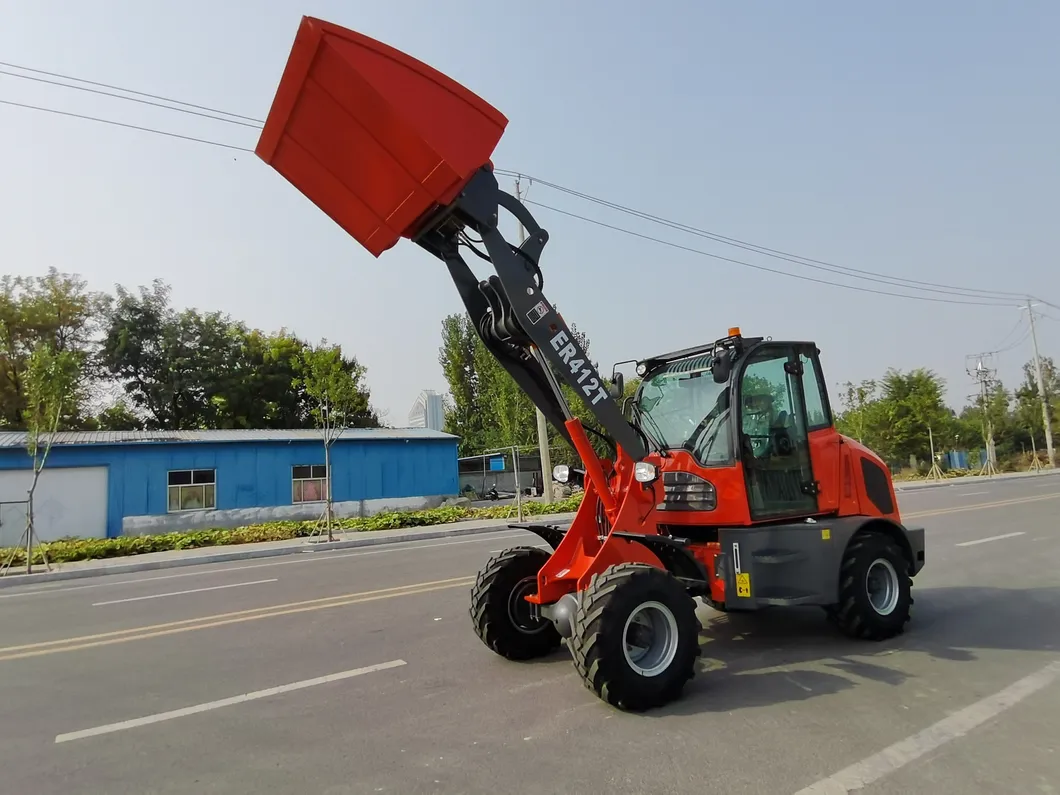

Everun Er412t China Mini Articulated Farm Wheel Loader Machine with The Advantage of Good Quality
Everun ER412T China Mini Articulated Farm Wheel Loader Machine with the Advantage of Good QualityEVERUN Product Description SpecificationPerformancerated loading (kg)1200overall weight (kg)4300rated bucket capacity (CBM)0.52maximum tractive force (kN27maximum breakout force (kN28maximum grade abi......
Send Inquiry
Product Description

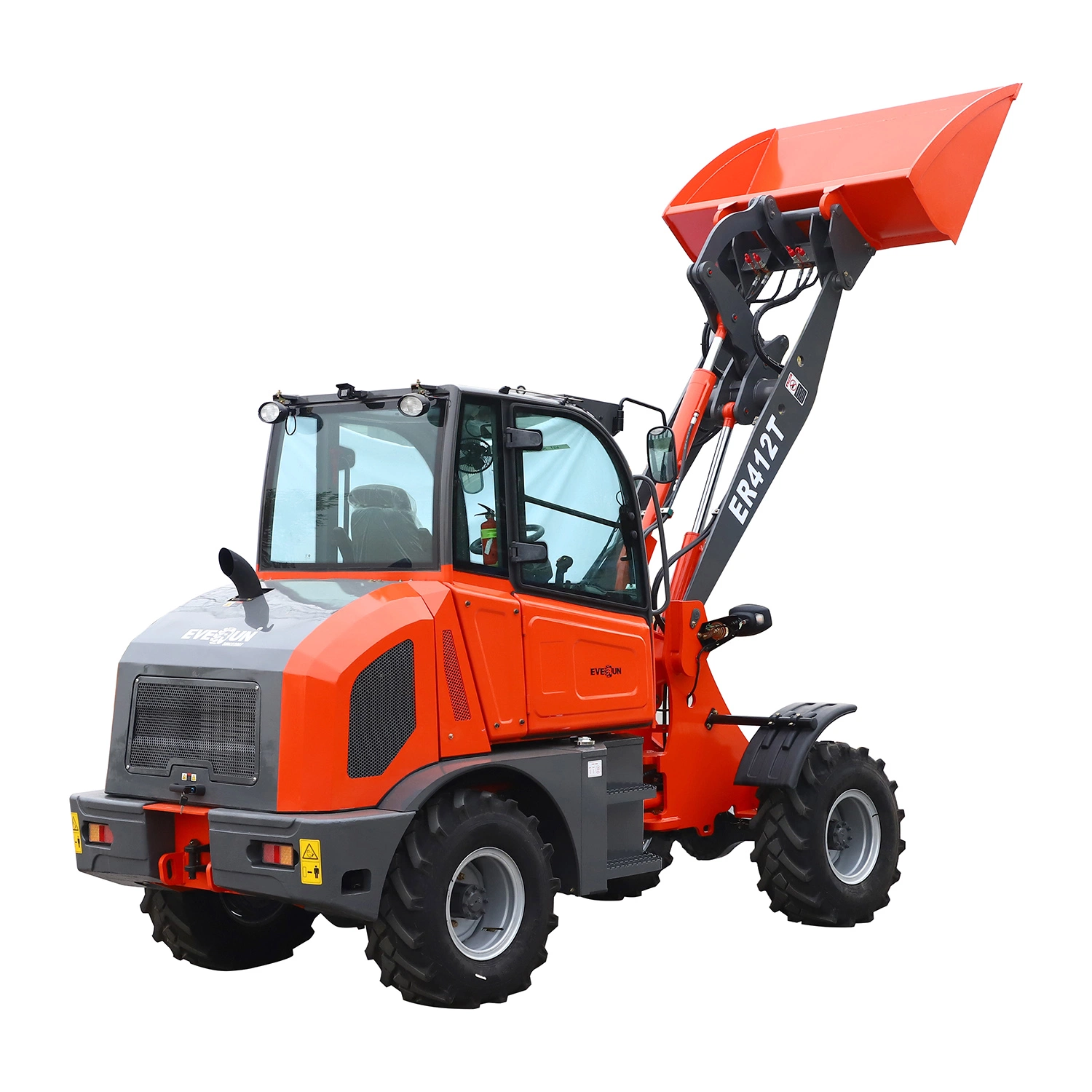

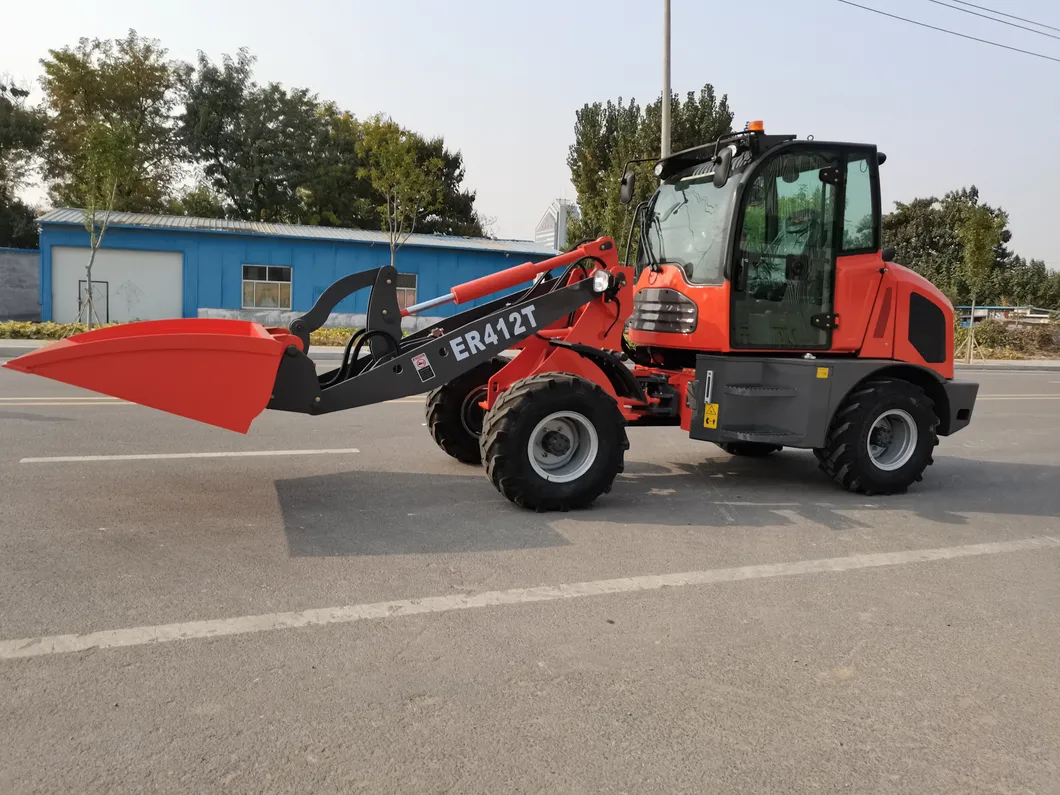

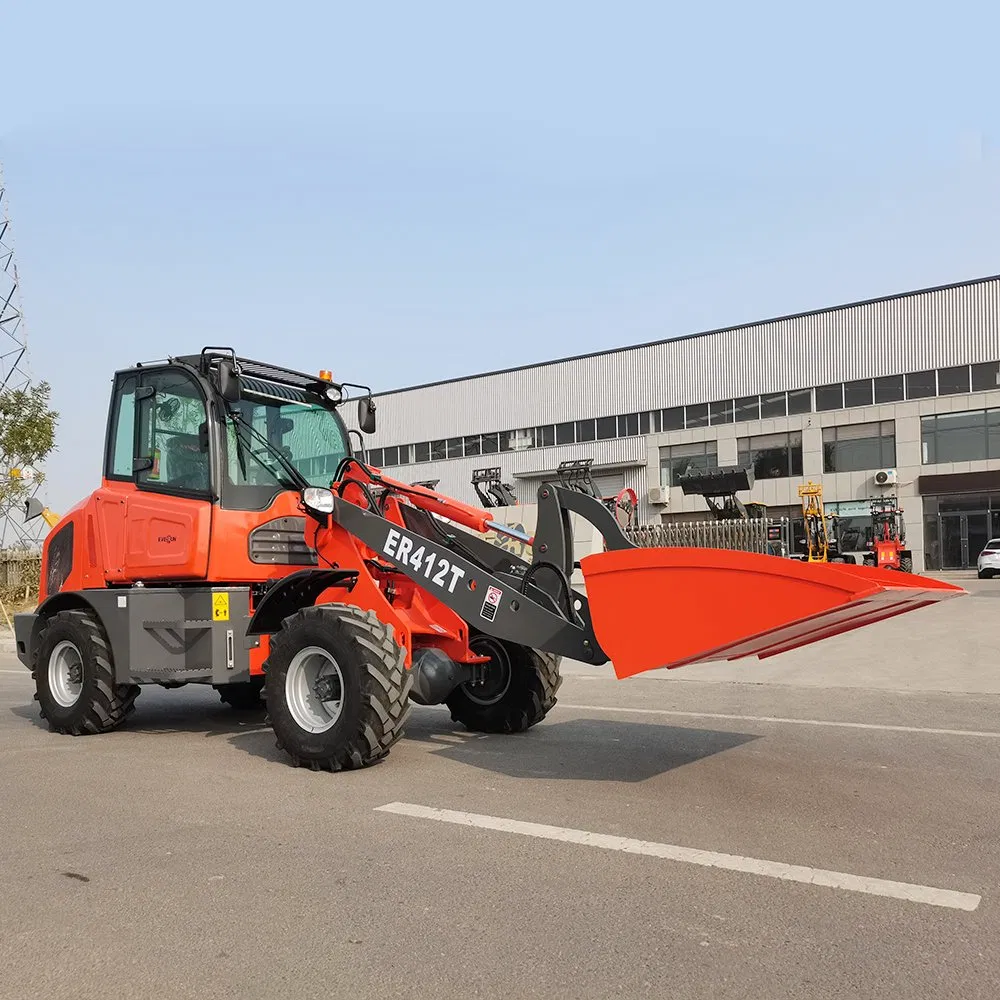

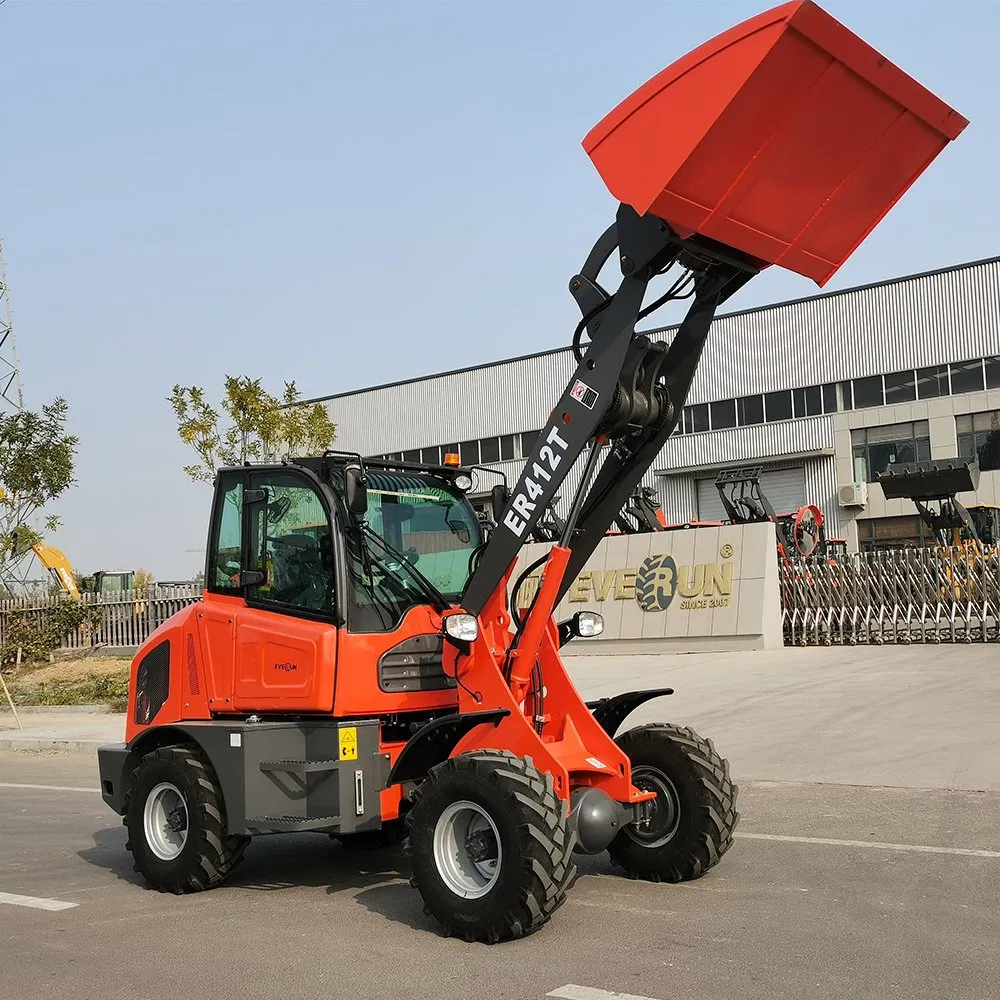

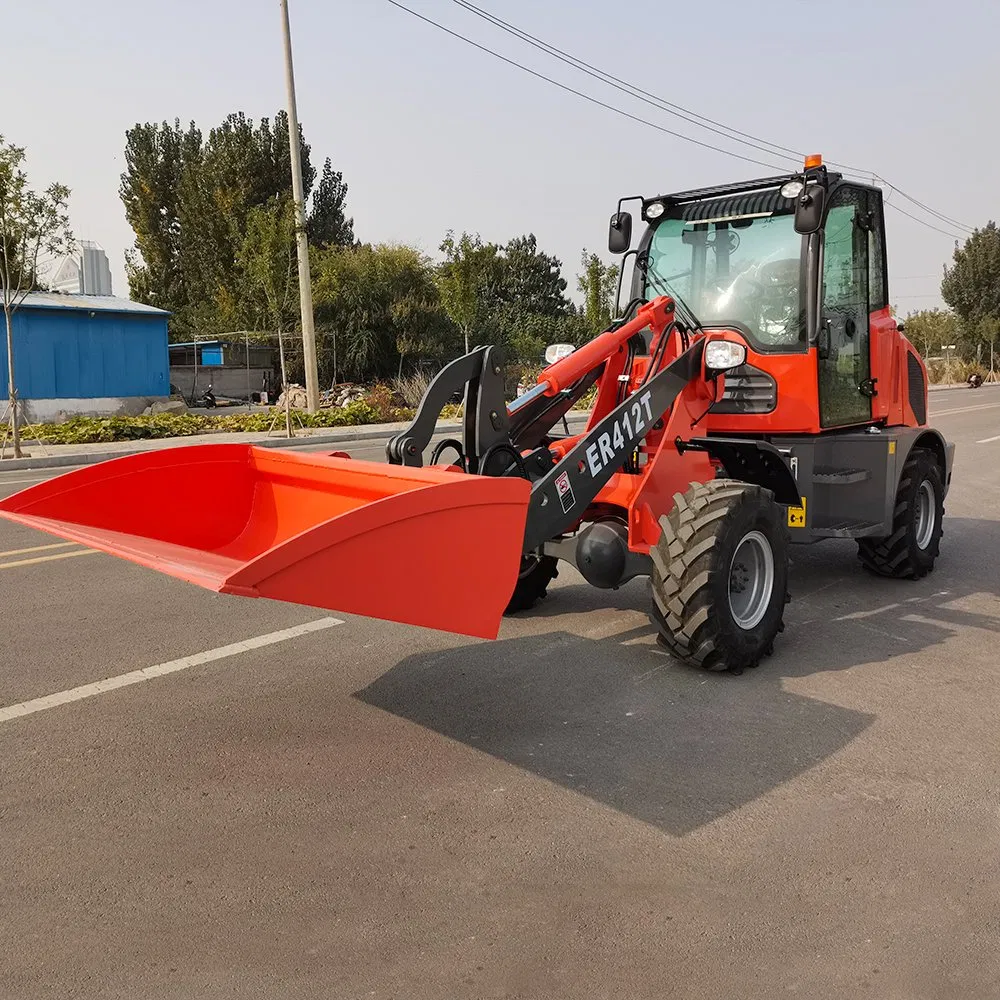

Everun ER412T China Mini Articulated Farm Wheel Loader Machine with the Advantage of Good Quality
| Performance | rated loading (kg) | 1200 |
| overall weight (kg) | 4300 | |
| rated bucket capacity (CBM) | 0.52 | |
| maximum tractive force (kN | 27 | |
| maximum breakout force (kN | 28 | |
| maximum grade ability° | 20 | |
| maximum dump heightmm | 2487 | |
| maximum dump reachmm | 858 | |
| overall dimension (L×W×H) mm | 5298*1740*2535 | |
| minimum turning radiusoutside of wheelsmm | 4389 | |
| maximum steering angle | 40° | |
| Oscillation angle | 8° | |
| Engine | model | XINCHIA C490BPG |
| type | lnline water cooled, four stroke | |
| No. of cylinder-bore/stroke mm | 4-90×100 | |
| displacement L | 2.67 | |
| rated powerkW | 36.8 | |
| idel speed (r/min) | 850-900 | |
| rated speed (r/min) | 2650 | |
| maximum torque N.m @speed r/min | 156 @1700- 1900 | |
| min fuel-consume ratio | ≤230g/kw.h | |
| Transmission system | torque converter | 265 |
| gearbox mode | Power shift normally engaged straight gear | |
| gear shift | Electric, | |
| 2forward shift 2 reverse shift | ||
| maximum speed | 22km/h | |
| Drive axles | main reducing mode | Bevel gear grade l reduction |
| wheel base (mm) | 2476 | |
| wheel tread(mm) | 1400 | |
| ground clearance(mm) | 410 | |
| Hydraulic system | system working pressure (Mpa) | 18 |
| boom lifting time (s) | 4 | |
| total time (s) | 7 | |
| fuel tank capacity (L) | 80 | |
| function of leveling automatically | yes | |
| Brake system | service brake | Foot, drum brake |
| parking brake | Manual disc brake | |
| Tyre | type specification | 20.5/70-15 |
| front tyre pressure kPa | 320 | |
| rear tyre pressure kPa | 320 |
