Product Description

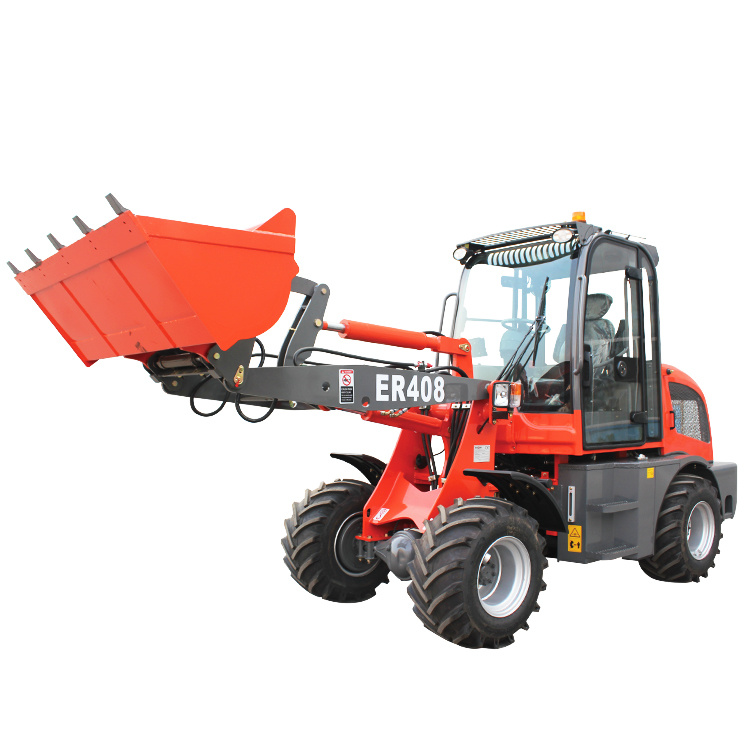

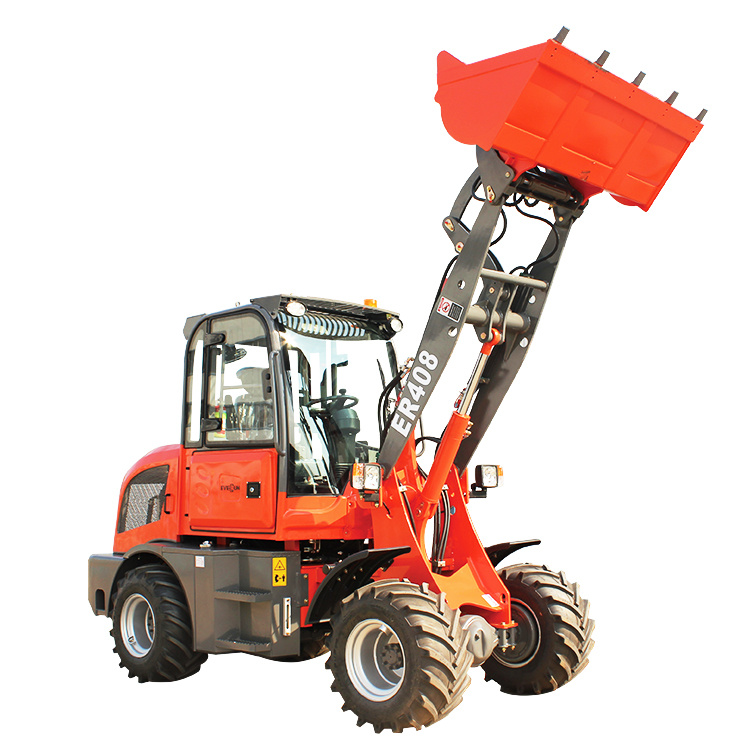

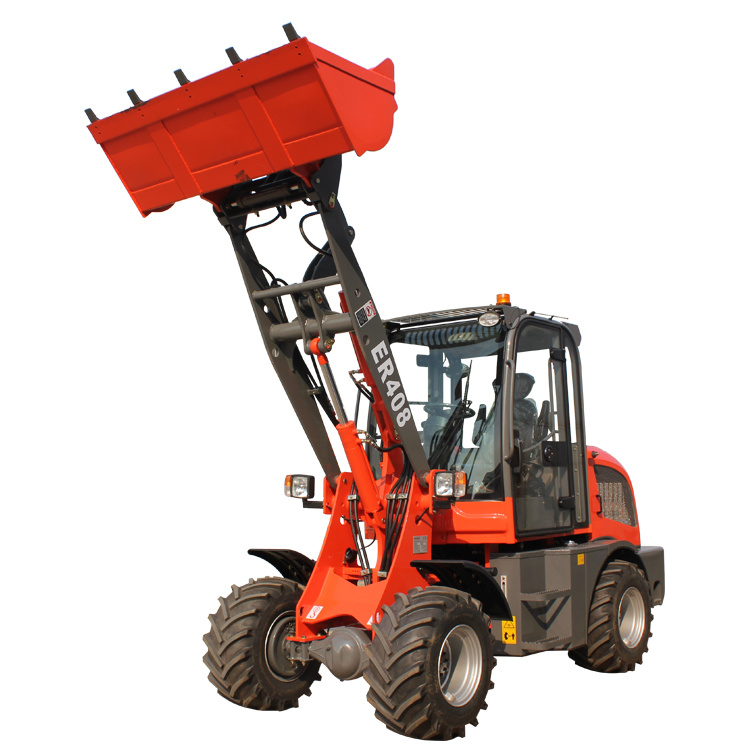

Everun ER408
- -With new popular design: new cabin+ new oscillating articulated structure+ new engine cover
- -With Changchai engine
- -Standard configurated with mechanical
gearshift, engine heater, cabin heater
- -With ROPS & FOPS cabinOpen-top glass;
- -With wheel reducer alxe, hydraulic Spread-shoed brake, 31*15.5-15 tyre
1.0 Engine Details |
|
(1) Model: | Changchai ZN390Q |
(2) Engine Type: | In-line Arrangement, Water-cooled, Three-cycle Diesel Engine |
(3) Rated Power: | 25 KW |
(4) Rated Speed: | 2500 r/min(rpm) |
(5) Fuel Consumption Ration in Standard Working Condition:252 g/kw.H | |
2.0 Transmission System |
|
(1) Type: | Fixed-spindle Power Shift |
(2) Shift Gear Control Oil Pressure | 1.0-1.8MPa |
(3) Rated Input Speed: | 2500(rpm) |
3.0 Bucket |
|
(1) Bucket Capacity: | 0.48 m3 |
(2) Bucket Width: | 1700mm |
(3) Bucket Type: | Heavy-duty Bolt on Teeth |
(4) Rated Load: | 800kg |
(5)Net Weight | 2700kg |
4.0 Overall Dimensions |
|
(1) Overall Length(bucket on ground) | 4620mm |
(2) Overall Height |
|
(3) Ground to Cab Top: | 2540mm |
(4) Dumping Height: | 2120mm |
(5) Min. Base to the Ground | 220mm |
(6) Overall Width | 1500mm |
5.0 Operating Specifications |
|
(1) Steering System: | Articulated Frame with Hydraulic Power Steering |
(2) Min. Turning Radius: | 5200mm |
(3) Driving System: | Hydraulic Converter |
6.0 Brake System |
|
(1) Service Brake | Four Wheel Hydraulic Spread-shoed Brake |
(2) Parking Brake | Hand Operated |
7.0 Tyre | 31*15.5-15 |

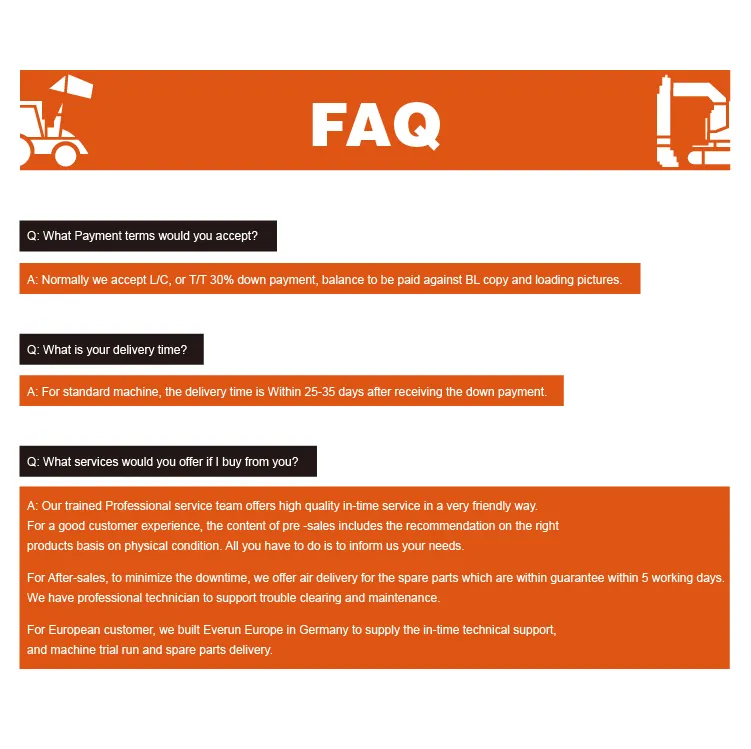

Q: What is your payment term?
A: L/C, or T/T 30% down payment, balance to be paid against BL copy and loading pictures.
Q: What is your delivery time?
A: Within 35-35days after receving the down payment (for standard configuration).
Q: What is your main market?
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on, in more than 50 countries.
Q: If products have some quality problem, how would you deal with?
A: There is one year or 1200 working hour warranty, we will gurantee you can receive the light/ small spare parts within 5 working days. In order to make good service for our European and Oceanian customers, we have set up Europen company in Germany and Everun WA in Australia with our partner.
