Product Description

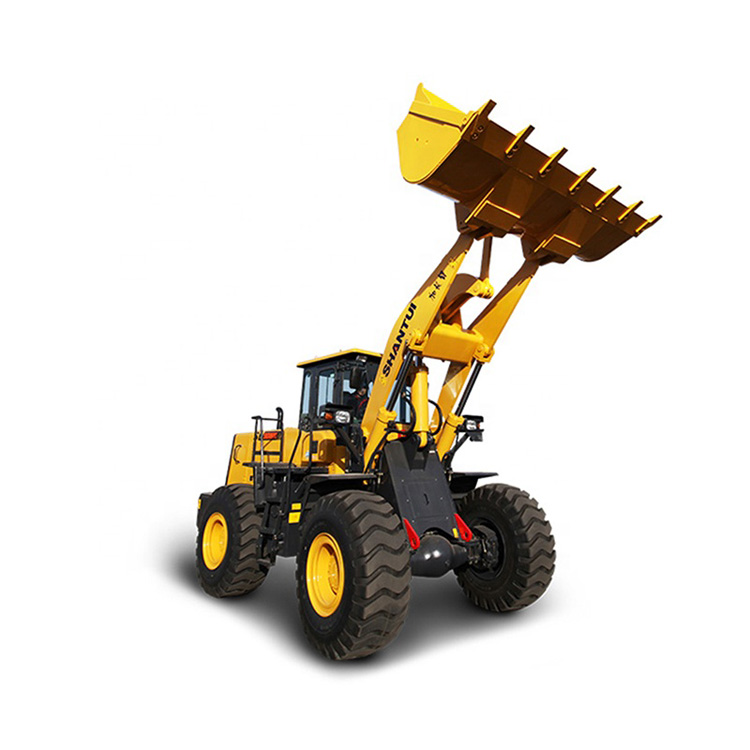

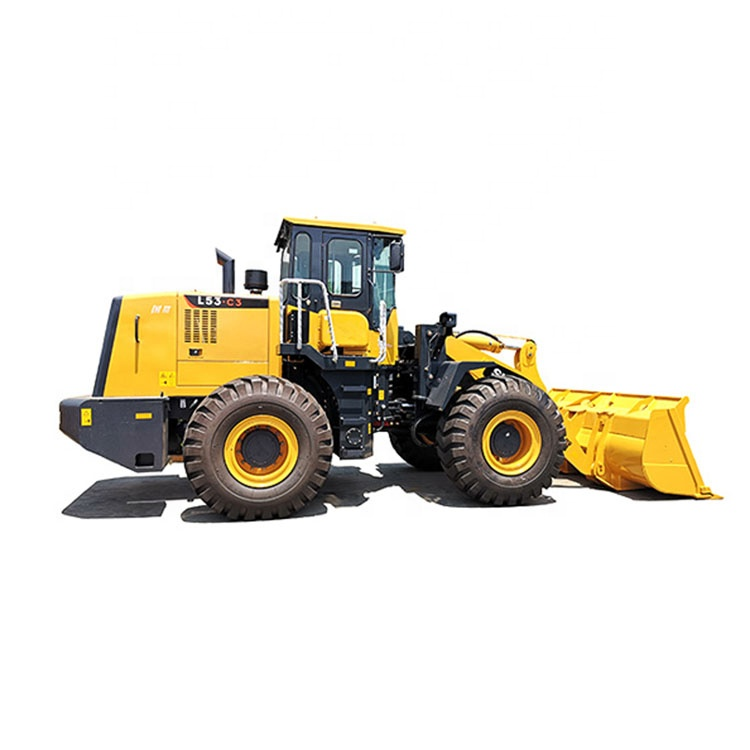

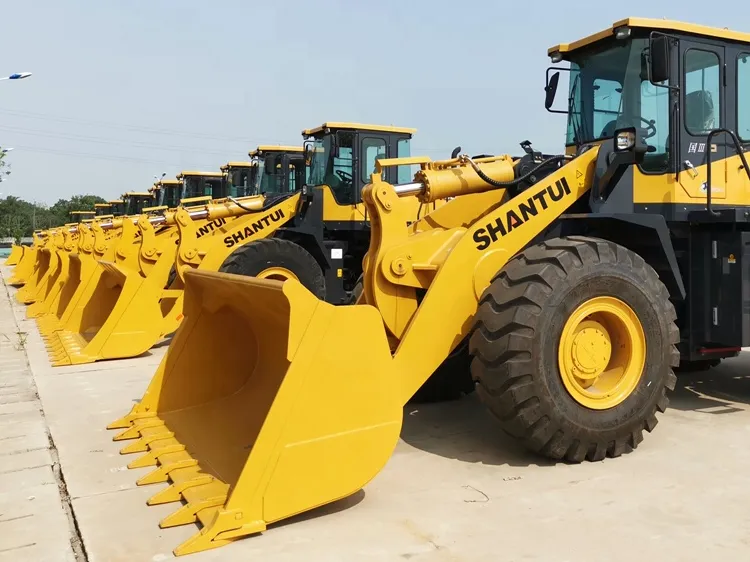

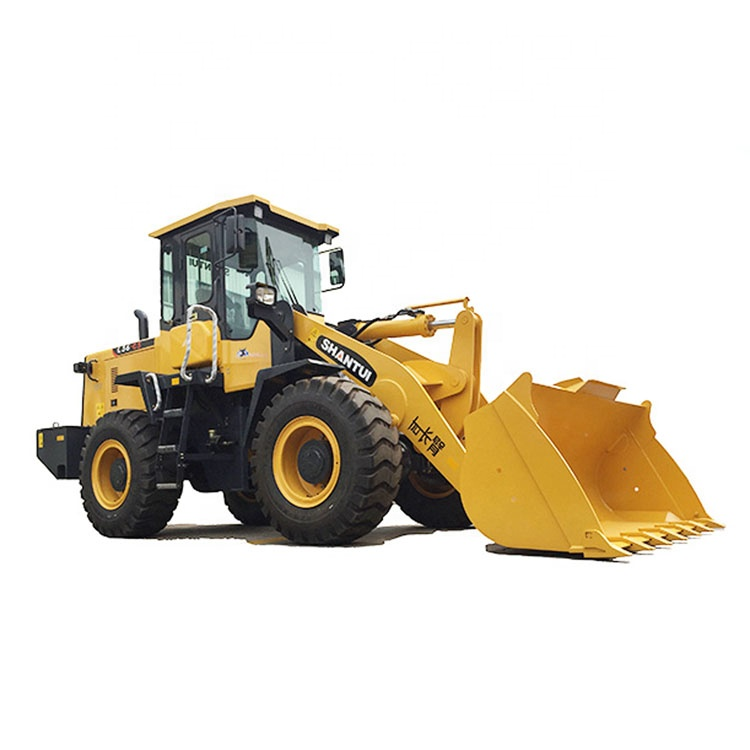

Good Performance China Shantui L53-B3 Wheel Loader on Sale

Technical Features

The SL30WN has articulating full-hydraulic steering. The torque converter and gear box are positioned separately which is convenient for maintenance. External oil inlet and outlet filter eliminate need to discharge the oil and dismantle the hoses when the filter is cleaned. Air conditioner is available plus various attachments such as straw or wood graspers, side dump bucket and rock bucket.

Technical parameters

Parameter name	L53-B3 FL (Flexible version)	L53-B3 CH (Coal version)
Performance parameters
Operating weight (Kg)	16700	17000
Maximum dumping height (mm)	3415	3245
Dumping reach (mm)	1050	1210
Maximum breakout force (kN)	≥155	≥155
Total cycle time (s)	10	10
Engine
Engine model	WP10	WP10
Rated power/rated speed (kW/rpm)	162/2000	162/2000
Overall dimensions
Overall dimensions of machine (mm)	797530303500	802530503500
Driving performance
Forward speed (km/h)	F1:0-13, F2:0-38	F1:0-13, F2:0-38
Reversing speed (km/h)	R:0-15	R:0-15
Chassis System
Wheelbase (mm)	2920	2920
Tank capacity
Fuel tank (L)	193	193
Working device
Rated bucket capacity (m³)	3	3.6
Rated loading capacity (t)	5	5
