Product Description

Heavy duty 3000kg telescopic boom wheel loader for construction

Good features of STEEL CAMEL brand telescopic forklift handler:

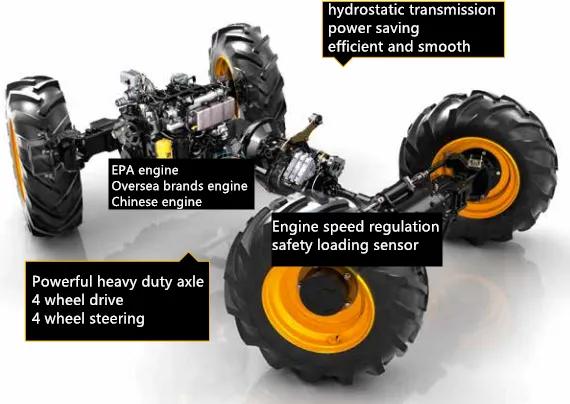

1.Hydrostatic transmission, 3 driving mode, front steering, 4 wheel steering & crab steering, have fantastic manuverability in the rough farming and construction terrain.

2.Compact size, only 2090mm wide, 2150mm high, enable it to come through the hourse door.

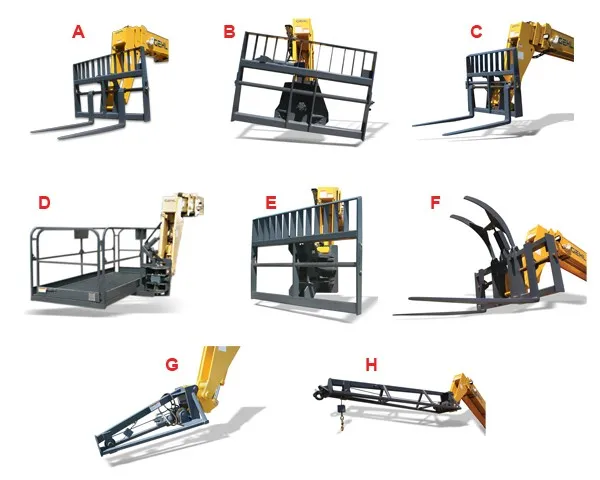

3.Hydraulic quick coupling system can hook various attachments for different work

4.3ton capacity, 5.7m reach, most needed size for material handling work

5.ROPS cabin, electrical loading indicator guarantee the operating safety.

6.One hand joystick control, simple and convenient

7.Heavy duty engine and drive axle, powerful and strong

8.Wide view luxuary cabin, best operating comfort.

9.Engine speed regulation, never power off.

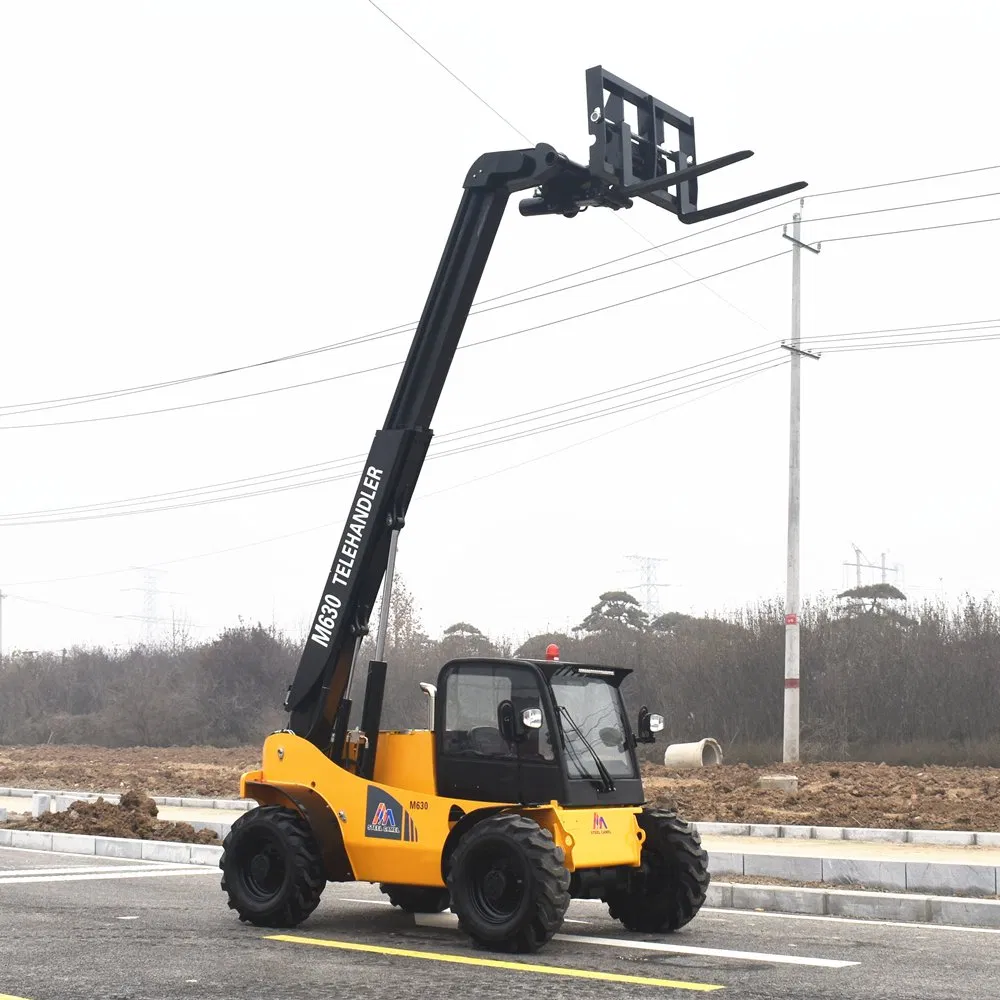

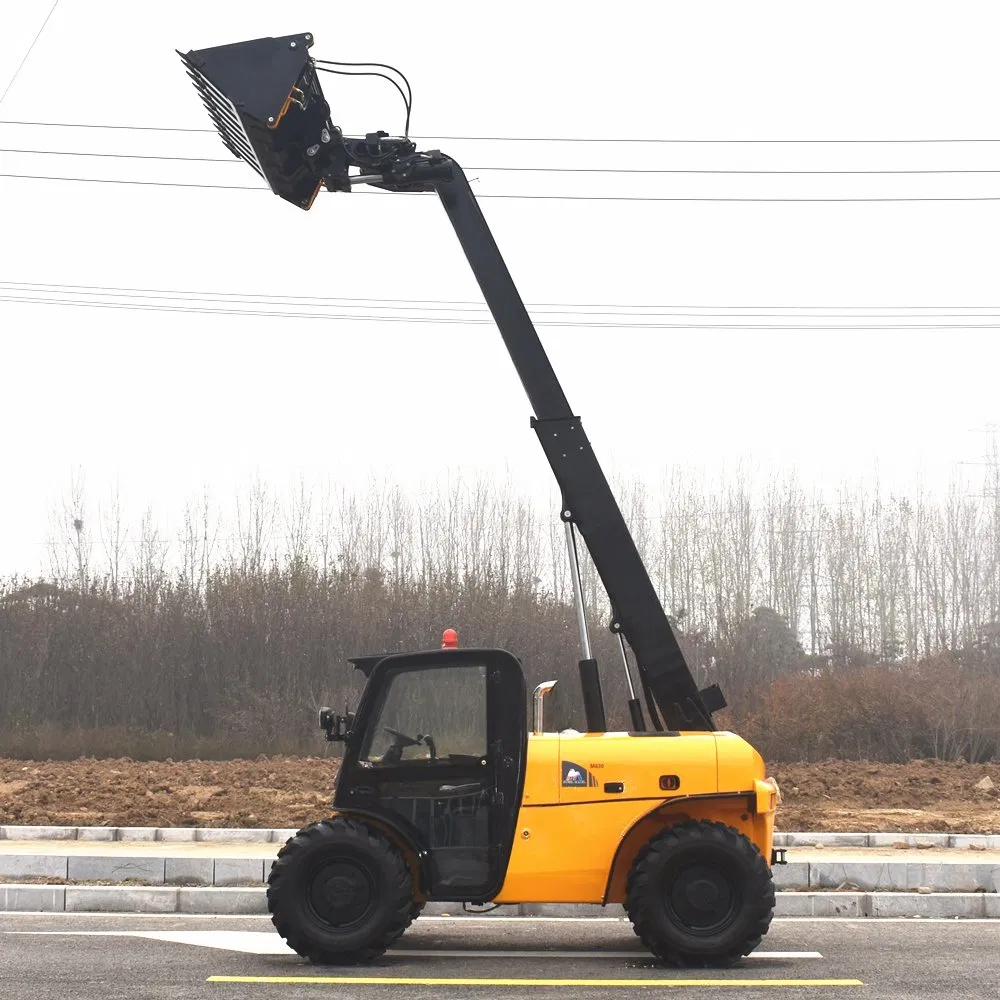

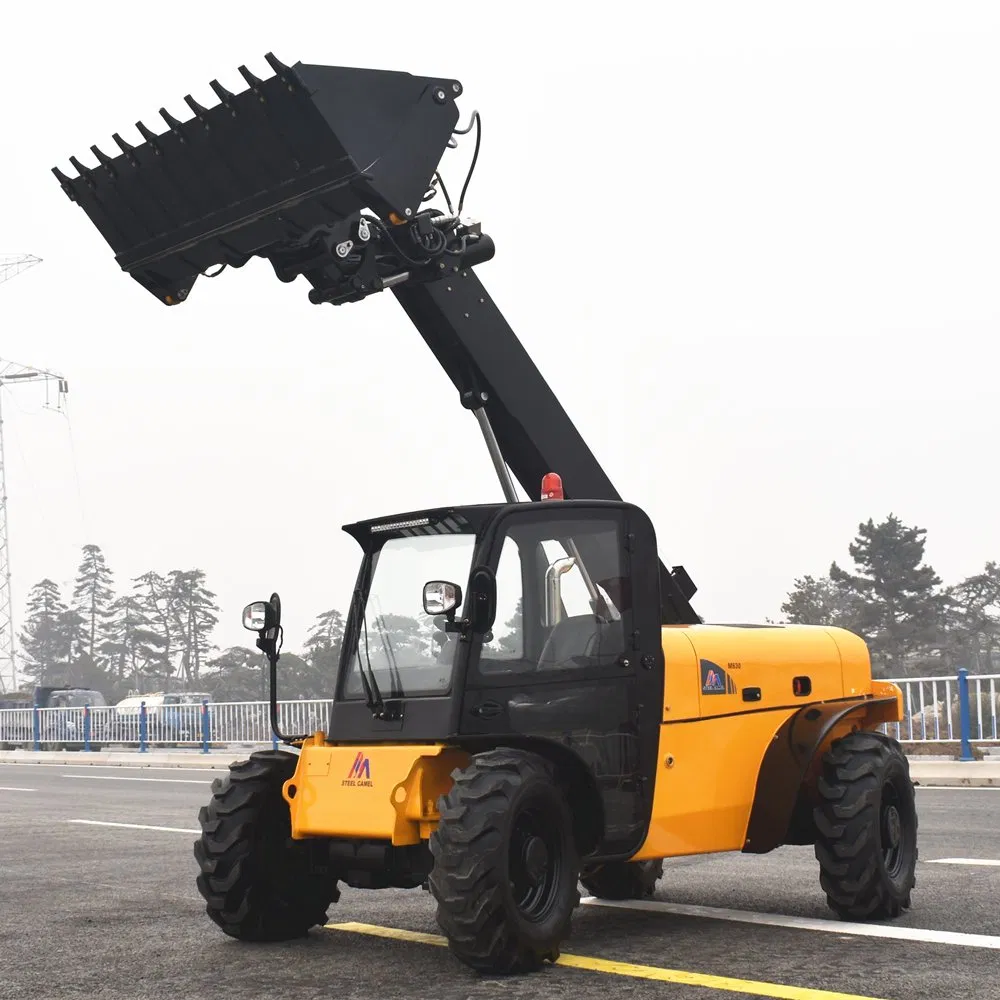

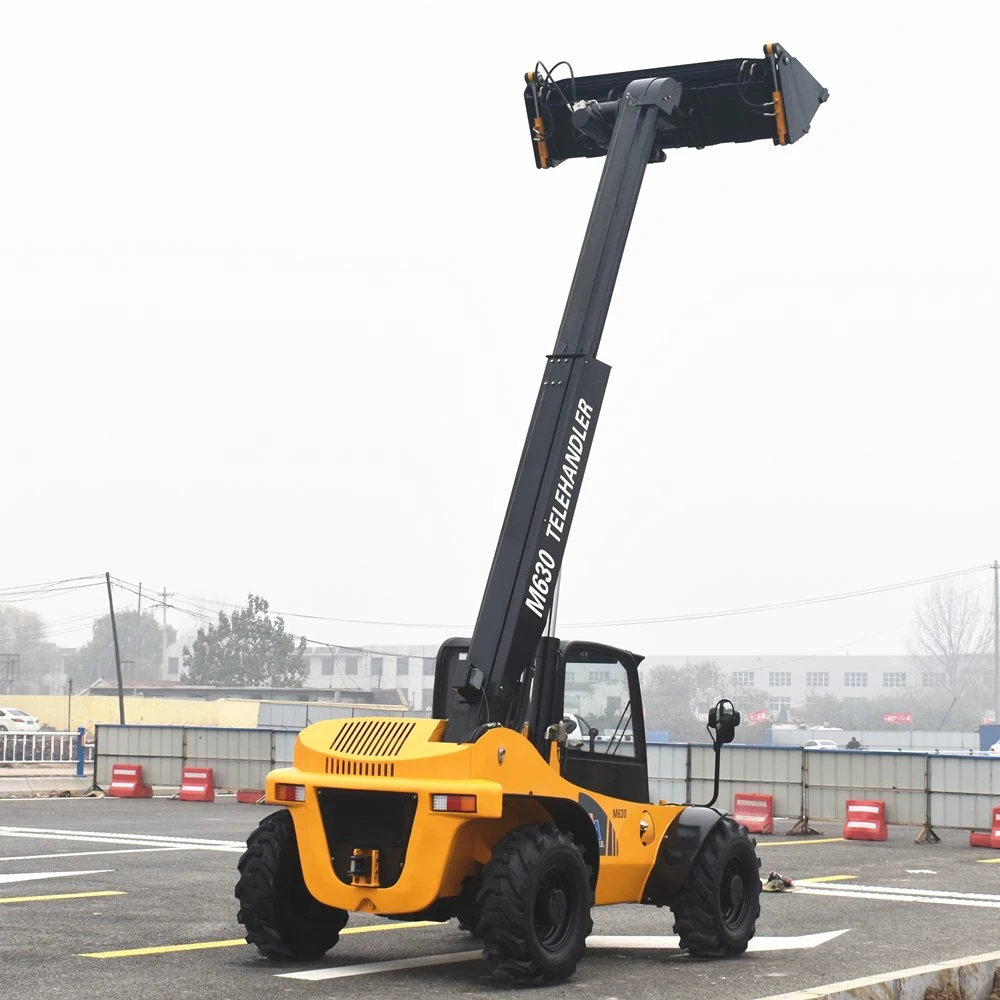

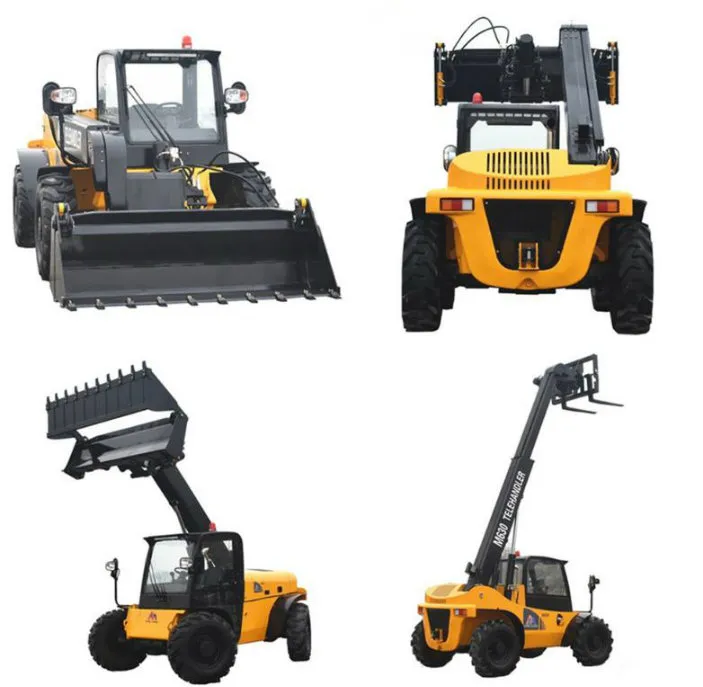

Heavy Duty 3000kg Telescopic Boom Wheel Loader for Construction

Technical data:

Engine	Yanmar/Chinese/Kohler EPA Tier 4
Rated power	55~75kw
Dimension (LxWxH)	3970x2090x2150mm
Rated loading capacity	3000kg
Max. Lifting height	5700mm
Max. Loading capacity in levelwith boom extended	1200kg
Max. Reach in level with boom extended	3500mm
Speed	10/24km/h
Min. Turning radius	3220mm
Truning angel	35 degree
Operating weight	5560kg
Track	1780mm
Wheelbase	2400mm
Tire	12.5/80-18
System pressure	20Mpa
Hydraulic output	82L/min

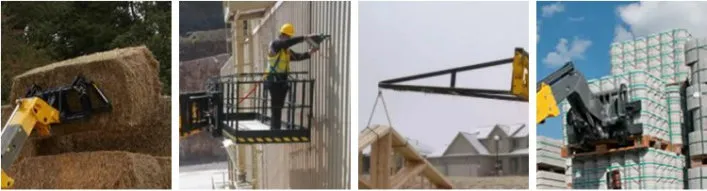

Applications:

The Telescopic handler forklift is the ideal choice for almost any task that involves material lifting, moving or placing materials. All of its good features like four-wheel drive, hydro-mechanical transmission, hydraulic power steering, hydraulic brake, rear-wheel steering, guarantee its power, stability,safety and efficiency, makes it can hand over all kinds of rough working area. It was widely used in construction material handling, container carrying and logistics, agricultural fields, ect.

Our service:

Contact us:

With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters.

Anna Guan/Marketing director
