Road Construction Equipment Mini slippage loader Mini Skid Steer Loader 525 Product DescriptionMini slippage loader. Compact structure, simple and flexible operation, standing operation, wide vision! Small turning radius, can operate freely in narrow space. Especially suitable for port cleaning c......
Send Inquiry
Product Description

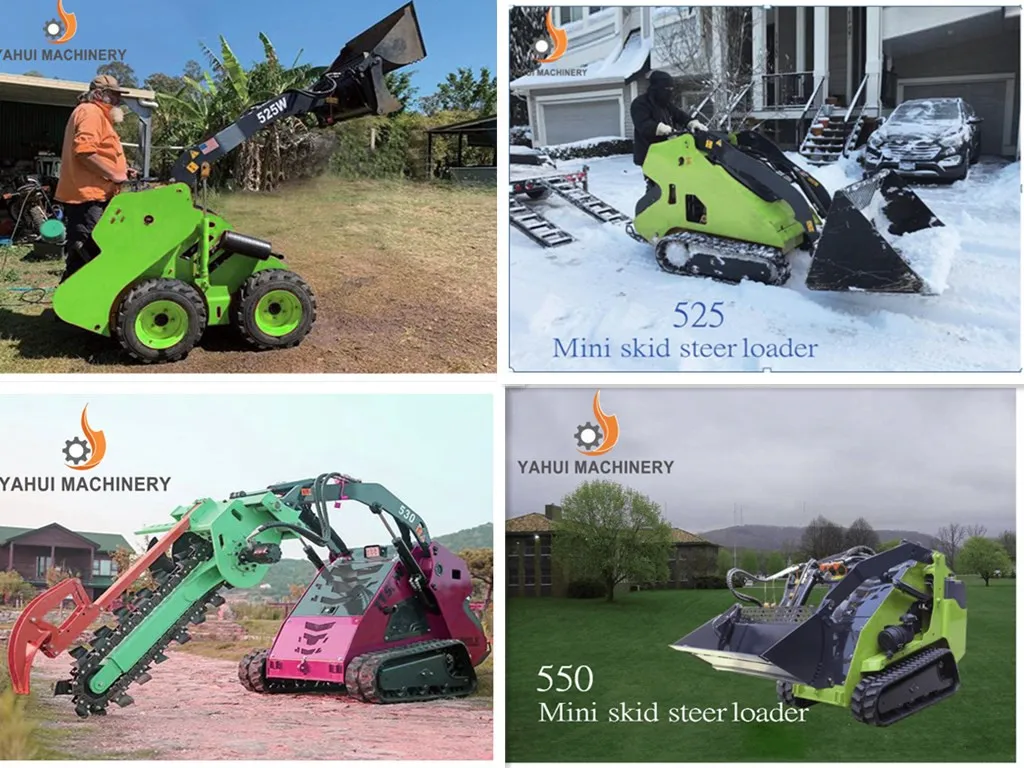

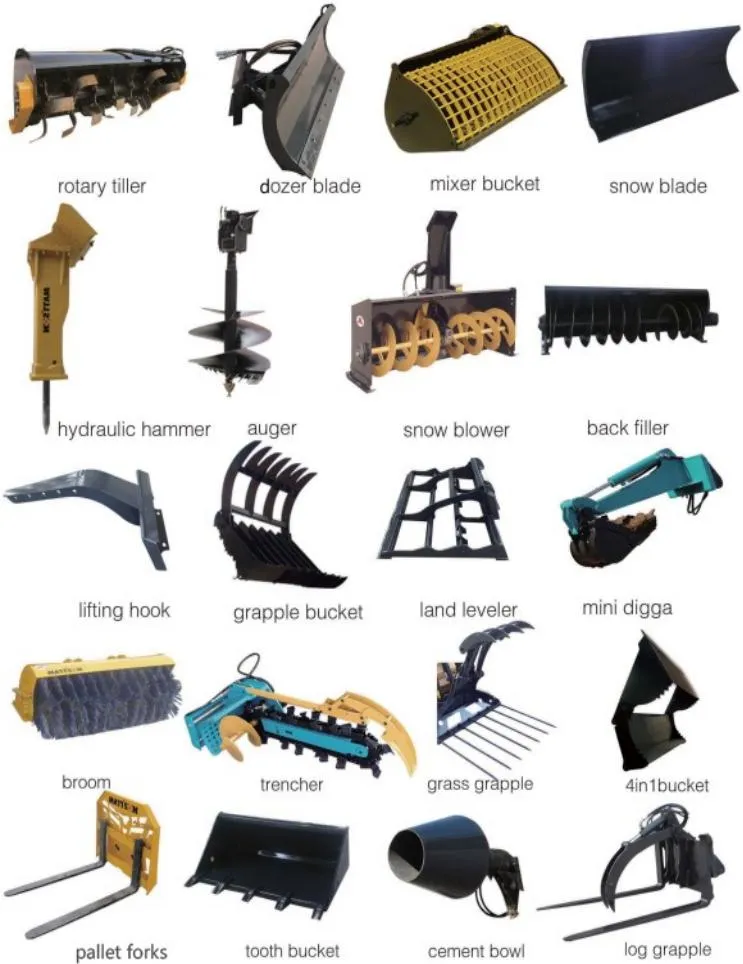

Mini slippage loader. Compact structure, simple and flexible operation, standing operation, wide vision! Small turning radius, can operate freely in narrow space. Especially suitable for port cleaning cabin, landscaping, urban indoor demolition of construction waste transfer save trouble and effort. Products can be customized for customers, and a wireless remote control slip loader, can achieve remote control. Multi-function slippage loader! Optional installation of a variety of auxiliary tools: such as rotary tiller, ditching machine, snow shovel, excavator, auger and other multi-purpose machine, Japan's original imported Kubota engine, Japan's original imported Yanga engine, and Italy's imported hydraulic system to achieve the best match!
Our Advantage:
**Japan imported original kubota engine 25 HP (EpA), Italy imported hydraulic system
* Word first-class quality power system.
*Original inported hydraulic system
*Direct driving from engine to pump.

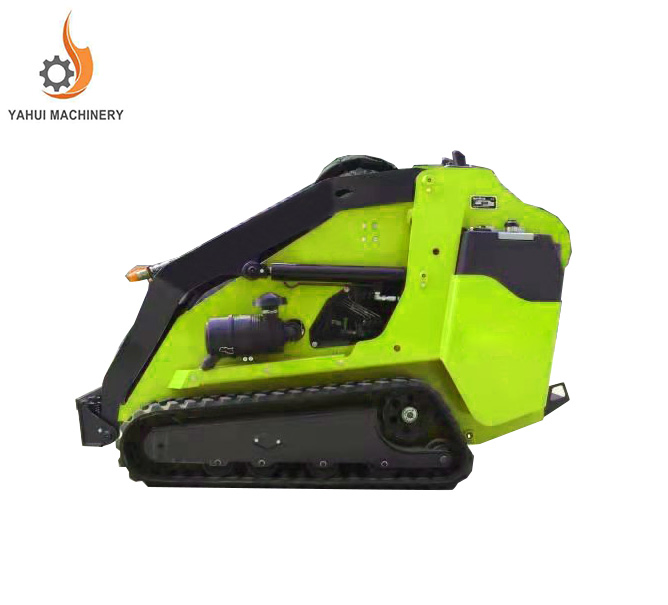

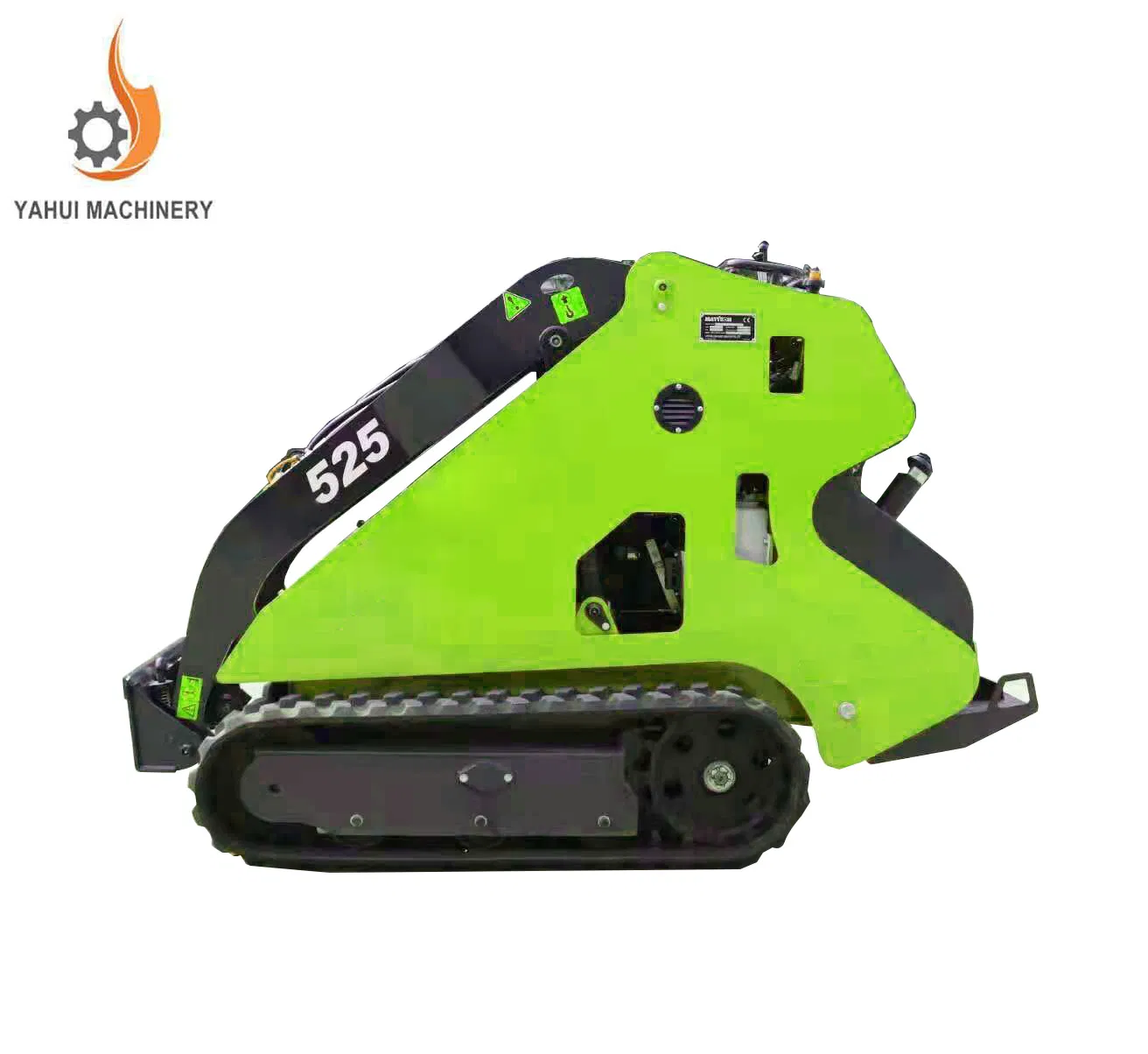

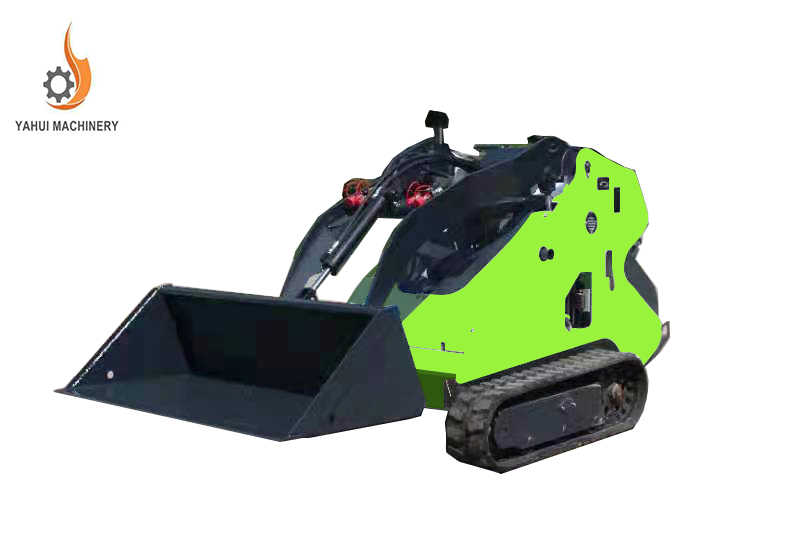

ML525 skid steer loader is developed with world latest design standard. It is a new kind of product characterized by high efficiency, safey ,convenience and beauty.

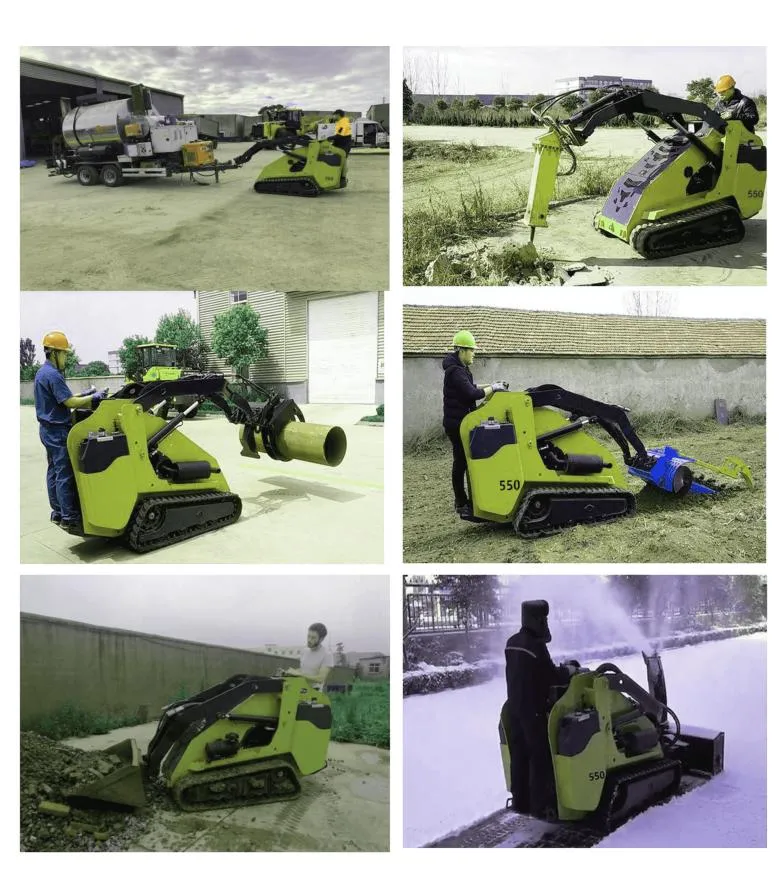

It is rubber crawler track skid steer loader type , two crawler driving and 360 degree skid-steering, wiht quick coupling to attach various attachments at jobsite easily. It can work in different working environments. 1000kgs loading capacity, rough terrain road working condition the heavy machine you have. mini compact track crawler loader for sale.compact skid steer
Related product:
PERFORMANCE
Ground Pressure 3.79 pis (0.261 bar)
Tipping Capacity 2100 lb (953 kg)
Weight (no attachment) 2356 lb (1069 kg)
Travel Speed 3.5 mph (5.6 km/h)

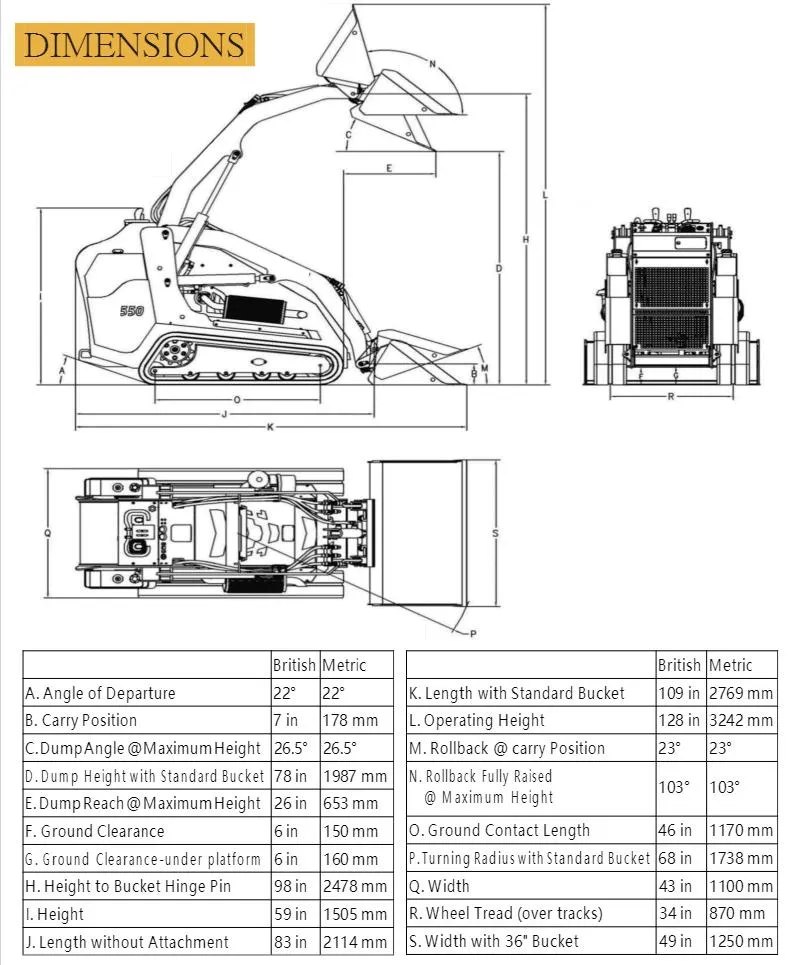

DIMENSIONS
length (without bucket) 77 in (1959 mm)width (with bucket) 49 in (1250 mm)
height 53 in (1338 mm)
height to bucket pin 74 in (1869 mm)
ENGINE
Emission Regulation Tier 3/Stage III AMake/Model Kubota // D1105-E4B-CSR-1
Fuel/Cooling Diesel/Liquid
Cylinders 3
Horsepower (SAE Gross) 25.2 hp (18.5 kw)
HP/Displacement 68.5 in³ (1.123L)
Fuel Tank Capacity 9.2 gal (35 L)
Air Cleaner Heavy-duty dual element
OPERATION

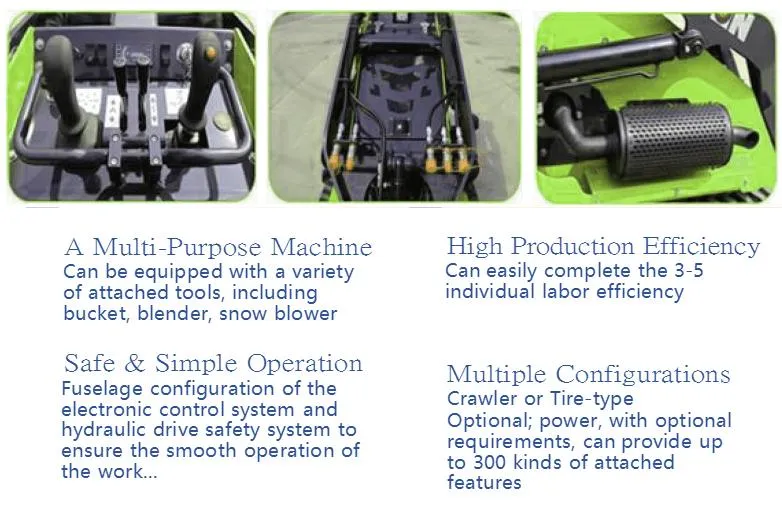

Steering and Drive Direction and speed controlled by one multi-function handle.Lift and Tilt Raise/lower and dump/rollback controlled by one lever.
Transmission Hydrostatic track drive system.
Attachment Single lever with dual direction detent.
ELECTRICAL SYSTEM
System Val tage 12V 45AhAlC tern at or Output 55amp
Shandong Yahui Machinery Equipment Manufacturing Co. Ltd. is a high-tech and joint-stock enterprise integrating scientific research and development, production and processing, and e-commerce. They have six branches including railway machinery manufacturing branch, industrial and mining equipment branch, construction machinery manufacturing branch, and agricultural automation branch.
Yahui specialized in all kinds of mining equipment, road construction machinery, railway engineering equipment and track installation and maintenance tools, environmental protection and energy saving equipment, agriculture and forestry machinery, etc.
Enterprise Features:

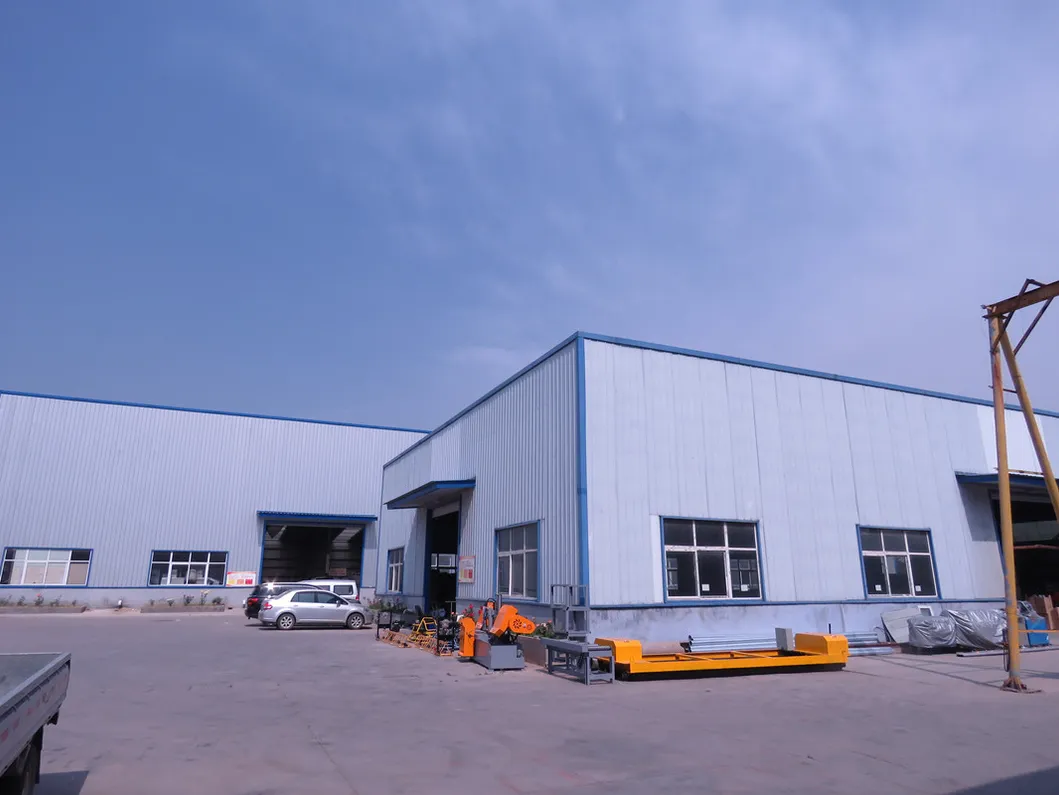

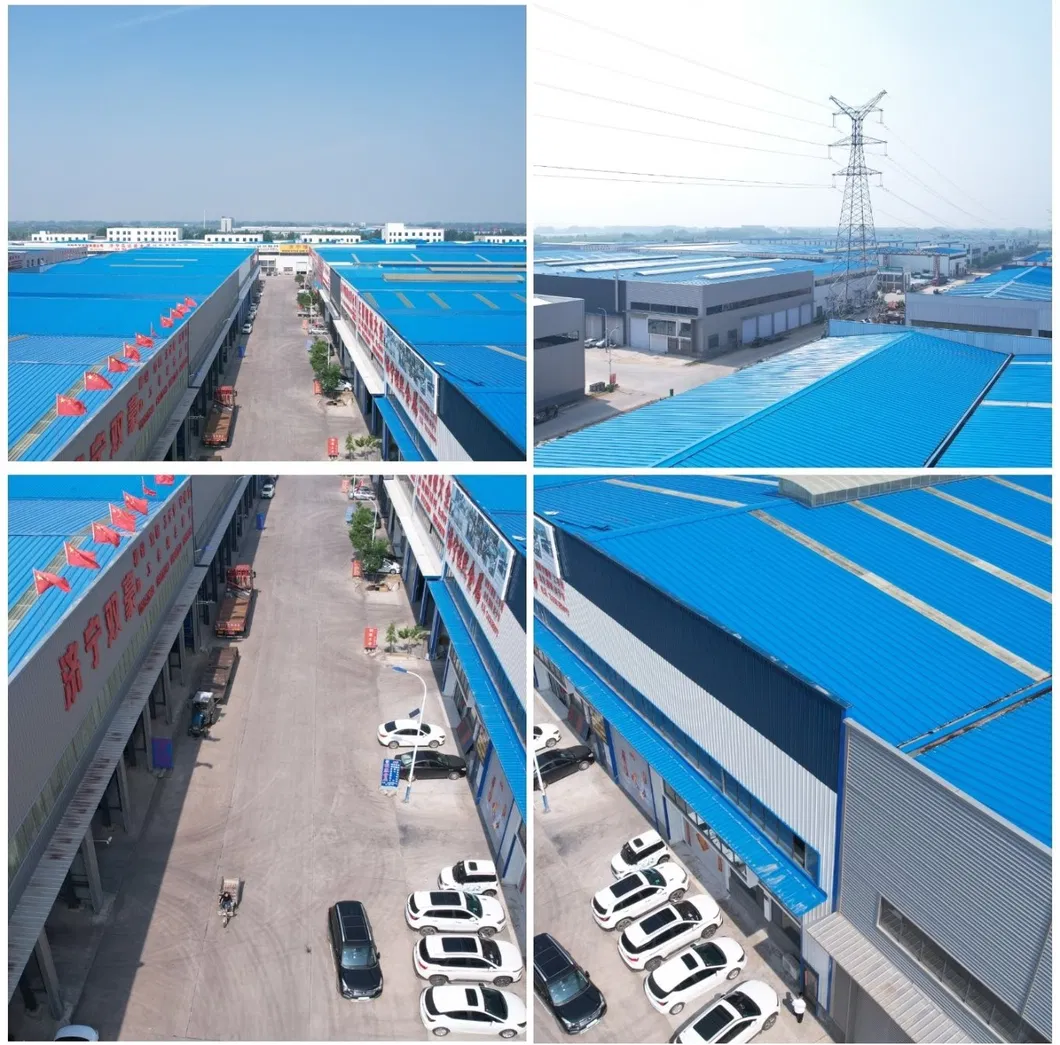

Manufacturing Shop:
FAQ:
Are you original manufacturer?
A: Yes, we are official leading manufacturer in construction machinery in China
What kind of payment terms can be accepted?
A: Normally, we can work on T/T term or L/C term,western union or thers before shipment
Which trade terms can we work?
A: FOB, CFR, CIF, CIP, EXW, DDU, DDP
What about the delivery time?
A: 7-30 days after receiving the deposit
Transportation
By sea or by air
What about the warranty time?
A: 12 months
What about the minimum order quantity?
A: 1 set
