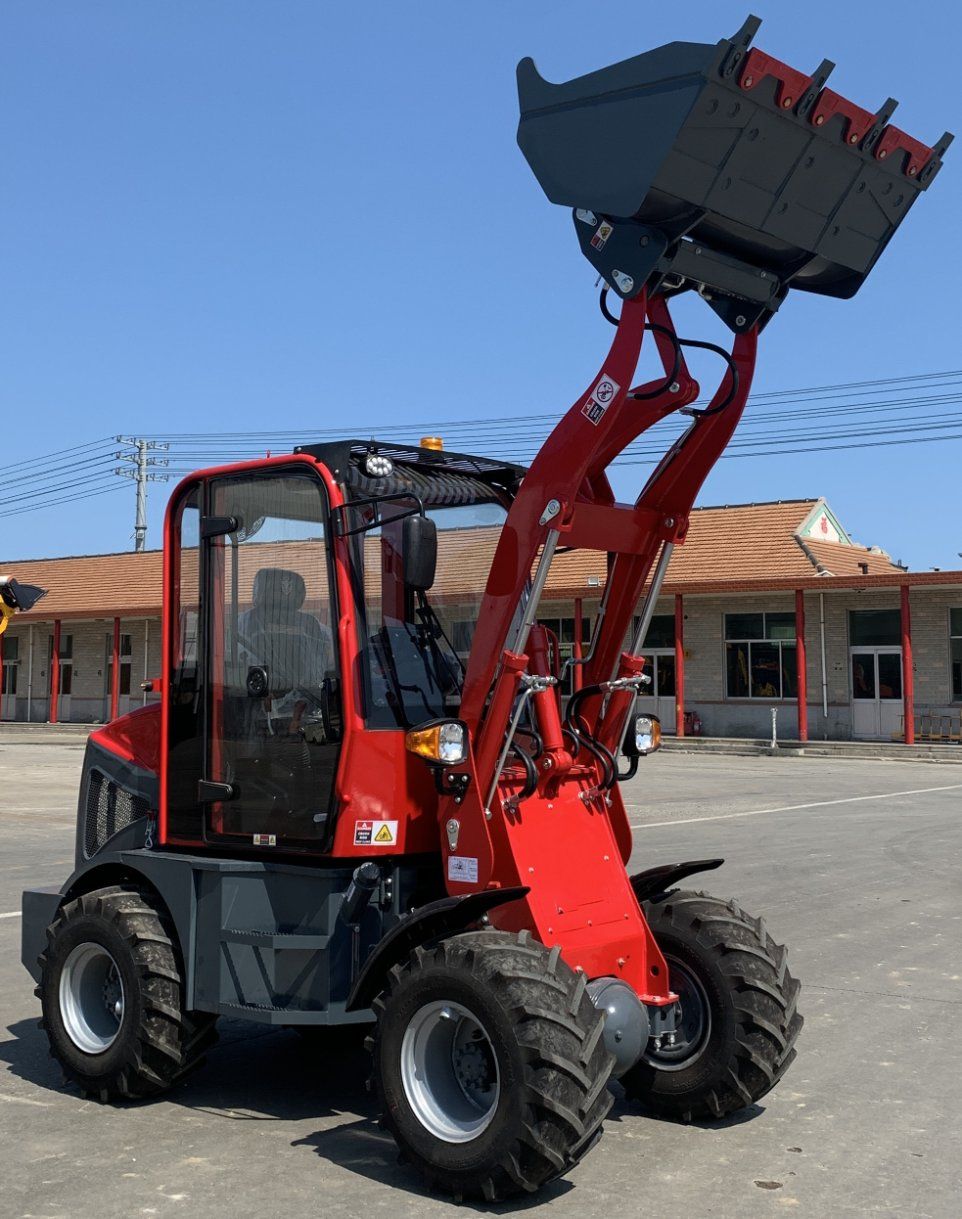

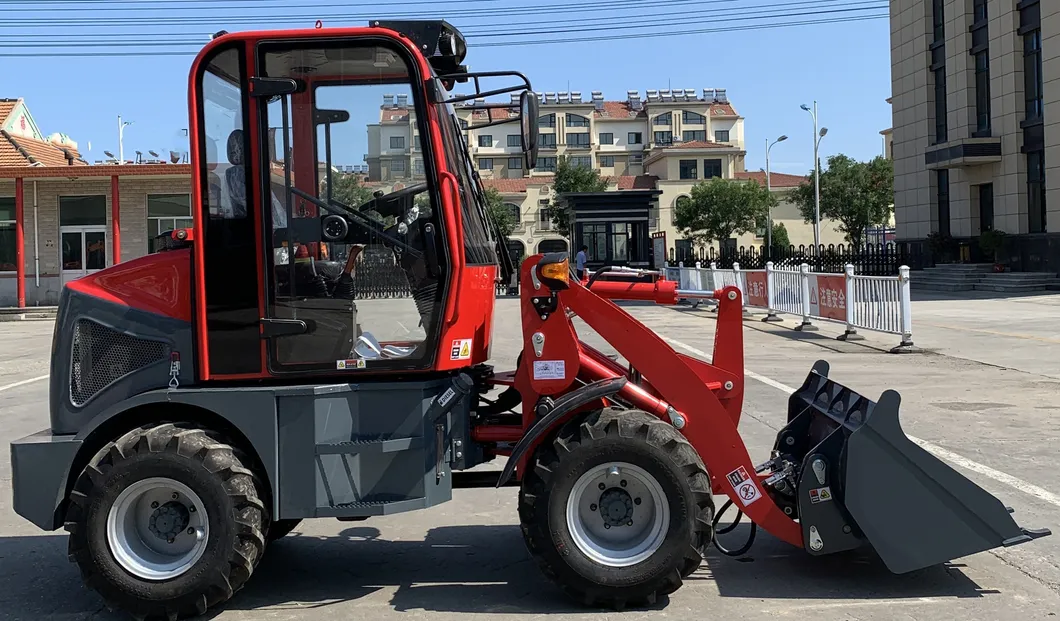

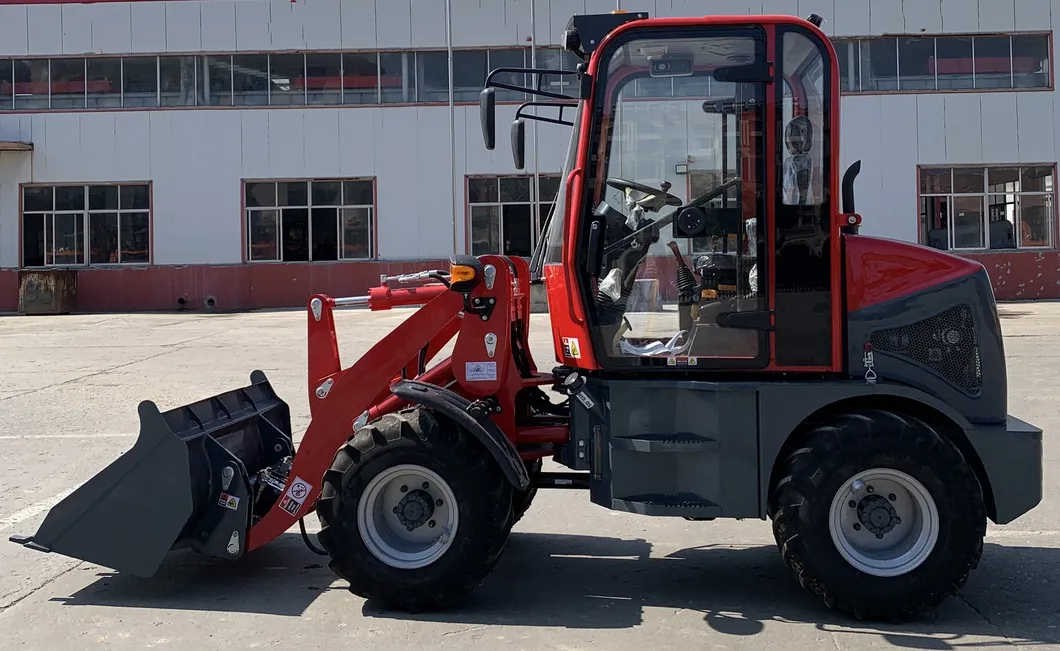

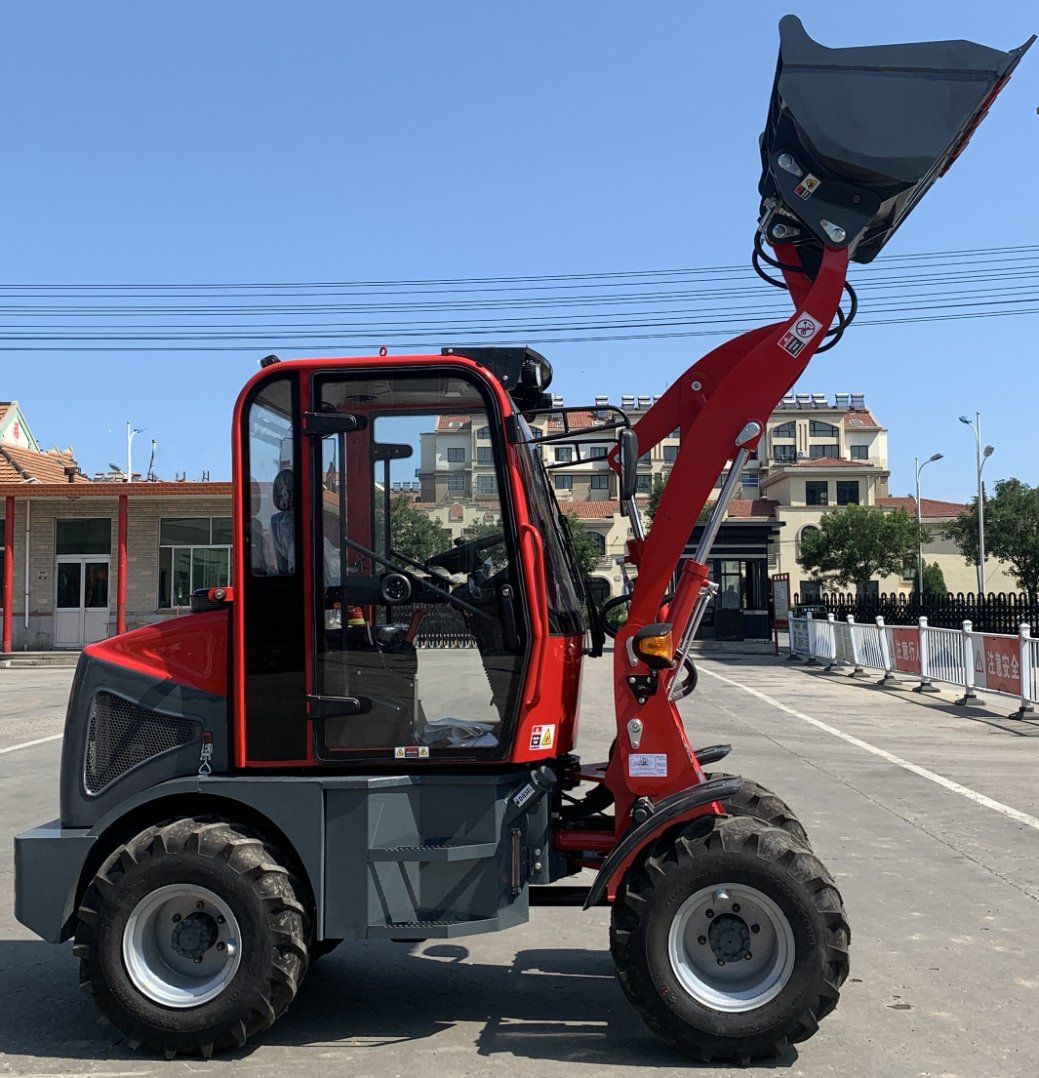

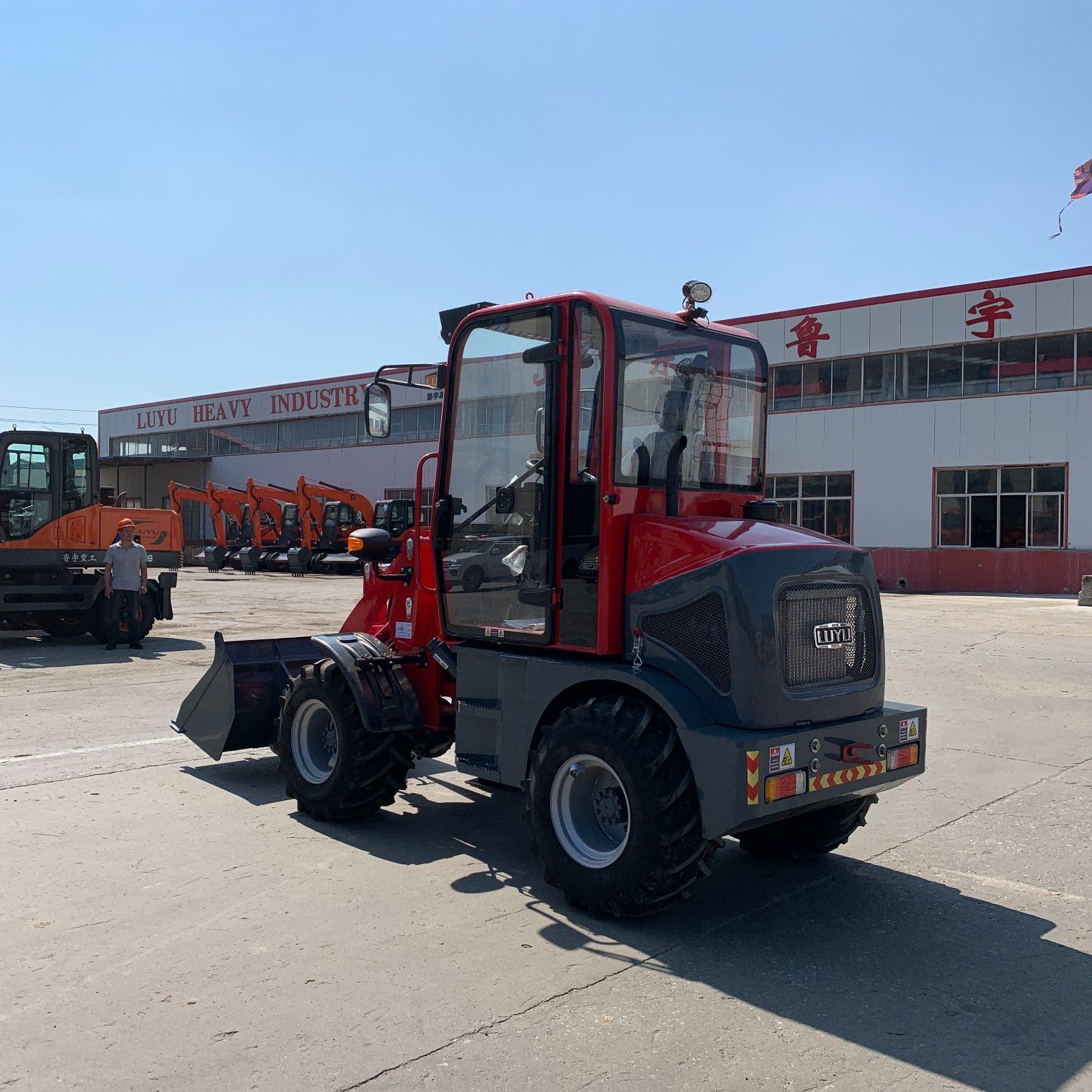

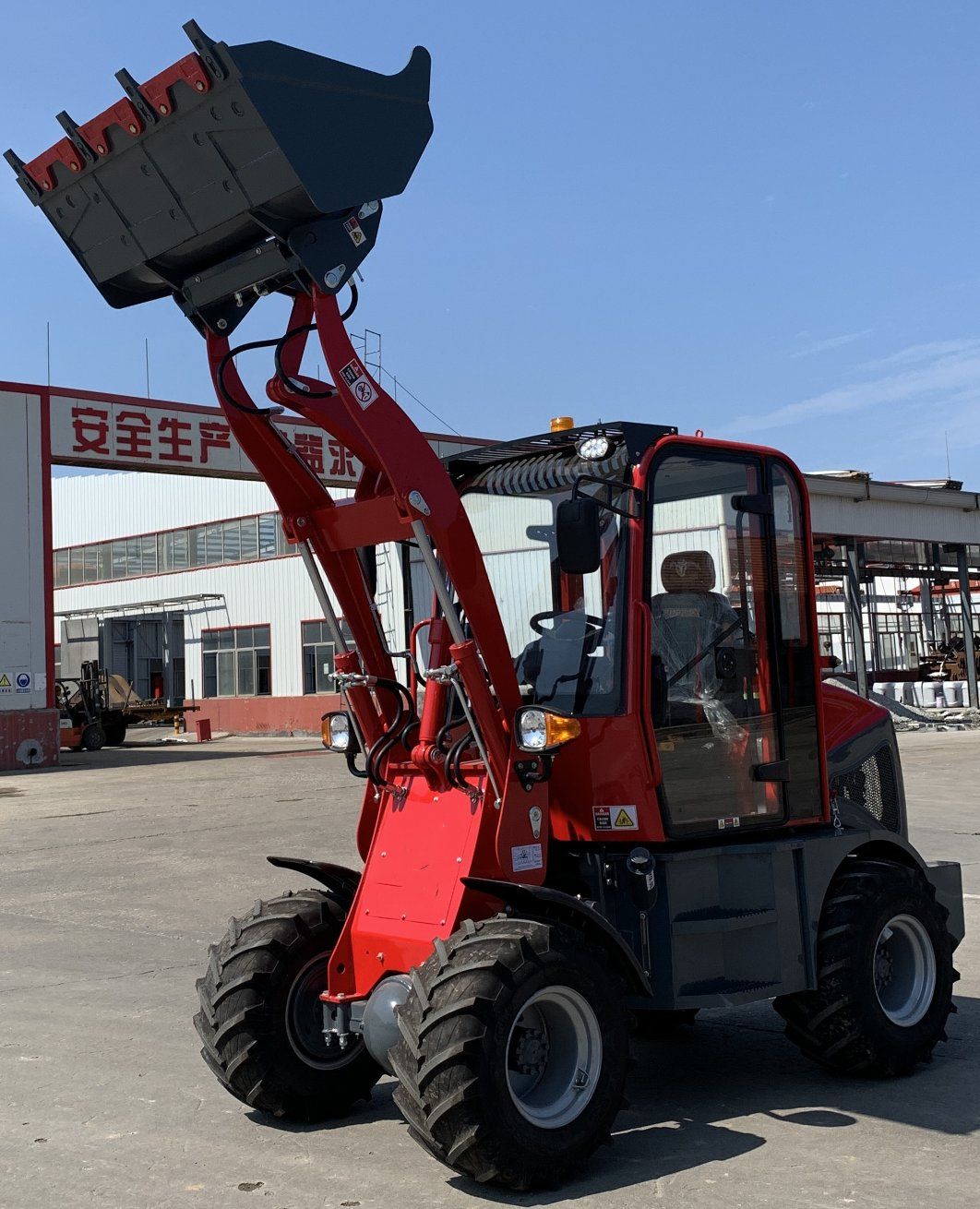

LGCM Multiple Colors Mini Wheel Loader for Sale Detailed PhotosThe small loader is a kind of earthwork construction machinery widely used in roads, railways, hydropower, construction, ports, mines and other construction projects. It is mainly used for loading and unloading bulk materials such as soi......
Send Inquiry
Product Description
Different auxiliary working devices can also be used for bulldozing, lifting and other materials such as wood loading and unloading operations.
In addition, it can also carry out operations such as pushing and transporting the soil, leveling the ground, and towing other machinery. Because of its advantages such as fast operation speed, high efficiency, good maneuverability, and light operation, it has become one of the main types of earth and stone construction in engineering construction.
| Parameter | Value | Parameter | Value |
| Engine brand | Changchai 390Q | /Discharging angle(°) | 37° |
| Power (kw) | 18.4 | Min. ground clearance mm | 220 |
| Max. Torque( N·m/rpm) | 90/1800 | Turning radius(mm) (front right tire outer sides) | 4800 |
| Max. fuel consumption (g/kw.h) | 230 | Driving speed (km/h) | 20 |
| Axle | narrow axle | Wheel base (mm) | 1905 |
| Driving type | Four wheel driving | Wheel track (mm) | 1150 |
| Braking type | Drum brake | Operating weight( kg) | 2532 |
| Transmission | 240 integrated | Rated load (Kg) | 800 |

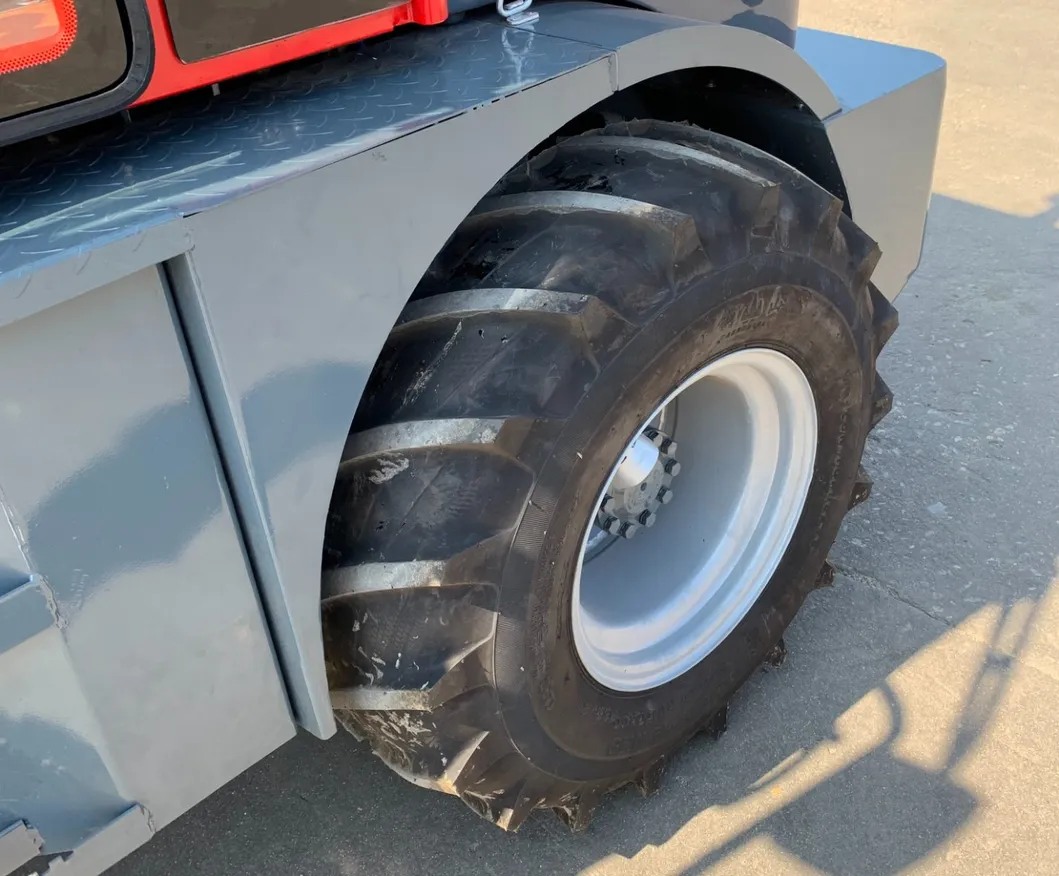

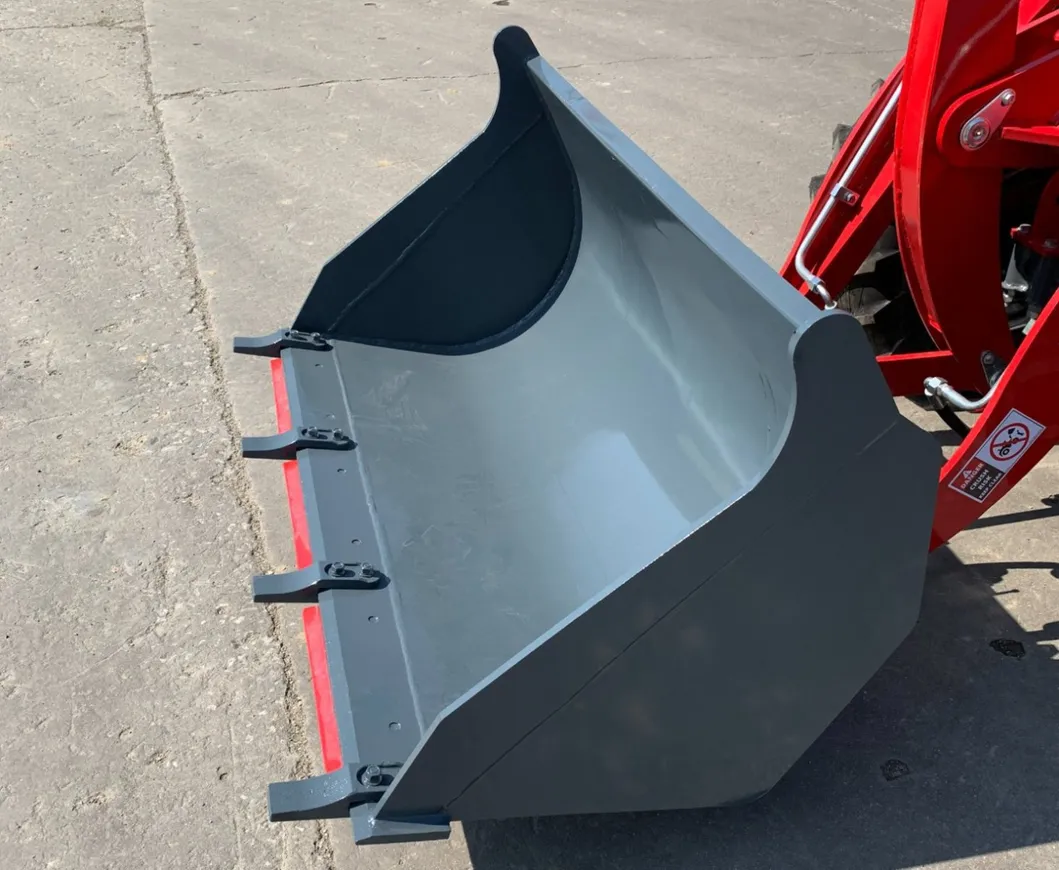

| Tire | 31*15.5-16 | Bucket(m3) | 0.4 |
| Length*Width*Height(+hook) (mm) | 4445*1550*2510(50) | Diesel tank effective volume( L) | 55 |
| Front wheel to counter weight (mm) | 2985 | Hydraulic tank effective volume (L) | 60 |
| Dumping height (mm) | 2300 | Total cycle time (s) | 8.86 |
| Dumping reach (mm) | 690 | Hydraulic system pressure(Mpa) | 16 |
Accessories for different working conditions
Efficiency
1. High travel speed
2. Small turning radius and good adaptability to various working sites
3. Short total cycle time with flexible movement
Safety
1. Reliable braking system
2. Safe and comfortable operating environment
Energy Saving & Green Initiative
1. Remarkable fuel and energy conservation, save 25% based on same configuration
2. Low noise
Reliability & Durability
1. Reliable drive system
2. Upgraded hydraulic system
3. New design concept of electrical system
4. Optimal designed structural components, Have passed 200,000 times of fatigue enhancement tests
Comfort & Convenience
1. Cab space enlarged by 15%
2. Low noise, shock-absorbed and dust proof cab
3. side-flipped engine hood, easy for maintenance
4. Humanization-designed operating lever
Energy Saving & Green Initiative
1. Yangma engine is adopted for strong power, large torque reserve and excellent performance. Pumps with large displacement are equipped, which greatly increases working efficiency and decreases fuel consumption and noise, together with short total cycle time.
Reliability & Durability
1. Structural components are of advanced design and manufacture, featuring excellent impact resistance, reliability and load capacity.
2. Countershaft transmission is adopted, which is compact in structure. With high transmission efficiency, low failure rate, tiny impact of shifting and easy maintenance, it suits well to heavy duty mini loaders.
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
