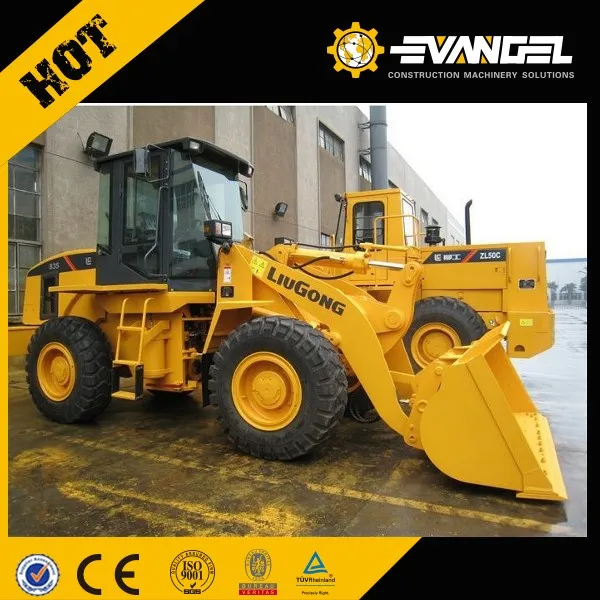

Liugong Mini Front End Loader 3 Ton Wheel Loader Clg836

Product Description

Contact Person: Adela Huang

Phone: +86-15800954269

--------------------------------------------

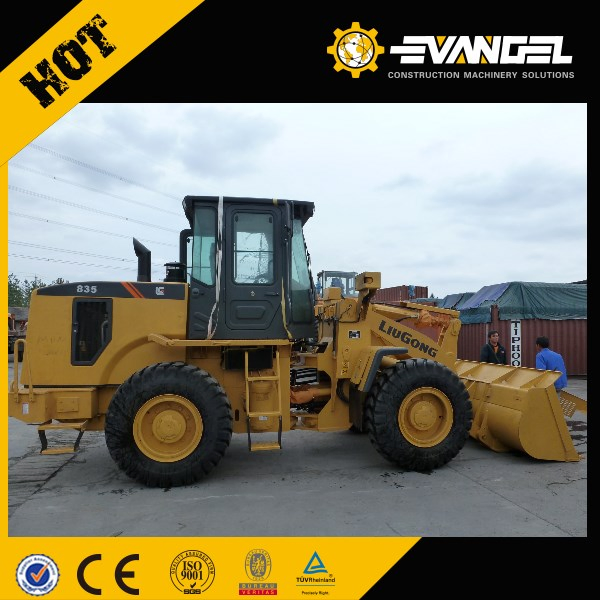

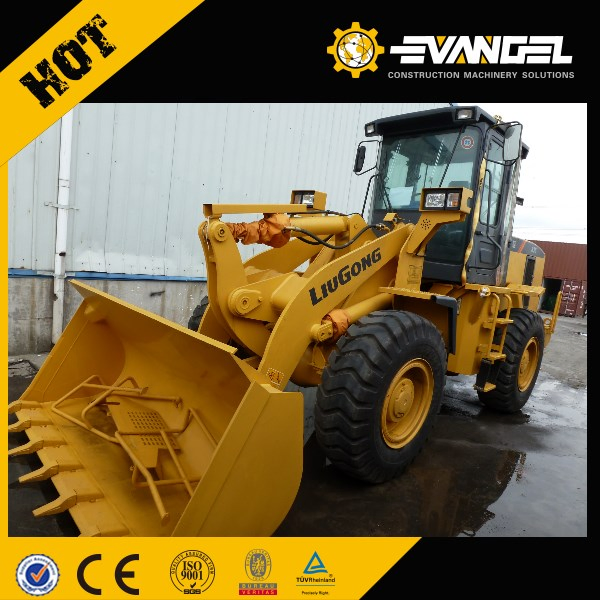

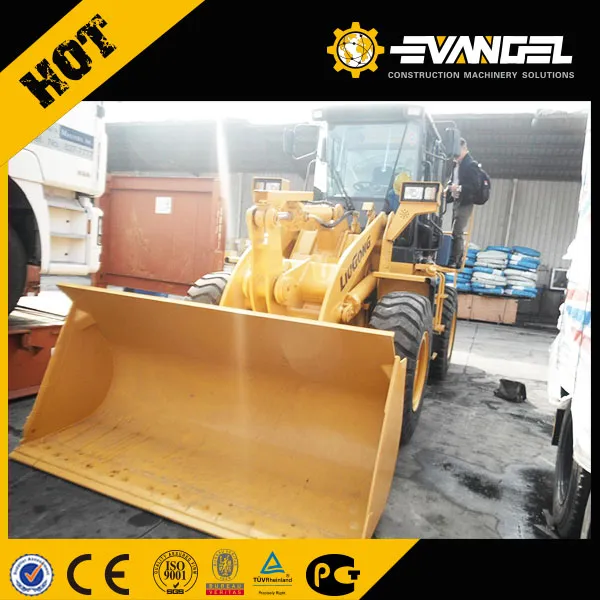

Liugong Brand 3 Ton 2cbm Shovel Front Wheel Loader CLG835

  1.Product Name:Liugong CLG835 Small Wheel Loader
   2.Bucket capacity:1.5M3
   3.Rated load:3000kg
   4.Max.drawing force:90Kn
   5.Max. traction:175Kn
   6.L*W*H:8185*3000*3465MM



Rated load	3000Kg
Operating weight	10200Kg
Rated bucket capacity	1.7m3
Max. breakout force	90kN
Max. dump clearance	3160mm
Dump reach	1050mm
Dump angle at any position	≥45°
Digging depth(with bucket bottom horizontal)	212mm
Min. turning radius
-----Outside of bucket	5600mm
-----Outside of rear wheel	5205mm
Oscillating angle of rear axle	±11°
Lifting time of bucket	≤5.8s
Lowering time of bucket	≤3.77s
Dumping time	≤1.43s
Working Equipment
Model of oil pump	CBGj2100
System pressure	16Mpa
Model of multi-way directional valve	DF25.2C
Pilot valve	DJS2-UX/UU
Axle And Tyre
Type of main reducer	Spiral bevel gear, single stage
Gear ratio of main reducer	5.286
Type of final reducer	Single stage planetary
Gear ratio of final reducer	4.75
total ratio	25.1
Max. tractive force	93.5kN
Tyre size	17.5-25
Transmission System
Torque Converter
Type	3-elements,single stage(Shantui)
Torque ratio	3.1
Cooling type	Pressure oil circulating
Gear box
Type	Power shift(China advance)
Gear shifts(Forward/Reverse)	F4/R2
Traveling speed(Km/h)
Forward/Reverse	7.7/9.5
Forward/Reverse	13/18
Forward	25
Forward	40
Braking System
Service brake	Air over oil activate 4 wheel brake with capliar disc brake
Air pressure	0.68Mpa
Parking brake	Draper -type soft axle control
Steering System
Type	Middle articulated frame. Co-axis flow amp.steering
Model of steering pump	CBGj2050
Model of redirector	BZZ5-E400C
System pressure	14MPa
Articulated steering angle	38±1°(L/R)
Dimensions
Length(with bucket on ground)	7135mm
Width(to outside of wheels)	2350mm
Height(To the top of the cab)	3300mm
Bucket width	2440mm
Wheel base	2750mm
Tread	2050mm
Ground clearance	395mm
Service Capacities
Fuel tank	140L
