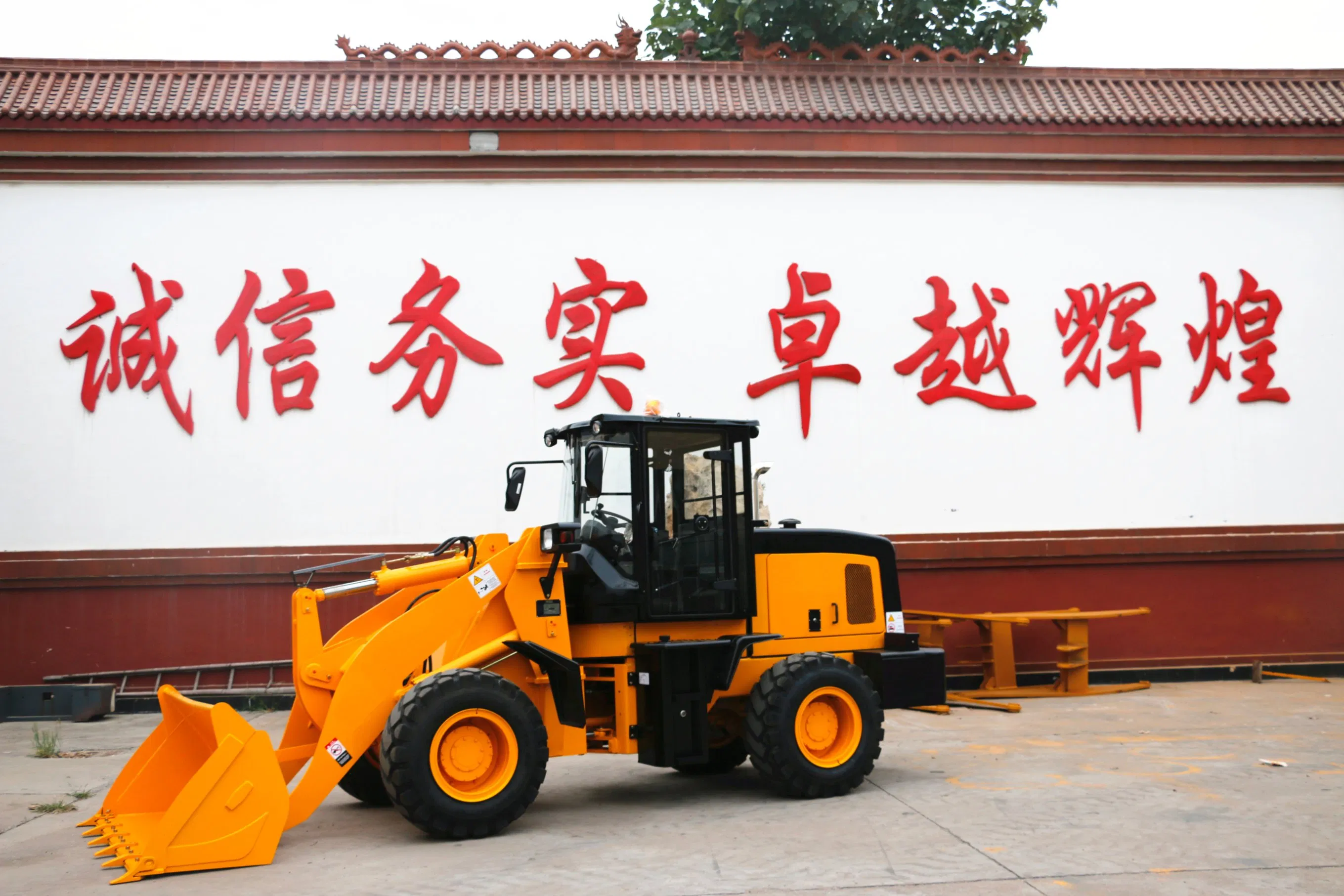

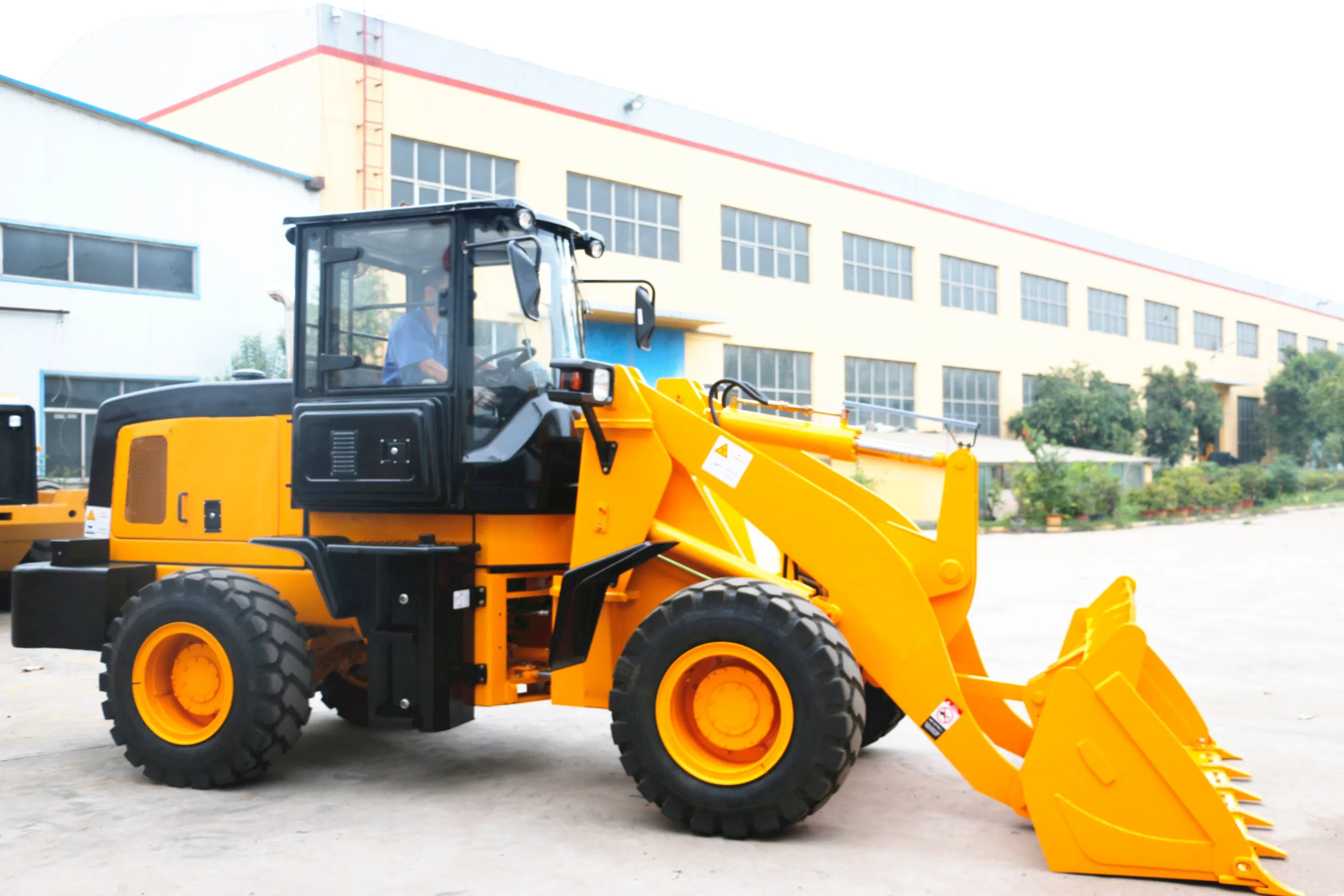

    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    • Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CELuqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    • Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CELuqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    • Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CELuqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    • Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CELuqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE

    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE

    Performance And Characteristics1. Originted from Komatsu technology, high reliability and productivity.2. Torque converter and counter-shaft transmission gearbox-Komatsu tecnology.3. Bucket can be leveled automatically, optimized working device.4.Comfortable operation environmrnt, new design cabin, ......

    Send Inquiry

    Product Description

    Performance And Characteristics


    1. Originted from Komatsu technology, high reliability and productivity.
    2. Torque converter and counter-shaft transmission gearbox-Komatsu tecnology.
    3. Bucket can be leveled automatically, optimized working device.

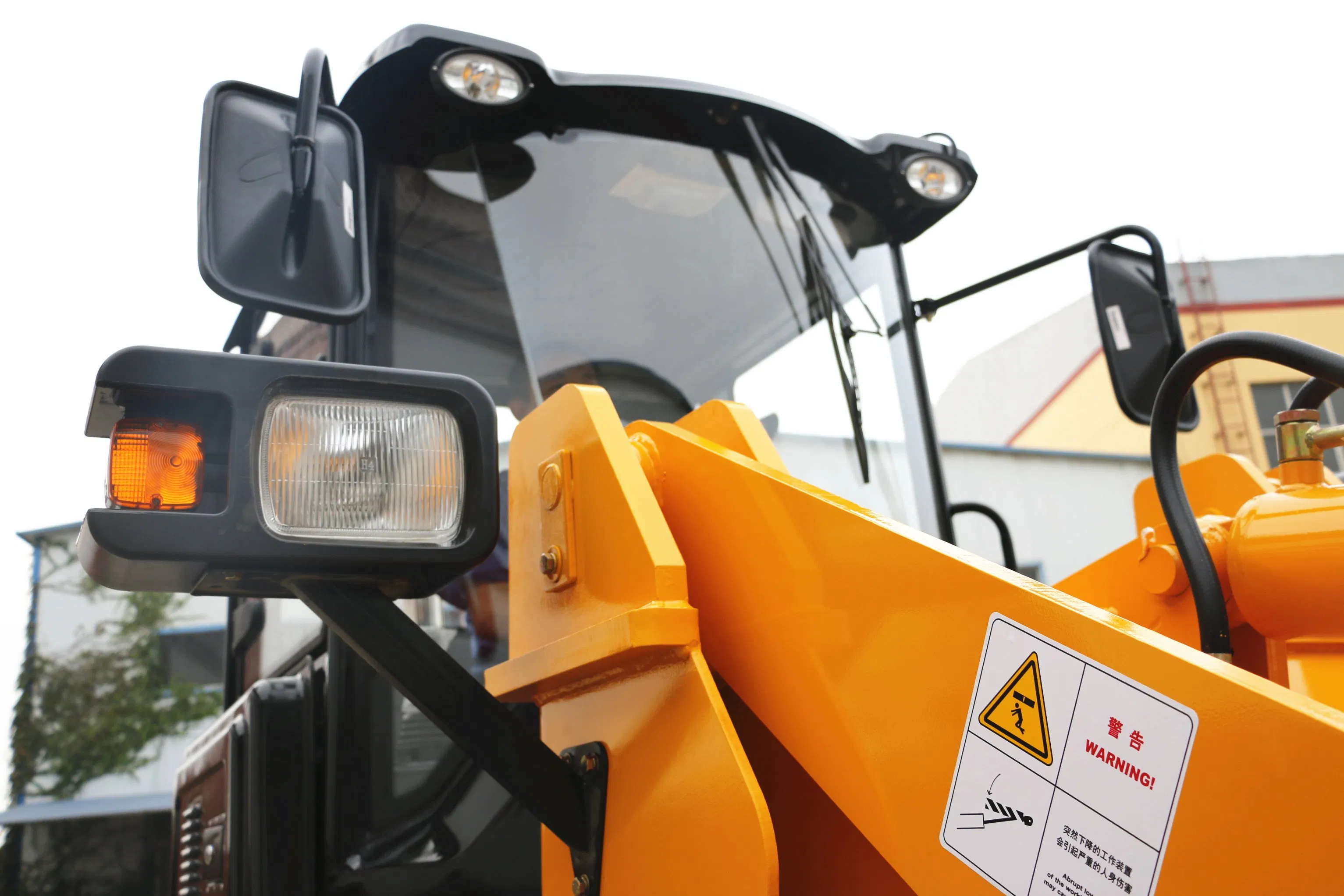

    4.Comfortable operation environmrnt, new design cabin, grammer seat, A/C at option
    5.Various working devices of attachment are available, such as wooden fork, pipe fork, grass fork, stone bucket, enlarged bucket, plow, fork etc, to meet different need.

    SPECIFICATIONS                                                             LQ920
    Rated capacity1.3m 3
    Rated weight2000Kg
    Operating weight5200Kg
    Max .dump height3200mm
    Max .dump reach885mm
    Min .ground clearance310mm
    Wheel base2150mm
    Tread1440mm
    Height with bucket at full raise3440mm
    Performance of bucket being set levelYes
    Static tilting load at full steering position32KN
    Max.breakout force48.87KN
    Max.drawbar pull34.5KN
    Max.grade ability30°
    Total of three:lifting,dumping,lowering9.8s
    Overrall demensions(length*width*height)5910*1910*2810
    Engine modelYunnei 4105 with turbo charge
    Cylinder-bore*stroke4-100*115
    Max.torsion206Nm
    Rated power76kw
    Min.fuel consumption251.6g/kw.h
    Rated speed2200r/min
    Model of torque devicePatternYJ280
    Pattern3_element,single stage
    Number of gear shift4 forward,2 revers
    Max.travel speed24km/h
    Main reducer typeArc taper gear,moderation of first stage
    Pattern of wheelside moderationPlanet gear moderation of single
    Tyre size16/70_20
    Front tyre pressure220kpa
    Rear tyre pressure180kpa
    Streering systemB225_250
    Min.turning radius(outside of bucket)4239mm
    Valve distributing workingZL20E_04T.QW
    Working pumpsCBG2063
    Brake systemAir assisted oil disc type four wheel brake
    Fuel capacity80L

    Exhibition and visiting

    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE

    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
    Luqing L920 Front End Loader Bucket Compact Small Mini Wheel Loader 1.6/1.8/2.0/2.2/2.5ton Loader with ISO and CE
