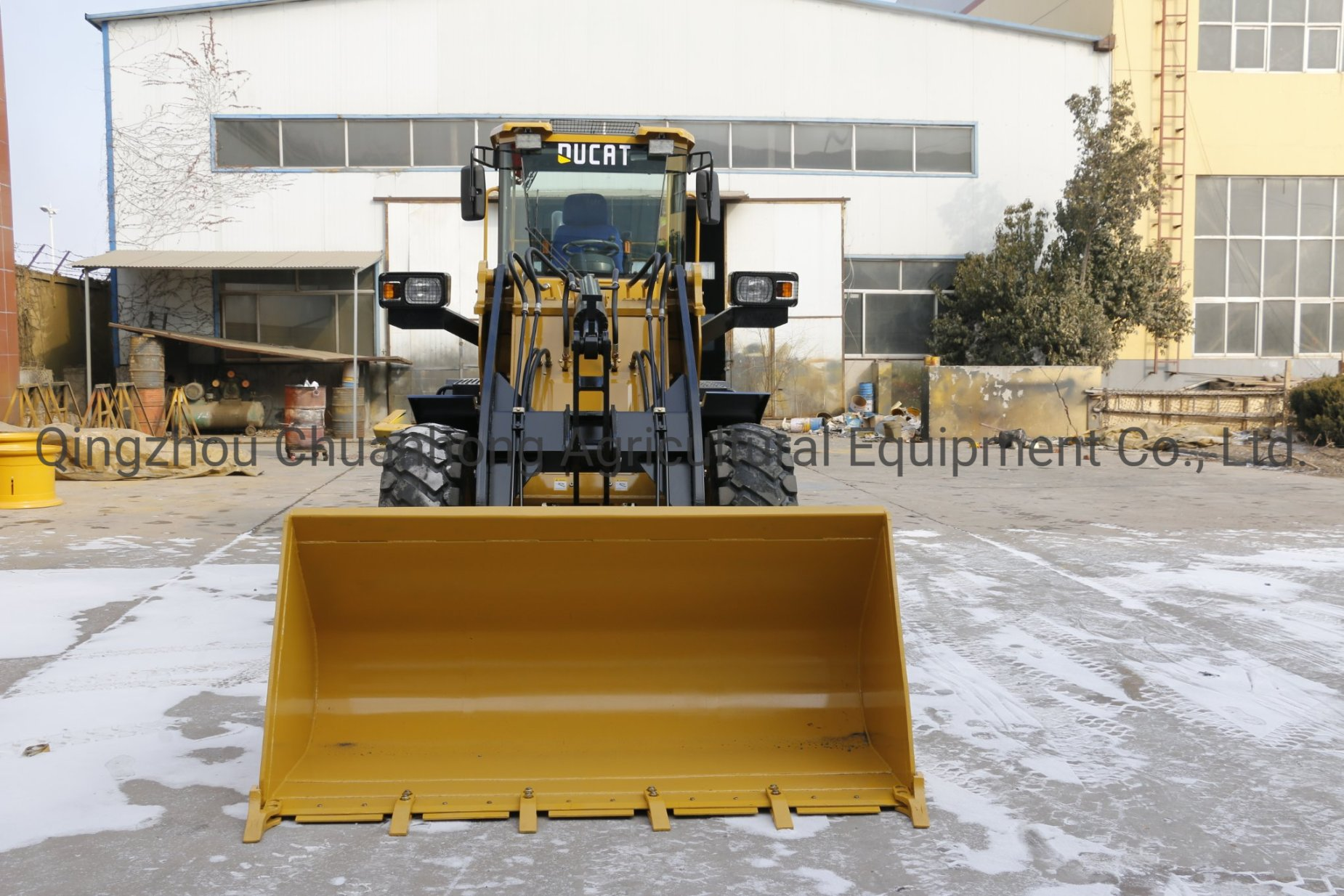

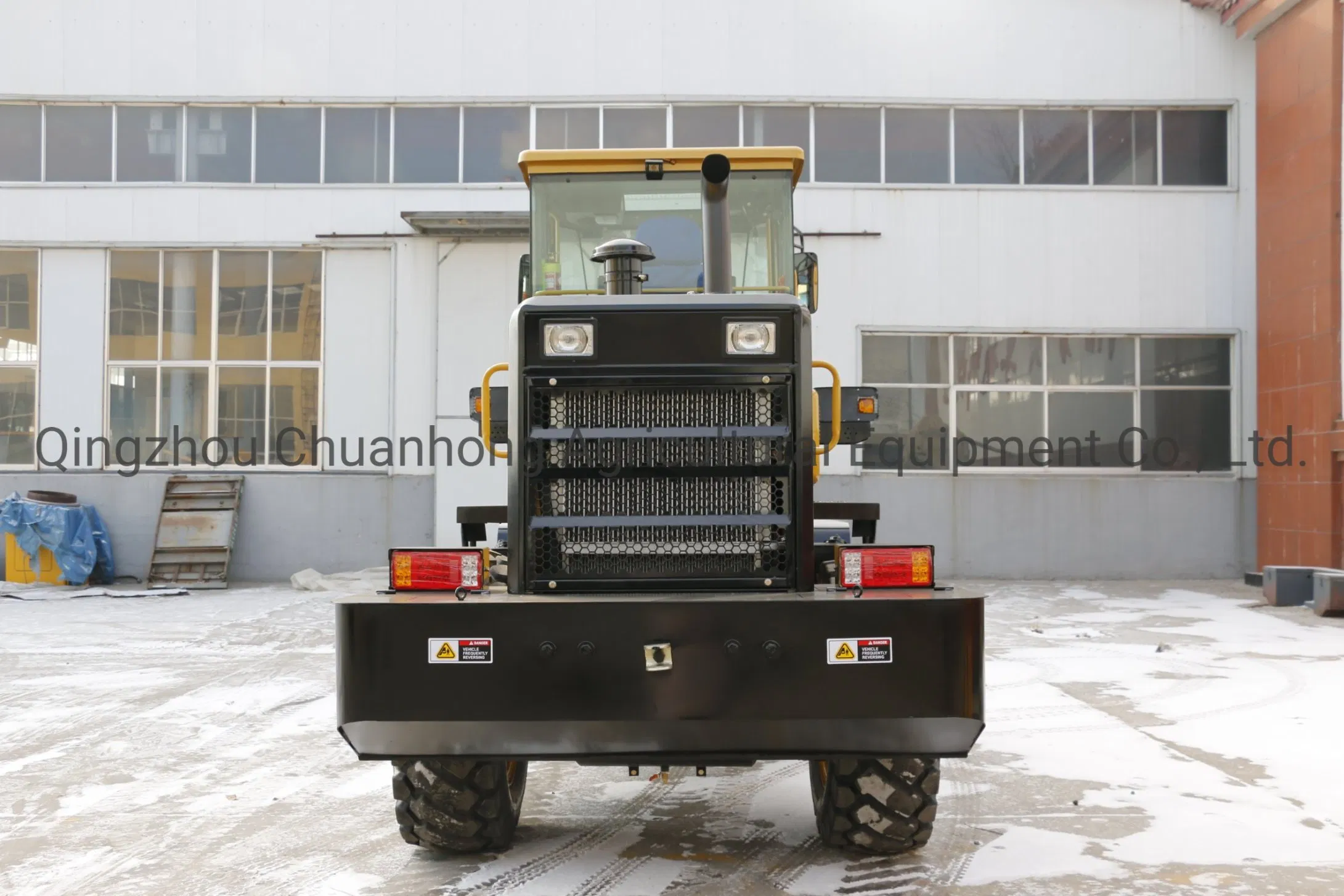

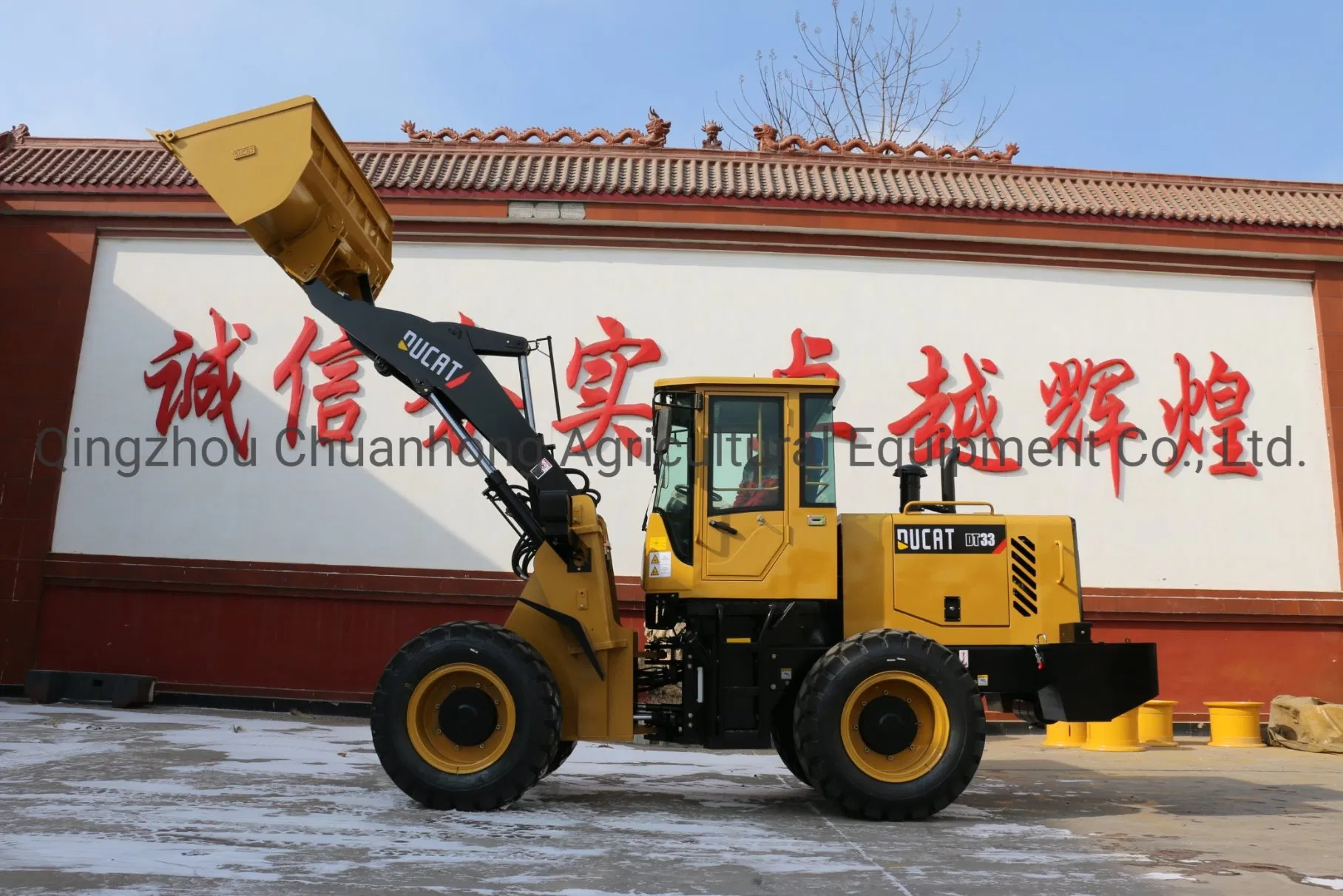

New 2.8ton Construction Machinery Wheel Loader
1. Streamlined appearance design, elegant and generous2. The working device bucket can be set level automatically, computer is adopted to optimize design, high efficiency3. New sealing cab, Grammer seat, the operating environment is more comfortable4. Can allocate many kinds of selectante assembly s......
Send Inquiry
Product Description
1. Streamlined appearance design, elegant and generous
2. The working device bucket can be set level automatically, computer is adopted to optimize design, high efficiency
3. New sealing cab, Grammer seat, the operating environment is more comfortable
4. Can allocate many kinds of selectante assembly such as wooden fork, pipe fork, grass fork, stone bucket, enlarged bucket, plow, fork etc, to meet the needs of various working states.
2. The working device bucket can be set level automatically, computer is adopted to optimize design, high efficiency
3. New sealing cab, Grammer seat, the operating environment is more comfortable
4. Can allocate many kinds of selectante assembly such as wooden fork, pipe fork, grass fork, stone bucket, enlarged bucket, plow, fork etc, to meet the needs of various working states.
| Specification LQ928 | |
| Rated capacity | 1.5 |
| Rated weight | 2800kg |
| Operating weight | 6500kg |
| Performance of bucket being set level | Yes |
| Max. breakout force | 70KN |
| Max. drawbar pull | 45KN |
| Max. grade ability | 38° |
| Total of three time:lifting dumping lowering | 9.7m |
| Max.dump height | 3.2m/3.5m |
| Max.dump reach | 1084mm |
| Min. ground clearance | 310mm |
| Wheel base | 2470mm |
| Tread | 1380mm |
| Overall dimensions (length*width*height) | 6150*1970*3000mm |
| Engine | YTO/ WEICHAI/ CUMMINS |
| Model | YTO YT4B2Z-24/ WEICHAI 4RNSG3/ CUMMINS 4BT3.9-C100 |
| Pattern | inline,water cooled,dir.inject,fourstrokees |
| Number of cylinders- internal diameter*strokes | 4-108*120 |
| Max.torsion | 261Nm |
| Rated power | 74.9KW/ 60KW/ 75KW |
| Min.fuel consuming rate | 216g/kw.h |
| Specified rotational speed | 2400r/min |
| Transmission | Gearbox seperated from torque converter |
| Model of torque device | YJ280 |
| Pattern | 3-element,single stage |
| Pattern of gearboxes | FULL-powershift,countersaft type |
| Number of great shift | 4forward,4reverse |
| Max.travel speed | 30km/h |
| Main reducer type | arc taper gear moderation of first grade |
| Pattern of wheelside moderation | planet gear moderation of single |
| Type size | 16/70-20 |
| Front type pressure | 220KPa |
| Rear type pressure | 180KPa |
| Steering angle(each direction) | 35°±1 |
| Min.turning radius(outside of bucket | 4500mm |
| Parking brake | Soft axle control,outside bunch drum type |
| Fuel capacity | 80L |
| Pressure of working hydraulic system | 160kgf/cm 2 |
