Shantui 5 Ton Capacity Large Wheel Loader L56 Construction/Engineering/Foresture/Agriculture
Wheel loader---LQ956Main features 1. Streamlined appearance, beautiful and elegant. 2. STEYR WD10G220E22 engine, rated power, 162kw/2200rmp. 3.Chinese top brand torque converter and gearbox-ZF tecnology, easy maintaining with good quality 4. Pilot controlled, fully hydraulic steering system, power......
Send Inquiry
Product Description

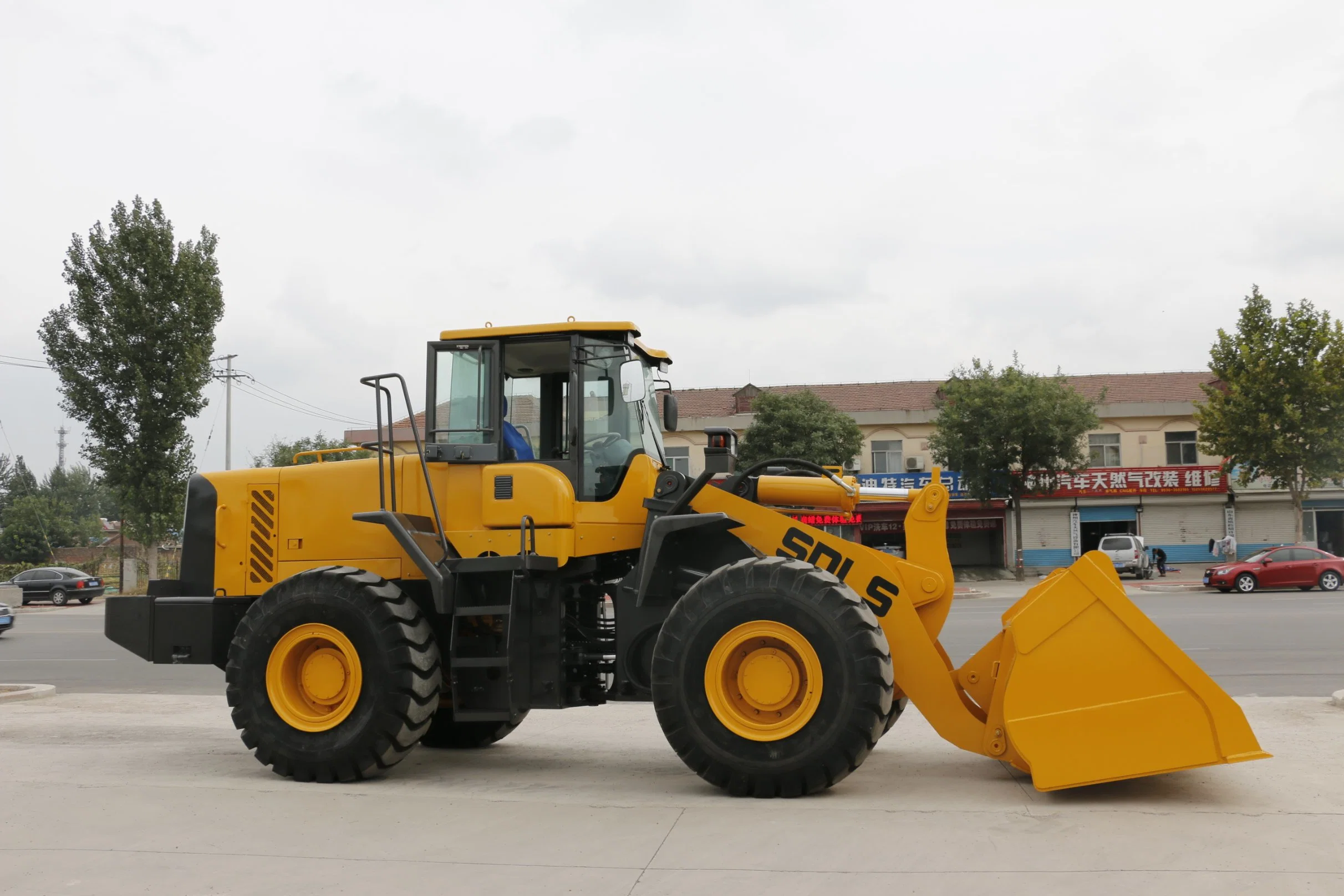

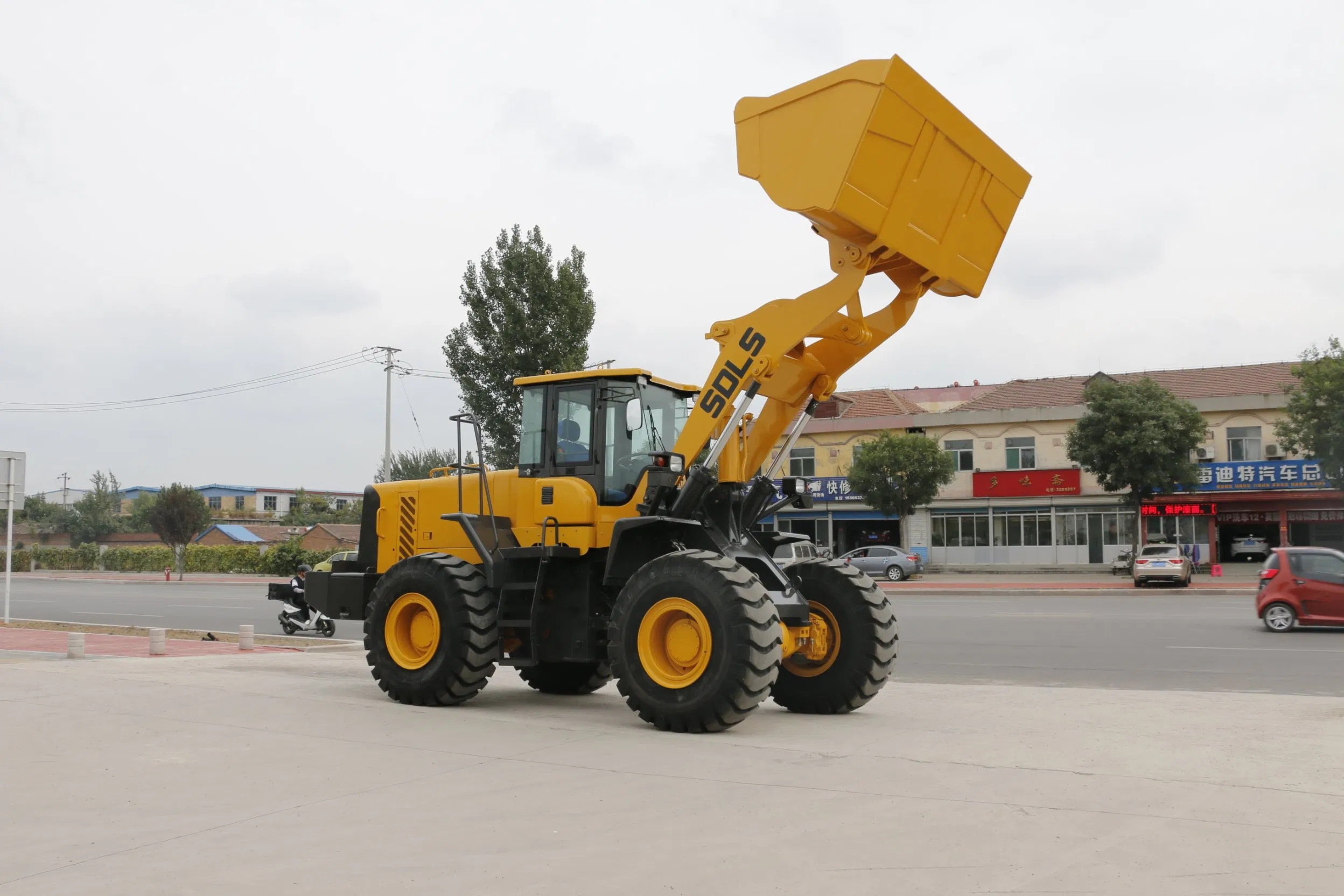

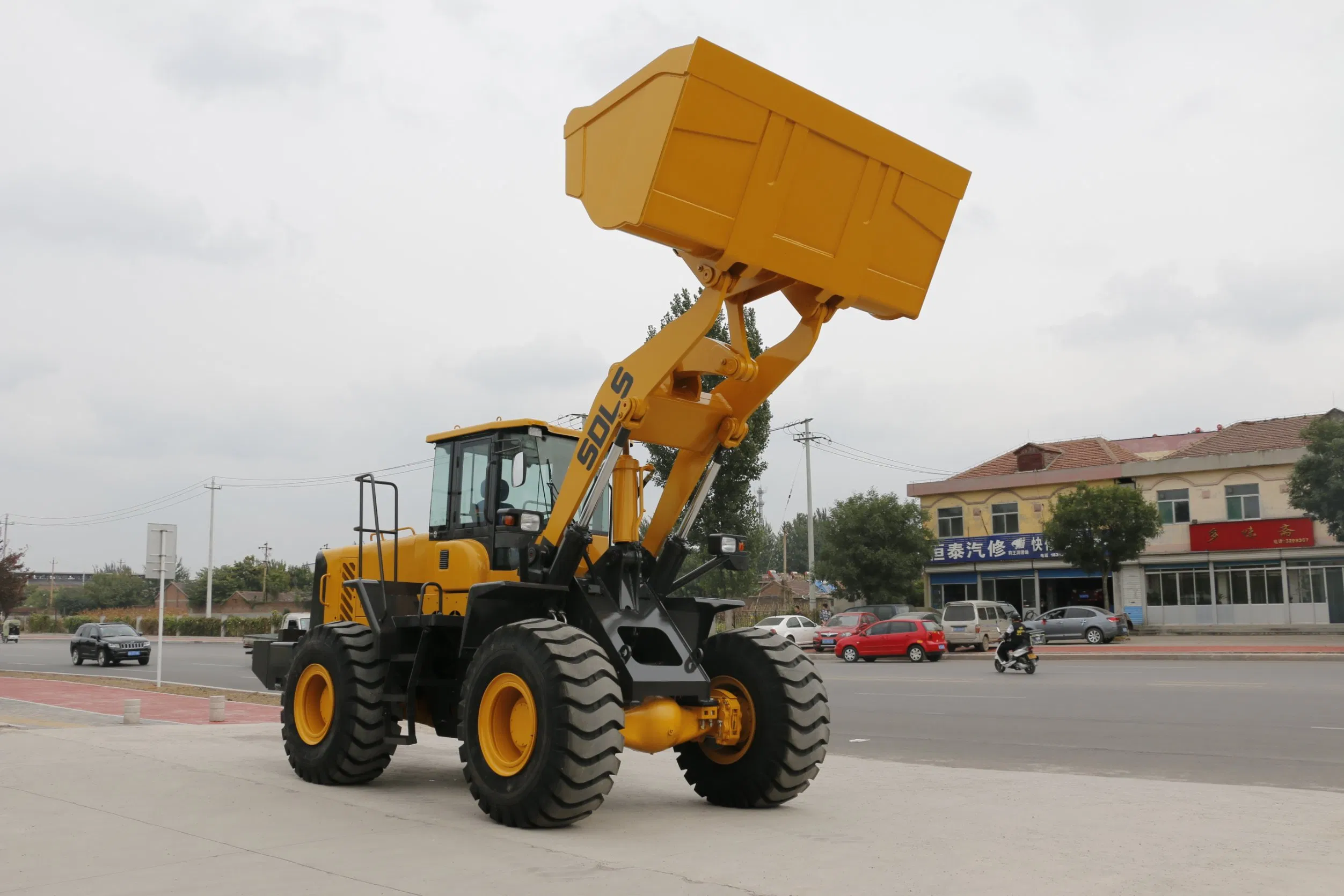

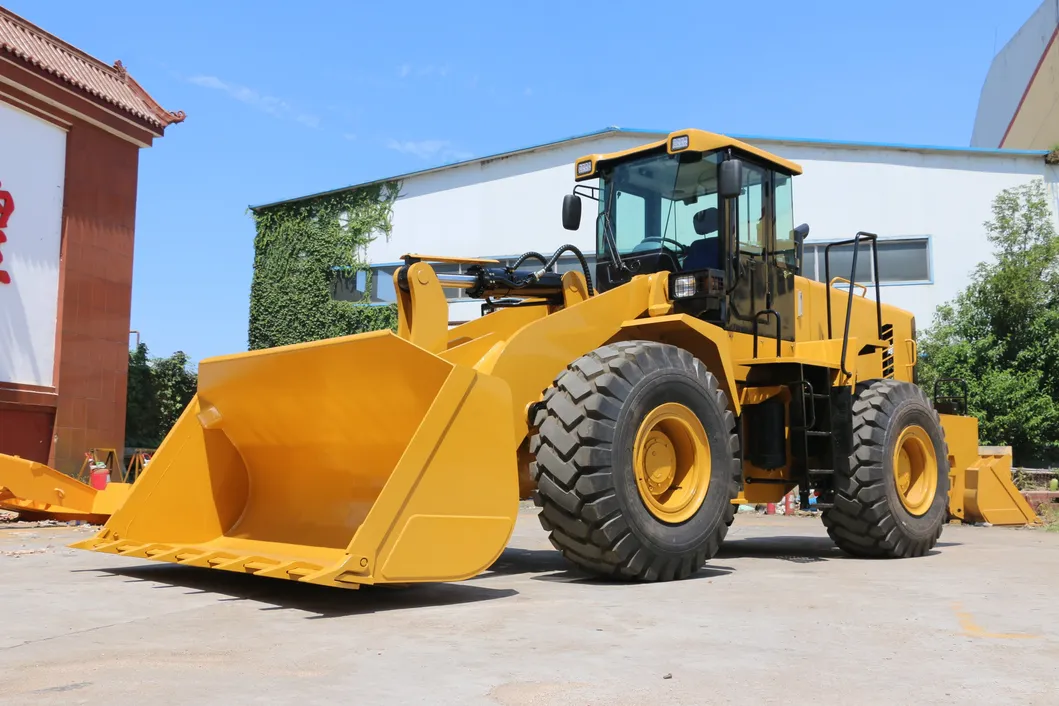

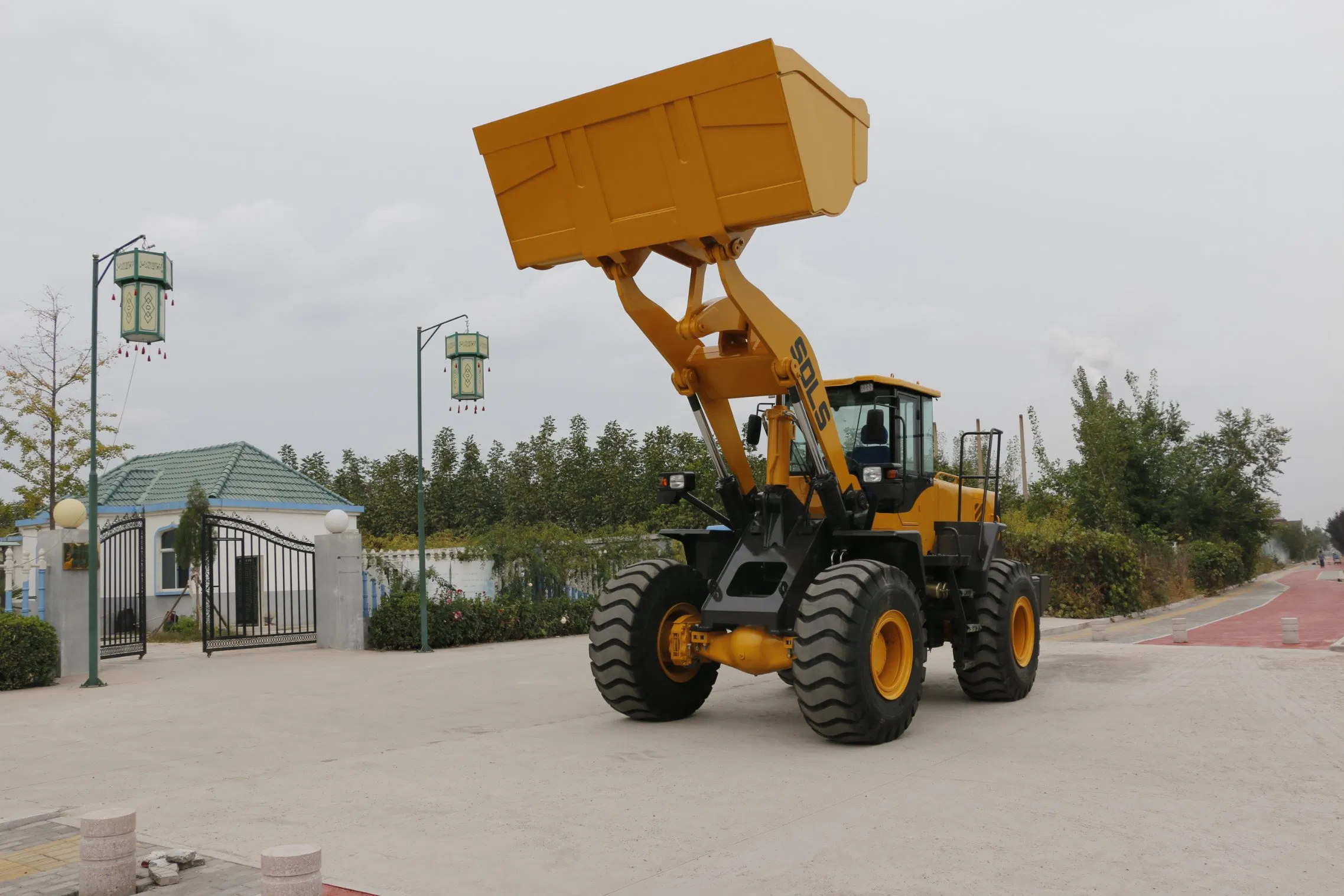

Wheel loader---LQ956
Main features 1. Streamlined appearance, beautiful and elegant. |
 |
 |
2. STEYR WD10G220E22 engine, rated power, 162kw/2200rmp. |
 |

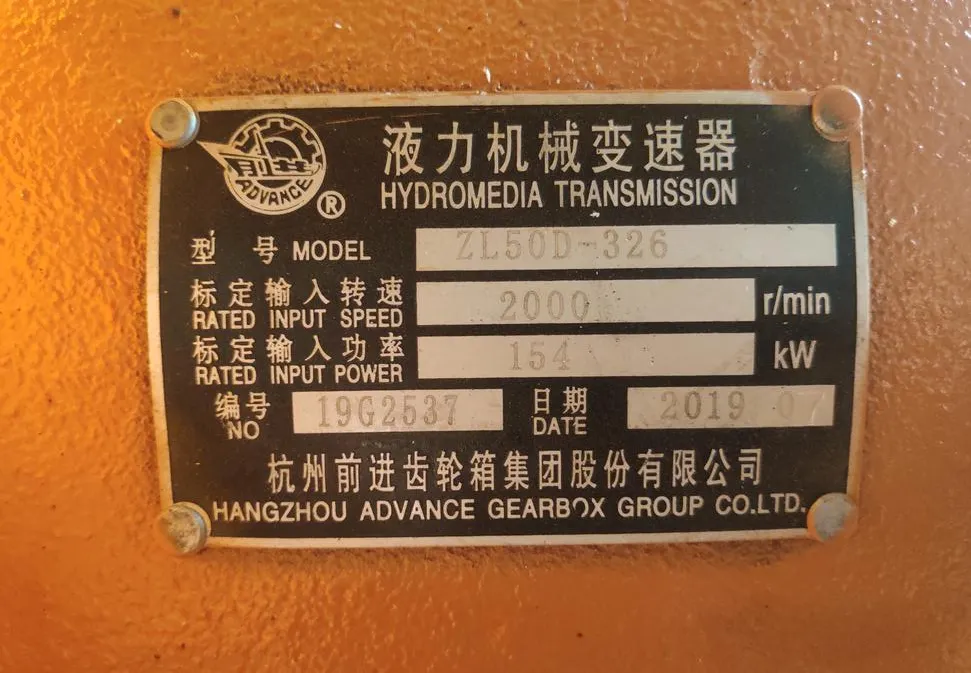

3.Chinese top brand torque converter and gearbox-ZF tecnology, easy maintaining with good quality |
 |

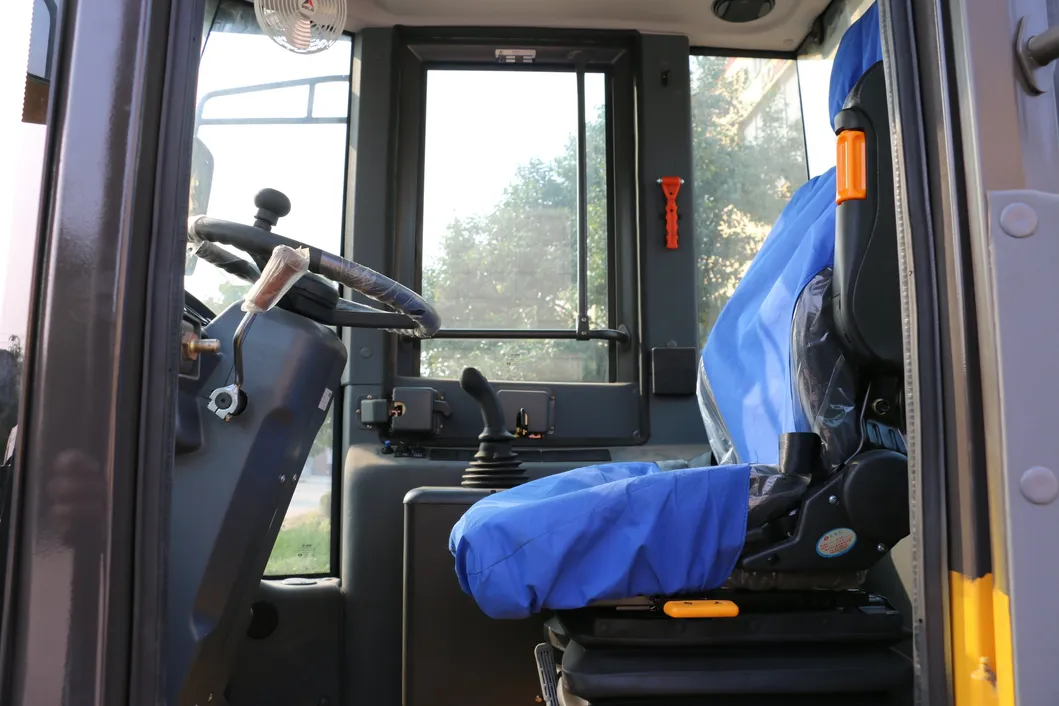

4. Pilot controlled, fully hydraulic steering system, power shift transmission, easier operation |
 |

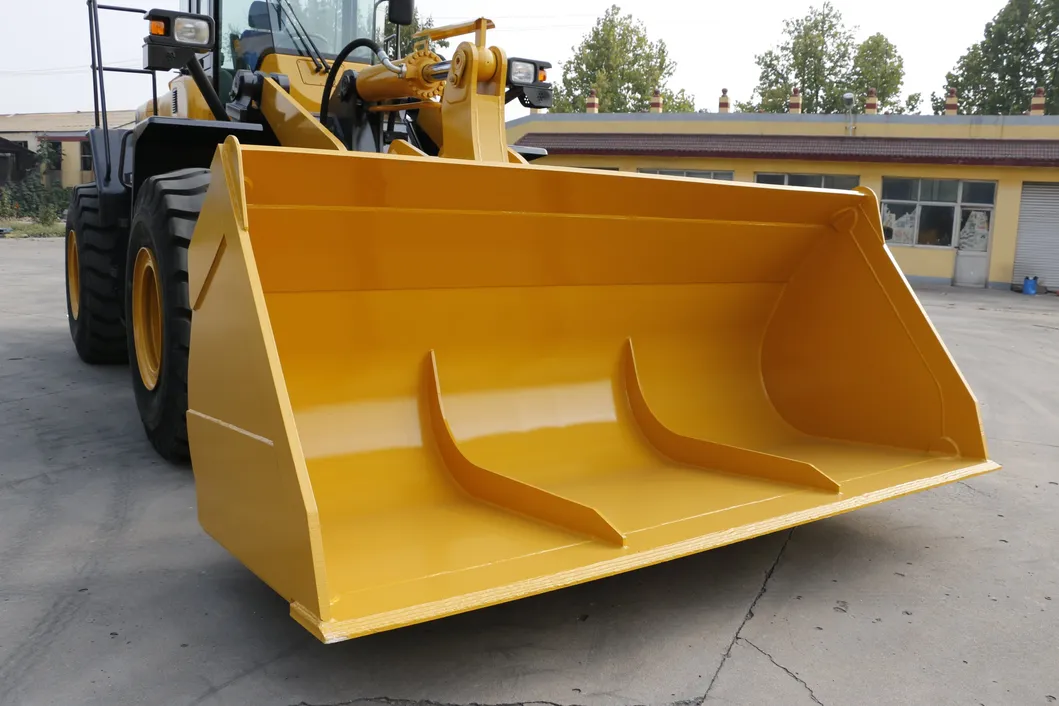

5.Strong bucket, optimized working device, higher productivity Various working devices of attachment are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork etc, to meet different needs |
 |
 |
 |
Main features
| Rated capacity | 3m 3 |
| Rated weight | 5000Kg |
| Operating weight | 178000Kg |
| Performance of bucket being set level | Yes |
| Static tilting load at full steering position | 98KN |
| Max. breakout force | 172.6KN |
| Max. drawbar pull | 151.9KN |
| Max. grade ability | 30° |
| Total of three time: lifting dumping lowering | 11.3s |
| Max. dump height | 3098mm |
| Max. dump reach | 1198mm |
| Min. ground clearance | 450mm |
| Wheel base | 3200mm |
| Overall dimensions(length*width*height) | 7836*3010*3300mm |
| Pattern | Inline, water cooled, dir. inject, fourstrokes |
| Cylinder-bore*stroke | 6-126*130 |
| Max. torsion | 779Nm |

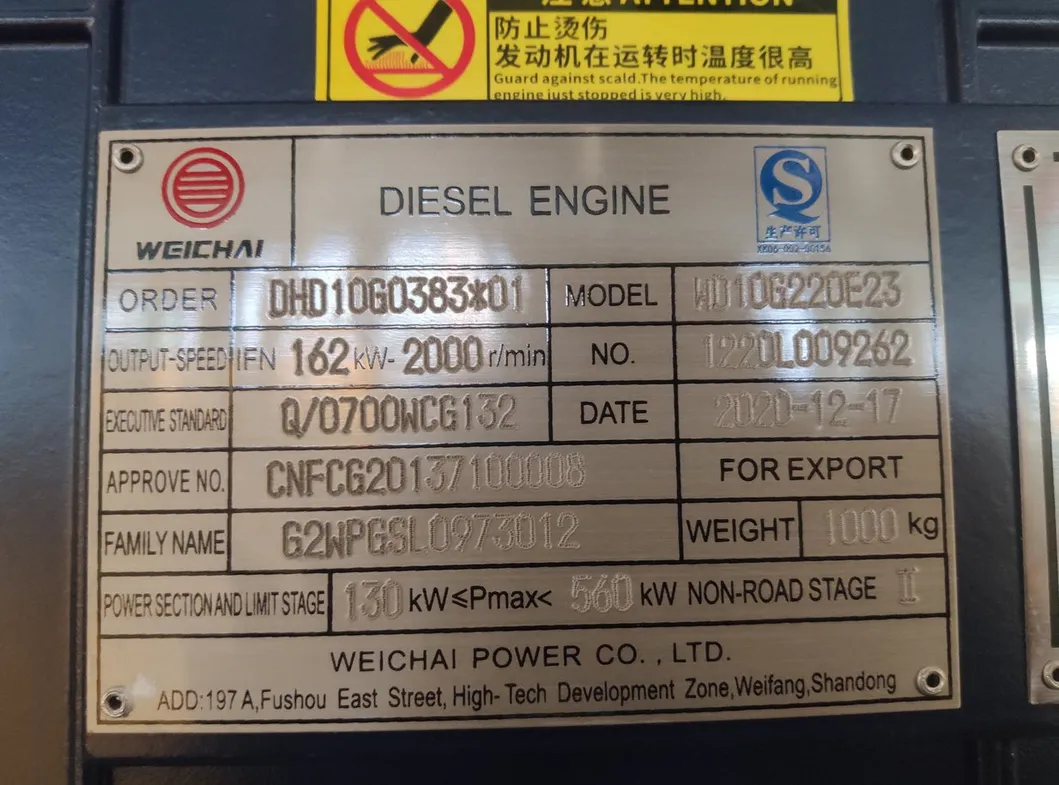

| Model of engine | WEICHAI STEYR WD10G220E22 |
| Rated power | 162KW |
| Min. fuel consuming rate | 214g/kw. h |
| Specified rotational speed | 2200r/min |
| Model of torque device | YJ375 |
| Pattern | 3-element, single stage |
| Number of great shift | 2 forward, 1 reverse |
| Max. travel speed | 38km/h |
| Main reducer type | Spiral bevel gear, moderationof first stage |
| Pattern of wheelside moderation | Single stage planetary |
| Type size | 23.5-25 |
| Front type pressure | 392KPa |
| Rear type pressure | 343KPa |
| Pattern | Articulated and hydraulic steering, load sensing meets |
| Steering angle(each direction) | 35± 1 |
| Min. turning radius(outside of bucket) | 7268mm |
| Valve distributing working | DF32@ 2C |
| Working pumps | CBG3100 |
| Brake system | Air assisted oil type four wheel brake |
| Parking brake | Air cutting control inner expand hoof |
| Fuel capacity | 320L |
| Pressure of working hydraulic system | 160kfg/cm 2 |
Exhibition and our workers visiting our customers
FAQ
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe:Sweden,Germany, Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya, etc.
Australia
2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like
engines, bridge, transmissions, and many parts designed and produced by ourselves, always
adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce
production costs to ensure that our price is competitive.
3)Service Team: First, our sales managers are working 24 hours one day, ready to answer
your questions at any time. Second, professional maintenance team with
senior technicians, ready to provide support services to users and dealers. Most problems
can be solved within 24 hours.
4)Fast Delivery: Under normal circumstances, we can delivery with 10 working days in factory
after receiving pre-payment.
after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.1)On T/T term, 30% payment is required in advance for production, 70% balance shall be
paid before delivery or against the copy of original B/L for old long cooperation clients.
paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses" can be accepted.
4.Which INCOTERMS 2010 we can work?
As a professional experienced supplier, we can handle all INCOTERMS 2010 terms, and wenormally work on FOB, CFR, CIF, DAP, FCA, EXW etc.
5.What logistics ways we can work for delivery?
1)For most Europe, South America and Africa etc. countries we can go by container or Roro
through ocean freight.
through ocean freight.
2)For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan
etc. we can delivery by road or railway.
etc. we can delivery by road or railway.
3)For light spare parts in urgent requirement, we can send it by international courier service,
such as DHL, TNT, EMS or other air transportation.
such as DHL, TNT, EMS or other air transportation.
6.How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust ourprice based on two situations:
1)The rate of USD
2)The price of material
Any questions, please contact us at anytime!Qingzhou Chuanhong Agriculture Equipment Co., Ltd
Add:NO.688 Yiwangfu Road,Qingzhou City,Shandong Province,China
