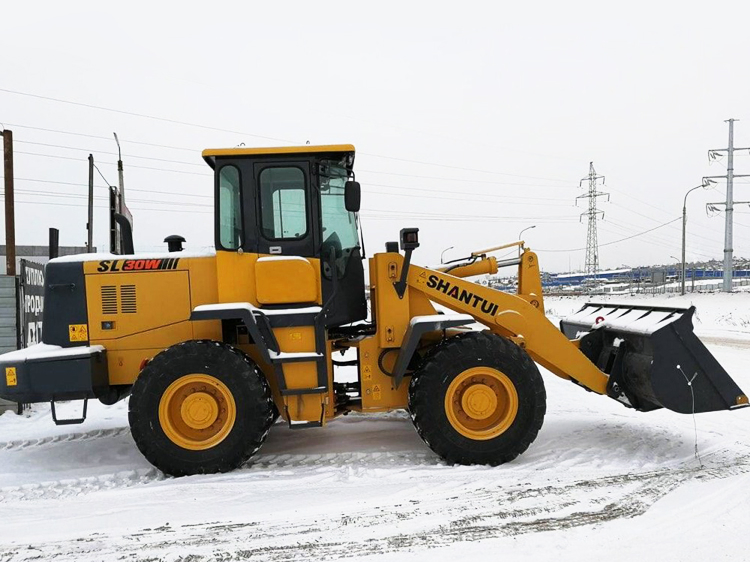

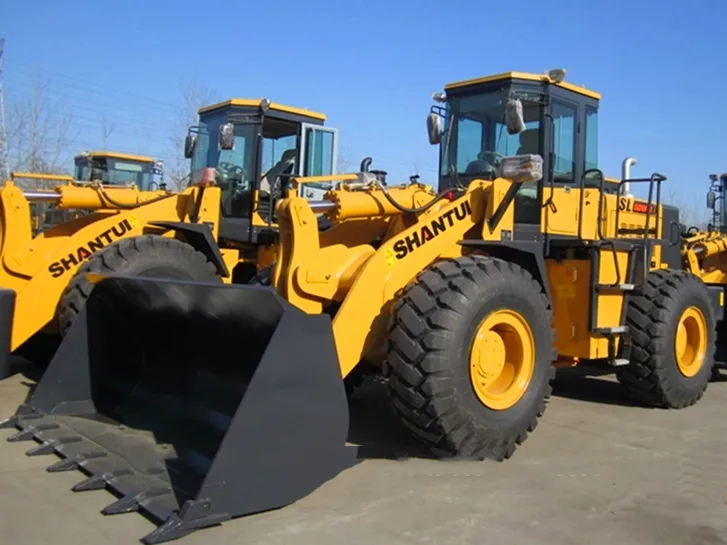

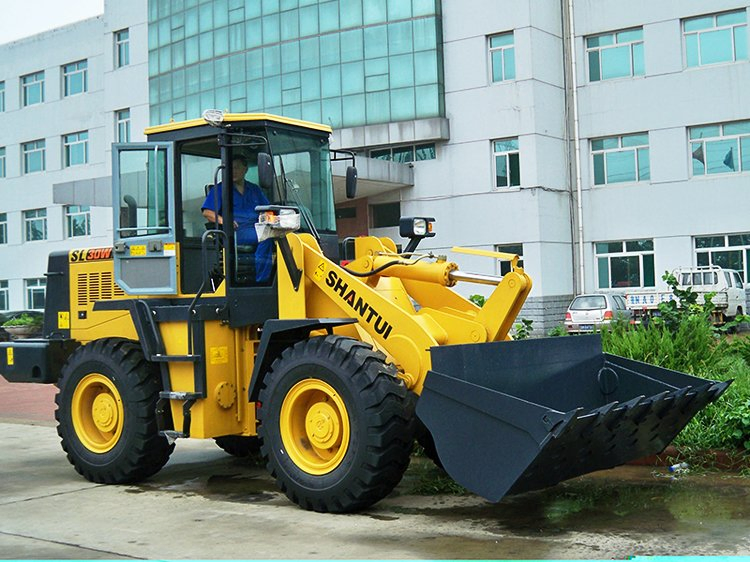

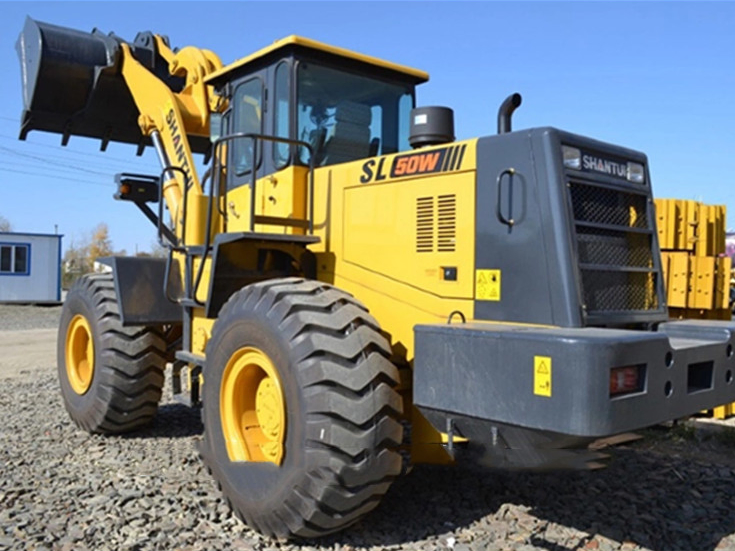

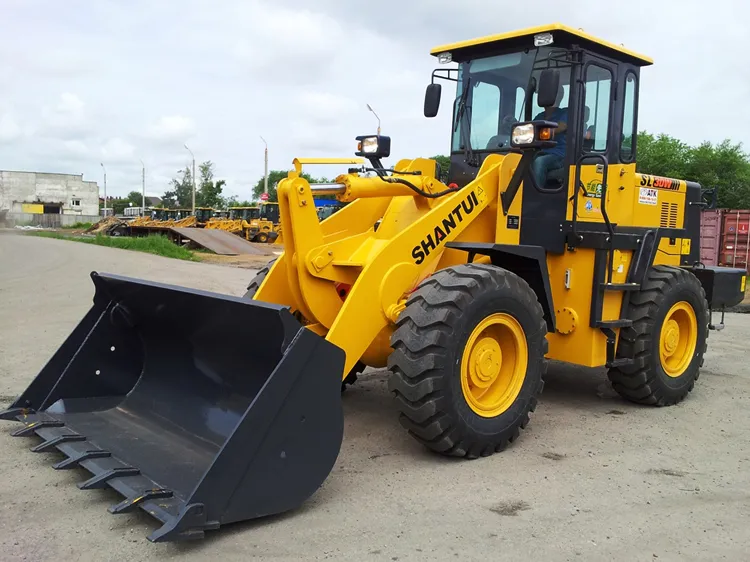

Shantui China 6ton Hydrostatic Transmission Wheel Loader
Shantui China 6Ton Hydrostatic Transmission Wheel loader Product Overview:Shantui wheel loader is a new high-efficiency and energy-saving product of long and medium wheelbases developed with the application of latest technologies and modern design methods and adopts hydraulic drive and hydraulic con......
Send Inquiry
Product Description
Product Overview:
Shantui wheel loader is a new high-efficiency and energy-saving product of long and medium wheelbases developed with the application of latest technologies and modern design methods and adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, light and flexible operations, and high efficiency and energy-saving. It guarantees outstanding site adaptability and flexibility and strong operation stability and can handle common.
Easy maintenance, simple and reliable operation, high cycle efficiency, good stability, long service life. It is your good choice.
parameter:
| Parameter name | SL60W-2 |
| Performance parameters | |
| Operating weight (Kg) | 20630 |
| Maximum dumping height (mm) | 3320 (standard boom)3600 (Long Boom) |
| Dumping reach (mm) | 1200 (standard boom)1300 (Long Boom) |
| Maximum breakout force (kN) | ≥179 |
| Total cycle time (s) | 11.8 |
| Engine | |
| Engine model | WD10 |
| Rated power/rated speed (kW/rpm) | 175/2200 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 8635*3072*3548 |
| Driving performance | |
| Forward speed (km/h) | F1:0-8;F2:0-15; F3:0-24; F4:0-38 |
| Reversing speed (km/h) | R1:0-8;R2:0-15; R3:0-24; R4:0-38 |
| Chassis System | |
| Wheelbase (mm) | 3400 |
| Tank capacity | |
| Fuel tank (L) | 230 |
| Working device | |
| Rated bucket capacity (m³) | 3.5 |
| Rated loading capacity (t) | 6 |
