Product Description

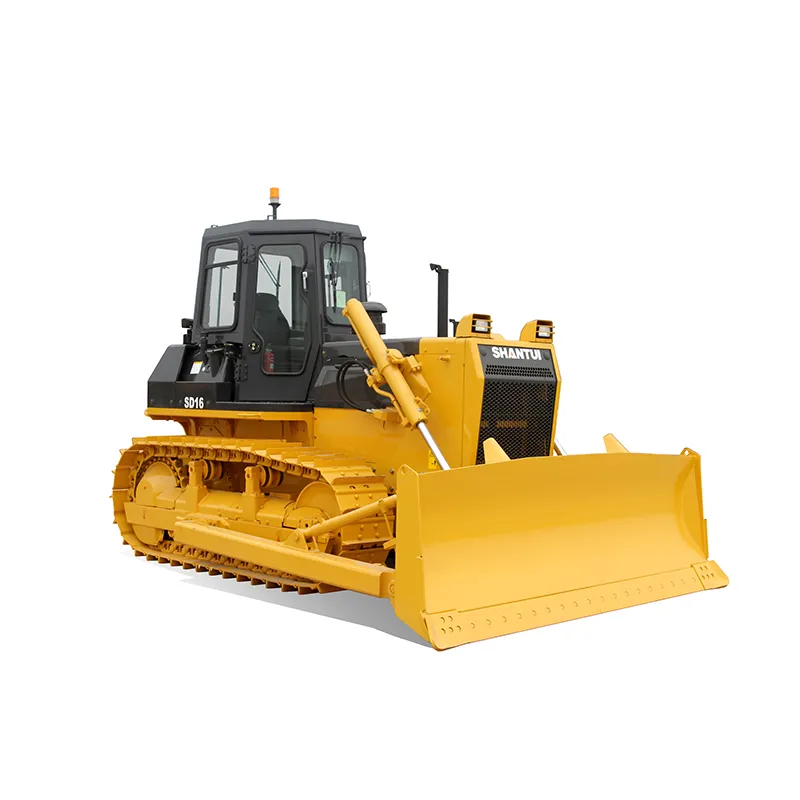

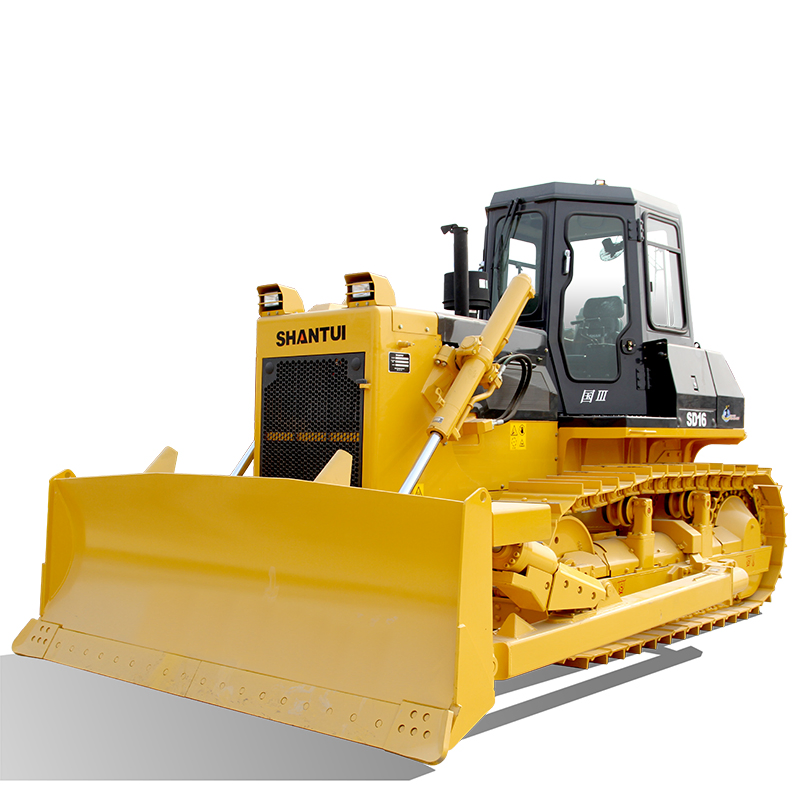

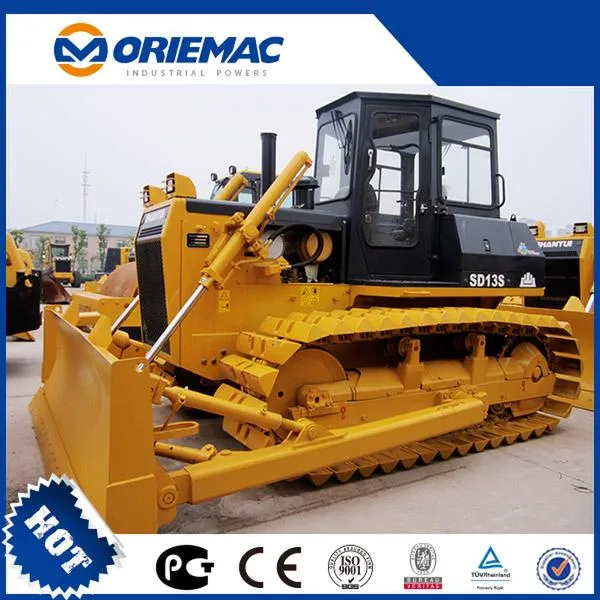

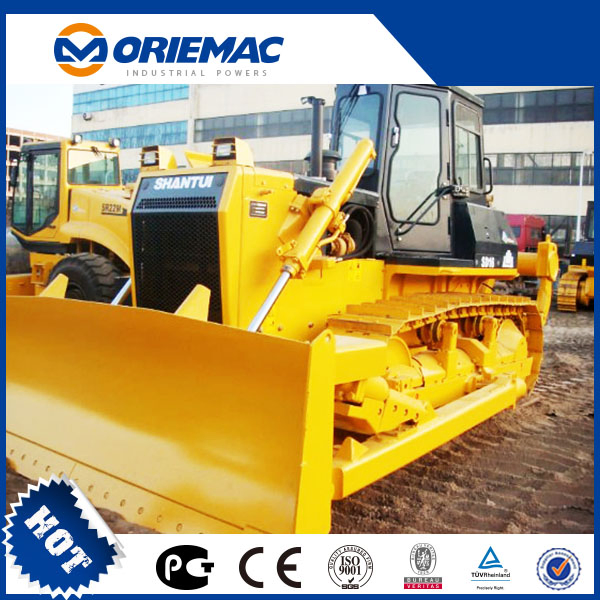

Shantui Bulldozer price SD16C mini Bulldozer tractor
Fratures:
The SD16 -3 (CE) bulldozer was developed by Shantui to meet the strict emission requirements in Europe. With an imported engine and a hydraulic control fan, the machine is equipped with a mechanical drive system with hydraulic control technology and an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 the ideal construction machine for earth moving projects.
Paratemers:

ITEM	UNIT	SD16C
L×W×H (Ripper not included)	mm	5500×3900×3100
Operating weight (Ripper not included)	t	16.8
Engine	-	Shangchai SC11CB184G2B1/ Weichai WD10G178E25
Rated power	kW/rpm	120/1850
Gradeability	°	30
Blade type	-	U blade
Blade width	mm	3900×1200
Dozing capacity	m3	5
Ma× drop below ground of blade	mm	530
Lift height of blade	mm	1095
Ripper type	-	Three-shank ripper
Ripping depth of ripper	mm	572
Lifting height of ripper	mm	592
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	6
Number of track shoes (each side)	-	37
Width of track shoe	mm	610
Track gauge	mm	1880
Ground length and ground pressure	mm/MPa	2430-0.056
Pitch	mm	203.2
Forward speed	km/h	0-3.29
		0-5.82
		0-9.63
Reverse speed	km/h	0-4.28
		0-7.59
		0-12.53

This is Eileen, the sales supervisor from Oriemac International Holding Ltd. Our company is specializing on selling various kinds of construction machinery.

As authorized dealer, we specialized in exporting all kinds of constructions made by Chinese famous factory, like SDLG,CHANGLIN,FOTON,LIUGONG,CHENGGONG. Our productions include Truck and special Vehicle, Earthmoving Machinery, Road construction machinery, concrete machinery, drilling machinery, logistics machinery, Mining Machinery, Agricultural Machinery,Spare parts, ungrouped. Our company website is oriemac.en.made-in-china.com
